Physical origin investigation of the flatband voltage roll off for metal-oxide-semiconductor device with high-k/metal gate structure

Kai Han1, , Xiaolei Wang2 and Wenwu Wang2

+ Author Affiliations

 Corresponding author: Han Kai, hankai@wfu.edu.cn

DOI: 10.1088/1674-4926/36/9/094006

PDF

Abstract: The physical origin of the flatband voltage (VFB) roll off for a metal-oxide-semiconductor device with high-k/metal gate structure is studied from the viewpoint of energy band alignment at the high-k/Si interface because the thickness of SiO2 interlayer is thin enough to be ignored. The VFB roll off phenomenon is assigned to associate with the direct electron transfer between high-k and Si substrate. Quantitatively calculated simulation results based on this model are given considering different conditions.

Key words: high-k dielectric, band alignment, VFB roll off



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]

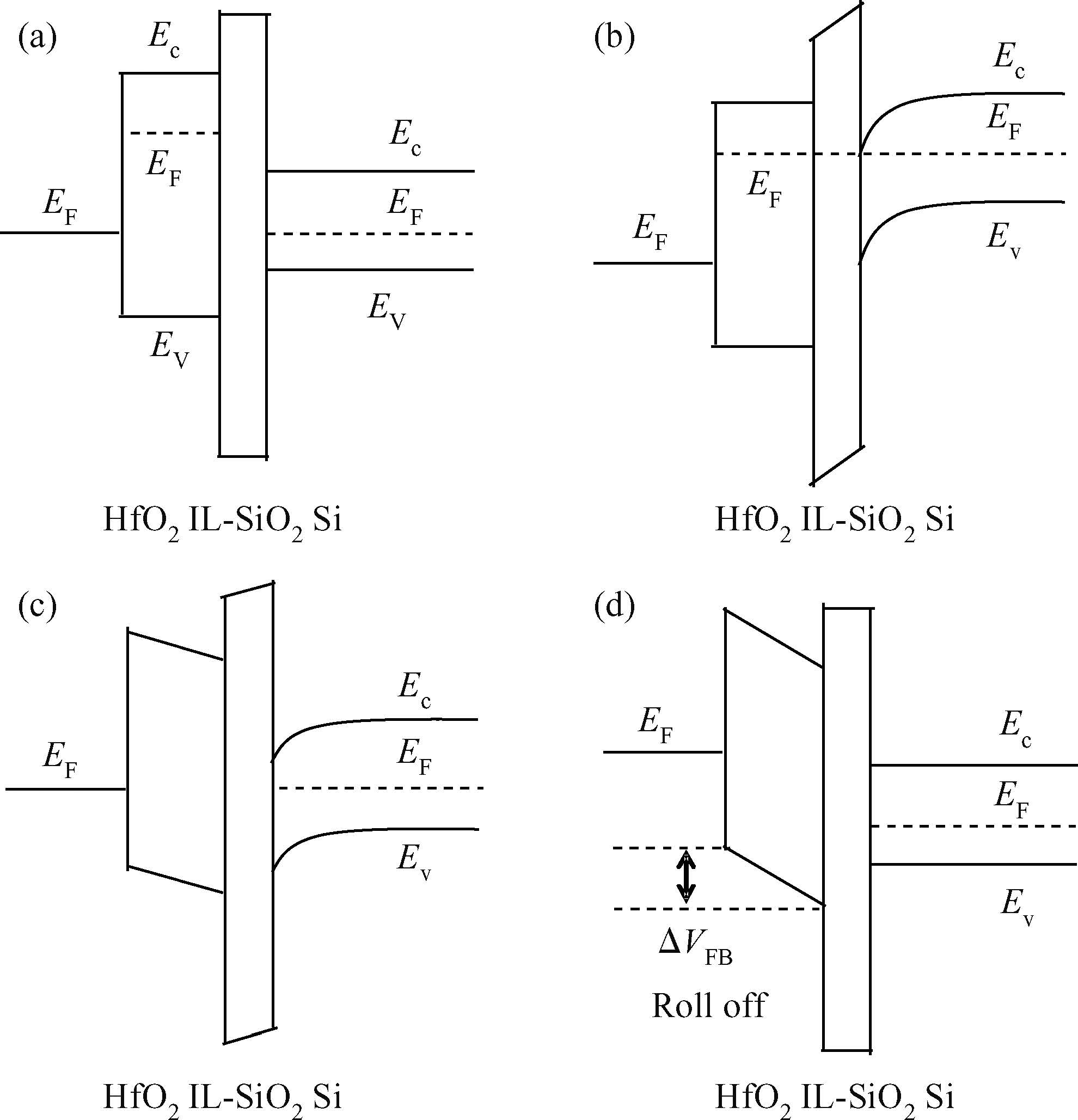

.  The schematic diagram of energy band structure for a metal/high-$k$/SiO$_{2}$/Si system.

Figure 1.

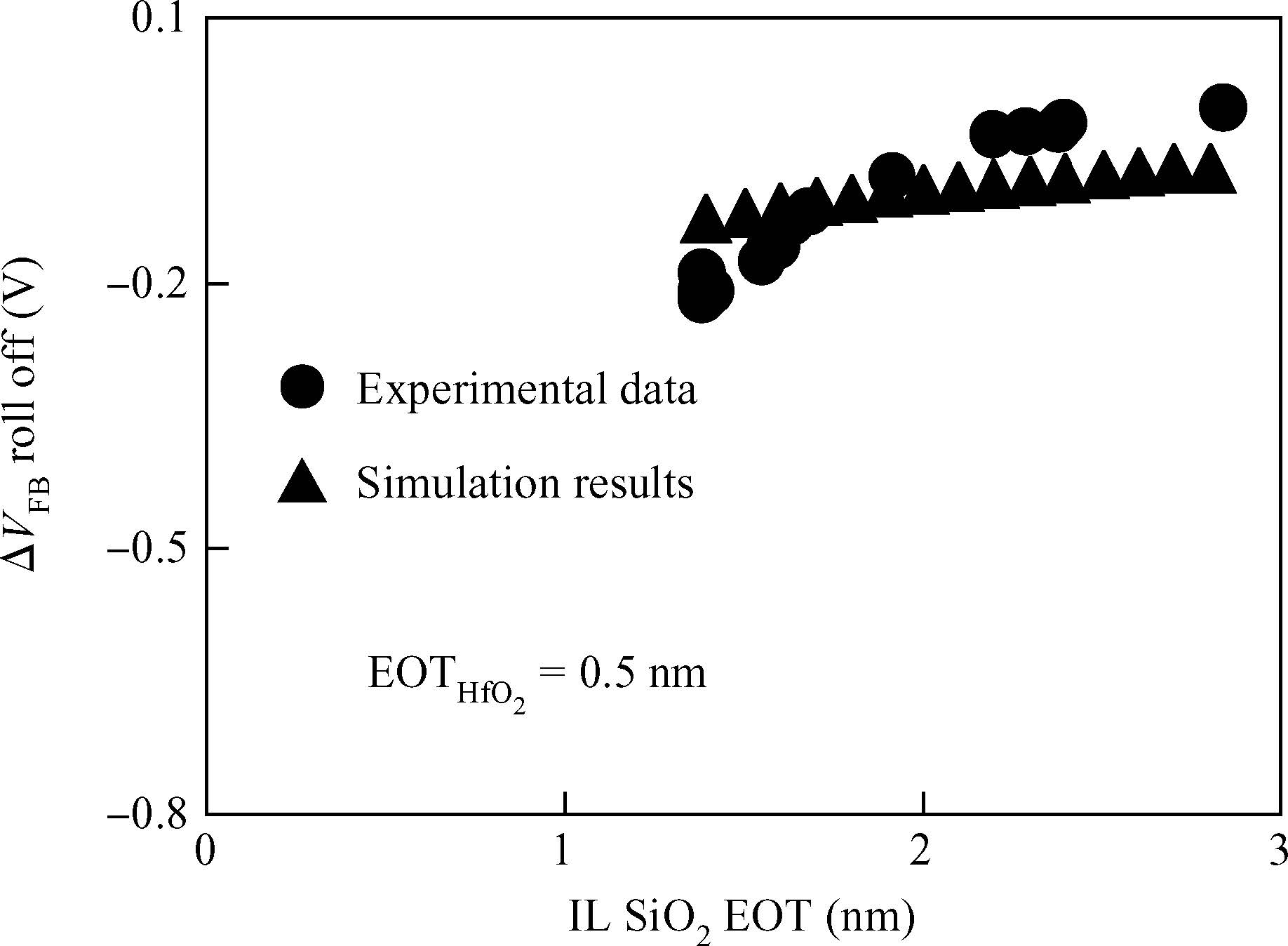

Fig. 2.  The $\Delta V_{\rm FB}$ roll off-EOT plots of the experimental and simulation results. The doping concentration of experimentally used n-Si substrate is 5 $\times$ 10$^{18}$ cm$^{-3}$.

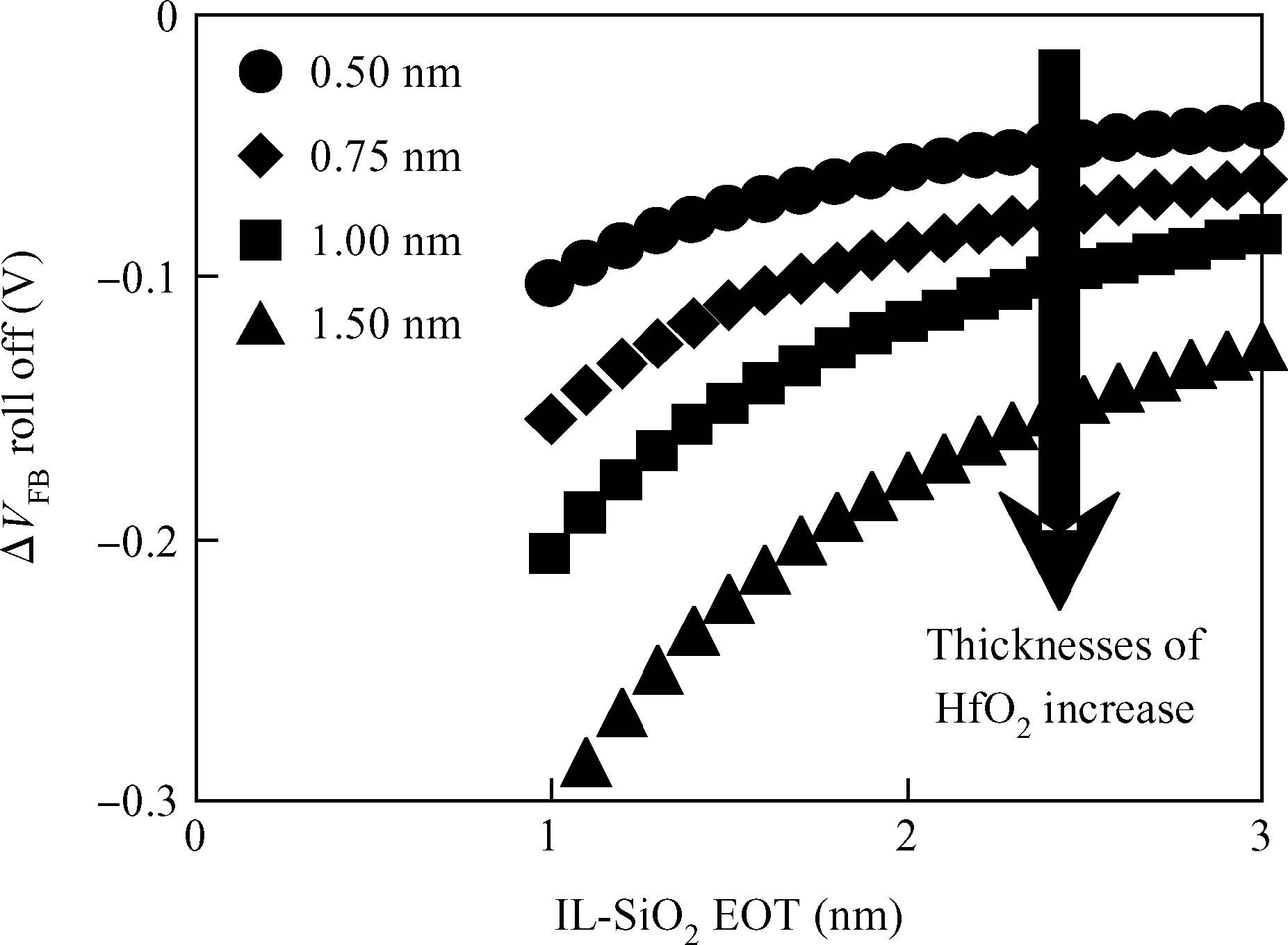

Fig. 3.  The simulated $\Delta V_{\rm FB}$ roll off-EOT plot for different thicknesses of high-$k$ dielectric.

Fig. 4.  The simulated $\Delta V_{\rm FB}$ roll off-EOT plot for different types of high-$k$ dielectrics.

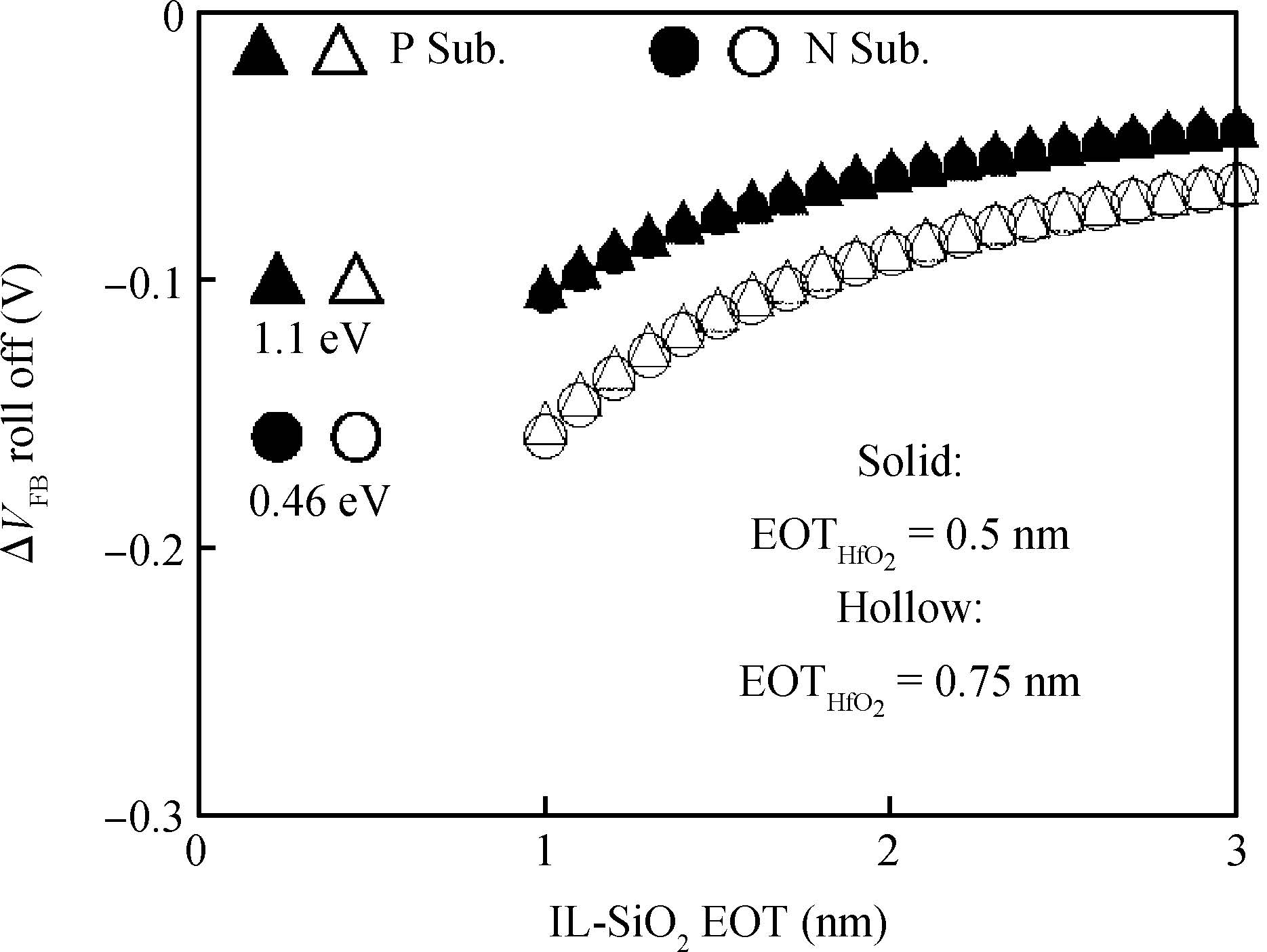

Fig. 5.  The simulated $\Delta V_{\rm FB}$ roll off-EOT plot for different doping type of Si substrate. The corresponding differences of the Fermi levels used in the simulation are simultaneously given.

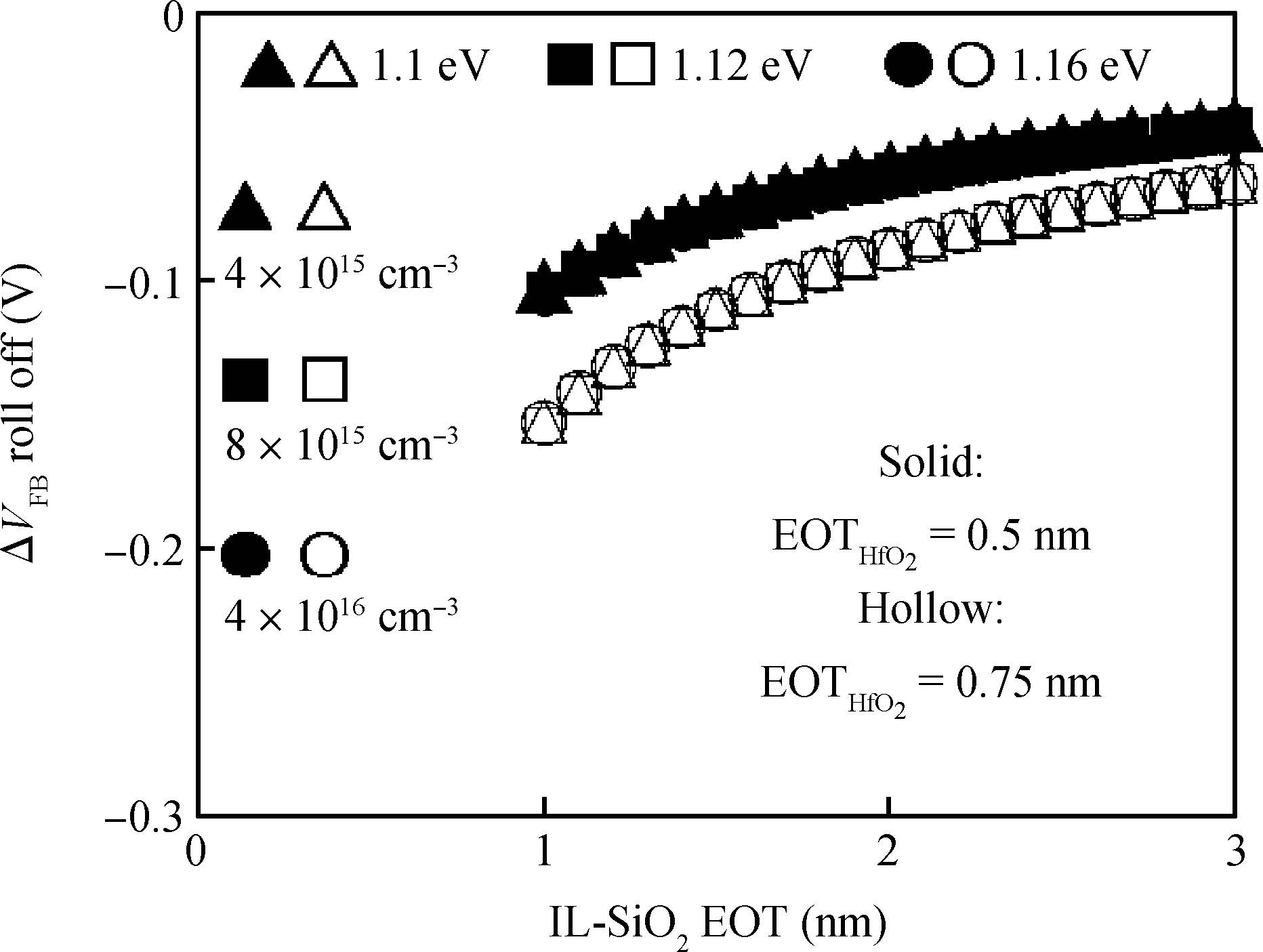

Fig. 6.  The simulated $\Delta V_{\rm FB}$ roll off-EOT plot for different doping concentration of Si substrate. The corresponding differences of the Fermi levels used in the simulation are simultaneously given at the top of the figure.
