J. Semicond. > 2015, Volume 36?>?Issue 9?> 092002

SEMICONDUCTOR PHYSICS

Polarization effects and tests for crystalline silicon solar cells

Weiming Lu, Zhigang Wang and Hui Hu

+ Author Affiliations

 Corresponding author: Lu Weiming, weiming.lu@etsolar.cn

DOI: 10.1088/1674-4926/36/9/092002

PDF

Abstract: We try to find a fast and simple potential induced degradation effect (PID) test procedure for solar cells. With sodium chloride (NaCl) solution as Na+ source, PVB as lamination material, we can carry out the test for solar cells in 1 h. Solar cells with newly developed PID resistance process were also tested. The increase of reverse current of solar cells can be considered a key standard to determine if the solar cell was prone to PID. Moreover, it showed that the increase of reverse current for the PID resistance solar cell was less than 2. In addition, the test results of the solar cells fitted very well with that of the modules by standard procedure.

Key words: crystalline silicon solar cells, potential induced degradation, rapid test



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
Fig1.  Schematic test setup with two-EVA laminates and a crystalline silicon cell in between. The outside surface of the front EVA has been equipped with copper foil. The foil and the cell's contacts have been connected to a laboratory DC power supply and have been stressed with a voltage of $-600$~V at 85 $^\circ C$ at 85% RH.

Fig2.  Electroluminescence images of the solar cell laminated by EVA (a) before and (b) after the test. Electroluminescence images of the solar cell laminated by PVB (c) before and (d) after the test.

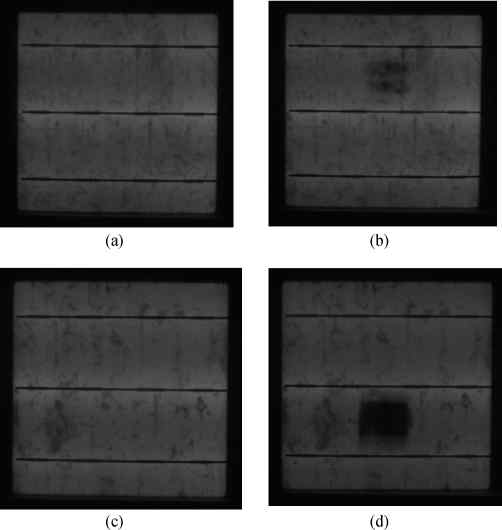

Fig3.  Electroluminescence images of the solar cell painted by 5% NaCl solution (a) before and (b) after the test. Electroluminescence images of the solar cell painted by 20% NaCl solution (c) before and (d) after the test.

Fig4.  Electroluminescence images of the solar cell with silicon nitride layer featuring a refraction index of 2.08 (a) before and (b) after the test.

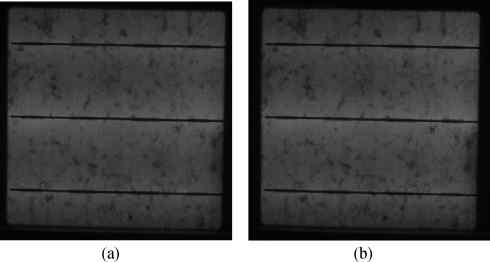

Fig5.  Electroluminescence images of the solar cell with silicon nitride layer featuring a refraction index of 2.12 (a) before and (b) after the test.

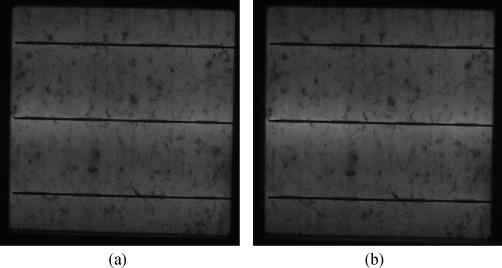

Fig6.  Electroluminescence images of the solar cell with silicon nitride layer featuring a refraction index of 2.14 (a) before and (b) after the test.

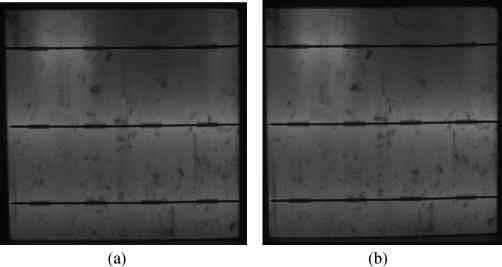

Fig7.  Electroluminescence images of the solar cell with SiO$_{2}$ film deposited by PECVD (a) before and (b) after the test.

Fig8.  Electroluminescence images of the solar cell with SiO$_{2}$ grown by ozone (a) before and (b) after the test.

Table 1.   The electrical parameters of the solar cell with silicon nitride layer featuring a refraction index of 2.08 before and after the test.

DownLoad: CSV

Table 2.   The electrical parameters of the solar cell with silicon nitride layer featuring a refraction index of 2.12 before and after the test.

DownLoad: CSV

Table 3.   Electrical parameters of the solar cell with silicon nitride layer featuring a refraction index of 2.14 before and after the test.

DownLoad: CSV

Table 4.   Electrical parameter of the solar cell with SiO$_{2}$ film deposited by PECVD before and after the test.

DownLoad: CSV

Table 5.   Electrical parameter of the solar cell grown by ozone before and after the test.

DownLoad: CSV

Table 6.   Power losses of the modules fabricated by solar cells with various processes after PID test.

DownLoad: CSV
