J. Semicond. > 2015, Volume 36?>?Issue 12?> 123008

SEMICONDUCTOR MATERIALS

Preparation, electronic structure, and photoluminescent properties of Eu2+ activated BaSi2O5 powder phosphors for solid-state lighting

Donghua Cao, Hui Wang, Hongjun Wei and Weiqiang Yang

+ Author Affiliations

 Corresponding author: Wang Hui,Email:15613925832@163.com

DOI: 10.1088/1674-4926/36/12/123008

PDF

Abstract: The green-emitting phosphor BaSi2O5:Eu2+ was synthesized by the conventional solid state reaction. Using the CASTEP code, BaSi2O5 is calculated to be an intermediate band gap semiconductor with an indirect energy gap of about 3. 2 eV. As expected, the calculated optical band gap of BaSi2O5 is lower compared to the experimentally determined values. Eu2+-activated BaSi2O5 phosphor can be excited efficiently over a broad spectral range between 200 and 400 nm, and has an emission peak at 500 nm with a full width at half maximum of 95 nm. The study of concentration-dependent emission intensity shows the optimal concentration of the Eu2+ is 0.05 mol, and that concentration quenching occurs when the Eu2+ content is beyond the critical value. The external quantum efficiency of the optimized BaSi2O5:Eu2+ is 96. 1%, 70. 2% and 62. 1% under excitation at 315, 350 and 365 nm, respectively. The superior optical properties of the sample show the potential as an ultraviolet converting green-emitting phosphor for white light emitting diodes.

Key words: light emitting diode, the green-emitting phosphor BaSi2O5, Eu2+



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]

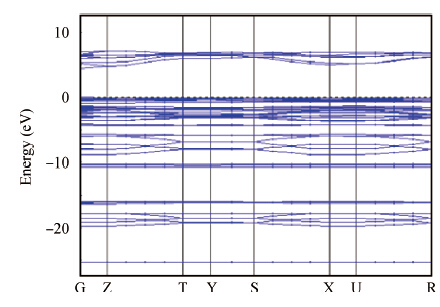

Fig. 1.  Band structure of host lattice BaSi2O5.

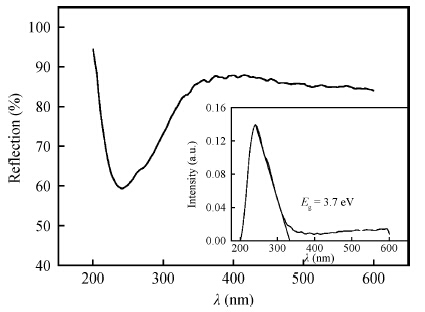

Fig. 2.  Diffuse reflection spectrum of the host lattice BaSi2O5. The inset shows the absorption spectrum as calculated by the Kubelka- Munk function.

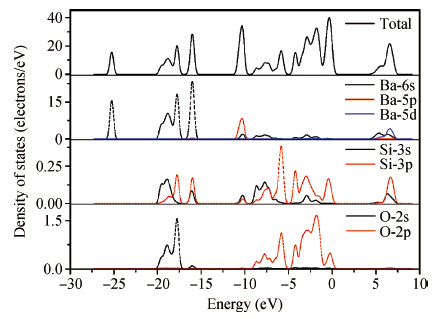

Fig. 3.  (Color online) Total and partial density of states of

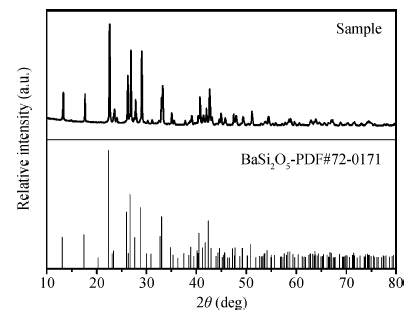

Fig. 4.  XRD profile for BaSi2O5:0.05Eu2+ phosphor.

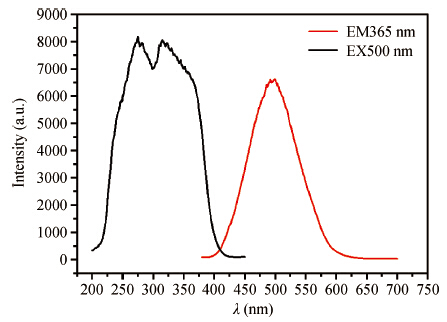

Fig. 5.  Excitation and emission spectra for BaSi2O5:0.05Eu2+.

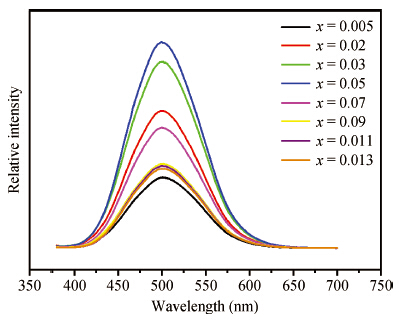

Fig. 6.  (Color online) Emission spectra of BaSi2O5:Eu2+ at different Eu2+ concentrations.

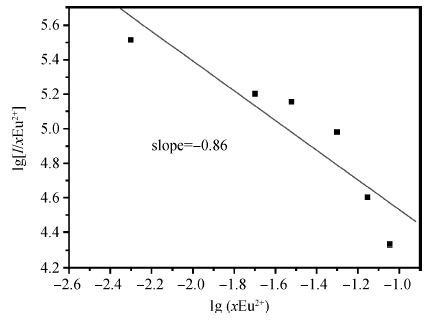

Fig. 7.  Plot of lg(xEu2+) versus lg(I/xEu2+) in the BaSi2O5:xEu2+ samples (λex=365 nm).

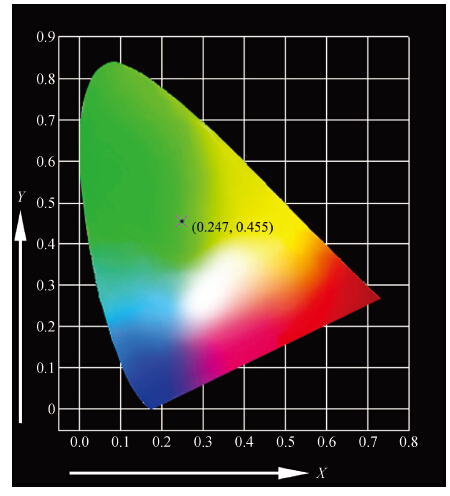

Fig. 8.  (Color online) CIE chromaticity diagram for the composition-optimal BaSi2O5:0.05Eu2+ phosphor.

Table 1.   Crystal lattice constants for BaSi2O5 crystal.
