J. Semicond. > 2024, Volume 45?>?Issue 2?> 022301

ARTICLES

Controllable thermal rectification design for buildings based on phase change composites

Hengbin Ding1, Xiaoshi Li1, Tianhang Li2, Xiaoyong Zhao2 and He Tian1,

+ Author Affiliations

 Corresponding author: He Tian, tianhe88@tsinghua.edu.cn

DOI: 10.1088/1674-4926/45/2/022301

PDF

Turn off MathJax

Abstract: Phase-change material (PCM) is widely used in thermal management due to their unique thermal behavior. However, related research in thermal rectifier is mainly focused on exploring the principles at the fundamental device level, which results in a gap to real applications. Here, we propose a controllable thermal rectification design towards building applications through the direct adhesion of composite thermal rectification material (TRM) based on PCM and reduced graphene oxide (rGO) aerogel to ordinary concrete walls (CWs). The design is evaluated in detail by combining experiments and finite element analysis. It is found that, TRM can regulate the temperature difference on both sides of the TRM/CWs system by thermal rectification. The difference in two directions reaches to 13.8 K at the heat flow of 80 W/m2. In addition, the larger the change of thermal conductivity before and after phase change of TRM is, the more effective it is for regulating temperature difference in two directions. The stated technology has a wide range of applications for the thermal energy control in buildings with specific temperature requirements.

Key words: phase change composites, controllable thermal rectification, building applications



[1]
Zhen M, Zou W H, Zheng R, et al. Urban outdoor thermal environment and adaptive thermal comfort during the summer. Environ Sci Pollut Res, 2022, 29, 77864 doi: 10.1007/s11356-022-21162-5
[2]
Ulutas A, Balo F, Topal A. Identifying the most efficient natural fibre for common commercial building insulation materials with an integrated PSI, MEREC, LOPCOW and MCRAT model. Polymers, 2023, 15, 1500 doi: 10.3390/polym15061500
[3]
Henry A, Prasher R, Majumdar A. Five thermal energy grand challenges for decarbonization. Nat Energy, 2020, 5, 635 doi: 10.1038/s41560-020-0675-9
[4]
Li Y, Li W, Han T C, et al. Transforming heat transfer with thermal metamaterials and devices. Nat Rev Mater, 2021, 6, 488 doi: 10.1038/s41578-021-00283-2
[5]
Chang C W, Okawa D, Majumdar A, et al. Solid-state thermal rectifier. Science, 2006, 314, 1121 doi: 10.1126/science.1132898
[6]
Wang H D, Hu S Q, Takahashi K, et al. Experimental study of thermal rectification in suspended monolayer graphene. Nat Commun, 2017, 8, 15843 doi: 10.1038/ncomms15843
[7]
Yousefzadi Nobakht A, Ashraf Gandomi Y, Wang J Q, et al. Thermal rectification via asymmetric structural defects in graphene. Carbon, 2018, 132, 565 doi: 10.1016/j.carbon.2018.02.087
[8]
Yang H Y, Tang Y Q, Liu Y, et al. Thermal conductivity of graphene nanoribbons with defects and nitrogen doping. React Funct Polym, 2014, 79, 29 doi: 10.1016/j.reactfunctpolym.2014.03.006
[9]
Zhang Y F, Lv Q A, Wang H D, et al. Simultaneous electrical and thermal rectification in a monolayer lateral heterojunction. Science, 2022, 378, 169 doi: 10.1126/science.abq0883
[10]
Zhong W R, Huang W H, Deng X R, et al. Thermal rectification in thickness-asymmetric graphene nanoribbons. Appl Phys Lett, 2011, 99, 193104 doi: 10.1063/1.3659474
[11]
Liu H X, Wang H D, Zhang X. A brief review on the recent experimental advances in thermal rectification at the nanoscale. Appl Sci, 2019, 9, 344 doi: 10.3390/app9020344
[12]
Swoboda T, Klinar K, Yalamarthy A S, et al. Thermal control devices: Solid-state thermal control devices. Adv Elect Materials, 2021, 7 doi: 10.1002/aelm.202170008
[13]
Dames C. Solid-state thermal rectification with existing bulk materials. J Heat Transf, 2009, 131, 1 doi: 10.1115/1.3089552
[14]
Zhao J N, Wei D, Gao A Q, et al. Thermal rectification enhancement of bi-segment thermal rectifier based on stress induced interface thermal contact resistance. Appl Therm Eng, 2020, 176, 115410 doi: 10.1016/j.applthermaleng.2020.115410
[15]
Tian H, Xie D, Yang Y, et al. A novel solid-state thermal rectifier based on reduced graphene oxide. Sci Rep, 2012, 2, 523 doi: 10.1038/srep00523
[16]
Aftab W, Huang X Y, Wu W H, et al. Nanoconfined phase change materials for thermal energy applications. Energy Environ Sci, 2018, 11, 1392 doi: 10.1039/C7EE03587J
[17]
Chen R J, Cui Y L, Tian H, et al. Controllable thermal rectification realized in binary phase change composites. Sci Rep, 2015, 5, 8884 doi: 10.1038/srep08884
[18]
Chen L J, Zou R Q, Xia W, et al. Electro- and photodriven phase change composites based on wax-infiltrated carbon nanotube sponges. ACS Nano, 2012, 6, 10884 doi: 10.1021/nn304310n
Fig. 1.  (Color online) (a) Schematic diagram of the directional heat transfer mechanism. (b) System schematic of TRM applied in building. (c) Evaluation framework of this work. (d) Schematic diagram of the thermoelectric coupling system in the simulation.

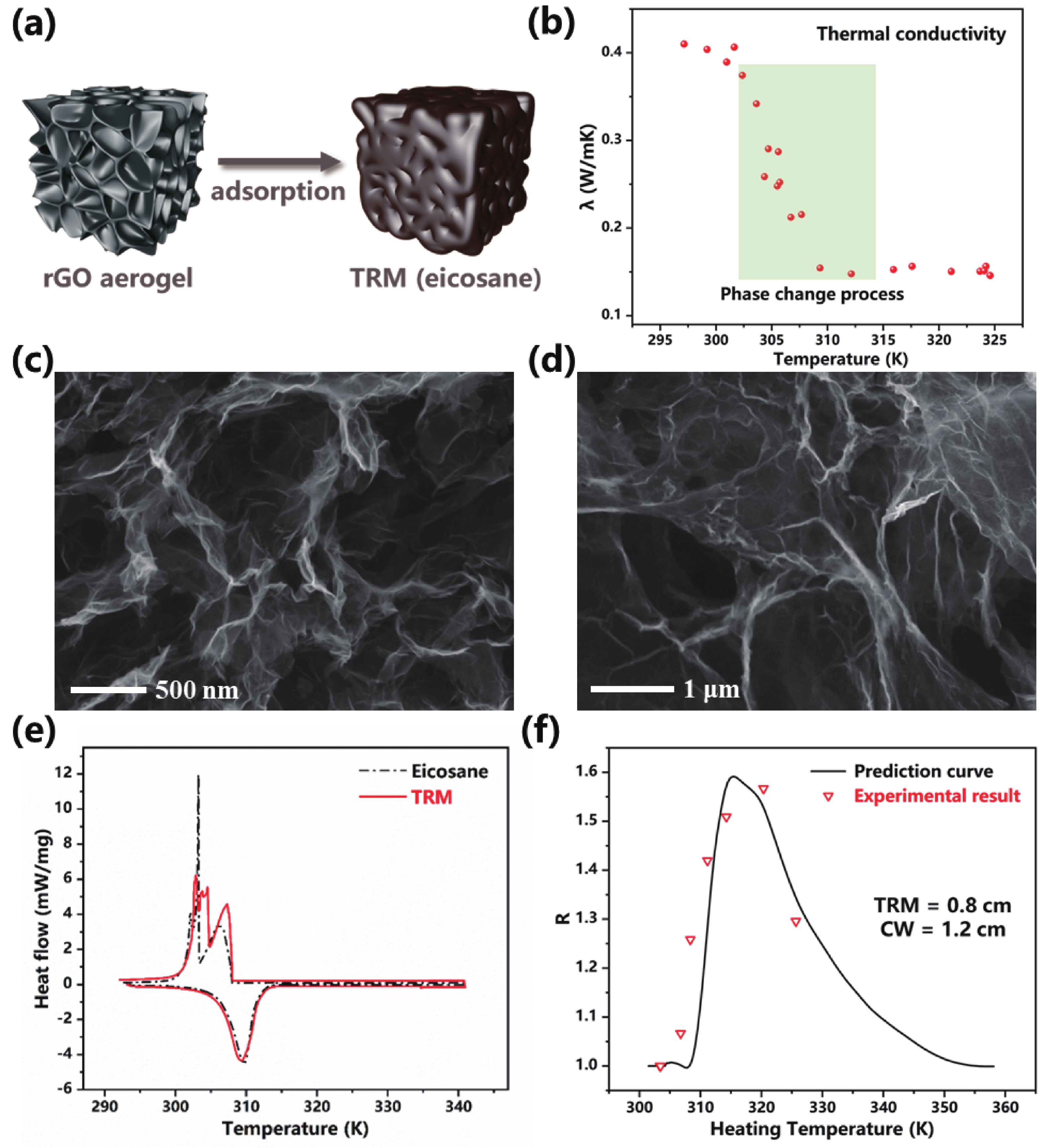

Fig. 2.  (Color online) (a) Structure schematic of composite TRM. (b) Thermal conductivity versus temperature curve of TRM. (c) SEM images of rGO aerogel skeleton. (d) SEM images of rGO aerogel filled with eicosanes. (e) DSC curves of eicosane and TRM. (f) Calibration of thermal rectification curves to experimental data. Experimental data are from a thermal rectification system with the CW thermal conductivity of 0.57 W/(m·K).

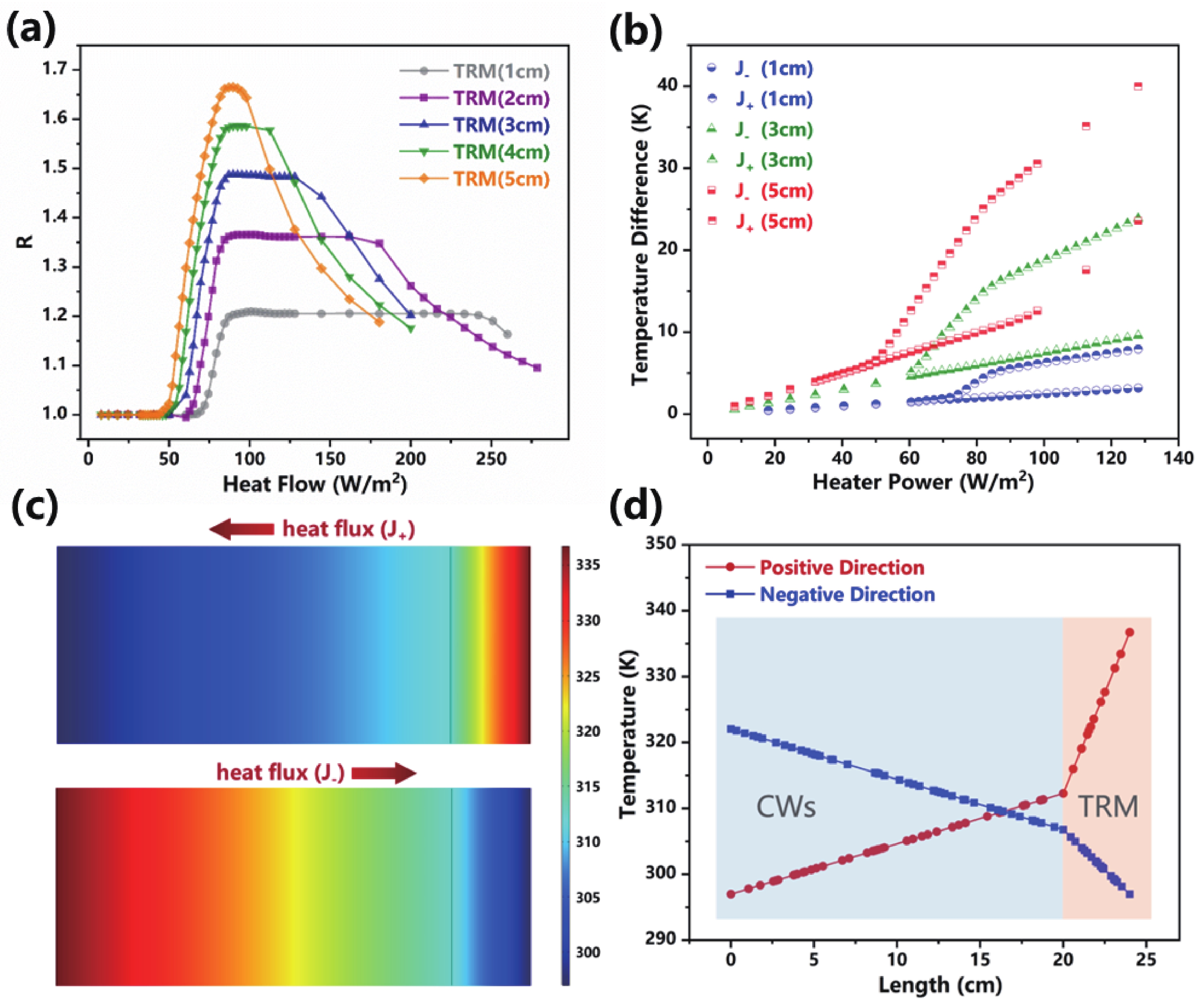

Fig. 3.  (Color online) Thermal rectification performance and mechanism in the TRM/CWs system. (a) Thermal rectification coefficient R vs. heat flow curves. The thickness of CWs is 20 cm, and the thickness of TRM is 1, 2, 3, 4, and 5 cm respectively. (b) Compared to pure CWs, temperature difference established on both sides of the TRM/CWs system vs. heater power (heat flow) curves in the J+ and J? directions. The thickness of TRM is 1, 3, and 5 cm respectively. Temperature distribution (c) and temperature curves (d) in the J+ and J? directions, where the heat flow is 98 W/m2.

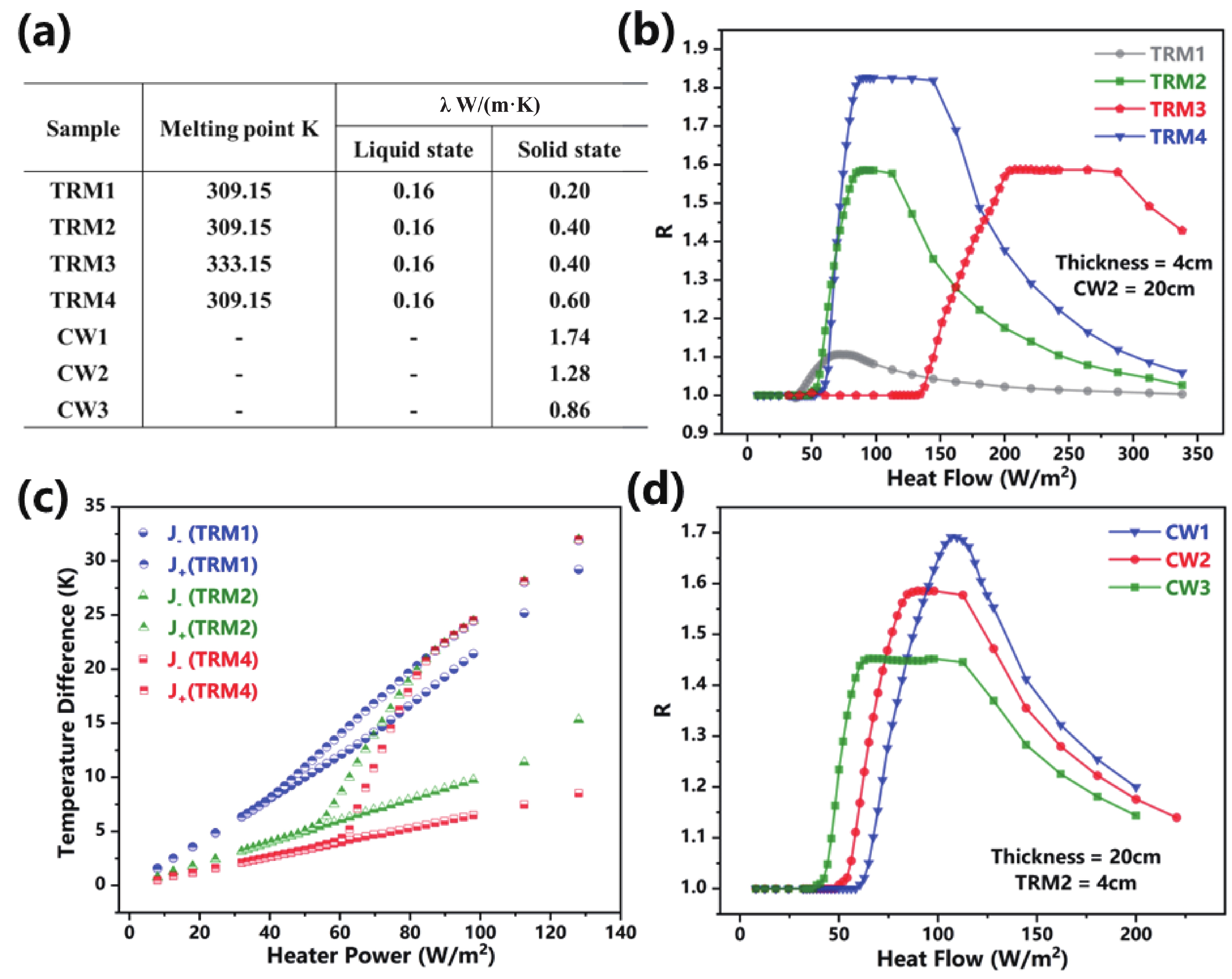

Fig. 4.  (Color online) Influence of physical properties of TRMs and CWs on R. (a) The physical properties of different TRM and CW in the simulation. (b) Thermal rectification coefficient R vs. heat flow curves for TRM (1?4). (c) Temperature difference established on both sides of the TRM/CWs system vs. heater power (heat flow) curves in the J+ and J? directions. (d) Thermal rectification coefficient R vs. heat flow curves for CW (1?3).

Table 1.   The relevant parameters used in this work.

Sample Melting point (K) Latent heat (J/g) λ* (W/(m·K)) Surface radiation ratio (%) Convection heat flux coefficient (W/(m2·K))
TRM 309.35 220.1 0.40/0.16 95 20
*: Thermal conductivity corresponds to the solid/liquid state of materials.
DownLoad: CSV

Table 2.   The comparison for temperature control performance of different thermal insulation materials.

Materials λ
(W/(m·K))		 Temperature difference (J?) (K) Temperature difference (J+) (K) R
Cement mortar 0.93 12.84 12.84 1
Foam concrete 0.18 24.56 24.56 1
Rock wool 0.045 67.81 67.81 1
rGO aerogel 0.0323 90.59 90.59 1
TRM4 0.60/0.16 17.66 30.28 1.71
DownLoad: CSV
