J. Semicond. > 2015, Volume 36?>?Issue 9?> 094011

SEMICONDUCTOR DEVICES

A novel PIN photodetector with double linear arrays for rainfall prediction

Yan Yao1, Xiong Liu1, Li Yuan2, Zhaohua Zhang1, and Tianling Ren2

+ Author Affiliations

 Corresponding author: Zhang Zhaohua, zhangzhaohua@binn.cas.cn;Ren Tianling, RenTL@tsinghua.edu.cn

DOI: 10.1088/1674-4926/36/9/094011

PDF

Abstract: A novel PIN (positive-intrinsic-negative) photodetector with double linear arrays that can be used to measure the diameter of precipitation particles and the space between two droplets in clouds is proposed. The sensitive unit is the PIN photodiode. The chip with a size of 10 × 8 mm2 has 128 photodiodes, and each row has 64 photodiodes. The device design, fabrication process and package are introduced in the paper. The photocurrent of the packaged chip was systematically tested with a red laser. Also the diameter of one water drop and the space between two water drops were measured. The minimum raindrop diameter which can be tested in this paper is 100μm. This device can be useful for rainfall prediction.

Key words: PIN, photodetector, double linear arrays, rainfall prediction



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]

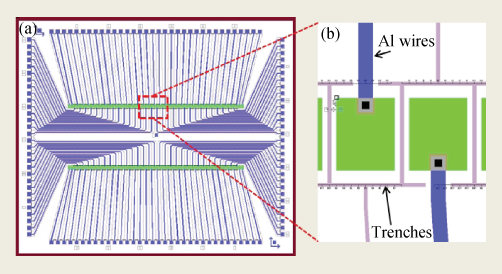

Fig. 1.  (Color online) Structure images of the device. (a) Layout of the chip. (b) Detailed drawing of the layout focusing on photodiodes.

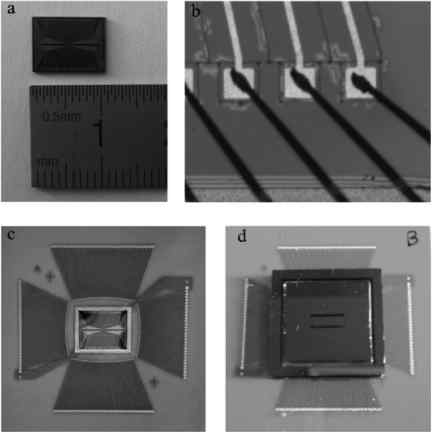

Fig. 3.  Package images of the device. (a) Photograph showing the single chip. (b) An enlarged view of the bonding. (c) A chip fixed on the PCB. (d) Photodetector photograph of the sealed chip.

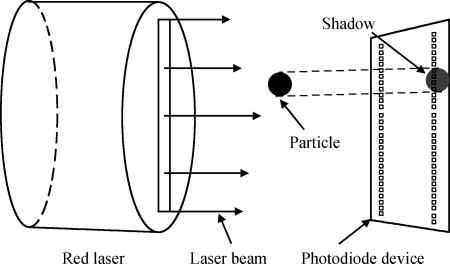

Fig. 4.  A schematic illustration of the diameter measurement for a particle.

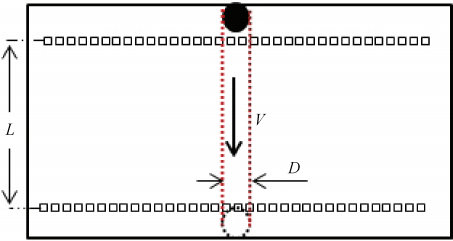

Fig. 5.  A schematic illustration of a particle passing through the photodetector.

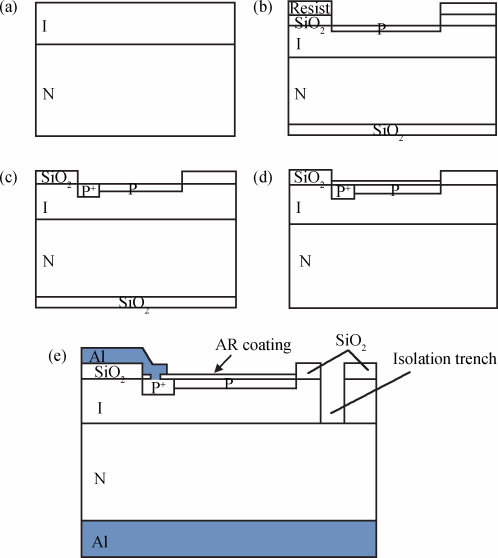

Fig. 2.  Fabrication process of the PIN photodiode. (a) The epitaxial wafer preparation. (b) Oxidation and low ion implantation. (c) High ion implantation. (d) Anti-reflection coating deposition. (e) Al electrode pole preparation and isolation trench etching.

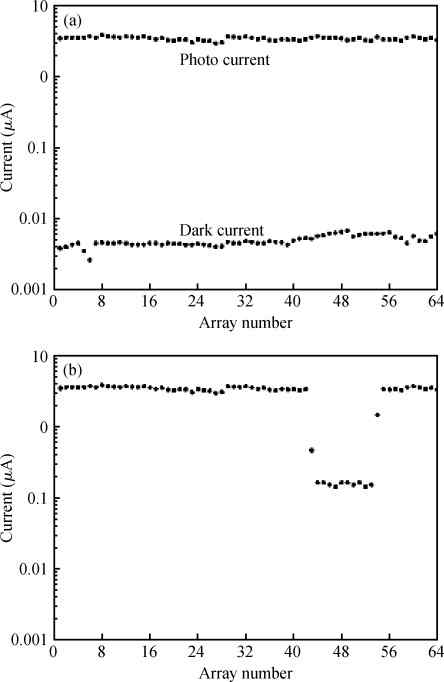

Fig. 6.  Measuring results of the diameter of a raindrop. (a) A comparison diagram of photocurrent and dark current for a row of photodiodes. (b) Diameter measurement for a water drop.

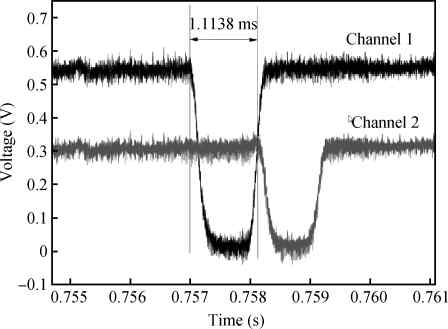

Fig. 7.  The time measurement of a water drop to pass the two rows of photodiodes.

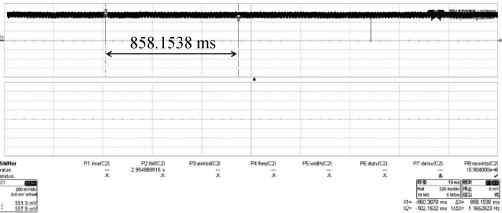

Fig. 8.  The time measurement for two water drops to pass a row of photodiodes.
