J. Semicond. > 2015, Volume 36?>?Issue 9?> 094002

SEMICONDUCTOR DEVICES

Design and fabrication of a 3.3 kV 4H-SiC MOSFET

Runhua Huang1, , Yonghong Tao2, Song Bai1, Gang Chen1, Ling Wang1, Ao Liu2, Neng Wei2, Yun Li1 and Zhifei Zhao1

+ Author Affiliations

 Corresponding author: Huang Runhua, huruhu@hotmail.com

DOI: 10.1088/1674-4926/36/9/094002

PDF

Abstract: A 4H-SiC MOSFET with breakdown voltage higher than 3300 V has been successfully designed and fabricated. Numerical simulations have been performed to optimize the parameters of the drift layer and DMOSFET cell structure of active area. The n-type epilayer is 33μm thick with a doping of 2.5 × 1015 cm-3. The devices were fabricated with a floating guard ring edge termination. The drain current Id = 5 A at Vg = 20 V, corresponding to Vd = 2.5 V.

Key words: 4H-SiC, MOSFET, interface state



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]

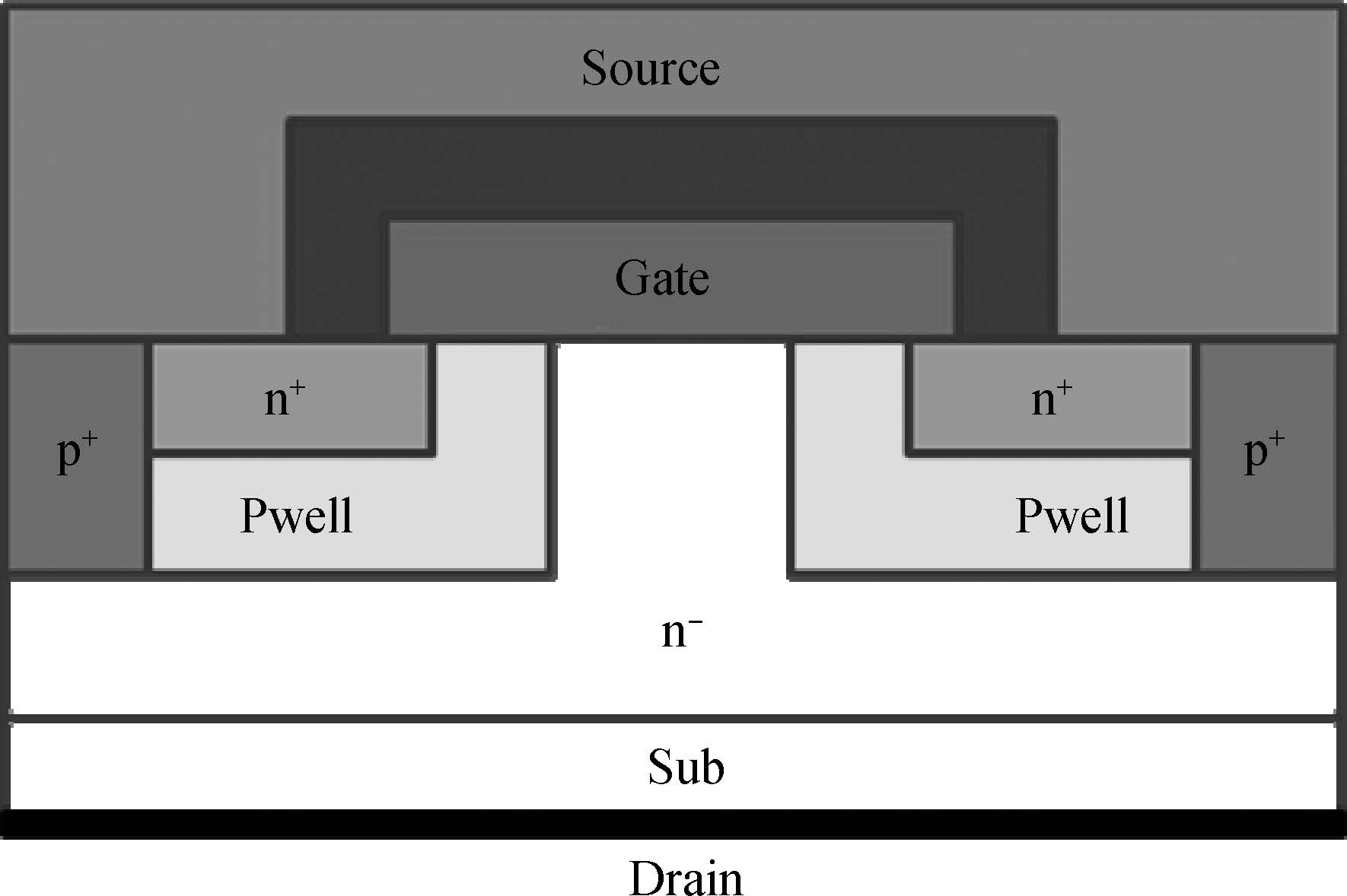

Fig. 1.  Schematic device cross-sectional view of a 3300 V 4H-SiC MOSFET unit cell.

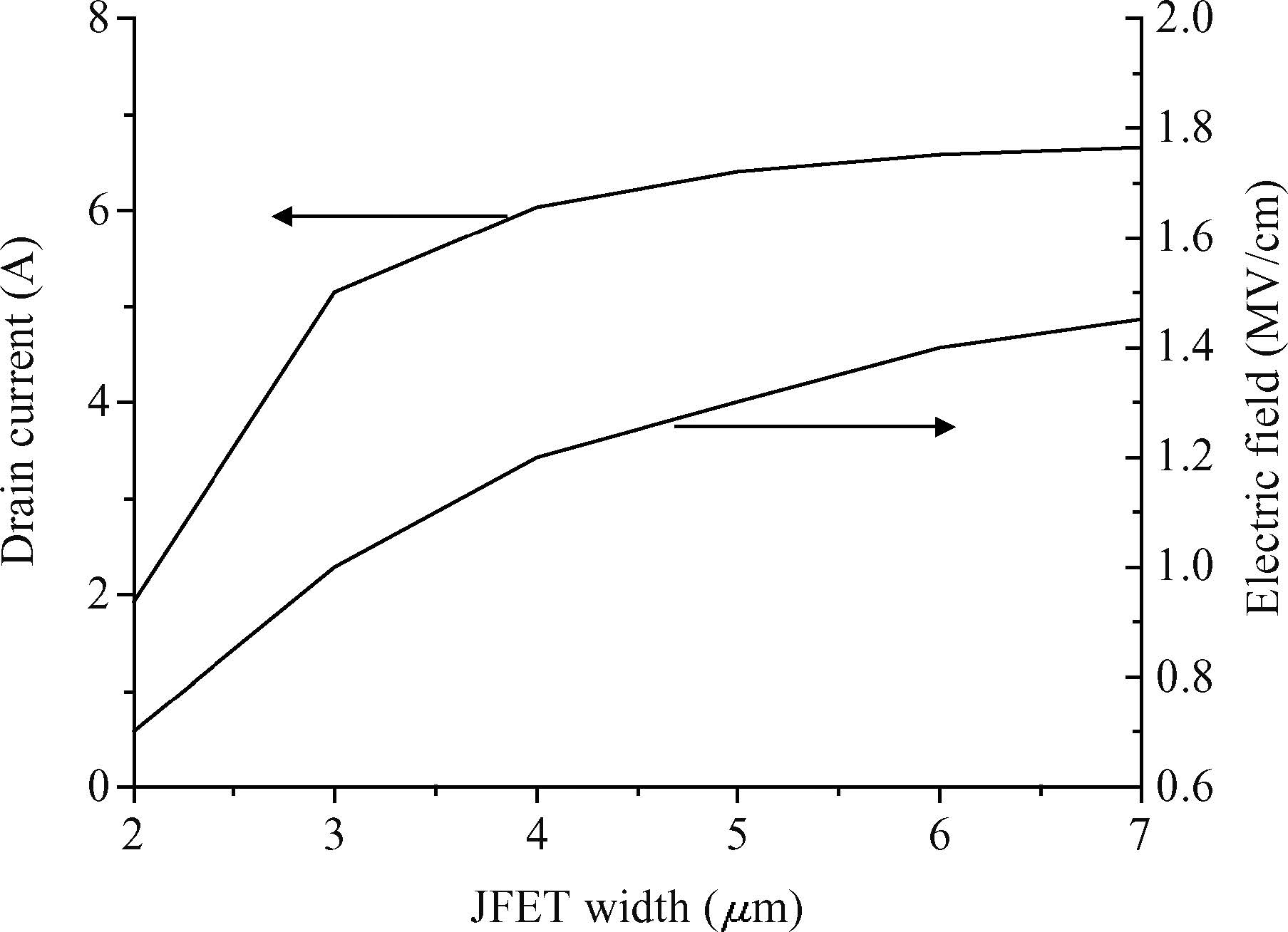

Fig. 2.  Drain current and electric field versus JFET width.

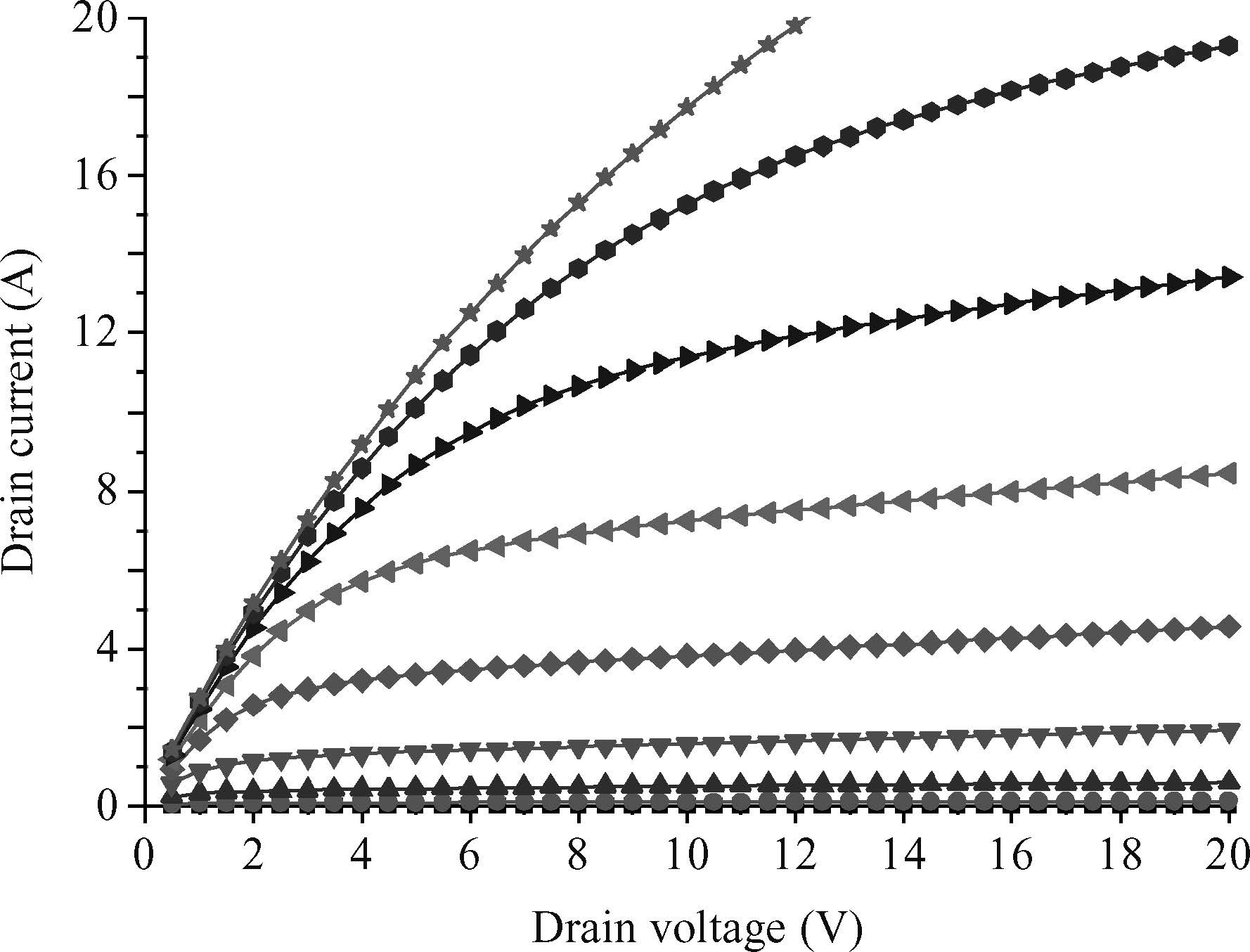

Fig. 3.  Drain family $I$-$V$ simulations of 4H-SiC DMOSFET.

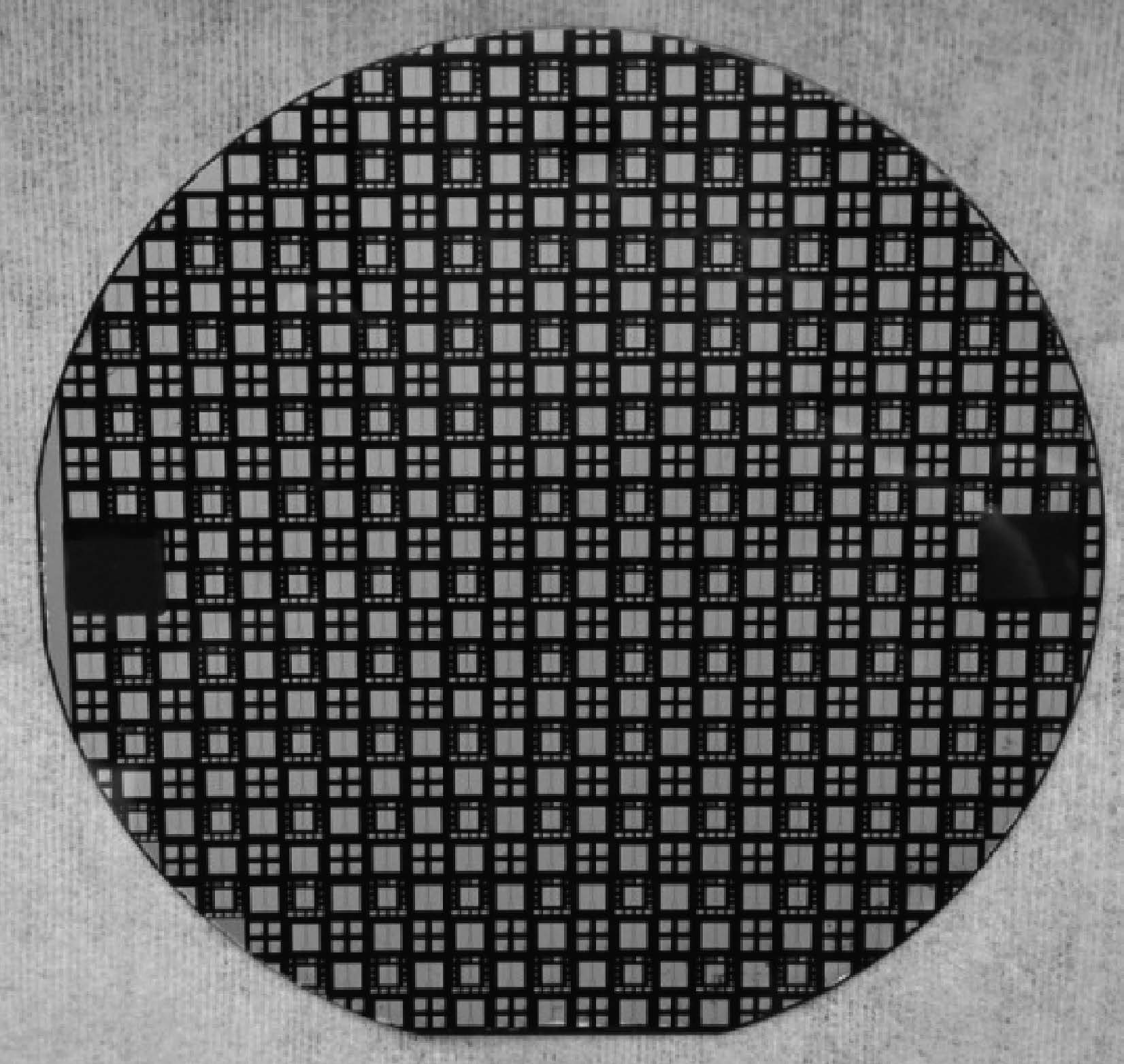

Fig. 4.  Fabricated 3300 V 4H-SiC MOSFET.

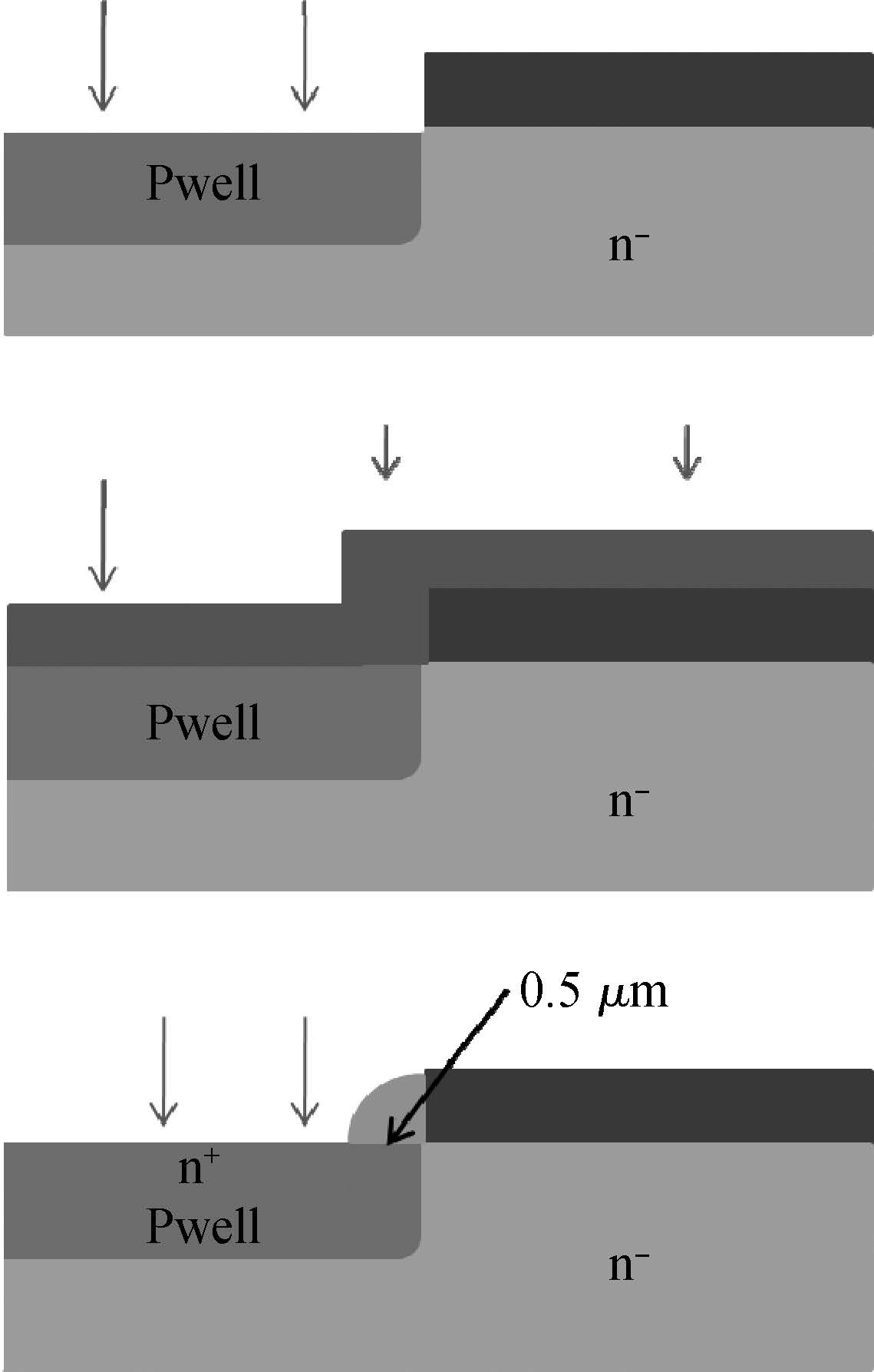

Fig. 5.  Flow of self-aligned implantation technique with second mask defined by sidewall.

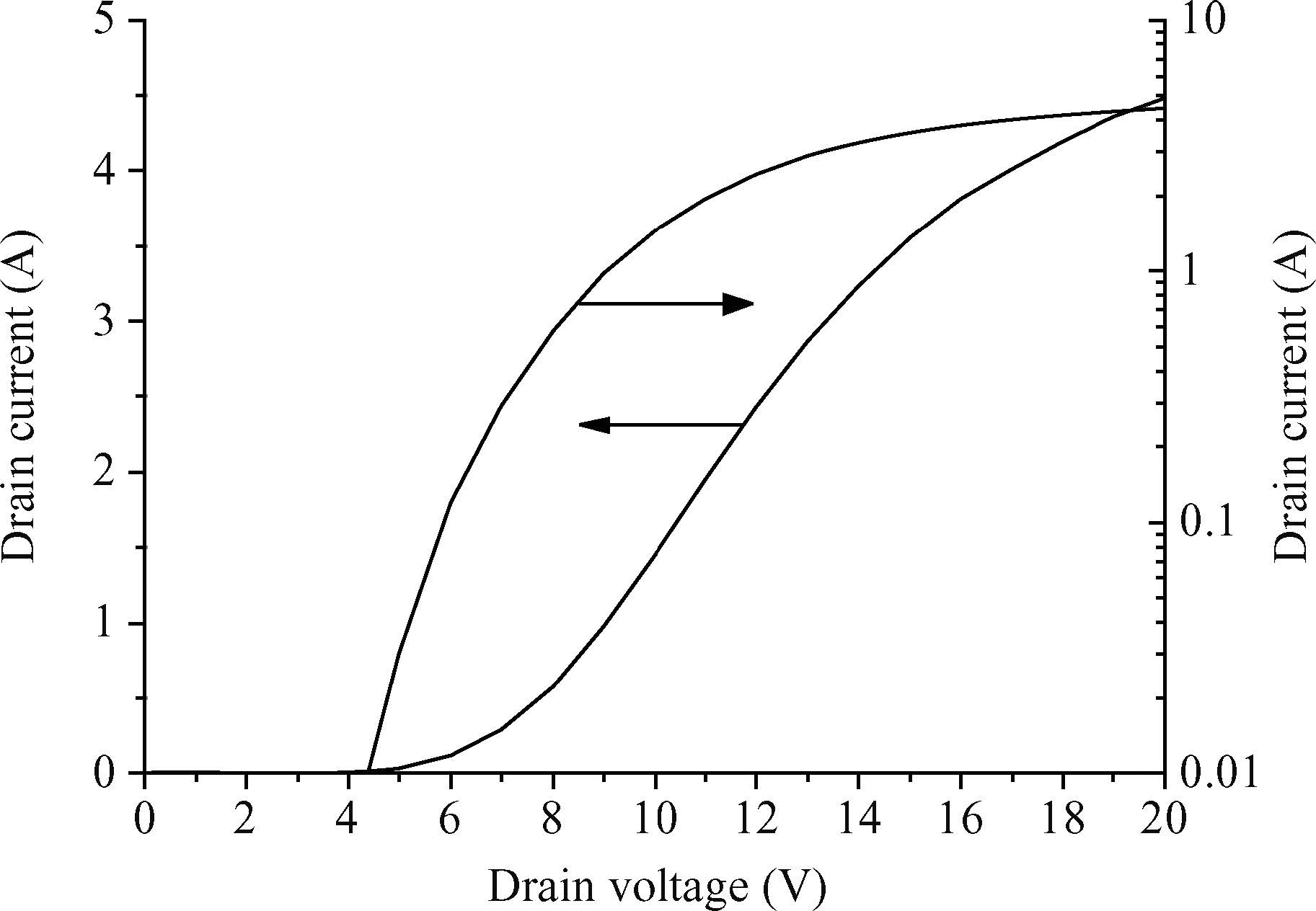

Fig. 6.  Transconductance characteristics of the 1200 V 4H-SiC MSOFET with active areas of 6.7 mm$^{2}$.

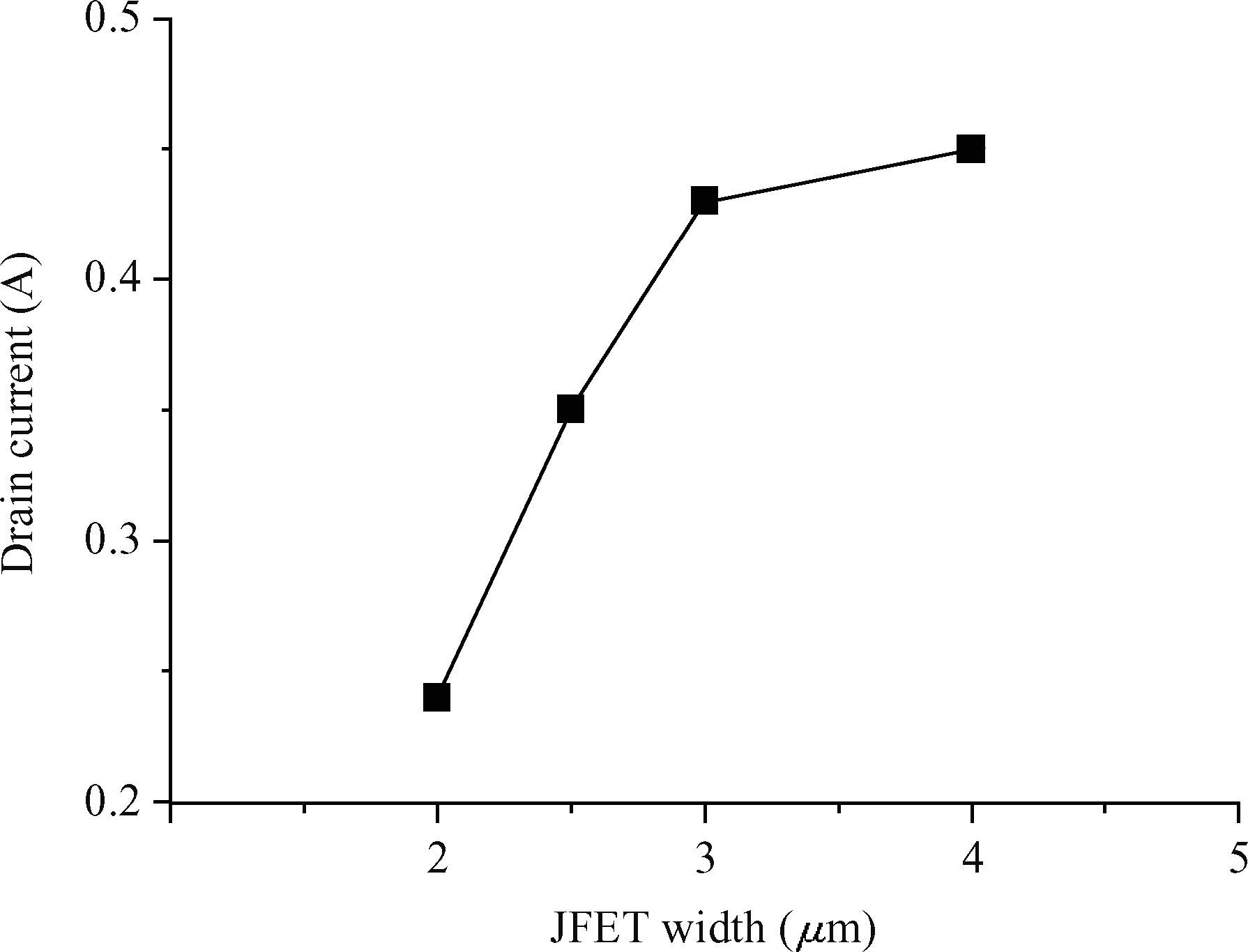

Fig. 7.  $I_{\rm D}$-$V_{\rm D}$ characteristics of the 3300 V 4H-SiC MSOFET (active area $=$ 0.6 mm$^{2})$.

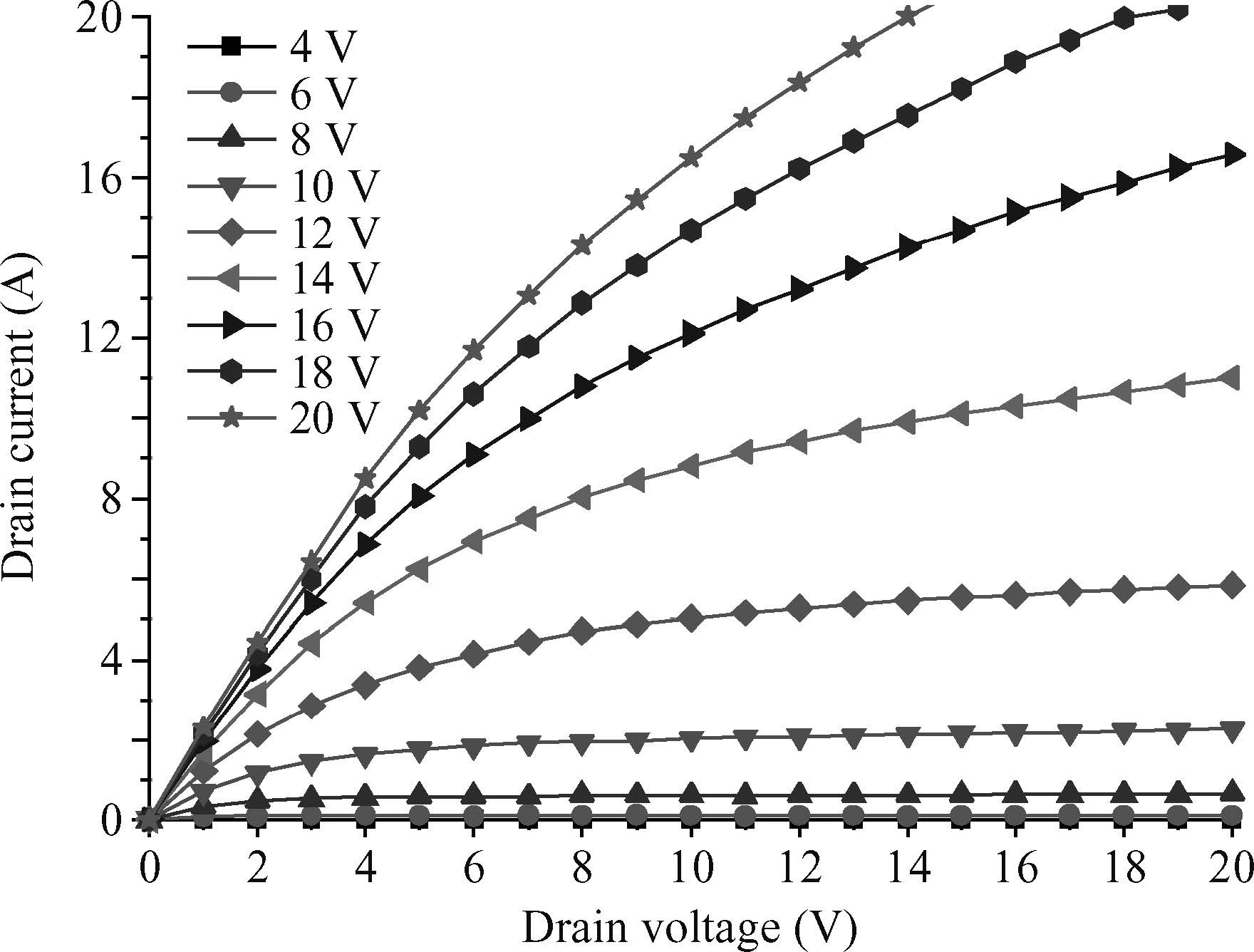

Fig. 8.  $I_{\rm D}$-$V_{\rm D}$ characteristics of the 3300 V 4H-SiC MSOFET (active area $=$ 6.7 mm$^{2})$.

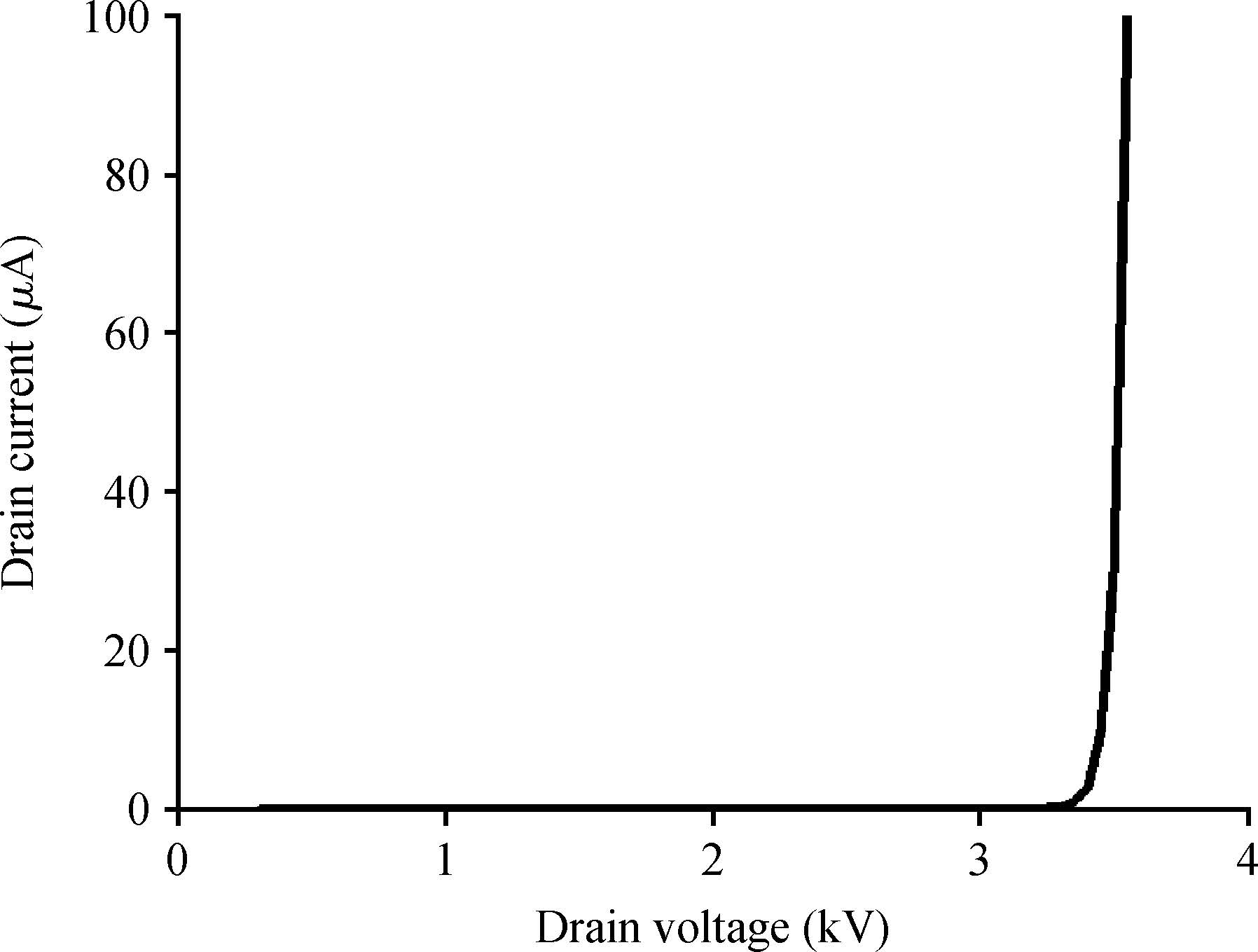

Fig. 9.  Blocking characteristics of the 6.7 mm$^{2}$ 3300 V MOSFET at $V_{\rm gs}$ $=$ 0 V.

Table 1.   Flow of self-aligned implantation technique with second mask defined by sidewall.
