The design and fabrication of a GaN-based monolithic light-emitting diode array

Teng Zhan, Yang Zhang, Jing Li, Jun Ma, Zhiqiang Liu, Xiaoyan Yi, Guohong Wang and Jinmin Li

+ Author Affiliations

 Corresponding author: Zhan Teng, Email:zhanteng10@semi.ac.cn

DOI: 10.1088/1674-4926/34/9/094010

PDF

Abstract: We report a new monolithic structure of GaN-based light-emitting diode (LED) which can be operated under high voltage or alternative current. Differing from the conventional single LED chip, the monolithic light-emitting diode (MLED) array contains microchips which are interconnected in series or parallel. The key chip fabrication processing methods of the monolithic LED array include deep dry etching, sidewall insulated protection, and electrode interconnection. A 12 V GaN-based blue high voltage light emitting diode was designed and fabricated in our experiment. The forward current-voltage characteristics of MLEDs were consistent with those of conventional single junction light emitting diodes.

Key words: GaN, LED, monolithic, array, high voltage



[1]
Nakamura S, Fasol G. The blue laser diode. New York:Springer, 1997
[2]
Schubert E F. Light-emitting diodes. New York:Cambridge University Process, 2006
[3]
Yen H H, Kuo H C, Yeh W Y. Characteristics of single-chip GaN-based alternating current light-emitting diode. Jpn J Appl Phys, 2008, 47(12):8808 doi: 10.1143/JJAP.47.8808
[4]
Wang C H, Lin D W, Lee C Y, et al. Efficiency and droop improvement in GaN based high voltage light-emitting diodes. IEEE Electron Device Lett, 2011, 32(8):1098 doi: 10.1109/LED.2011.2153176

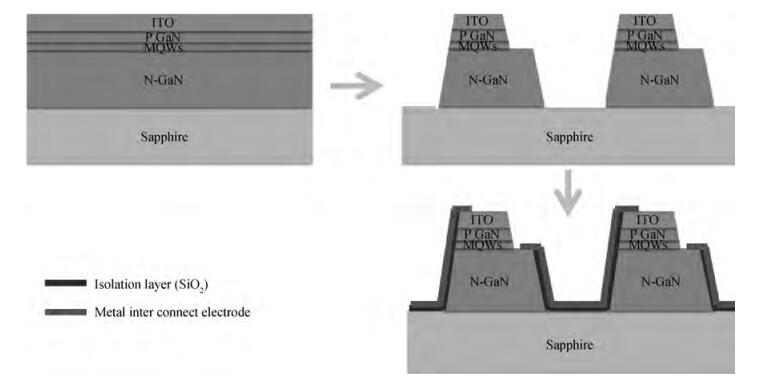

Fig. 1.  Fabrication process of a light-emitting diode array

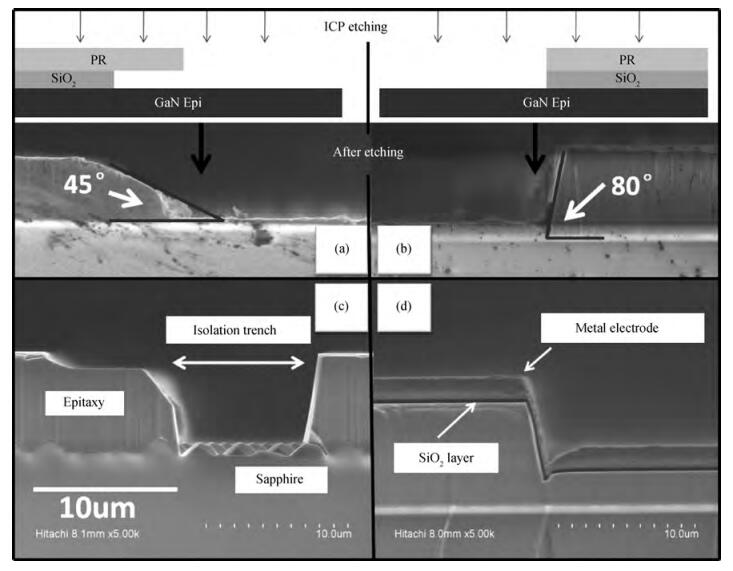

Fig. 2.  (a) $\sim $45$^\circ$ epitaxy sidewall angle fabricated method and SEM photograph. (b) $\sim $80$^\circ$ epitaxy sidewall angle fabricated method and SEM photograph. (c) SEM photograph of isolation trench and sidewall after deep etching. (d) SiO2 insulation and metal electrode layer deposited on the sidewall of the isolation trench

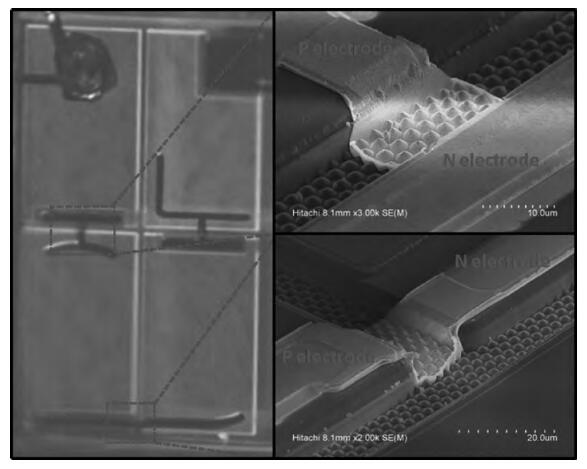

Fig. 3.  Lighting photograph of the 12 V HV-LED under 20 mA operation current and the SEM photograph of the isolation layer and interconnection electrode cross the deep trench

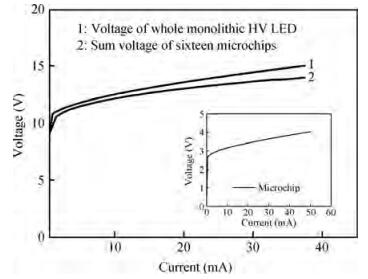

Fig. 4.  I-V characteristic of the 12 V HV-LED

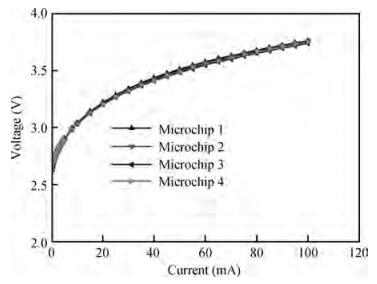

Fig. 5.  I-V characteristics of microchip 1, microchip 2, microchip 3 and microchip 4

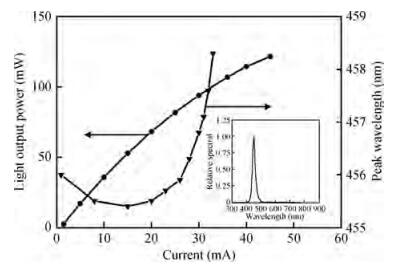

Fig. 6.  The curves of light output power and peak wavelength versus drive current
