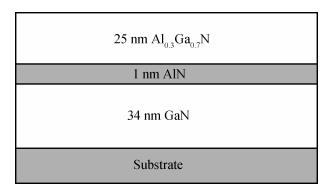

Fig. 1.
The structure of the Al$_{0.3}$ Ga$_{0.7}$ N/AlN/GaN HEMT ($L_{\rm sd}$ $=$ 3 $\mu$ m, $L_{\rm gs}$ $=$ 1 $\mu$ m, $L_{\rm g}$ $=$ 1 $\mu$ m).
SEMICONDUCTOR DEVICES
Jie Wang1, 2, Lingling Sun2, , Jun Liu2 and Mingzhu Zhou2
Corresponding author: Hassan Kaatuzian, Email: sunll@hdu.edu.cn

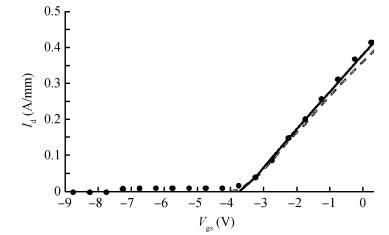

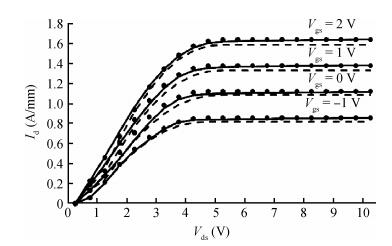

Abstract: A new surface-potential-based model for AlGaN/AlN/GaN high electron mobility transistor (HEMT) is proposed in this paper. Since the high polarization effects caused by AlN interlayer favorably influence the two dimensional electron gas (2DEG) and scattering mechanisms, we first add spontaneous and piezoelectric charge terms to the source equation of surface-potential, and a mobility model for AlGaN/AlN/GaN HEMT is rewritten. Compared with TCAD simulations, the DC characteristics of AlGaN/AlN/GaN HEMT are faithfully reproduced by the new model.
Key words: AlGaN/AlN/GaN HEMT, 2DEG, surface potential, polarization effects, mobility
