J. Semicond. > 2022, Volume 43?>?Issue 8?> 082802

ARTICLES

Influence of epitaxial layer structure and cell structure on electrical performance of 6.5 kV SiC MOSFET

Lixin Tian1, , Zechen Du1, Rui Liu1, Xiping Niu1, Wenting Zhang1, Yunlai An1, Zhanwei Shen2, Fei Yang1, and Xiaoguang Wei1

+ Author Affiliations

 Corresponding author: Lixin Tian, tianlixin0526@163.com; Fei Yang, yangsenji@163.com

DOI: 10.1088/1674-4926/43/8/082802

PDF

Turn off MathJax

Abstract: Silicon carbide (SiC) material features a wide bandgap and high critical breakdown field intensity. It also plays an important role in the high efficiency and miniaturization of power electronic equipment. It is an ideal choice for new power electronic devices, especially in smart grids and high-speed trains. In the medium and high voltage fields, SiC devices with a blocking voltage of more than 6.5 kV will have a wide range of applications. In this paper, we study the influence of epitaxial material properties on the static characteristics of 6.5 kV SiC MOSFET. 6.5 kV SiC MOSFETs with different channel lengths and JFET region widths are manufactured on three wafers and analyzed. The FN tunneling of gate oxide, HTGB and HTRB tests are performed and provide data support for the industrialization process for medium/high voltage SiC MOSFETs.

Key words: silicon carbide, epitaxial layer, channel length, JFET region width, FN tunneling, HTGB



[1]
Sun B X, Xie R B, Yu C, et al. Structural characterization of SiC nanoparticles. J Semicond, 2017, 38, 103002 doi: 10.1088/1674-4926/38/10/103002
[2]
Zeng C, Deng L F, Li Z J, et al. Experimental comparison of SiC GTO and ETO for pulse power applications. J Semicond, 2018, 39, 124017 doi: 10.1088/1674-4926/39/12/124017
[3]
Wolfspeed company C4D40120D datasheet [EB/OL] (2019-6-17) [2020-3-2]. https://www.wolfspeed.com/power/products/sic-schottky-diodes
[4]
Rohm company SCT2450KEHR datasheet [EB/OL] (2019-2-22). https://www.rohm.com.cn/products/sic-power-devices/sic-mosfet
[5]
Infineon company AIMW120R035M1H datasheet [EB/OL] (2019-2-22). https://www.infineon.com/cms/cn/product/power/mosfet/silicon-carbide/discretes/aimw120r035m1h
[6]
Mainali K, Wang R X, Sabate J, et al. Current sharing and overvoltage issues of paralleled SiC MOSFET modules. 2019 IEEE Energy Convers Congr Expo ECCE, 2019, 2413 doi: 10.1109/ECCE.2019.8912526
[7]
Chen J J, Jiang X, Li Z J, et al. Investigation on effects of thermal stress on SiC MOSFET degradation through power cycling tests. 2020 IEEE Applied Power Electronics Conference and Exposition, 2020, 1106 doi: 10.1109/APEC39645.2020.9124249
[8]
Bencherif H, Yousfi A, Dehimi L, et al. Analysis of Al2O3 high-k gate dielectric effect on the electrical characteristics of a 4H-SiC low-power MOSFET. 2019 1st International Conference on Sustainable Renewable Energy Systems and Applications, 2019, 1 doi: 10.1109/ICSRESA49121.2019.9182412
[9]
Wirths S, Mihaila A, Romano G, et al. Study of 1.2kV high-k SiC power MOSFETS under harsh repetitive switching conditions. 2021 33rd International Symposium on Power Semiconductor Devices and ICs, 2021, 107 doi: 10.23919/ISPSD50666.2021.9452286
[10]
Fukunaga S, Takayama H, Hikihara T. A study on switching surge voltage suppression of SiC MOSFET by digital active gate drive. 2021 IEEE 12th Energy Conversion Congress & Exposition, 2021 doi: 10.1109/ECCE-Asia49820.2021.9479030
[11]
Agarwal A, Baliga B J, Francois M M A, et al. 3.3 kV 4H-SiC planar-gate MOSFETs manufactured using Gen-5 PRESiCE? technology in a 4-inch wafer commercial foundry. Southeastcon 2021, 2021, 1 doi: 10.1109/SoutheastCon45413.2021.9401931
[12]
Konstantinov A O, Wahab Q, Nordell N, et al. Ionization rates and critical fields in 4H silicon carbide. Appl Phys Lett, 1997, 71, 90 doi: 10.1063/1.119478
[13]
Tian L X, Yang F, Niu X P, et al. Development and analysis of 6500V SiC power MOSFET. 2021 18th China International Forum on Solid State Lighting & 2021 7th International Forum on Wide Bandgap Semiconductors, 2021, 6 doi: 10.1109/SSLChinaIFWS54608.2021.9675212
[14]
Chanana R K, McDonald K, di Ventra M, et al. Fowler-Nordheim hole tunneling in p-SiC/SiO2 structures. Appl Phys Lett, 2000, 77, 2560 doi: 10.1063/1.1318229
[15]
Fiorenza P, Frazzetto A, Guarnera A, et al. Fowler-Nordheim tunneling at SiO2/4H-SiC interfaces in metal-oxide-semiconductor field effect transistors. Appl Phys Lett, 2014, 105, 142108 doi: 10.1063/1.4898009
[16]
Karki U, Peng F Z. Precursors of gate-oxide degradation in silicon carbide MOSFETs. 2018 IEEE Energy Conversion Congress and Exposition, 2018, 857 doi: 10.1109/ECCE.2018.8557354

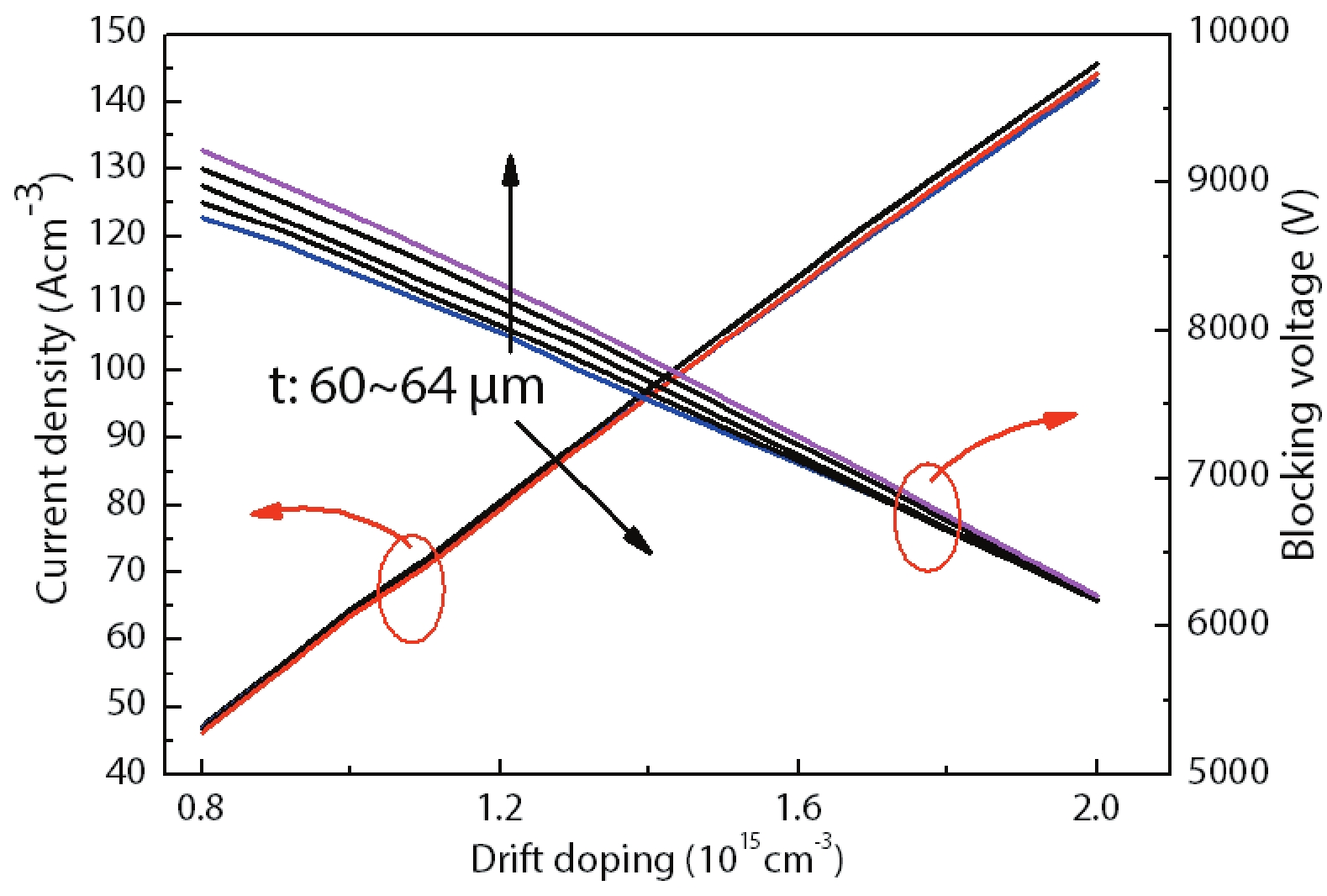

Fig. 1.  (Color online) Current density and blocking voltage variation with doping concentration and thickness of epitaxial layer.

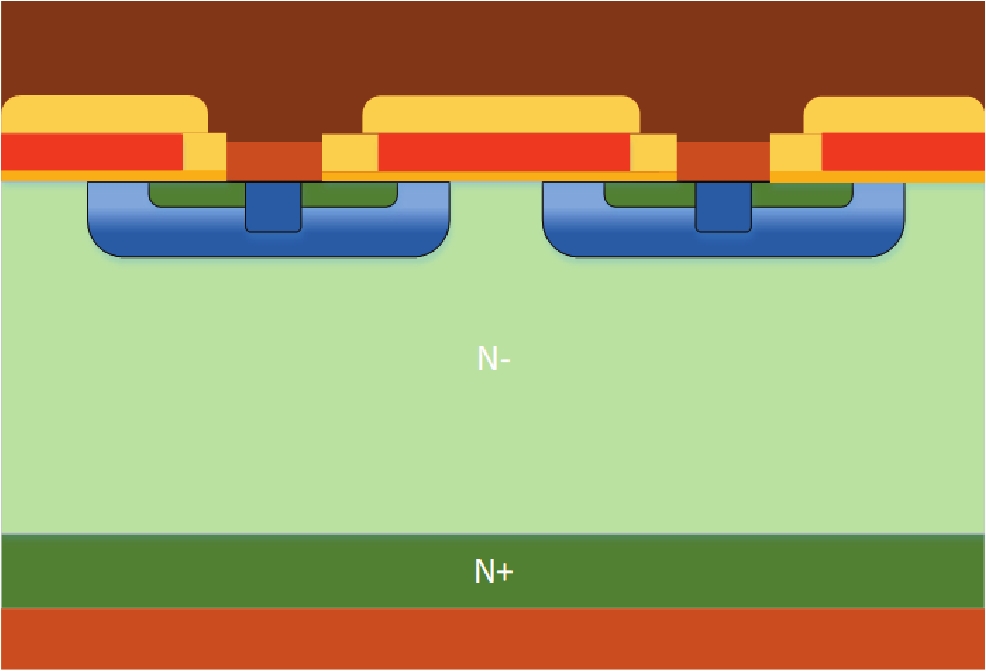

Fig. 2.  (Color online) Schematic cross-section of 6.5 kV SiC MOSFET.

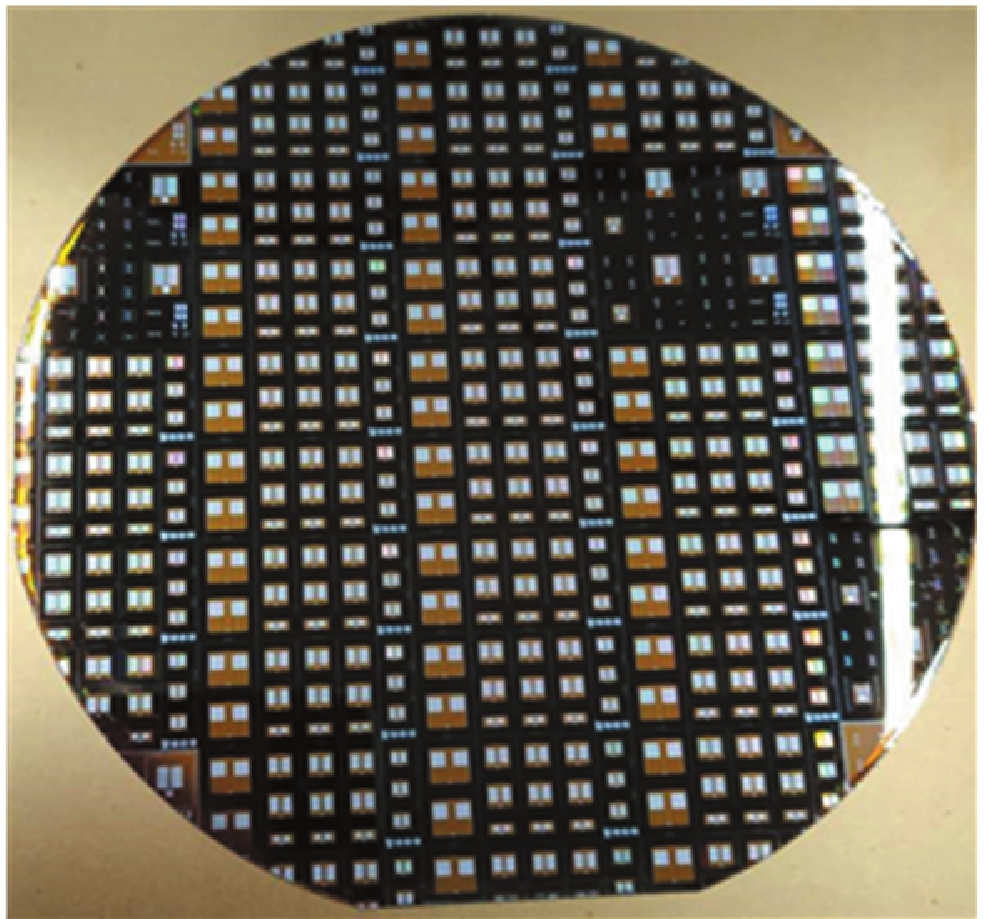

Fig. 3.  (Color online) 6.5 kV SiC MOSFET devices on the 6-inch wafer.

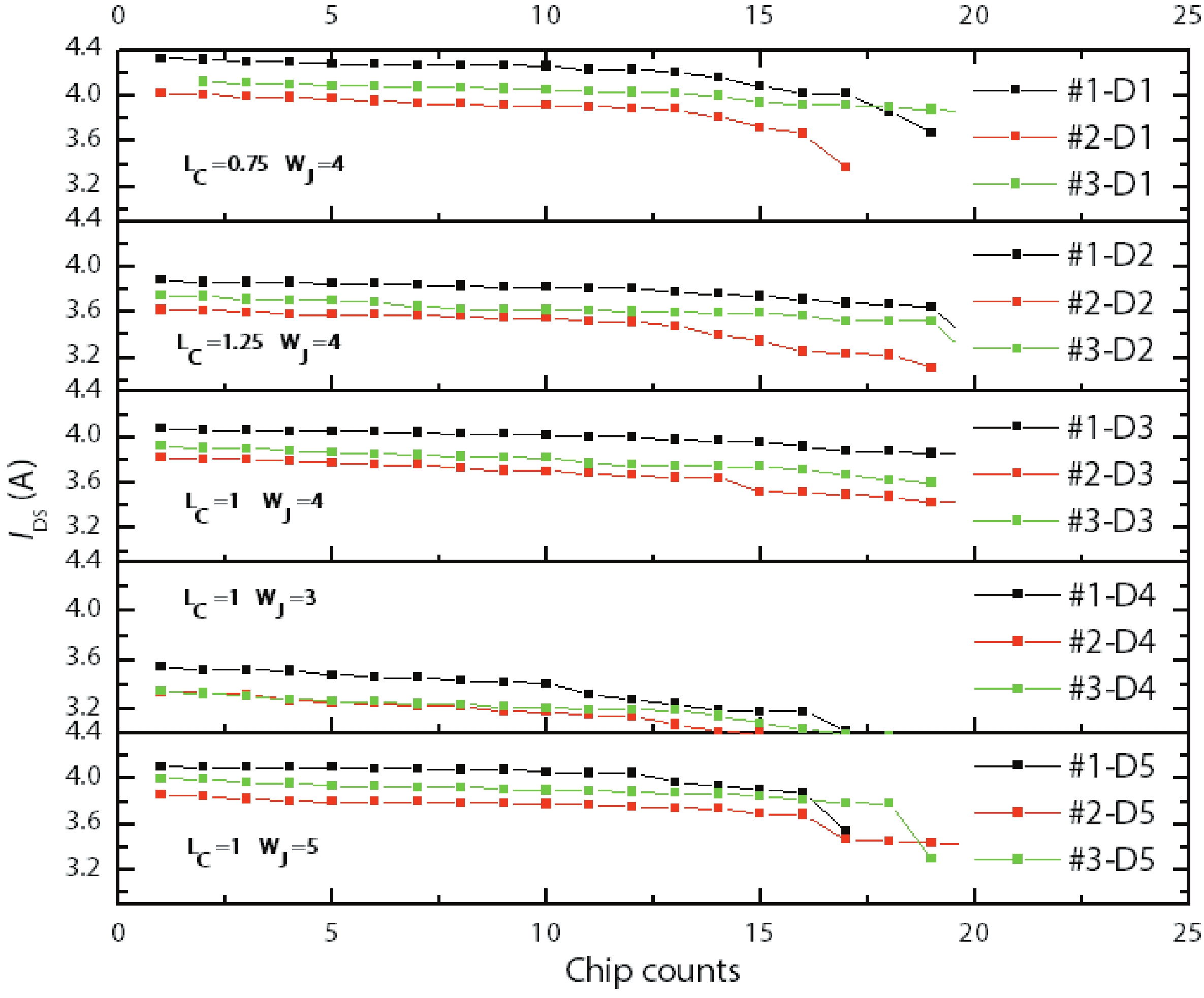

Fig. 4.  (Color online) Comparison of output current of five chips on three wafers.

Fig. 5.  (Color online) Comparison of output, transfer and derivative parameters of five cell structures. (a) Output characteristic curves. (b) Transfer characteristic curves. (c) Transconductance comparison of different channel lengths. (d) Cell transconductance comparison of different JFET widths.

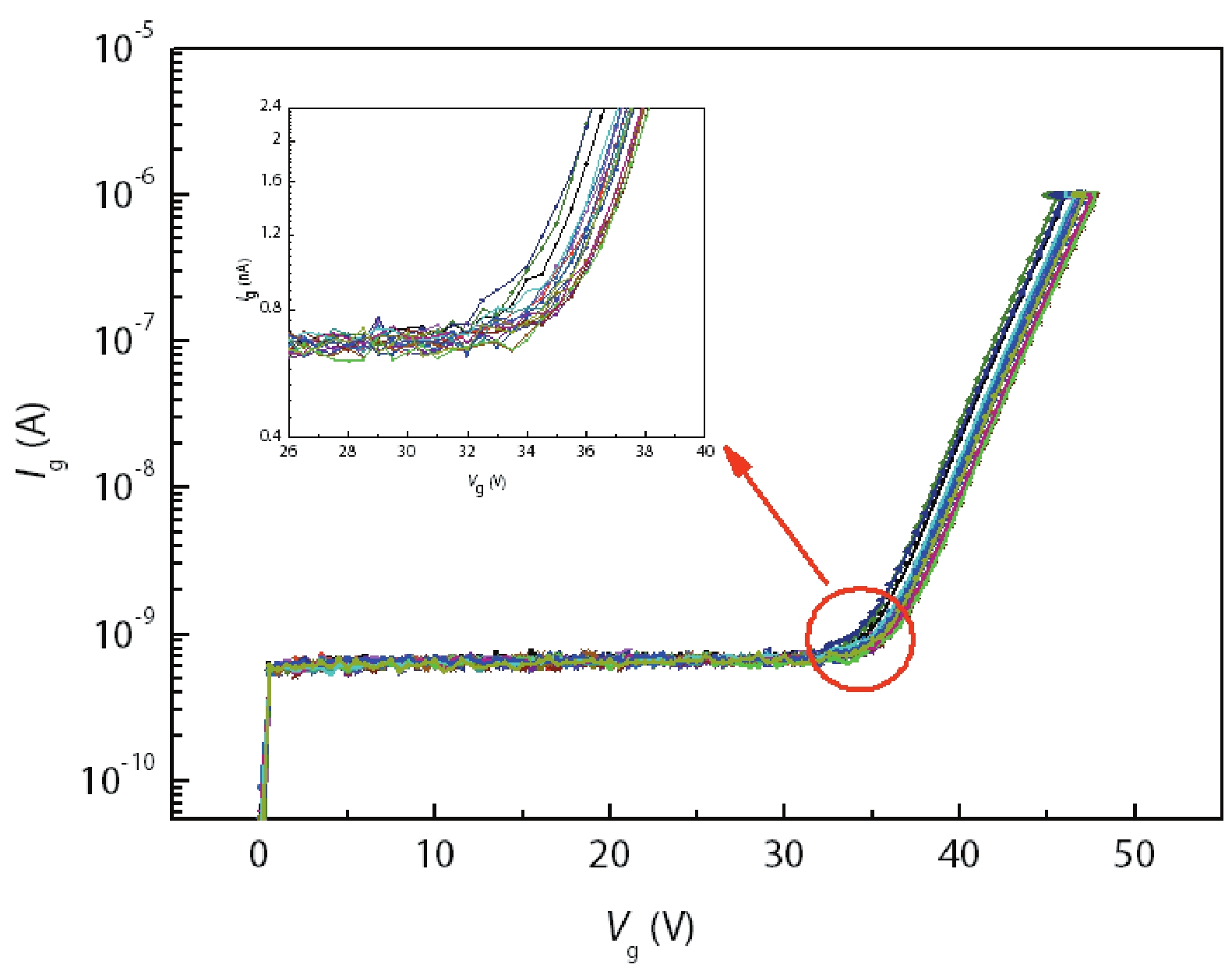

Fig. 6.  (Color online) Breakdown characteristics of test pattern gate oxide capacitors.

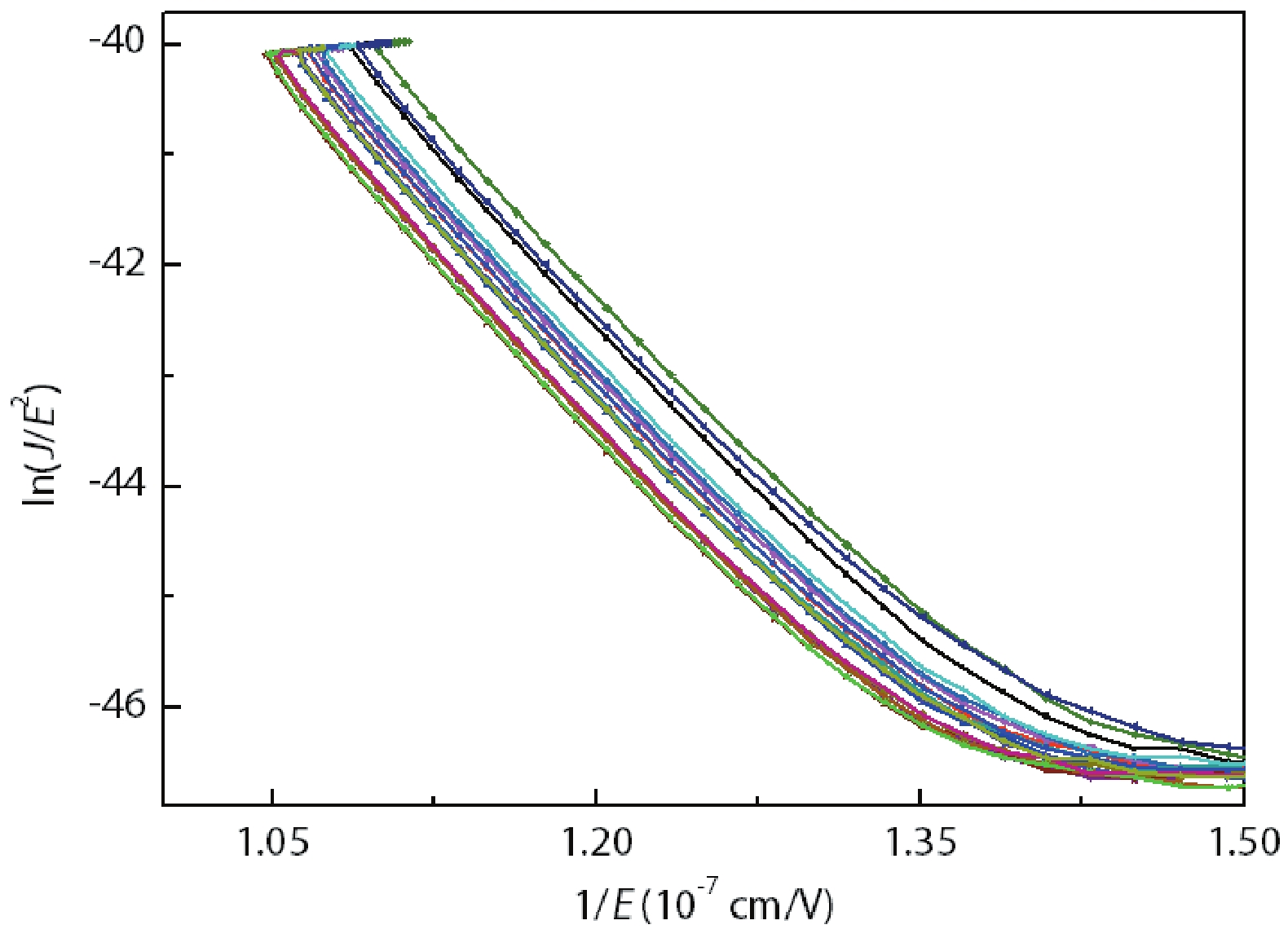

Fig. 7.  (Color online) The transforming curves of the gate oxide capacitor I–V curves.

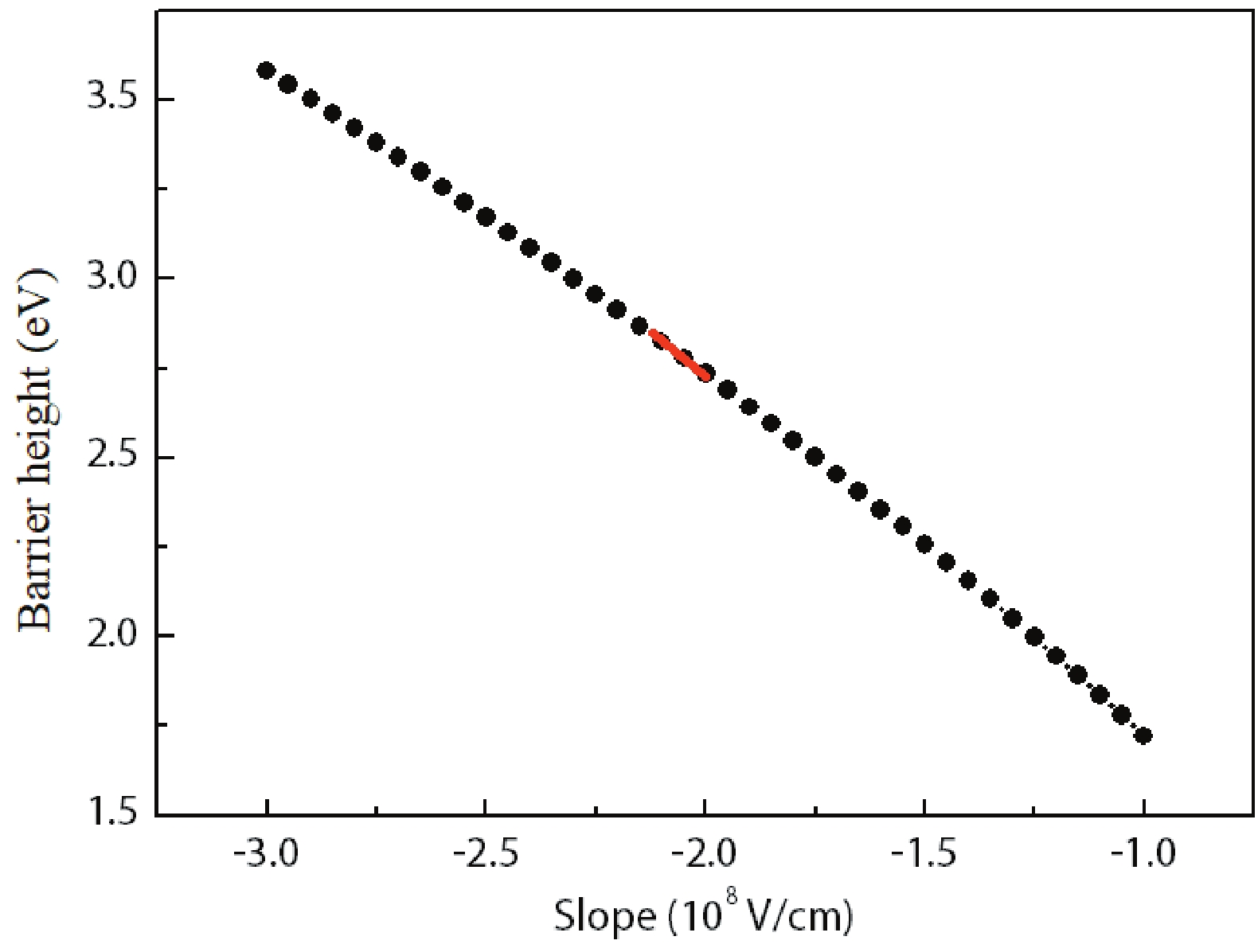

Fig. 8.  (Color online) The relationship between barrier height and slope.

Fig. 9.  (Color online) 6.5 kV SiC MOSFET package layout and outline.

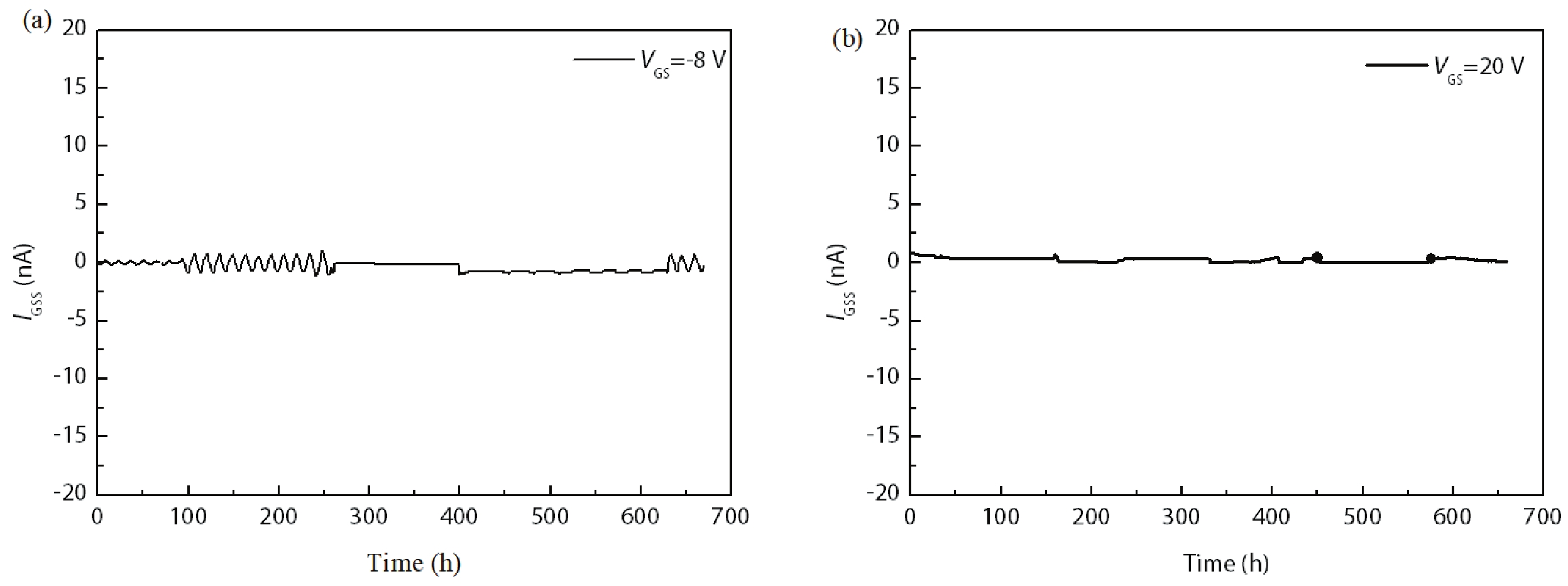

Fig. 10.  High temperature gate bias reliability. (a) Forward gate voltage test results. (b) Reverse gate voltage test results.

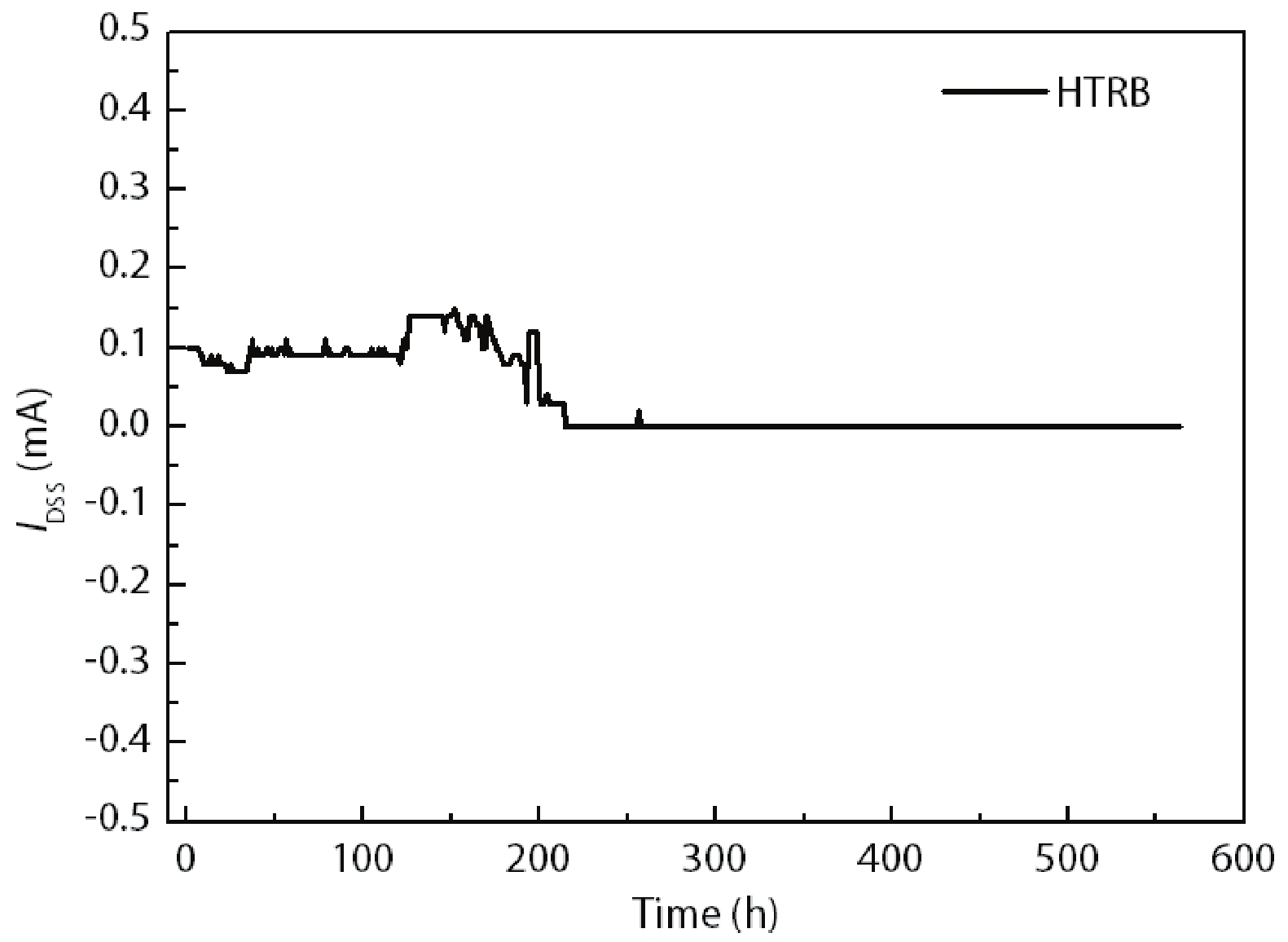

Fig. 11.  The results of high temperature reverse bias reliability.

Table 1.   Epitaxial layer thickness and doping concentration.

NumberThickness (μm)Doping (1015 cm?3)t/($N_{\rm d}q\mu$)
#164.71.2934.1
#262.31.1636.5
#362.51.2234.8
DownLoad: CSV

Table 2.   Cell parameter table.

Cell numberChannel length (μm)Width of JFET region (μm)
C10.754
C21.254
C314
C413
C515
DownLoad: CSV

Table 3.   Chip yield of 3 wafers.

#1#2#3
C136.36%54.55%61.90%
C236.36%54.55%57.14%
C340.91%54.55%38.10%
C431.82%50.00%42.86%
C554.55%63.64%52.38%
DownLoad: CSV
