Impact of ambient temperature on the self-heating effects in FinFETs

Longxiang Yin; Gang Du; Xiaoyan Liu

doi:10.1088/1674-4926/39/9/094011

J. Semicond. > 2018, Volume 39?>?Issue 9?> 094011

SEMICONDUCTOR DEVICES

Impact of ambient temperature on the self-heating effects in FinFETs

Longxiang Yin, Gang Du and Xiaoyan Liu

+ Author Affiliations

Corresponding author: Xiaoyan Liu, Email: xyliu@ime.pku.edu.cn

DOI: 10.1088/1674-4926/39/9/094011

Abstract: We use an electro-thermal coupled Monte Carlo simulation framework to investigate the self-heating effect (SHE) in 14 nm bulk nFinFETs with ambient temperature (T_A) from 220 to 400 K. Based on this method, non-local heat generation can be achieved. Contact thermal resistances of Si/Metal and Si/SiO₂ are selected to ensure that the source and drain heat dissipation paths are the first two heat dissipation paths. The results are listed below: (i) not all input power (Q_input) turns into heat generation in the device region and some is taken out by the thermal non-equilibrium carriers, owing to the serious non-equilibrium transport; (ii) a higher T_A leads to a larger ratio of input power turning into heat generation in the device region at the same operating voltages; (iii) SHE can lead to serious degradation in the carrier transport, which will increase when T_A increases; (iv) the current degradation can be 8.9% when V_ds = 0.7 V, V_gs = 1 V and T_A = 400 K; (v) device thermal resistance (R_th) increases with increasing of T_A, which is seriously impacted by the non-equilibrium transport. Hence, the impact of T_A should be carefully considered when investigating SHE in nanoscale devices.

Key words: self-heating effects, ambient temperature, FinFET, Monte Carlo method

References

[1]	Pop E. Energy dissipation and transport in nanoscale devices. Nano Res, 2010, 3(3): 147 doi: 10.1007/s12274-010-1019-z
[2]	Semenov O, Vassighi A, Sachdev M. Impact of self-heating effect on long-term reliability and performance degradation in CMOS circuits. IEEE Trans Device Mater Rel, 2006, 6(1): 17 doi: 10.1109/TDMR.2006.870340
[3]	Shapiro A, Friedman E G. Power efficient level shifter for 16nm FinFET near threshold circuits. IEEE Trans VLSI Syst, 2016, 24(2): 774 doi: 10.1109/TVLSI.2015.2409051
[4]	Makovejev S, Planes N, Haond M, et al. Self-heating in 28 nm bulk and FDSOI. Joint International EUROSOI Workshop and International Conference on Ultimate Integration on Silicon (EUROSOI-ULIS), 2015: 41
[5]	Bury E, Kaczer B, Linten D, et al. Self-heating in FinFET and GAA-NW using Si, Ge and III/V channels. IEEE International Electron Devices Meeting (IEDM), 2016: 15.6.1
[6]	Bury E, Kaczer B, Mitard J, et al. Characterization of self-heating in high-mobility Ge FinFET pMOS devices. Symposium on VLSI Technology (VLSI Technology), 2015: T60
[7]	Wahab M A, Shin S H, Alam M A. 3D modeling of spatio-temporal heat-transport in III–V gate-all-around transistors allows accurate estimation and optimization of nanowire temperature. IEEE Trans Electron Devices, 2015, 62(11): 3595 doi: 10.1109/TED.2015.2478844
[8]	Liao M H, Hsieh C P, Lee C C. Systematic investigation of self-heating effect on CMOS logic transistors from 20 to 5 nm technology nodes by experimental thermoelectric measurements and finite element modeling. IEEE Trans Electron Devices, 2017, 64(2): 646 doi: 10.1109/TED.2016.2642404
[9]	Jin M, Liu C, Kim J, et al. Hot carrier reliability characterization in consideration of self-heating in FinFET technology. IEEE International Reliability Physics Symposium (IRPS), 2016: 2A-2-1
[10]	Jiang H, Shin S H, Liu X, et al. The impact of self-heating on HCI reliability in high-performance digital circuits. IEEE Device Lett, 2017, 38(4): 430 doi: 10.1109/LED.2017.2674658
[11]	Jiang H, Shen L, Shin S H, et al. Unified self-heating effect model for advanced digital and analog technology and thermal-aware lifetime prediction methodology. Symposium on VLSI Technology (VLSI Technology), 2017: T136
[12]	Si M W, Shin S H, Conrad N J, et al. Characterization and reliability of III–V gate-all-around MOSFETs. IEEE International Reliability Physics Symposium (IRPS), 2015: 4A.1.1
[13]	Jiang H, Liu X Y, Xu N, et al. Investigation of self-heating effect on hot carrier degradation in multiple-fin SOI FinFETs. IEEE Electron Device Lett, 2015, 36(12): 1258 doi: 10.1109/LED.2015.2487045
[14]	Vasileska D. Modeling self-heating in nanoscale devices. IEEE International Conference on Nanotechnology (IEEE-NANO), 2015: 200
[15]	Kamakura Y, Adisusilo I N, Kukita K, et al. Coupled Monte Carlo simulation of transient electron-phonon transport in small FETs. IEEE International Electron Devices Meeting (IEDM), 2014: 176
[16]	BSIM CMG, http://bsim.berkeley.edu/models/bsimcmg/, BSIM Group, 2015
[17]	Pierret R F. Semiconductor device fundamentals. Reading: Addison-Wesley, 1996
[18]	Fischetti M V, Laux S E. Monte Carlo analysis of electron transport in small semiconductor devices including band-structure and space-charge effects. Phys Rev B, 1988, 38(14): 9721 doi: 10.1103/PhysRevB.38.9721
[19]	Mohamed M, Aksamija Z, Vitale W, et al. A conjoined electron and thermal transport study of thermal degradation induced during normal operation of multigate transistors. IEEE Trans Electron Devices, 2014, 61(4): 976 doi: 10.1109/TED.2014.2306422
[20]	Gonzalez B, Palankovski V, Kosina H, et al. An analytical model for the electron energy relaxation time. International Association of Science and Technology for Development (IASTED), 1999: 367
[21]	Jeon J, Jhon H S, Kang M. Investigation of electrothermal behaviors of 5 nm Bulk FinFET. IEEE Trans Electron Devices, 2017, 64(12): 5284 doi: 10.1109/TED.2017.2766214
[22]	Wang L, Brown A R, Nedjalkov M, et al. Impact of self-heating on the statistical variability in bulk and SOI FinFETs. IEEE Trans Electron Devices, 2015, 62(7): 2106 doi: 10.1109/TED.2015.2436351
[23]	https://www.altera.com/products/common/temperature/ind-temp.html, 2017
[24]	Xie B Q, Bi J S, Li B, et al. The effect of cryogenic temperature characteristics on silicon-based devices and circuits. Microelectronics, 2015, 45(6): 789 (in Chinese)
[25]	Natarajan S, Agostinelli M, Akbar S, et al. A 14 nm logic technology featuring 2nd-generation FinFET, air-gapped interconnects, self-aligned double patterning and a 0.0588 μm² SRAM cell size. IEEE International Electron Devices Meeting (IEDM), 2014: 71
[26]	ITRS. www.itrs2.net/itrs-reports.html, ITRS Reports, 2013
[27]	Wang J C, Du G, Wei K L, et al. Three-dimensional Monte Carlo simulation of bulk fin field effect transistor. Chin Phys B, 2012, 21(11): 117308 doi: 10.1088/1674-1056/21/11/117308
[28]	Wei K L, Egley J, Liu X Y, et al. Remote charge scattering: a full Coulomb interaction approach and its impact on silicon nMOS FinFETs with HfO₂ gate dielectric. Sci China Inf Sci, 2014, 57(2): 022403
[29]	Du G, Liu X Y, Han R Q. Quantum Boltzmann equation solved by Monte Carlo method for nanoscale semiconductor devices. Chin Phys, 2006, 15(1): 177 doi: 10.1088/1009-1963/15/1/028
[30]	Du G, Liu X Y, Xia Z L, et al. Monte Carlo simulation of p- and n-channel GOI MOSFETs by solving the quantum Boltzmann equation. IEEE Trans Electron Devices, 2005, 52(10): 2258 doi: 10.1109/TED.2005.856806
[31]	Jacoboni C, Reggiani L. The Monte Carlo method for the solution of charge transport in semiconductors with applications to covalent materials. Rev Mod Phys, 1983, 55(3): 645 doi: 10.1103/RevModPhys.55.645
[32]	Ahn W, Zhang H, Shen T et al. A predictive model for IC self-heating based on effective medium and image charge theories and its implications for interconnect and transistor reliability. IEEE Trans Electron Devices, 2017, 64(9): 3555 doi: 10.1109/TED.2017.2725742
[33]	Chang C W, Liu S E, Lin B L, et al. Thermal behavior of self-heating effect in FinFET devices acting on back-end interconnects. IEEE International Reliability Physics Symposium (IRPS), 2015: 2F.6.1
[34]	Wang N, Pi Y, Wang W, et al. Equivalent thermal conductivity model based full scale numerical simulation for thermal management in fan-out packages. IEEE Electronic Components and Technology Conference (ECTC), 2017: 2054
[35]	Pi Y, Wang W, Chen J, et al. Microfluidic cooling for distributed hot-spots. IEEE Electronic Components and Technology Conference (ECTC), 2016: 903
[36]	Jagannadham K. Thermal conductivity and interface thermal conductance in films of tungsten-tungsten silicide on Si. IEEE Trans Electron Devices, 2014, 61(6): 1950 doi: 10.1109/TED.2014.2318281
[37]	Takahashi T, Beppu N, Chen K, et al. Thermal-aware device design of nanoscale bulk/SOI FinFETs: Suppression of operation temperature and its variability. International Electron Devices Meeting (IEDM), 2011: 34.6.1
[38]	https://www.americanelements.com/hafnium-oxide-12055-23-1
[39]	Pop E, Sinha S, Goodson K E. Heat generation and transport in nanometer-scale transistors. Proc IEEE, 2006, 94(8): 1587 doi: 10.1109/JPROC.2006.879794
[40]	Pop E, Goodson K E. Thermal phenomena in nanoscale transistors. J Electron Pack, 2006, 128(2): 102 doi: 10.1115/1.2188950
[41]	Kolluri S, Endo K, Suzuki E, et al. Modeling and analysis of self-heating in FinFET devices for improved circuit and EOS/ESD performance. IEEE International Electron Devices Meeting, 2007: 177
[42]	Shrivastava M, Agrawal M, Mahajan S, et al. Physical insight toward heat transport and an improved electrothermal modeling framework for FinFET architectures. IEEE Trans Electron Devices, 2012, 59(5): 1353 doi: 10.1109/TED.2012.2188296
[43]	Filanovsky I M, Allam A. Mutual compensation of mobility and threshold voltage temperature effects with applications in CMOS circuits. IEEE Trans Circuits Syst I, 2001, 48(7): 876 doi: 10.1109/81.933328
[44]	Wang R S, Liu H W, Huang R, et al. Experimental investigations on carrier transport in Si nanowire transistors: ballistic efficiency and apparent mobility. IEEE Trans Electron Devices, 2008, 55(11): 2960 doi: 10.1109/TED.2008.2005152
[45]	Lundstrom M, Ren Z. Essential physics of carrier transport in nanoscale MOSFETs. IEEE Trans Electron Devices, 2002, 49(1): 133 doi: 10.1109/16.974760
[46]	Prasad C, Jiang L, Singh D, et al. Self-heat reliability considerations on Intel’s 22 nm tri-gate technology. IEEE International Reliability Physics Symposium (IRPS), 2013: 5D.1.1

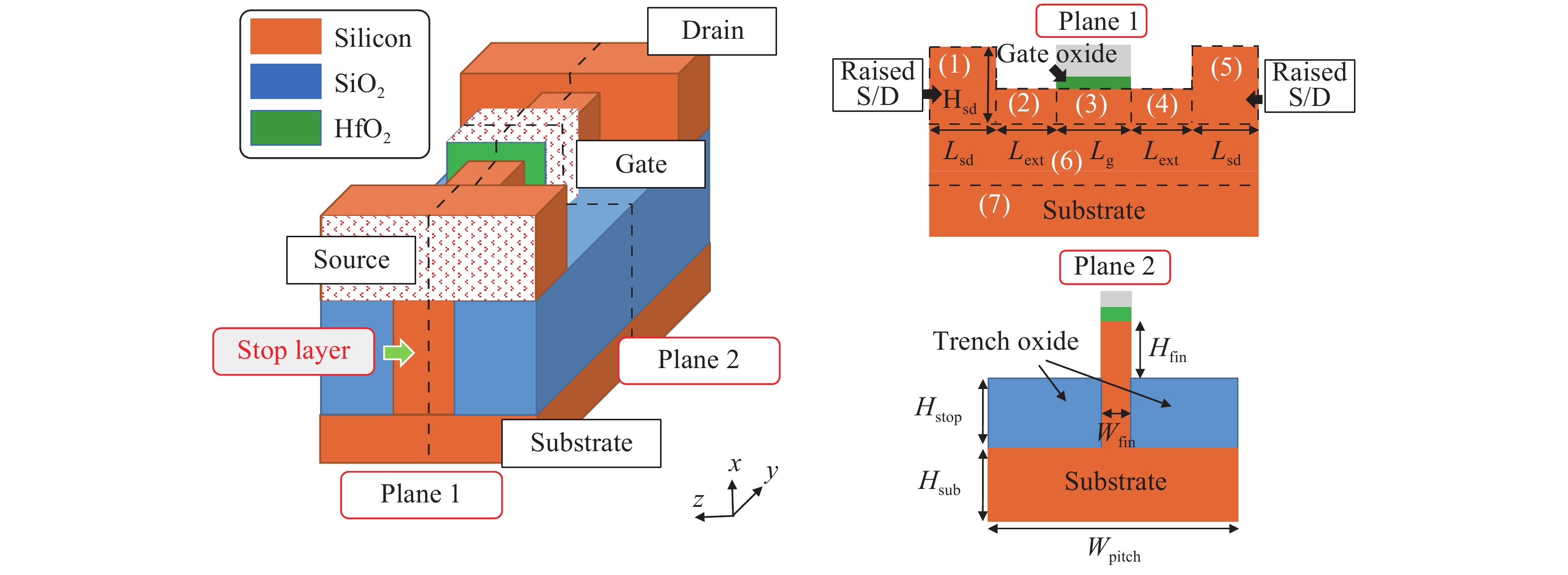

Fig. 1. (Color online) The 14 nm-node Si bulk nFinFET structure used in this work.

DownLoad: Full-Size Img PowerPoint

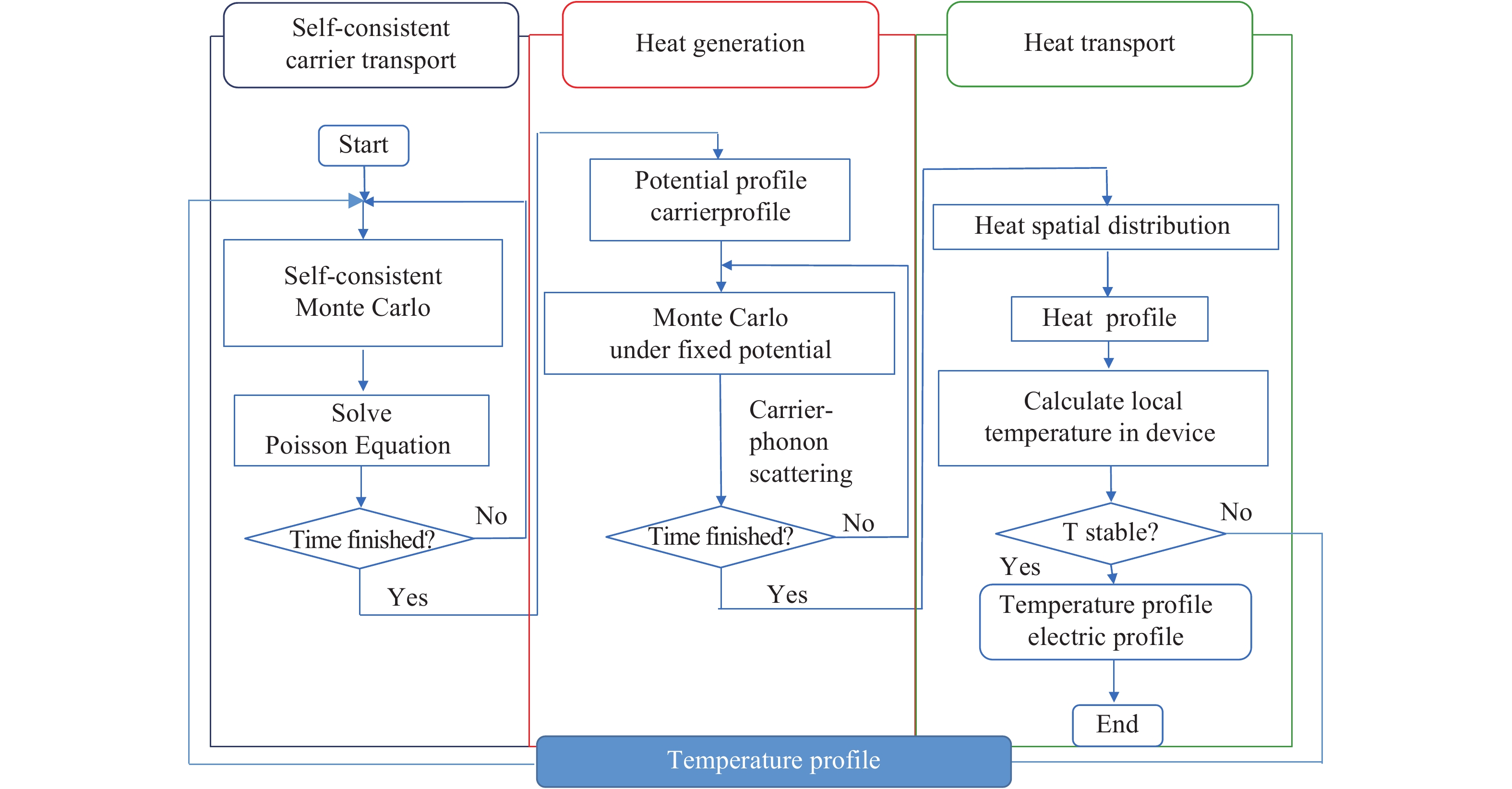

Fig. 2. (Color online) Electro-thermal simulation framework used in this work.

DownLoad: Full-Size Img PowerPoint

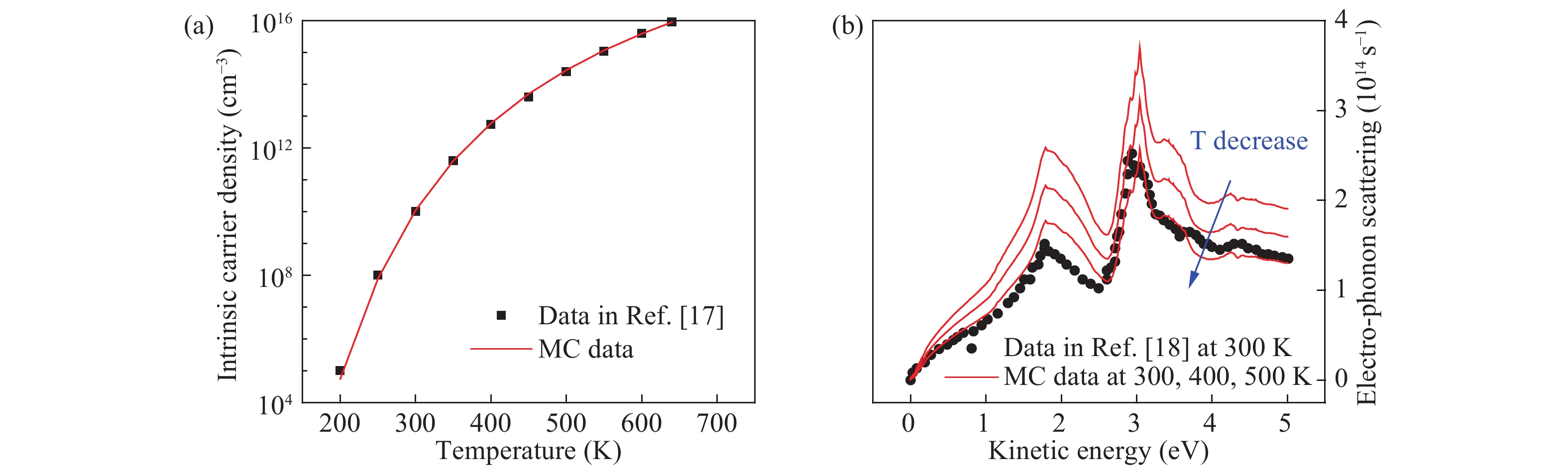

Fig. 3. (Color online) (a) Intrinsic carrier density versus temperature. Data in Ref. [17] is shown for comparison. (b) Electro-phonon scattering rate versus kinetic energy at different temperatures. Data at T_A = 300 K in Ref. [18] is shown for comparison.

DownLoad: Full-Size Img PowerPoint

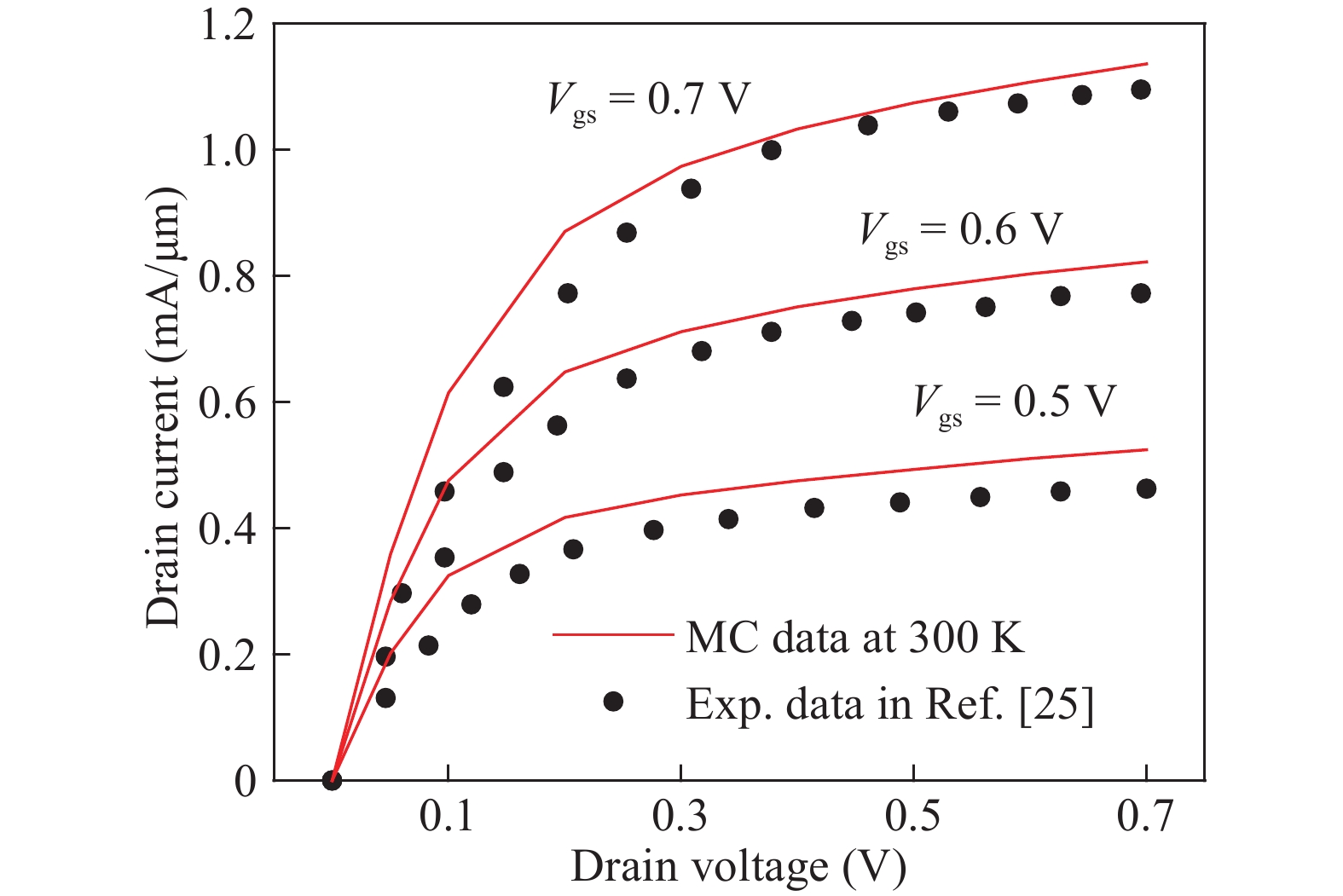

Fig. 4. (Color online) Calibration of 14 nm-node Si nFinFET simulation results with DC experimental data.

DownLoad: Full-Size Img PowerPoint

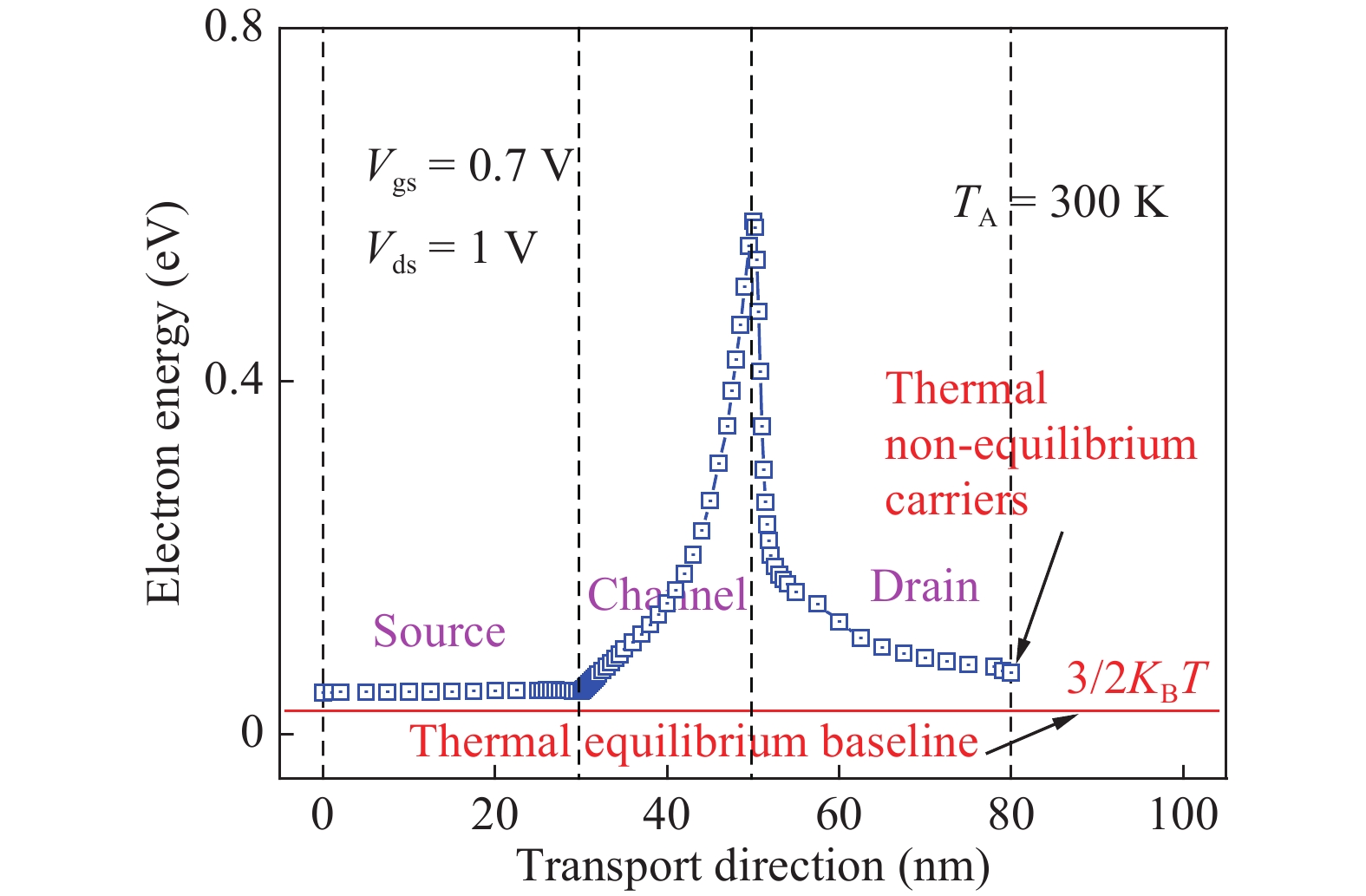

Fig. 5. (Color online) The average electron energy distribution along the transport direction at V_gs = 0.7 V, V_ds = 1 V and T_A = 300 K. The thermal equilibrium carrier energy is 1.5 K_BT (0.0389 eV).

DownLoad: Full-Size Img PowerPoint

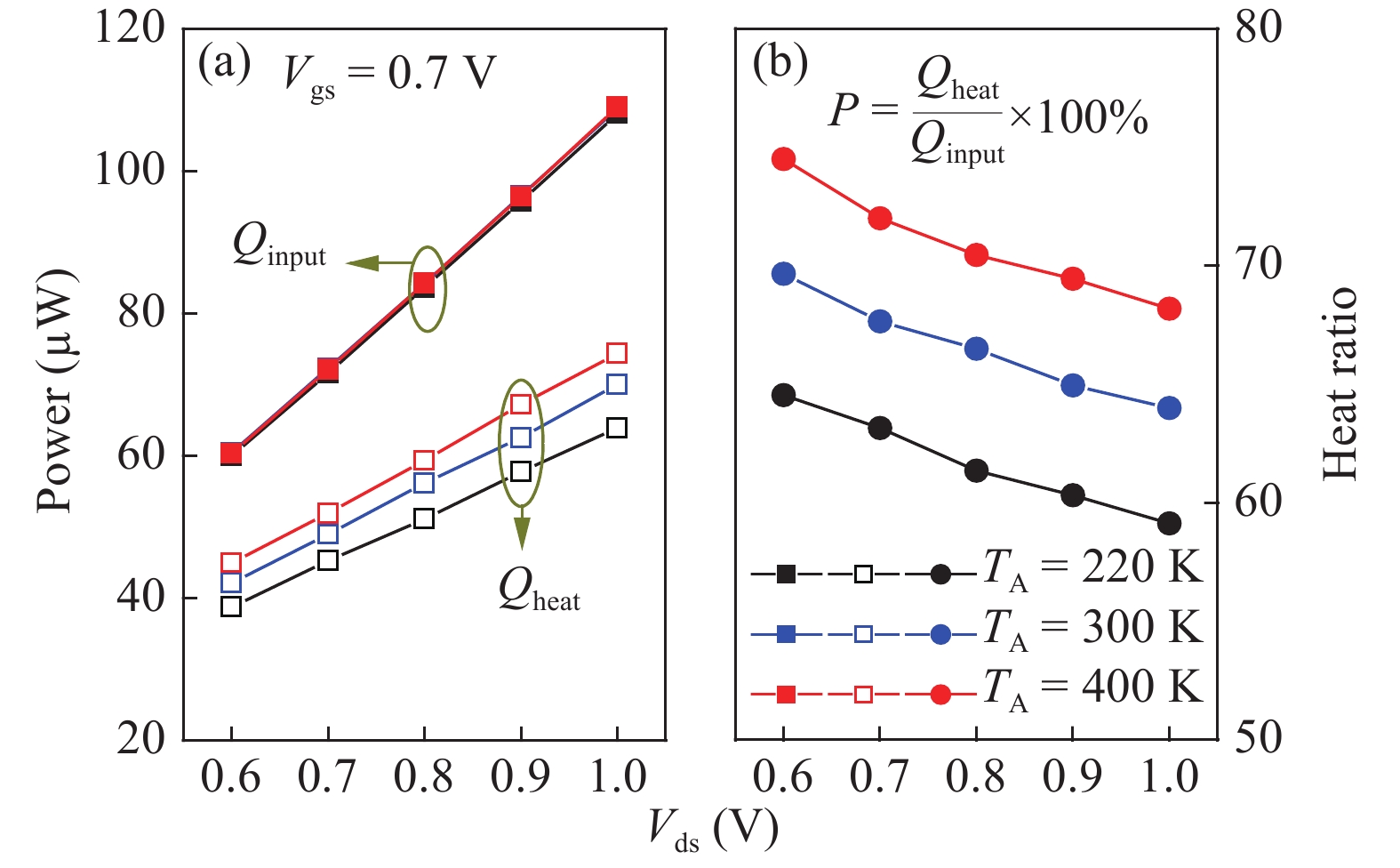

Fig. 6. (Color online) (a) The input power Q_input and heat generation Q_heat under different V_ds and (b) the corresponding ratios of Q_heat in Q_input at T_A = 220, 300, 400 K and V_gs = 0.7 V.

DownLoad: Full-Size Img PowerPoint

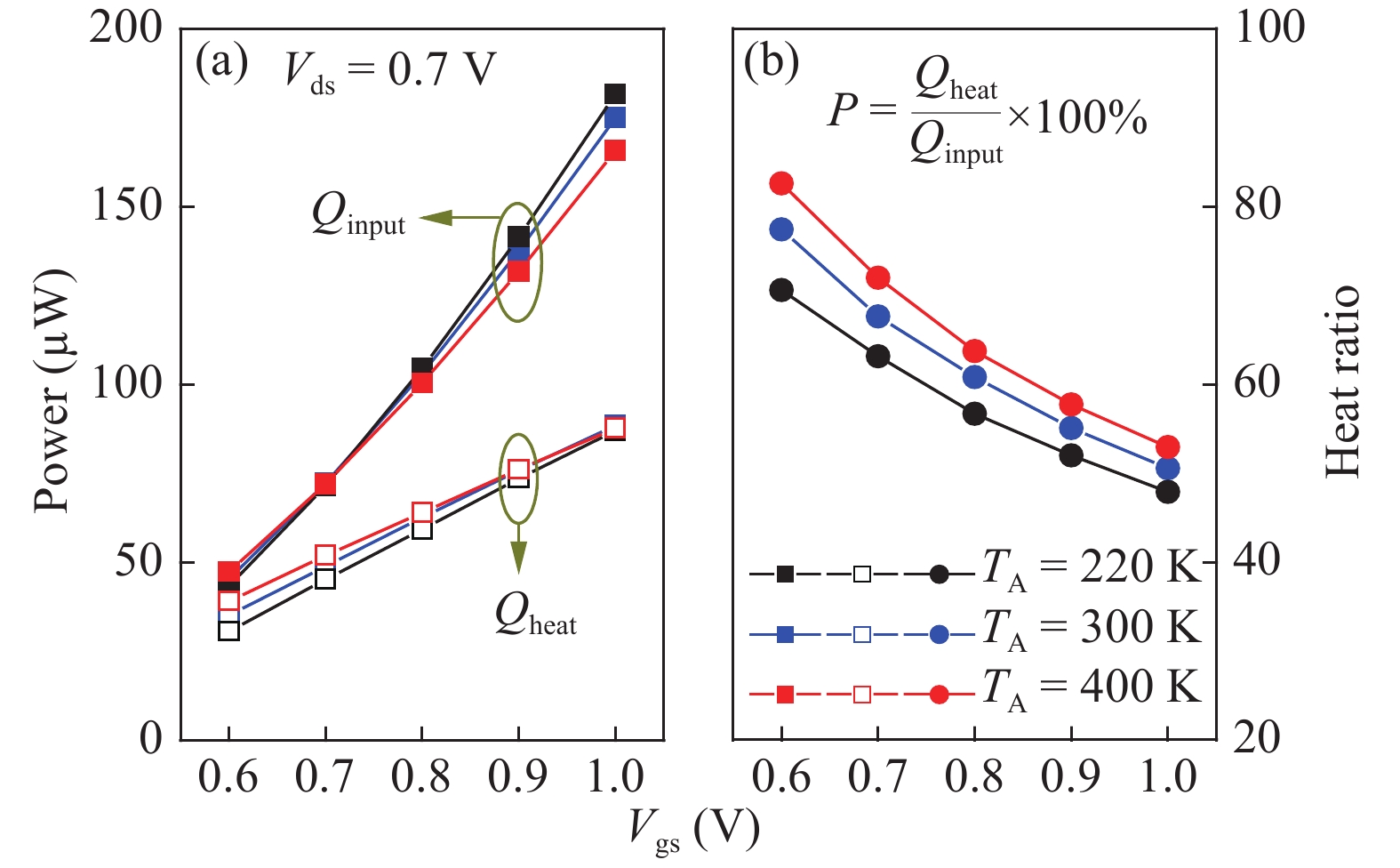

Fig. 7. (Color online) (a) The input power Q_input and heat generation Q_heat under different V_gs and (b) the corresponding ratios of Q_heat in Q_input at T_A = 220, 300, 400 K and V_ds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

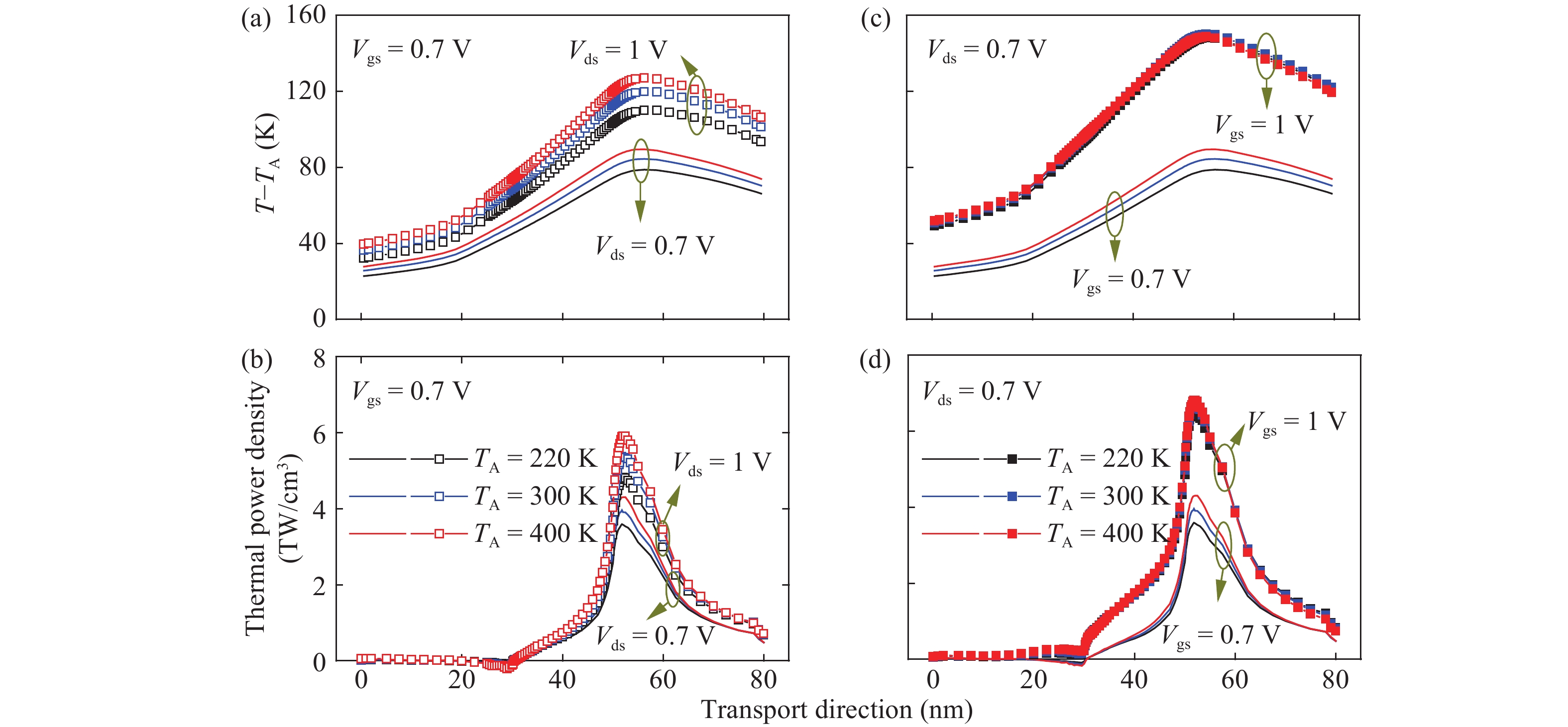

Fig. 8. (Color online) (a) The average augments of lattice temperature and (b) the power densities along the transport direction comparing V_ds = 0.7 V and V_ds = 1 V at V_gs = 0.7 V, (c) the average augments of lattice temperature and (d) the power densities along the transport direction comparing V_gs = 0.7 V and V_gs = 1 V at V_ds = 0.7 V. T_A = 220, 300 and 400 K.

DownLoad: Full-Size Img PowerPoint

Fig. 9. (Color online) (a) Comparison of current densities considering SHE with those not considering SHE under different V_ds and (b) the corresponding current degradation percentages caused by SHE at T_A = 220, 300, 400 K and V_gs = 0.7 V.

DownLoad: Full-Size Img PowerPoint

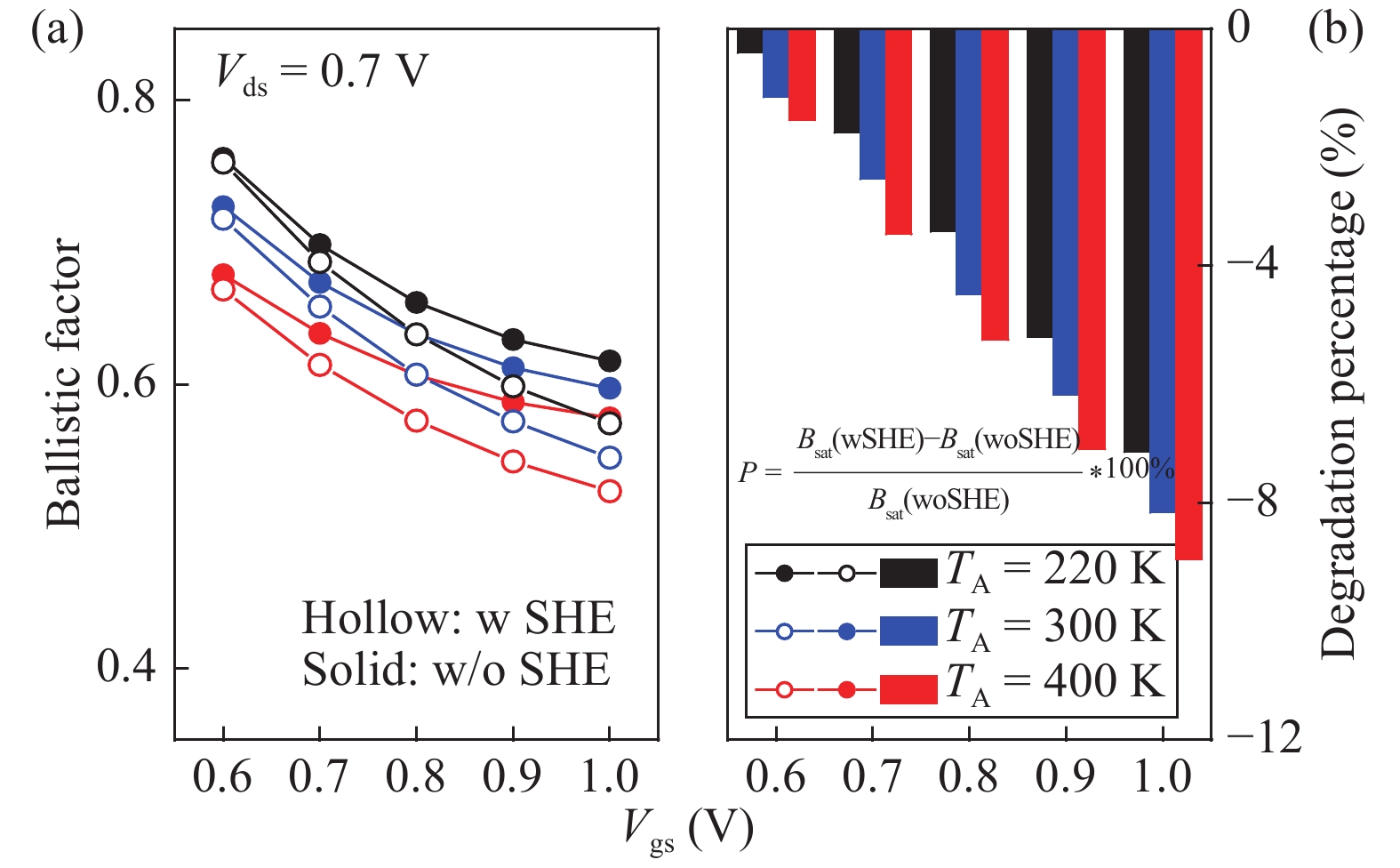

Fig. 11. (Color online) (a) Comparison of ballistic factor B_sat considering SHE with that not considering SHE under different V_gs and (b) the corresponding degradation percentages of B_sat by SHE at T_A = 220, 300, 400 K and V_ds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

Fig. 10. (Color online) (a) Comparison of current densities considering SHE with those not considering SHE under different V_gs and (b) the corresponding current degradation percentage by SHE at T_A = 220, 300, 400 K and V_ds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

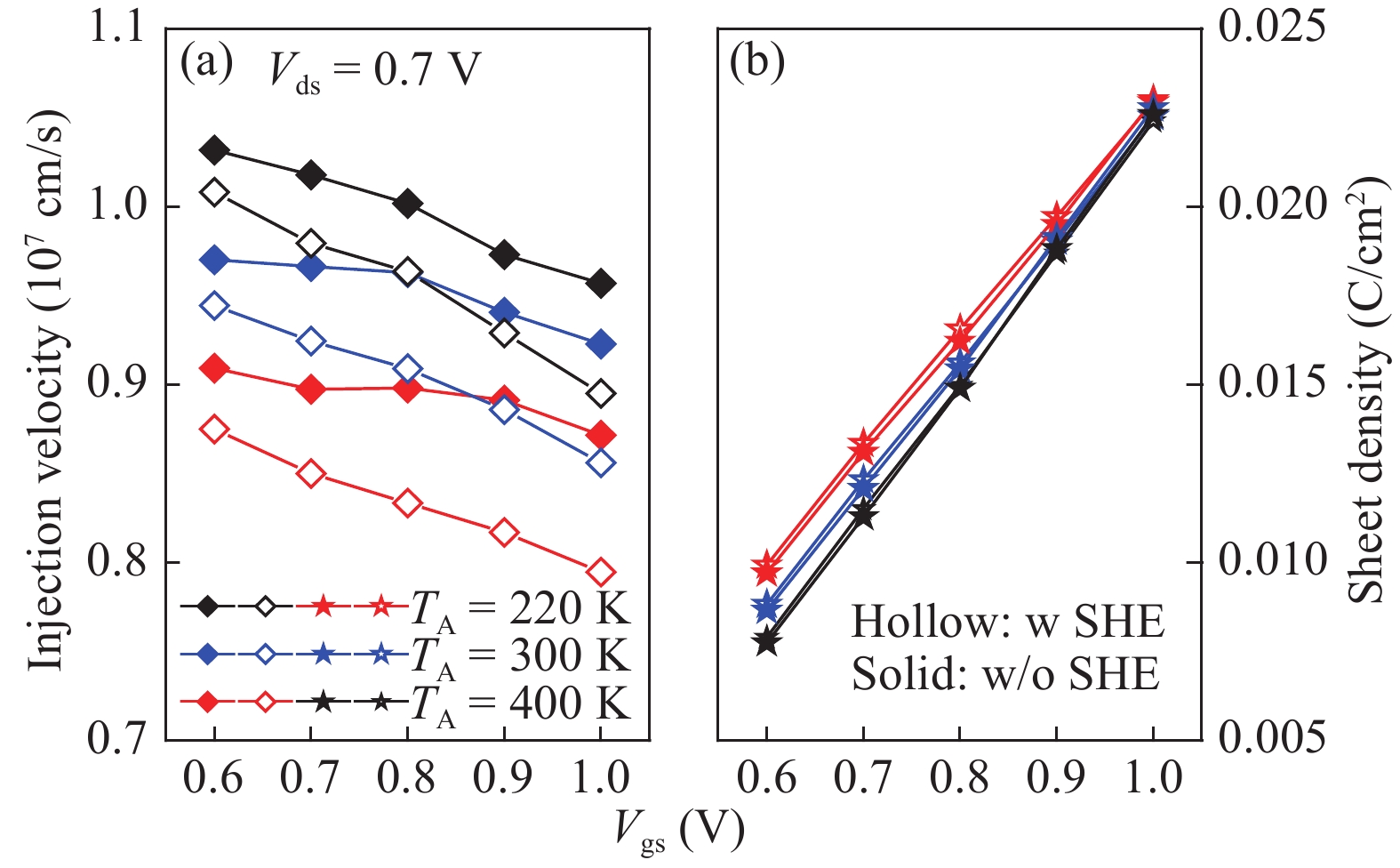

Fig. 12. (Color online) (a) Injection velocity υ_inj and (b) sheet density Q_top at the top of barrier ToB^[45] under different V_gs with and without SHE at T_A = 220, 300, 400 K and V_ds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

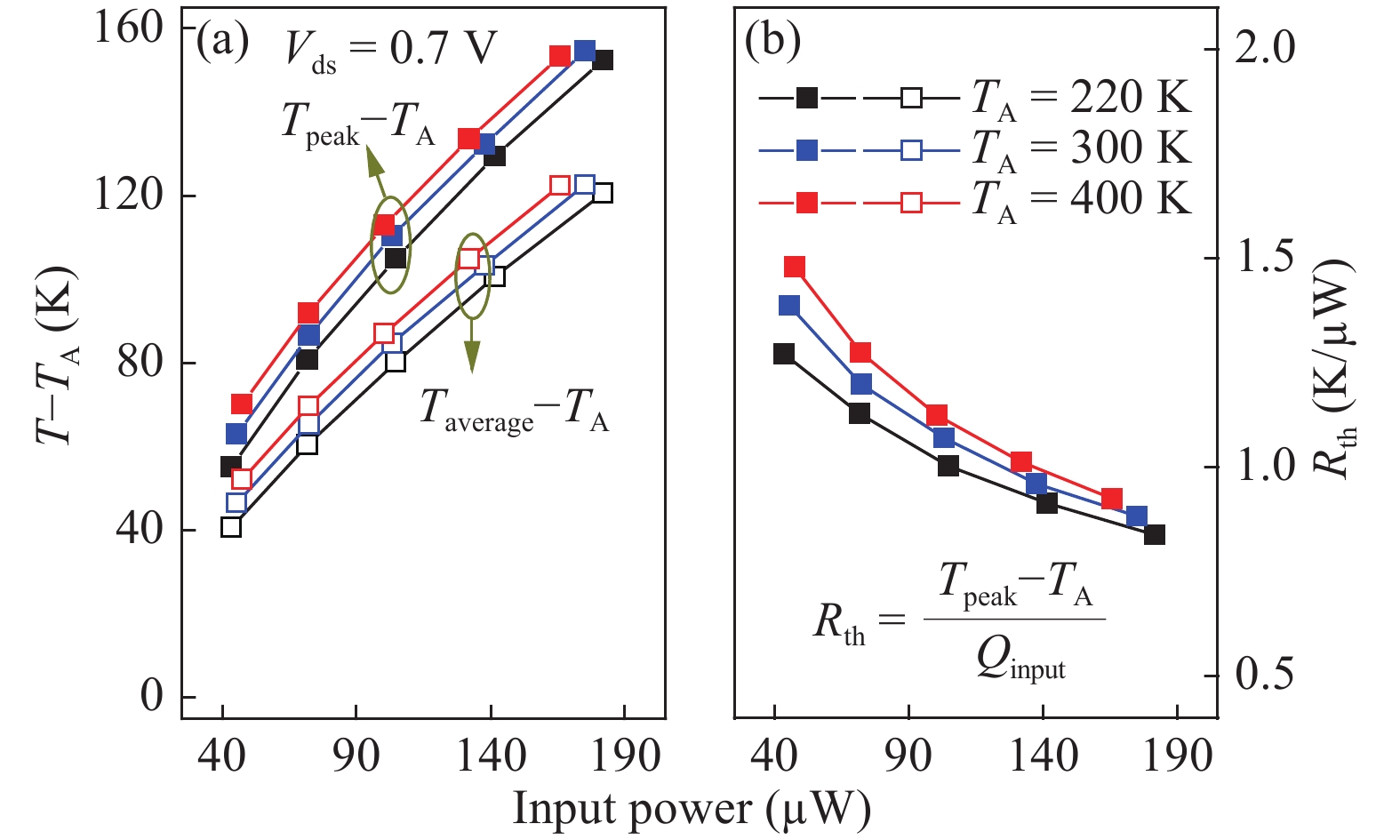

Fig. 13. (Color online) The relationship of (a) T–T_A and (b) thermal resistance R_th with Q_input at T_A = 220, 300, 400 K when V_ds = 0.7 V. T_peak and T_average respectively refer to the peak lattice temperature and the average lattice temperature.

DownLoad: Full-Size Img PowerPoint

Fig. 14. (Color online) The average augment of lattice temperature at the gate oxide region (T_gate–T_A) with T_A = 220, 300 and 400 K (a) under different V_gs at V_ds = 0.7 V and (b) under different V_ds at V_gs = 0.7 V. T_peak–T_A is plotted for comparison.

DownLoad: Full-Size Img PowerPoint

Table 1. Structure parameters of the 14 nm-node nFinFET.

Strcuture parameter	Description	Value
H_sd	Raised S/D height	52 nm
H_stop	Stop layer height	40 nm
H_sub	Substrate layer height	4 μm
H_fin	Fin height	42 nm
L_sd	Raised S/D length	20 nm
L_ext	S/D length	10 nm
L_g	Gate length	20 nm
W_pitch	Fin pitch	42 nm
W_fin	Fin width	8 nm
N_channel	Channel doping, p type	1 × 10¹⁵ cm^?3
N_stop	Stop layer doping, p type	2 × 10¹⁸ cm^?3
N_sd	Source/Drain doping, n type	1 × 10²⁰ cm^?3
N_sub	Substrate doping, p type	1 × 10¹⁵ cm^?3
EOT	Equivalent oxide thickness	0.85 nm
T_ox	Gate oxide thickness	5.4 nm

DownLoad: CSV

Table 2. Optical phonon and inter-valley acoustic phonon in silicon.

η	Phonon type	D_tK (10¹⁰ eV/m)	$ \hbar \omega $ (meV)	r
1	TA	0.47	12.1	g
2	LA	0.74	18.5	g
3	LO	10.23	62.0	g
4	TA	0.28	19.0	r
5	LA	1.86	47.4	r
6	TO	1.86	58.6	r

DownLoad: CSV

Table 3. Thermal parameters used in this work.

Silicon thermal conductivity (anisotropic)
k_y in Region (1–6)	15 Wm^?1K^?1
k_x, k_z in Region (1–6)	10 Wm^?1K^?1
Silicon thermal conductivity (isotropic)
k in Region (7)	148 Wm^?1K^?1
Oxide thermal conductivity (isotropic)
Trench oxide (SiO₂)	1.4 Wm^?1K^?1
Gate oxide (HfO₂)	1.1 Wm^?1K^?1
Contact thermal resistance
Gate	2.5 × 10^?4 cm²K/W
Source/Drain/Substrate	0.5 × 10^?4 cm²K/W

DownLoad: CSV
