Hybrid AlGaInAs/Si Fabry–Pérot lasers with near-total mode confinements

Yuede Yang^{1, 2}, Shaoshuai Sui^{1, 2}, Mingying Tang^{1, 2}, Jinlong Xiao^{1, 2}, Yun Du¹, Andrew W. Poon³ and Yongzhen Huang^{1, 2,}

+ Author Affiliations + Find other works by these authors

• 1. State Key Laboratory of Integrated Optoelectronics, Institute of Semiconductors, Chinese Academy of Sciences, Beijing 100083, ChinaState Key Laboratory of Integrated Optoelectronics, Institute of Semiconductors, Chinese Academy of Sciences, Beijing 100083, China
• 2. College of Materials Science and Opto-Electronic Technology, University?of?Chinese?Academy?of?Sciences,?Beijing?100049,?ChinaCollege of Materials Science and Opto-Electronic Technology, University?of?Chinese?Academy?of?Sciences,?Beijing?100049,?China
• 3. Photonic Device Laboratory, Department of Electronic and Computer Engineering, The Hong Kong University of Science and Technology, Hong Kong SAR, ChinaPhotonic Device Laboratory, Department of Electronic and Computer Engineering, The Hong Kong University of Science and Technology, Hong Kong SAR, China

• Yuede Yang
• Shaoshuai Sui
• Mingying Tang
• Jinlong Xiao
• Yun Du
• Andrew W. Poon
• Yongzhen Huang

 Corresponding author: Yongzhen Huang, Email: yzhuang@semi.ac.cn

DOI: 10.1088/1674-4926/39/8/084001

• Abstract
• Full Text(HTML)
• Figures(8)/Tables(1)
• References(24)
• Related Papers
• Cited by

PDF

Turn off MathJax

Abstract: We have proposed and demonstrated hybrid AlGaInAs/Si Fabry–Pérot (FP) lasers, with the FP cavity facet covered by the p-electrode metal for enhancing mode confinement. Continuous-wave lasing is obtained at room temperature with a threshold current of 45 mA for the hybrid FP laser with a cavity length of 415 μm and a width of 7 μm. Near-field optical microscope images indicate an efficient output emission from the underneath evanescently-coupled silicon waveguide. Furthermore, single-mode lasing with a side-mode suppression-ratio of 29 dB and a threshold current of 16 mA is realized for the 150 μm-long hybrid FP laser.

Key words: hybrid AlGaInAs/Si laser, Fabry–Pérot cavity, mode Q factor, metal confinement

References

[1]	Miller D A B. Device requirements for optical interconnects to silicon chip. Proc IEEE, 2009, 97: 1166 doi: 10.1109/JPROC.2009.2014298
[2]	Liu L, Roelkens G, Van Campenhout J, et al. III–V/silicon-on-insulator nanophotonic cavities for optical network-on-chip. J Nanosci Nanotechnol, 2010, 10: 1461 doi: 10.1166/jnn.2010.2032
[3]	Liang D, Bowers J E. Recent progress in lasers on silicon. Nat Photonics, 2010, 4: 511 doi: 10.1038/nphoton.2010.167
[4]	Rong H M S, Jones R, Liu A S, et al. A continuous-wave Raman silicon laser. Nature, 2005, 433: 725 doi: 10.1038/nature03346
[5]	Camacho-Aguilera R E, Cai Y, Patel N, et al. An electricallypumped germanium laser. Opt Express, 2012, 20: 11316 doi: 10.1364/OE.20.011316
[6]	Groenert M E, Leitz C W, Christopher W, et al. Monolithic integration of room-temperature cw GaAs/AlGaAs lasers on Si substrates via relaxed graded GeSi buffer layers. J Appl Phys, 2003, 93: 362 doi: 10.1063/1.1525865
[7]	Liu H Y, Wang T, Jiang Q, et al. Long-wavelength InAs/GaAs quantum-dot laser diode monolithically grown on Ge substrate. Nat Photonics, 2011, 5: 416 doi: 10.1038/nphoton.2011.120
[8]	Roelkens G, Thourhout D V, Baets R. Laser emission and photodetection in an InP/InGaAsP layer integrated on and coupled to a silicon-on-insulator waveguide circuit. Opt Express, 2006, 14: 8154 doi: 10.1364/OE.14.008154
[9]	Sui S S, Tang M Y, Yang Y D, et al. Sixteen-wavelength hybrid AlGaInAs/Si microdisk laser array. IEEE J Quantum Electron, 2015, 51: 2600108
[10]	Fang W, Park H, Cohen O, et al. Electrically pumped hybrid AlGaInAs–silicon evanescent laser. Opt Express, 2006, 14: 9203 doi: 10.1364/OE.14.009203
[11]	Ren B, Hou Y, Liang Y N. Research progress of III–V laser bonding to Si. J Semicond, 2016, 37(12): 124001 doi: 10.1088/1674-4926/37/12/124001
[12]	Zhang Y J, Qu H W, Wang H L, et al. Hybrid III–V/silicon single-mode laser with periodic microstructures. Opt Lett, 2013, 38: 842 doi: 10.1364/OL.38.000842
[13]	Luo X S, Cheng Y B, Song J F et al. Wafer-scale dies-transfer bonding technology for hybrid III/V-on-silicon photonic integrated circuit application. IEEE J Sel Top Quantum Electron, 2016, 22: 2553453
[14]	Mechet P, Raineri F, Bazin A, et al. Uniformity of the lasing wavelength of heterogeneously integrated InP microdisk lasers on SOI. Opt Express, 2013, 21: 10622 doi: 10.1364/OE.21.010622
[15]	Sui S S, Tang M Y, Yang Y D, et al. Investigation of hybrid microring lasers adhesively bonded on silicon wafer. Photon Res, 2015, 3: 289 doi: 10.1364/PRJ.3.000289
[16]	Sui S S, Tang M Y, Yang Y D, et al. Single-mode hybrid AlGaInAs/Si octagonal-ring microlaser with stable output. Chin Opt Lett, 2015, 14: 031402
[17]	Feng P, Zhang Y J, Wang Y F, et al. A novel hybrid III–V/silicon deformed micro-disk single-mode laser. J Semicond, 2015, 36(2): 024012 doi: 10.1088/1674-4926/36/2/024012
[18]	Yuan L J, Tao L, Yu H Y, et al. Hybrid InGaAsP–Si evanescent laser by selective-area metal-bonding method. IEEE Photon Technol Lett, 2013, 25: 1180 doi: 10.1109/LPT.2013.2262265
[19]	Fang W, Koch B R, Jones R, et al. A distributed Bragg reflector silicon evanescent laser. IEEE Photon Technol Lett, 2008, 20: 1667 doi: 10.1109/LPT.2008.2003382
[20]	Keyvaninia S, Verstuyft S, Landschoot L V, et al. Heterogeneously integrated III–V/silicon distributed feedback lasers. Opt Lett, 2013, 38: 5434 doi: 10.1364/OL.38.005434
[21]	Che K J, Huang Y Z. Mode characteristics of metallically coated square microcavity connected with an output waveguide. J Appl Phys, 2010, 107: 113103 doi: 10.1063/1.3431400
[22]	Yao Q F, Huang Y Z, Yang Y D, et al. Analysis of mode characteristics for microcircular resonators confined by different metallic materials. J Semicond, 2016, 37(12): 124004 doi: 10.1088/1674-4926/37/12/124004
[23]	Sui S S, Tang M Y, Yang Y D, et al. Mode investigation for hybrid microring lasers with sloped sidewalls coupled to a silicon waveguide. IEEE Photonics J, 2015, 7(2): 6100209
[24]	Huang Y Z, Yang Y D. Calculation of light delay for coupled microrings by FDTD technique and Padé approximation. J Opt Soc Am A, 2009, 26: 2419 doi: 10.1364/JOSAA.26.002419

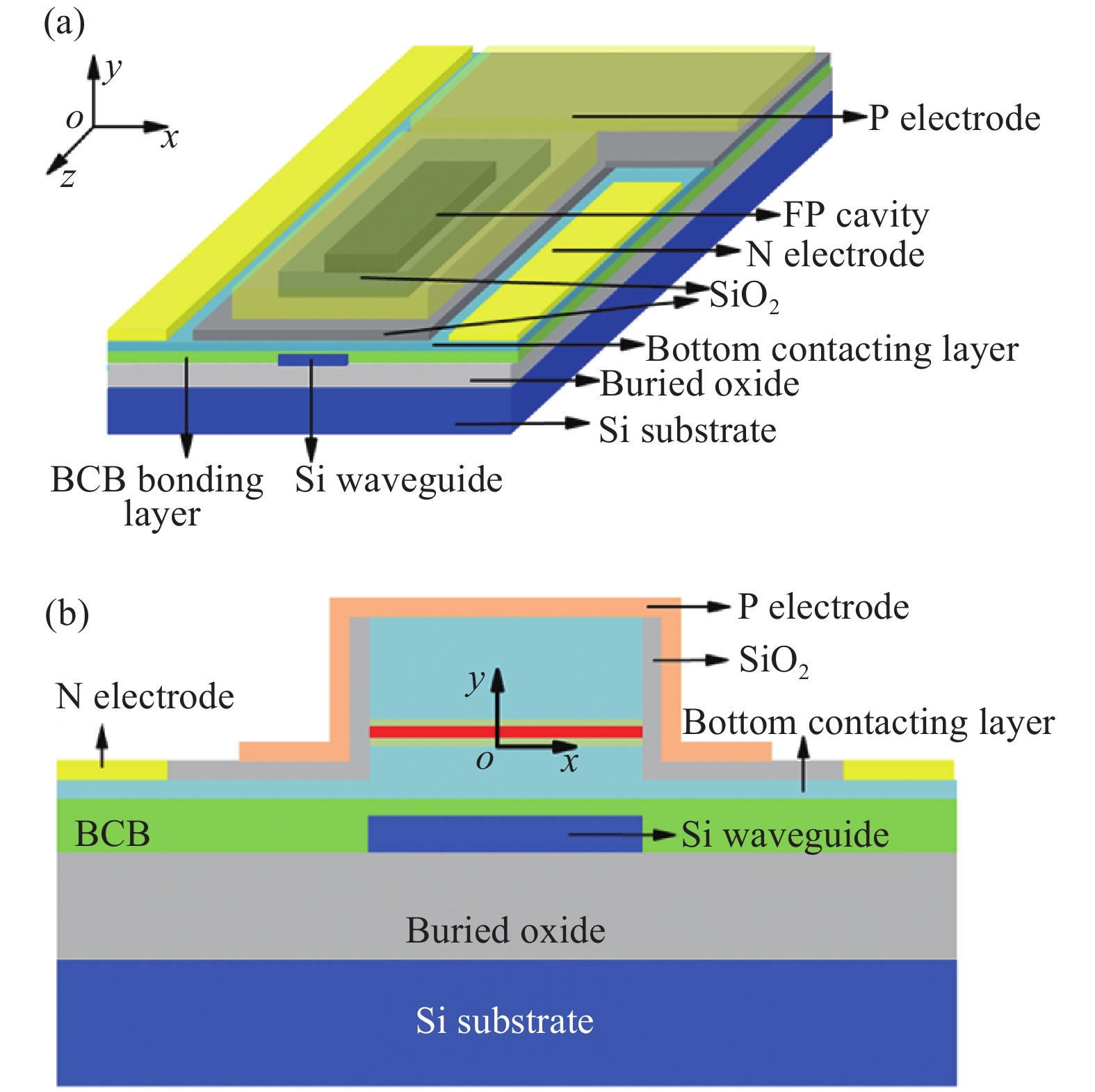

Fig. 1.  (Color online) (a) 3-D schematic diagram and (b) cross-sectional view of the hybrid AlGaInAs/Si FP laser.

DownLoad: Full-Size Img PowerPoint

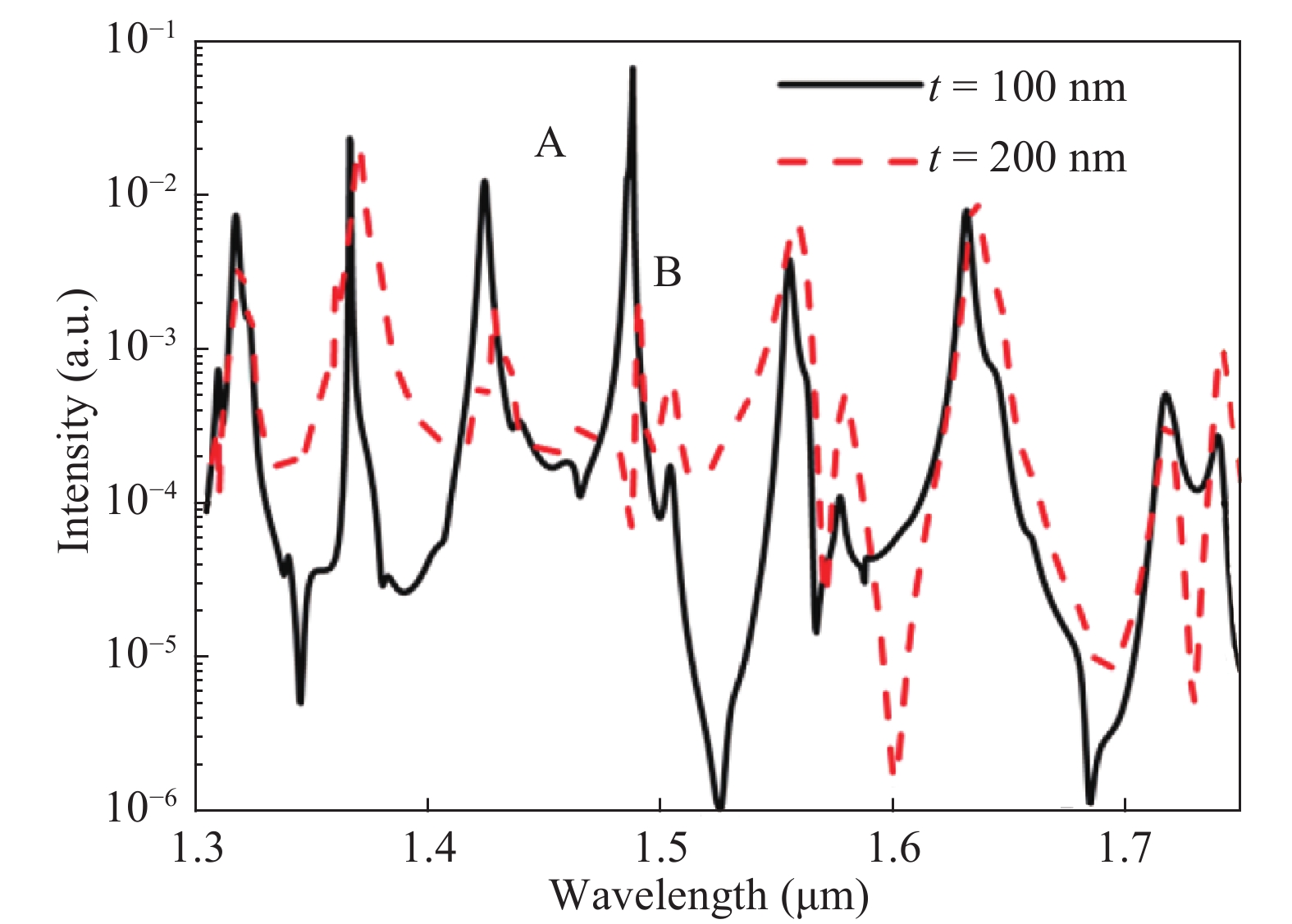

Fig. 2.  (Color online) Simulated intensity spectra of the TE modes in the hybrid FP cavity with a width of 1 μm and a length of 4 μm. Solid line: t = 100 nm. Dashed line: t = 200 nm. A: resonance at 1487 nm. B: resonance at 1503 nm.

DownLoad: Full-Size Img PowerPoint

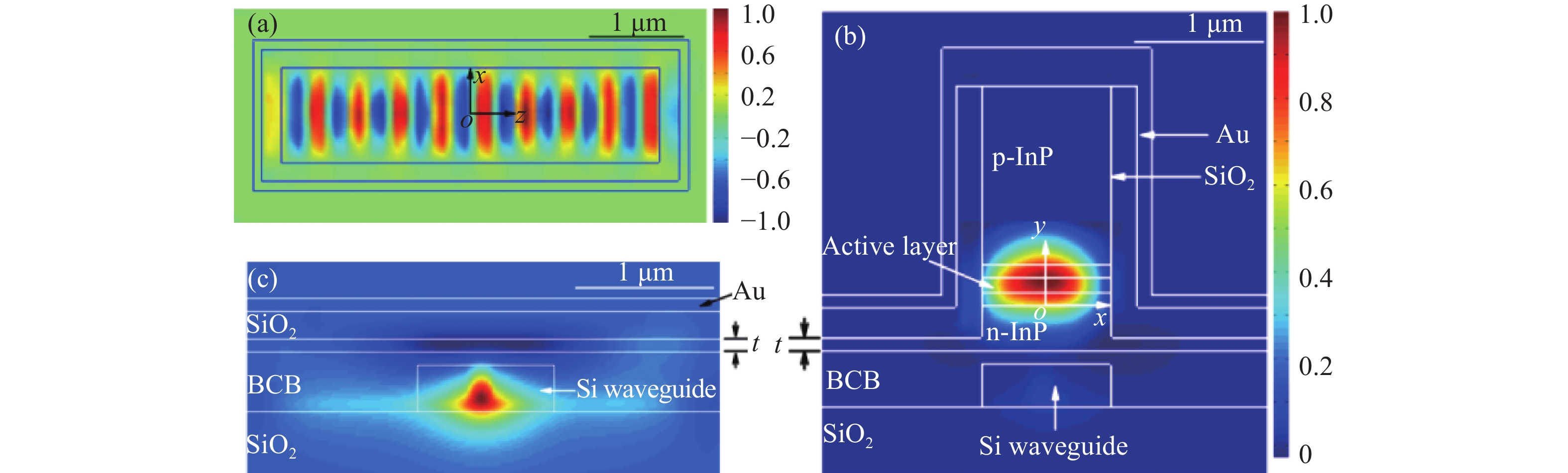

Fig. 3.  (Color online) Simulated magnetic-field H_y distributions in (a) the x–z plane at y = 0.1 μm, the x–y planes at (b) z = 0.1 μm, and (c) z = 8 μm for the mode A at 1487 nm, in the hybrid FP cavity with t = 100 nm.

DownLoad: Full-Size Img PowerPoint

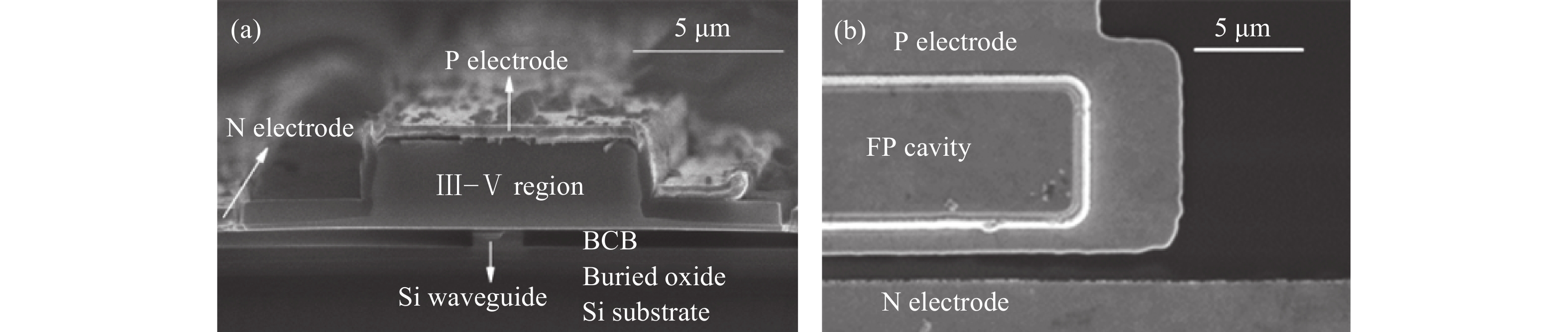

Fig. 4.  (a) Cross-sectional-view SEM image of the AlGaInAs/Si FP laser covered by the SiO₂ and p-electrode metal layers with the evanescently coupled silicon waveguide underneath. (b) Top-view SEM image of the p-electrode metal coated FP laser.

DownLoad: Full-Size Img PowerPoint

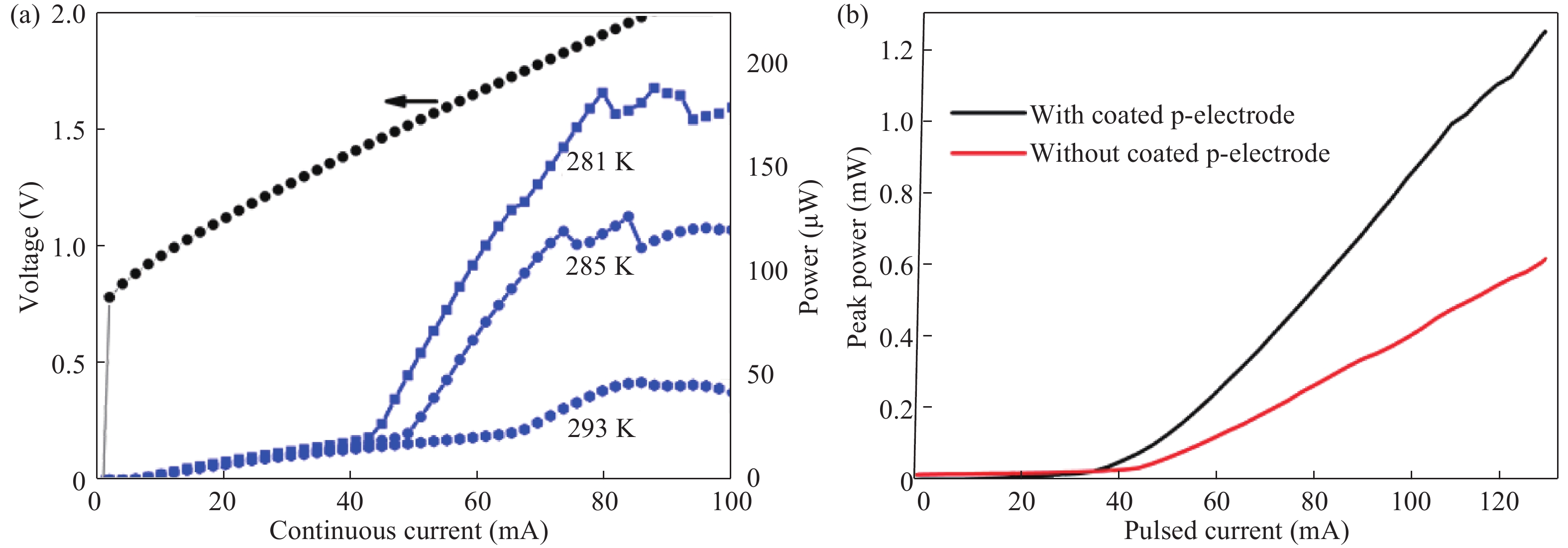

Fig. 5.  (Color online) (a) Output powers from and applied voltage versus CW injection current for the metal-coated hybrid FP laser. (b) Output peak power versus pulsed injection currents for the hybrid FP lasers with and without p-electrode metal on facets.

DownLoad: Full-Size Img PowerPoint

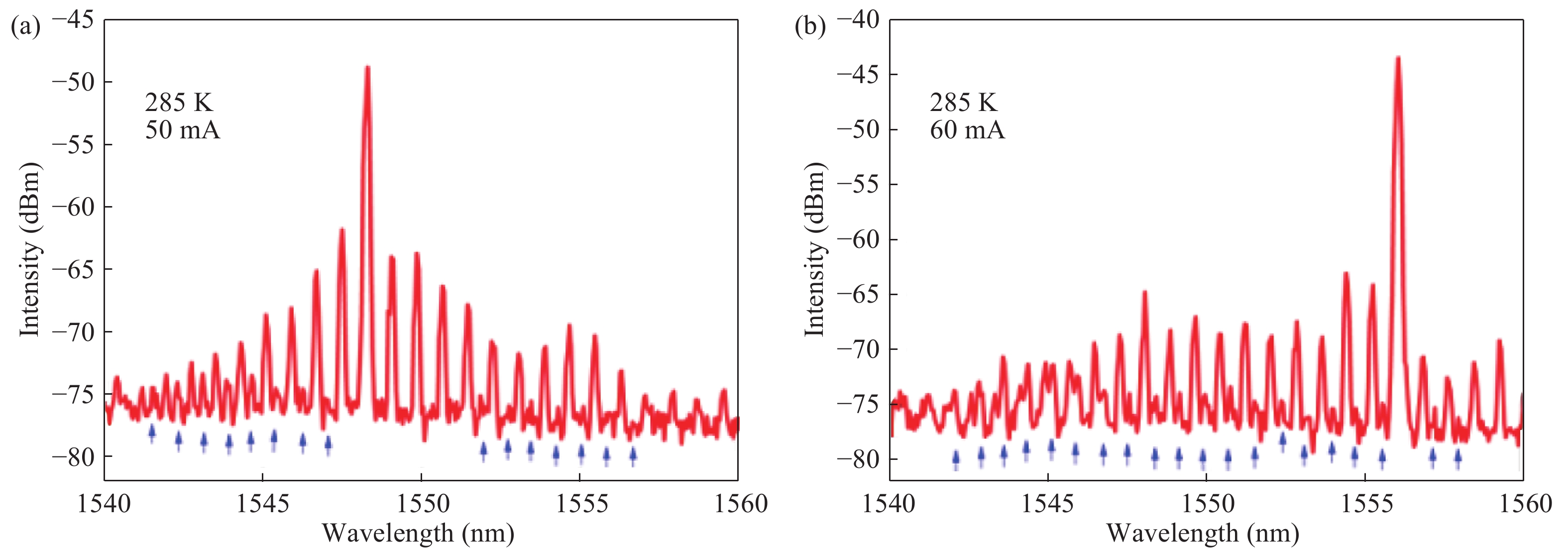

Fig. 6.  (Color online) Lasing spectra of the metal-coated hybrid FP laser measured at the CW injection currents of (a) 50 mA and (b) 60 mA.

DownLoad: Full-Size Img PowerPoint

Fig. 7.  Microscope images of (a) the near-field lasing-emission pattern, and (b) the top-view scattering light from the cleaved silicon waveguide facet of a hybrid FP laser at a pulsed injection current of 40 mA.

DownLoad: Full-Size Img PowerPoint

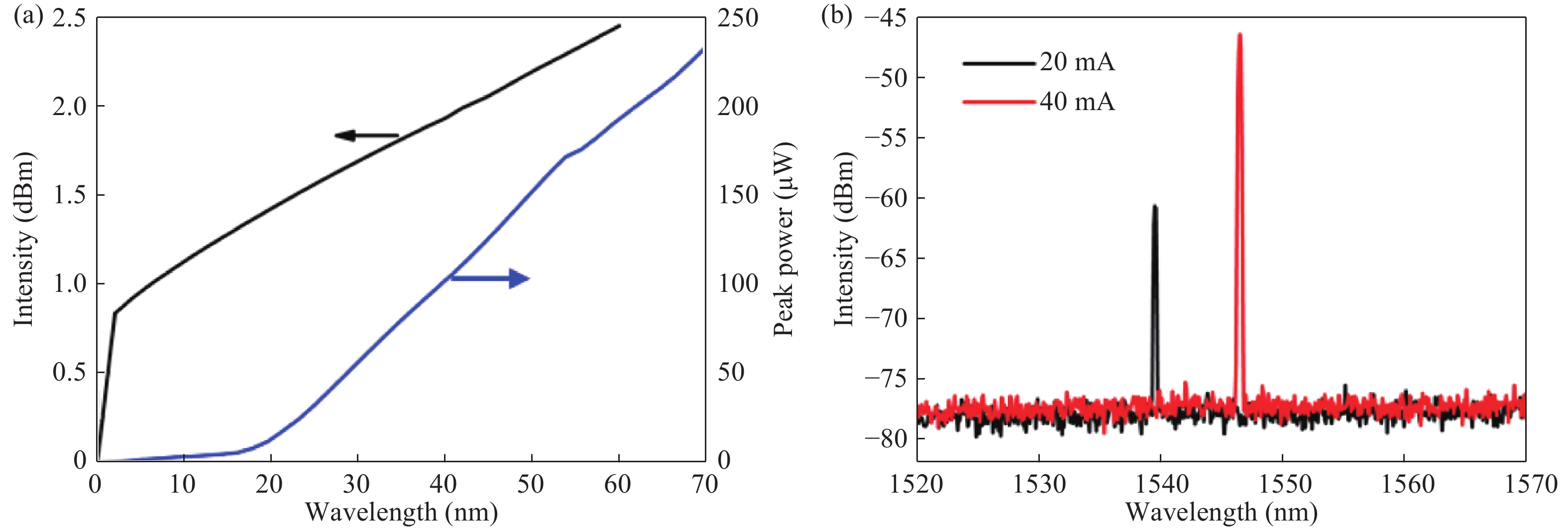

Fig. 8.  (Color online) (a) The output peak power versus the pulsed injection current, and (b) the lasing spectra at the pulsed currents of 20 and 40 mA, for the metal-coated 150-μm-long 6-μm-wide hybrid FP laser at 285 K.
