Fig. 1.

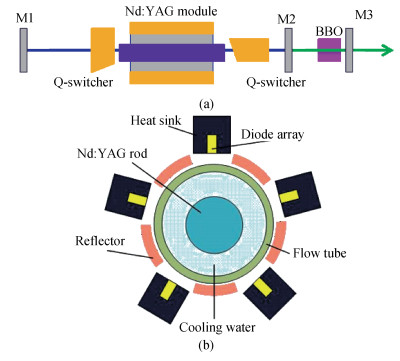

(Color online) (a) Schematic of intracavity frequency AO Qswitched green laser. (b) Five laser diode stacked arrays of pumping Nd:YAG laser module.
SEMICONDUCTOR DEVICES
Xiandan Yuan, Jinsong Wang, Yongqi Chen, Yulong Wu, Yunfei Qi, Meijiao Sun and Qi Wang
Corresponding author: Jinsong Wang Email:soldier_1973@163.com

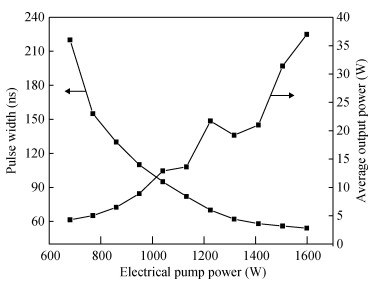

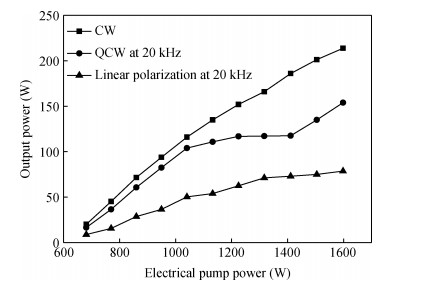

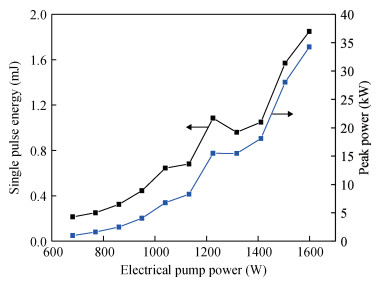

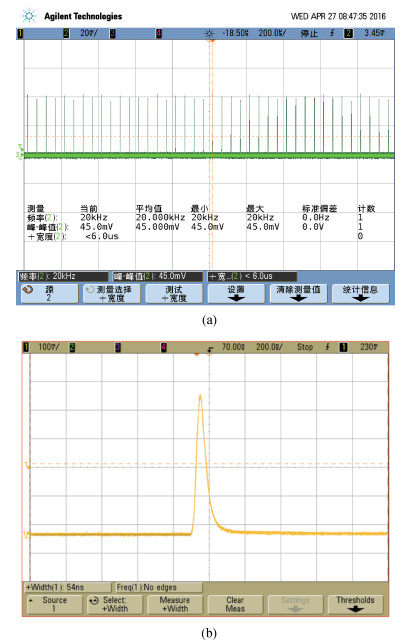

Abstract: A simple and compact linear resonator green laser at 532 nm is generated by intracavity frequencydoubling of a diode-side-pumped acousto-optically (AO) Q-switched Nd:YAG laser at 1064 nm. Two acoustooptic Q-switches were placed orthogonally with each other to improve the hold-off capacity. As high as 214 W of continuous-wave (CW) and 154 W of quasi-continuous-wave (QCW) output power at 1064 nm were obtained when the pumping power was 1598 W. The type Ⅰ phase-matched BBO crystal was used as the nonlinear medium in the second harmonic generation. A green laser with an average output power of 37 W was obtained at a repetition rate of 20 kHz and a pulse width of 54 ns, which corresponds to pulse energy of 1.85 mJ per pulse and a peak power 34.26 kW, respectively.
Key words: diode-pumped laser, second harmonic generation, acousto-optical Q-switch, nonlinear medium
