J. Semicond. > 2017, Volume 38?>?Issue 3?> 031006

SPECIAL TOPIC ON 2D MATERIALS AND DEVICES

Layer-number dependent high-frequency vibration modes in few-layer transition metal dichalcogenides induced by interlayer couplings

Qing-Hai Tan1, 2, Xin Zhang1, Xiang-Dong Luo1, 3, Jun Zhang1, 2 and Ping-Heng Tan1, 2,

+ Author Affiliations

 Corresponding author: Ping-Heng Tan,Email:phtan@semi.ac.cn

DOI: 10.1088/1674-4926/38/3/031006

PDF

Abstract: Two-dimensional transition metal dichalcogenides (TMDs) have attracted extensive attention due to their many novel properties. The atoms within each layer in two-dimensional TMDs are joined together by covalent bonds, while van der Waals interactions combine the layers together. This makes its lattice dynamics layer-number dependent. The evolutions of ultralow frequency (<50 cm-1) modes, such as shear and layer-breathing modes have been well-established. Here, we review the layer-number dependent high-frequency (>50 cm-1) vibration modes in few-layer TMDs and demonstrate how the interlayer coupling leads to the splitting of high-frequency vibration modes, known as Davydov splitting. Such Davydov splitting can be well described by a van der Waals model, which directly links the splitting with the interlayer coupling. Our review expands the understanding on the effect of interlayer coupling on the high-frequency vibration modes in TMDs and other two-dimensional materials.

Key words: transition metal dichalcogenides, Raman spectroscopy, interlayer coupling, Davydov splitting, van der Waals model



[1]
Splendiani A, Sun L, Zhang Y B, et al. Emerging photoluminescence in monolayer MoS2. Nano Lett, 2010, 10(16):1271
[2]
Mak K F, Lee C G, Hone J, et al. Atomically thin MoS2:a new direct-gap semiconductor. Phys Rev Lett, 2010, 105(20):136805
[3]
Cao T, Wang G, Han W P, et al. Alley-selective circular dichroism of monolayer molybdenum disulphide. Nat Commun, 2012, 3(8):887
[4]
Geim A K, Grigorieva I V. Van der Waals heterostructures. Nature, 2013, 499(10):419
[5]
Dean C, Young A F, Wang L, et al. Graphene based heterostructures. Solid State Commun, 2012, 152(6):1275
[6]
Liang L B, Meunier V. First-principles Raman spectra of MoS2, WS2 and their heterostructures. Nanoscale, 2014, 6(4):5394
[7]
Lou Z, Liang Z Z, Shen G Z. Photodetectors based on two dimensional materials. J Semicond, 2016, 37(9):091001 doi: 10.1088/1674-4926/37/9/091001
[8]
Xia C X, Li J B. Recent advances in optoelectronic properties and applications of two-dimensional metal chalcogenides. J Semicond, 2016, 37(5):051001 doi: 10.1088/1674-4926/37/5/051001
[9]
Lee C G, Yan H G, Brus L E, et al. Anomalous lattice vibrations of single-and few-layer MoS2. ACS Nano, 2010, 4(9):2695
[10]
Zhang X, Qiao X F, Shi W, et al. Phonon and Raman scattering of two-dimensional transition metal dichalcogenides from monolayer, multilayer to bulk material. Chem Soc Rev, 2015, 44(1):2757 http://www.pubfacts.com/detail/25679474/Phonon-and-Raman-scattering-of-two-dimensional-transition-metal-dichalcogenides-from-monolayer-multi
[11]
Puretzky A A, Liang L B, Li X F, et al. Low-frequency Raman fingerprints of two-dimensional metal dichalcogenide layer stacking configurations. ACS Nano, 2015, 9(53):6333 doi: 10.1021/acsnano.5b01884
[12]
WuJB,WangH,LiXL,etal.Ramanspectroscopiccharacterization of stacking configuration and interlayer coupling of twisted multilayer graphene grown by chemical vapor deposition. Carbon, 2016, 110(9):225
[13]
Zhang X, Han W P, Qiao X F, et al. Raman characterization of AB- and ABC-stacked few-layer graphene by interlayer shear modes. Carbon, 2016, 99(10):118 https://www.researchgate.net/publication/285363326_Raman_characterization_of_AB-_and_ABC-stacked_few-layer_graphene_by_interlayer_shear_modes
[14]
Zhang X, Tan Q H, Wu J B, et al. Review on the Raman spectroscopyofdifferenttypesoflayeredmaterials.Nanoscale,2016, 8:6435 doi: 10.1039/C5NR07205K
[15]
Tan P H, Han W P, Zhao W J, et al. The shear mode of multilayer graphene. Nat Mater, 2012, 11(6):294 https://www.researchgate.net/publication/221807338_The_shear_mode_of_multilayer_graphene
[16]
Zhang X, Han W P, Wu J B. et al. Raman spectroscopy of shear and layer breathing modes in multilayer MoS2. Phys Rev B, 2013, 87(1):115413 http://adsabs.harvard.edu/abs/2013PhRvB..87k5413Z
[17]
Zhao Y Y, Luo X, Li H, et al. Interlayer breathing and shear modes in few-trilayer MoS2 and WSe2. Nano Lett, 2013, 13(2):1007
[18]
Qiao X F, Li X L, Zhang X, et al. Substrate-free layernumber identification of two-dimensional materials:a case of Mo0.5W0.5S2 alloy. Appl Phys Lett, 2015, 106(22):223102 doi: 10.1063/1.4921911
[19]
Zallen R, Slade M L, Ward A T. Lattice vibrations and interlayer interactions in crystalline As2S3 and As2Se3. Phys Rev B, 1971, 3(17):4257
[20]
Wieting T J, Verble J L. Interlayer bonding and the lattice vibrations of β-GaSe. Phys Rev B, 1972, 5(0):1473
[21]
Song Q J, Tan Q H, Zhang X, et al. Physical origin of Davydov splitting and resonant Raman spectroscopy of Davydov components in multilayer MoTe2. Phys Rev B, 2016, 93(9):115409 https://www.researchgate.net/publication/297659051_Physical_origin_of_Davydov_splitting_and_resonant_Raman_spectroscopy_of_Davydov_components_in_multilayer_MoTe2
[22]
Kim K, Lee J U, Nam D, et al. Davydov splitting and excitonic resonance effects in Raman spectra of few-layer MoSe2. ACS Nano, 2016, 10(8):8113 doi: 10.1021/acsnano.6b04471
[23]
Verble L, Wieting T J. Lattice mode degeneracy in MoS2 and other layer compounds. Phys Rev B, 1970, 25(4):362
[24]
Wieting T J, Verble J L. Infrared and Raman studies of longwavelength optical phonons in hexagonal MoS2. Phys Rev B, 1971, 3(0):4286
[25]
Tonndorf P, Schmidt R, Philipp B, et al. Photoluminescence emission and Raman response of monolayer MoS2, MoSe2, and WSe2. Opt Express, 2013, 21(4):4908 doi: 10.1364/OE.21.004908
[26]
Staiger M, Gillen R, Scheuschner N, et al. Splitting of monolayer out-of-plane A'1 Raman mode in few-layer WS2. Phys Rev B, 2015, 91(8):195419
[27]
Froehlicher G, Lorchat E, Fernique F, et al. Unified description of the optical phonon modes in n-layer MoTe2. Nano Lett, 2015, 15(10):6481 doi: 10.1021/acs.nanolett.5b02683
[28]
Ghosh P N, Maiti C R. Interlayer force and Davydov splitting in 2H-MoS2. Phys Rev B, 1983, 28(3):2237
[29]
Wu J B, Zhang X, Ijaes M, et al. Resonant Raman spectroscopy of twisted multilayer graphene. Nat Commun, 2014, 5(7):5309
[30]
Lin M L, Ran F R, Qiao X F, et al. Ultralow-frequency Raman system down to 10 cm-1 with longpass edge filters and its application to the interface coupling in t(2+2) LGs. Rev Sci Instrum, 2016, 87(5):053122 doi: 10.1063/1.4952384

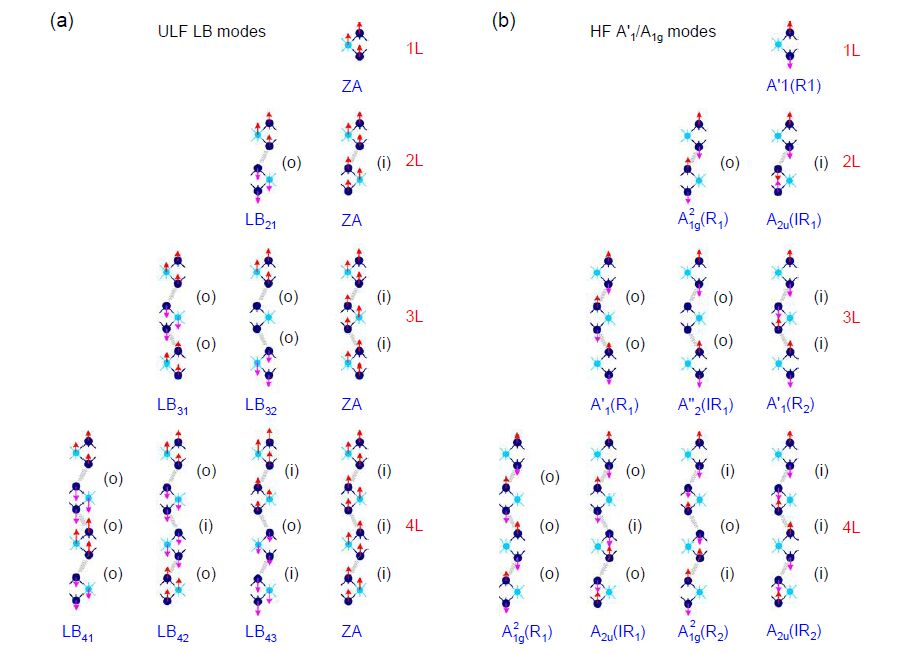

Fig. 1.  (Color online) (a) The atoms displacements of (a) layer breathing (LB) modes and (b) A1'-like modes in 1-4L MX2. (o) and (i) represent that two X atoms in adjacent layers vibrate out-of-phase and in-phase, respectively.

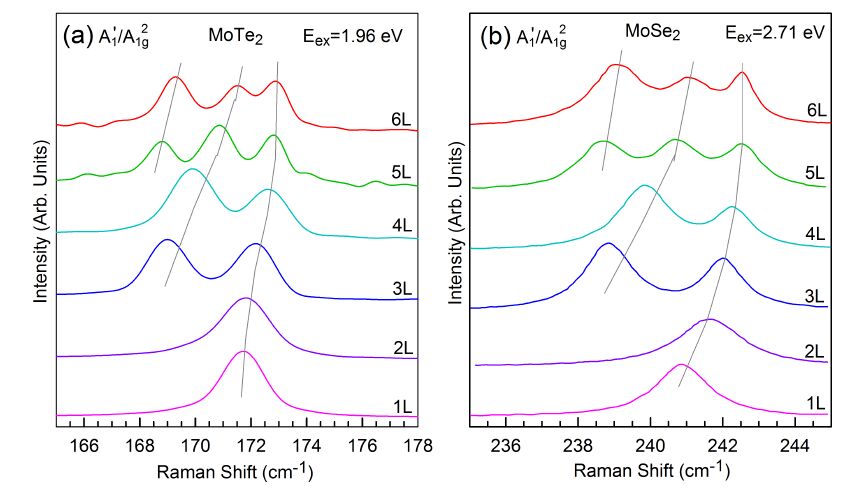

Fig. 2.  (Color online) Raman spectra of A1'-like modes in 1-6L (a) MoTe2 flakes [21] and (b) MoSe2 flakes [22].

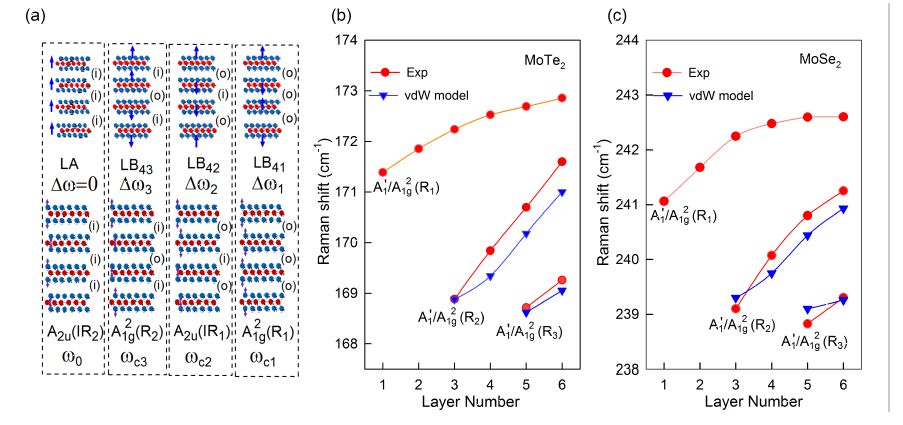

Fig. 3.  (Color online) (a) Atomic displacements of LB and A1'-like modes in 4L MX2 [21]. (b) The experimental (Exp) frequency (solid red circles) and the calculated one based on the vdW model for the A1'-like modes in 1-6L MoTe2 flakes [21]. (c) The experimental (Exp) frequency (solid red circles) and the calculated one based on the vdW model for the A1'-like modes in 1-6L MoSe2 flakes [22]. The solid line is a guide for the eye.
