Phase-locked single-mode terahertz quantum cascade lasers array

Yunfei Xu1, 2, Weijiang Li1, 2, Yu Ma3, Quanyong Lu3, , Jinchuan Zhang1, Shenqiang Zhai1, Ning Zhuo1, Junqi Liu1, 2, Shuman Liu1, 2, Fengmin Cheng1, Lijun Wang1, 2, and Fengqi Liu1, 2

+ Author Affiliations

 Corresponding author: Quanyong Lu, luqy@baqis.ac.cn; Lijun Wang, ljwang@semi.ac.cn

DOI: 10.1088/1674-4926/23120010

PDF

Turn off MathJax

Abstract: We demonstrated a scheme of phase-locked terahertz quantum cascade lasers (THz QCLs) array, with a single-mode pulse power of 108 mW at 13 K. The device utilizes a Talbot cavity to achieve phase locking among five ridge lasers with first-order buried distributed feedback (DFB) grating, resulting in nearly five times amplification of the single-mode power. Due to the optimum length of Talbot cavity depends on wavelength, the combination of Talbot cavity with the DFB grating leads to better power amplification than the combination with multimode Fabry?Perot (F?P) cavities. The Talbot cavity facet reflects light back to the ridge array direction and achieves self-imaging in the array, enabling phase-locked operation of ridges. We set the spacing between adjacent elements to be 220 μm, much larger than the free-space wavelength, ensuring the operation of the fundamental supermode throughout the laser's dynamic range and obtaining a high-brightness far-field distribution. This scheme provides a new approach for enhancing the single-mode power of THz QCLs.

Key words: quantum cascade lasers, phase locking, terahertz, single mode



[1]
Faist J, Capasso F, Sivco D L, et al. Quantum cascade laser. Science, 1994, 264, 553 doi: 10.1126/science.264.5158.553
[2]
K?hler R, Tredicucci A, Beltram F, et al. Terahertz semiconductor-heterostructure laser. Nature, 2002, 417, 156 doi: 10.1038/417156a
[3]
Vitiello M S, Scalari G, Williams B, et al. Quantum cascade lasers: 20 years of challenges. Opt Express, 2015, 23, 5167 doi: 10.1364/OE.23.005167
[4]
Williams B S. Terahertz quantum-cascade lasers. Nat Photonics, 2007, 1, 517 doi: 10.1038/nphoton.2007.166
[5]
Bai Y, Slivken S, Darvish S R, et al. High power broad area quantum cascade lasers. Appl Phys Lett, 2009, 95, 221104 doi: 10.1063/1.3270043
[6]
Zhao Y, Yan F L, Zhang J C, et al. Broad area quantum cascade lasers operating in pulsed mode above 100 °C λ ~4.7 μm. J Semicond, 2017, 38, 074005 doi: 10.1088/1674-4926/38/7/074005
[7]
Kapon E, Katz J, Yariv A. Supermode analysis of phase-locked arrays of semiconductor lasers: Erratum. Opt Lett, 1984, 9, 318 doi: 10.1364/OL.9.000318
[8]
Yaeli J, Streifer W, Scifres D R, et al. Array mode selection utilizing an external cavity configuration. Appl Phys Lett, 1985, 47, 89 doi: 10.1063/1.96261
[9]
Apollonov V V, Kislov V I, Prokhorov A M. Phase locking of a semiconductor diode array in an external cavity. Quantum Electron, 1996, 26, 1051 doi: 10.1070/QE1996v026n12ABEH000872
[10]
Leger J R. Lateral mode control of an AlGaAs laser array in a Talbot cavity. Appl Phys Lett, 1989, 55, 334 doi: 10.1063/1.101900
[11]
Khalatpour A, Reno J L, Hu Q. Phase-locked photonic wire lasers by π coupling. Nat Photonics, 2019, 13, 47 doi: 10.1038/s41566-018-0307-0
[12]
Halioua Y, Xu G Y, Moumdji S, et al. Phase-locked arrays of surface-emitting graded-photonic-heterostructure terahertz semiconductor lasers. Opt Express, 2015, 23, 6915 doi: 10.1364/OE.23.006915
[13]
Chang G L, Zhu H, Yu C R, et al. Phase-locked pair of terahertz quantum cascade lasers through evanescent-wave coupling. Infrared Phys Technol, 2020, 109, 103427 doi: 10.1016/j.infrared.2020.103427
[14]
Kao T Y, Hu Q, Reno J L. Phase-locked arrays of surface-emitting terahertz quantum-cascade lasers. In Proceedings of the Conference on Lasers and Electro-Optics, 2010, 1
[15]
Katz J, Margalit S, Yariv A. Diffraction-coupled phase-locked semiconductor laser array. Appl Phys Lett, 1983, 42, 554 doi: 10.1063/1.94025
[16]
Brunner D, Fischer I. Reconfigurable semiconductor laser networks based on diffractive coupling. Opt Lett, 2015, 40, 3854 doi: 10.1364/OL.40.003854
[17]
Xu Y F, Sun Y Q, Li W J, et al. Phase-locked terahertz quantum cascade laser array integrated with a Talbot cavity. Opt Express, 2022, 30, 36783 doi: 10.1364/OE.470993
[18]
Chuang S L. Physics of Photonic Devices. John Wiley & Sons, 2012

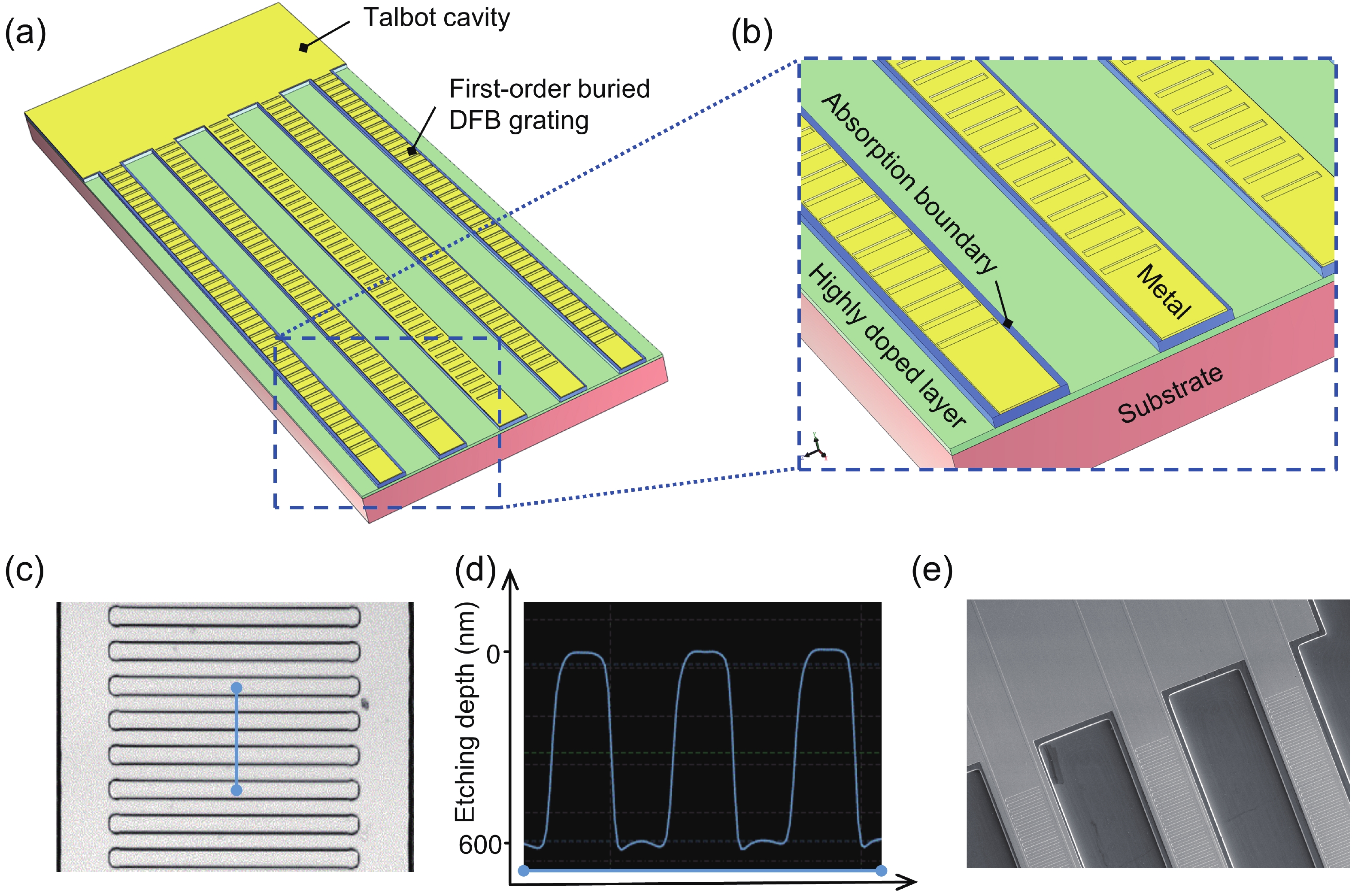

Fig. 1.  (Color online) Structure illustration of the DFB array device. (a) Three-dimension (3D) structure diagram of the DFB array device consisting of a ridge array with first-order buried DFB grating and a Talbot cavity. (b) Enlarged view of the ridge array region. (c, d) 3D microscope images of the buried DFB grating that has not yet been covered by metal, with a grating depth of around 600 nm. (e) Scanning electron microscope image of the DFB array device.

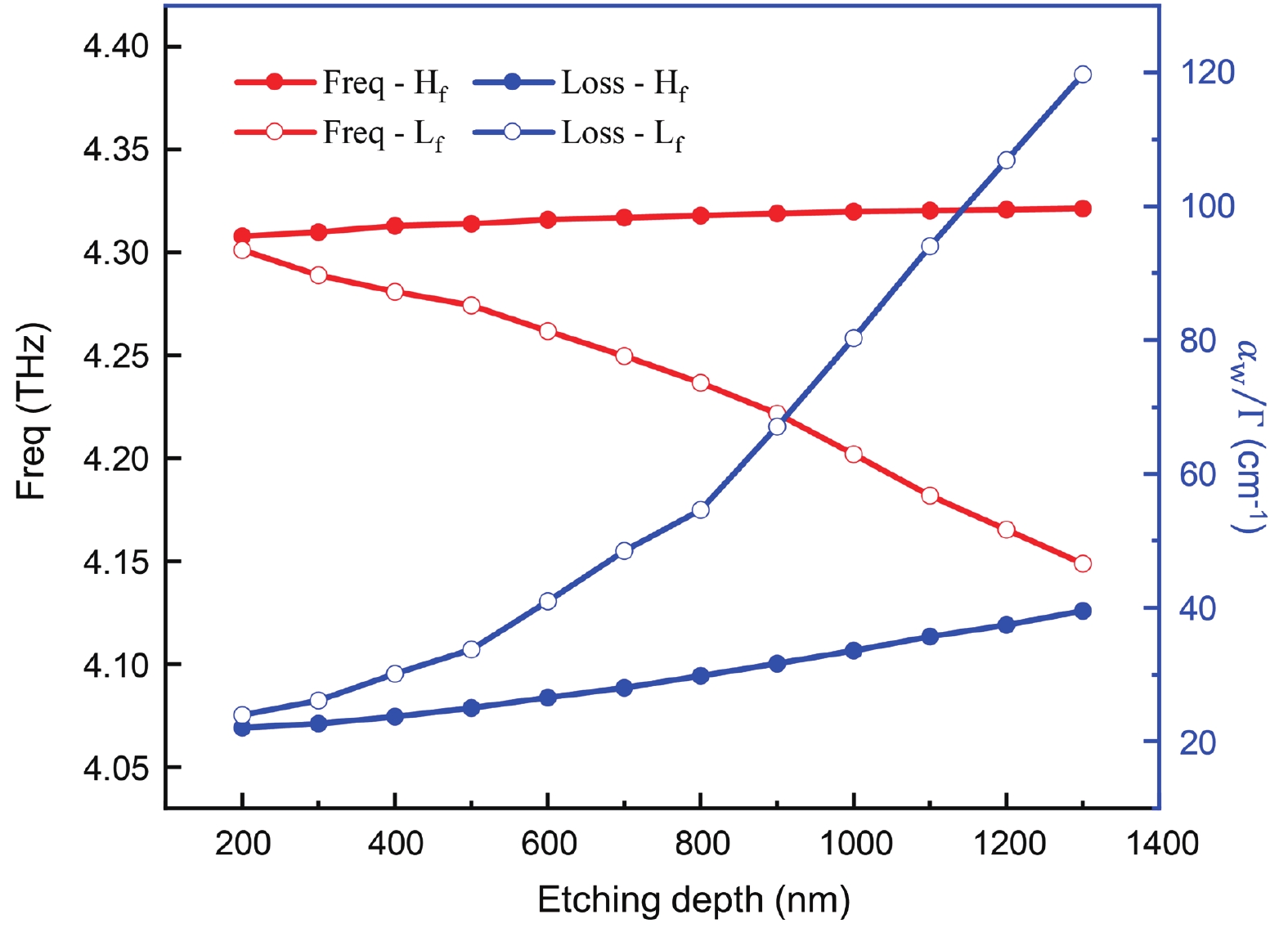

Fig. 2.  (Color online) FEM simulation results of the first-order buried DFB grating. The red line represents the relationship between the frequency of the two band edge modes and the grating etching depth, and the blue line represents the contribution of waveguide loss to threshold gain versus grating etching depth. The solid circle represents high-frequency (Hf) band edge mode, and the hollow circle represents low-frequency (Lf) band edge mode.

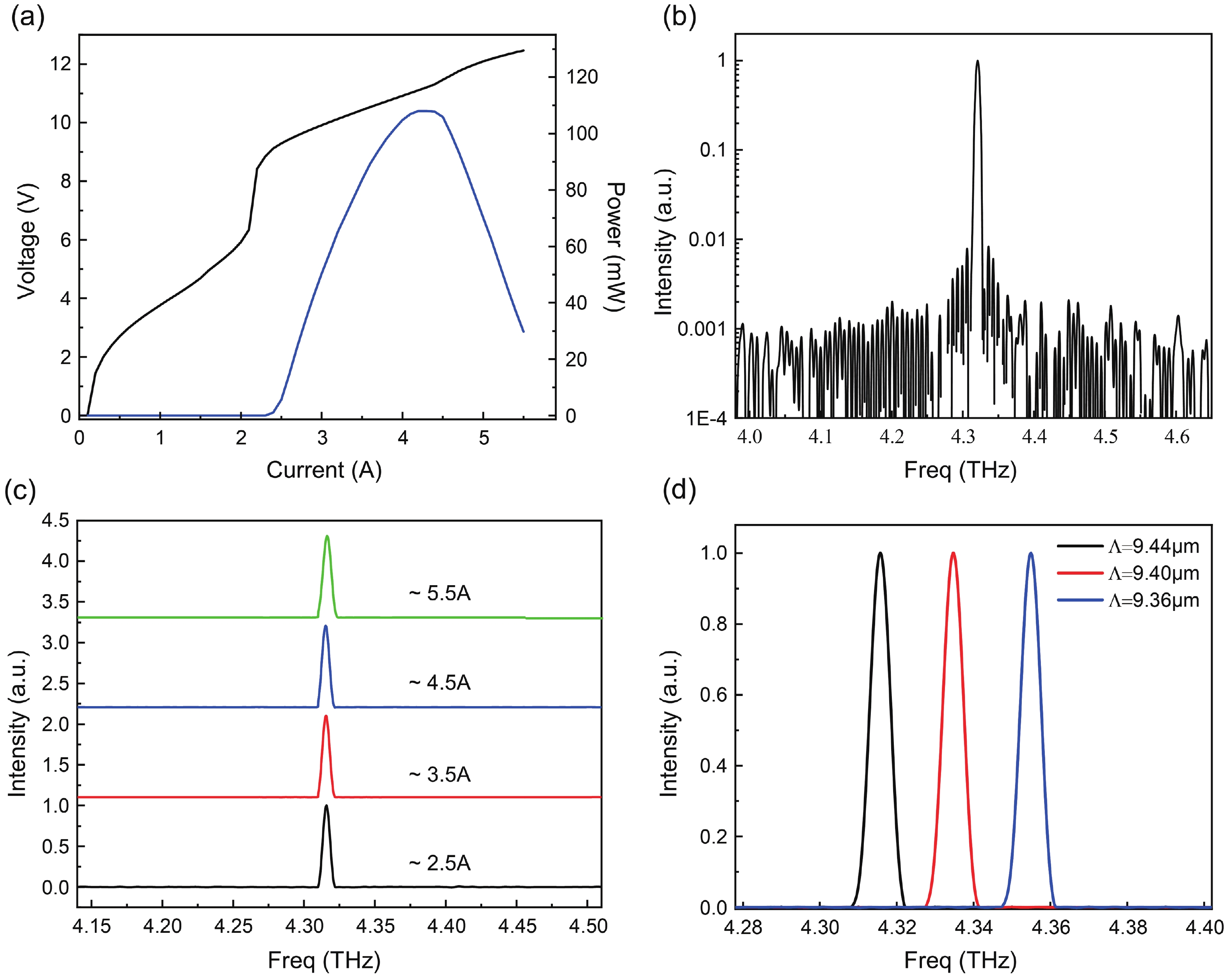

Fig. 3.  (Color online) Performance of the DFB array device. (a) Measured P–I–V curves at 13 K of the array device. (b?d) Measured emission spectra of the array device. Duty cycle σ = 50% and etching depth detch = 600 nm for the grating. The robustness and capability for lithographic tuning was verified by three different grating periods Λ = 9.36/9.40/9.44 μm. Stable single-mode operation is achieved under all bias conditions, and the side mode suppression ratio is above 20 dB.

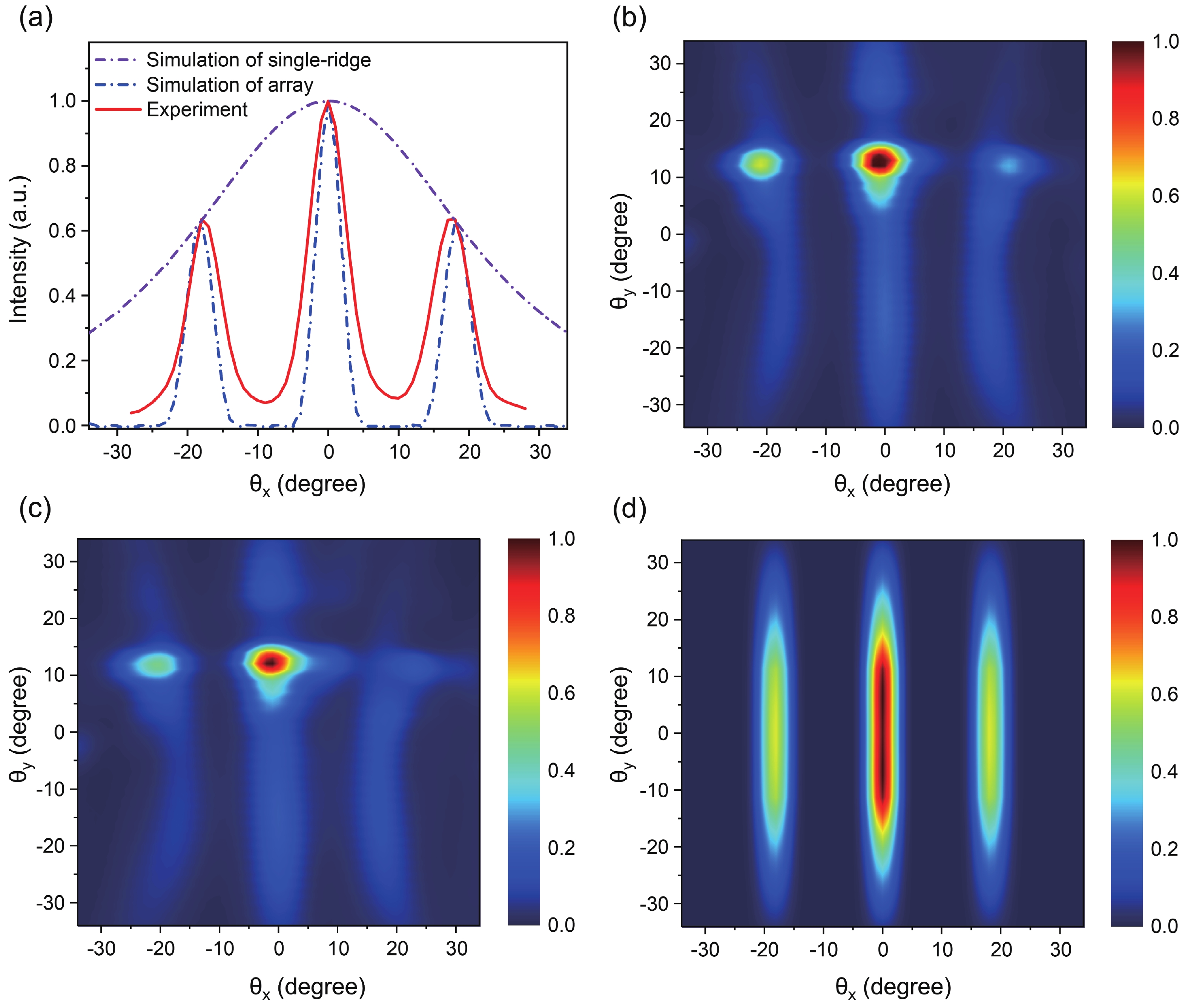

Fig. 4.  (Color online) Far-field patterns of the array device. (a) One-dimensional far-field distribution in the ridge width direction (x direction) of the five-elements array device (red line) and simulated far-field distribution of the array device (blue dotted line) and single-ridge (purple dotted line). (b, c) Far-field patterns of a representative array device measured at maximum peak power and at half peak power, respectively. (d) Calculated far-field pattern obtained by a two-dimensional Fourier transform of the near-field distribution.
