Fig. 1.

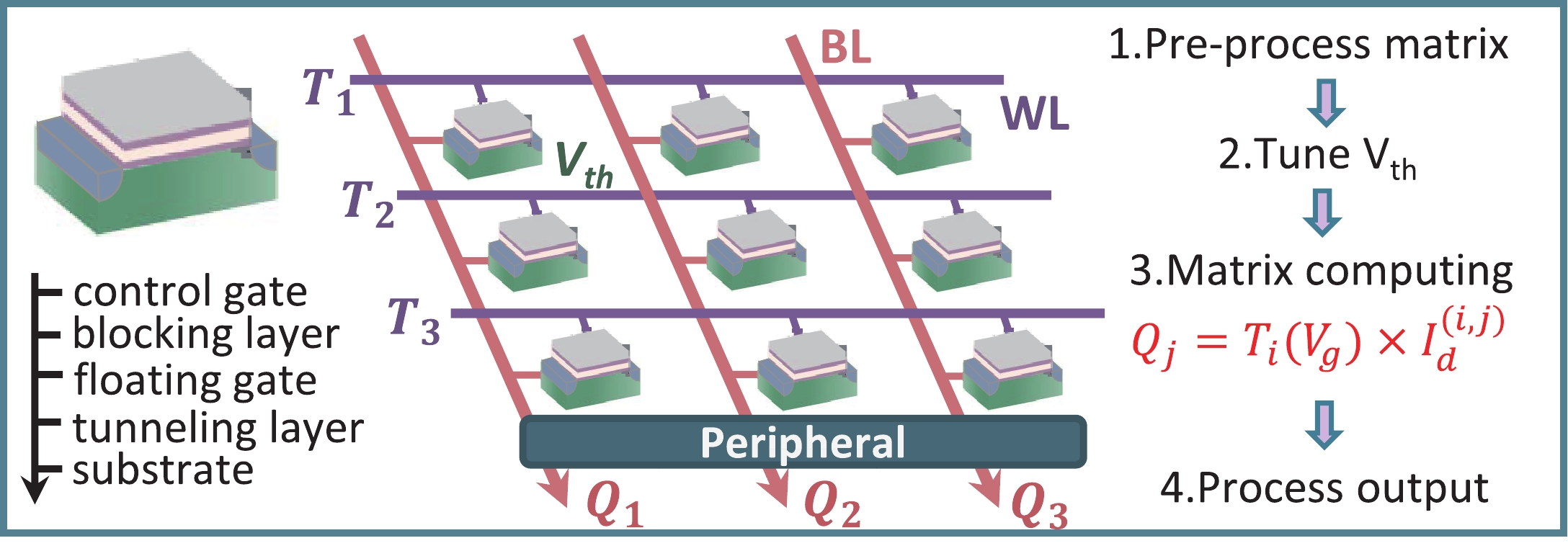

(Color online) Schematics of flash-based CIM architecture. The pulse time of Vg and the threshold voltage is individually mapped as vector and matrix, then the amount of charge can represent the result of MVM.
ARTICLES
Yang Feng1, Zhaohui Sun1, Yueran Qi1, Xuepeng Zhan1, Junyu Zhang2, Jing Liu3, Masaharu Kobayashi4, Jixuan Wu1, and Jiezhi Chen1,
Corresponding author: Jixuan Wu, jixuanwu@sdu.edu.cn; Jiezhi Chen, chen.jiezhi@sdu.edu.cn

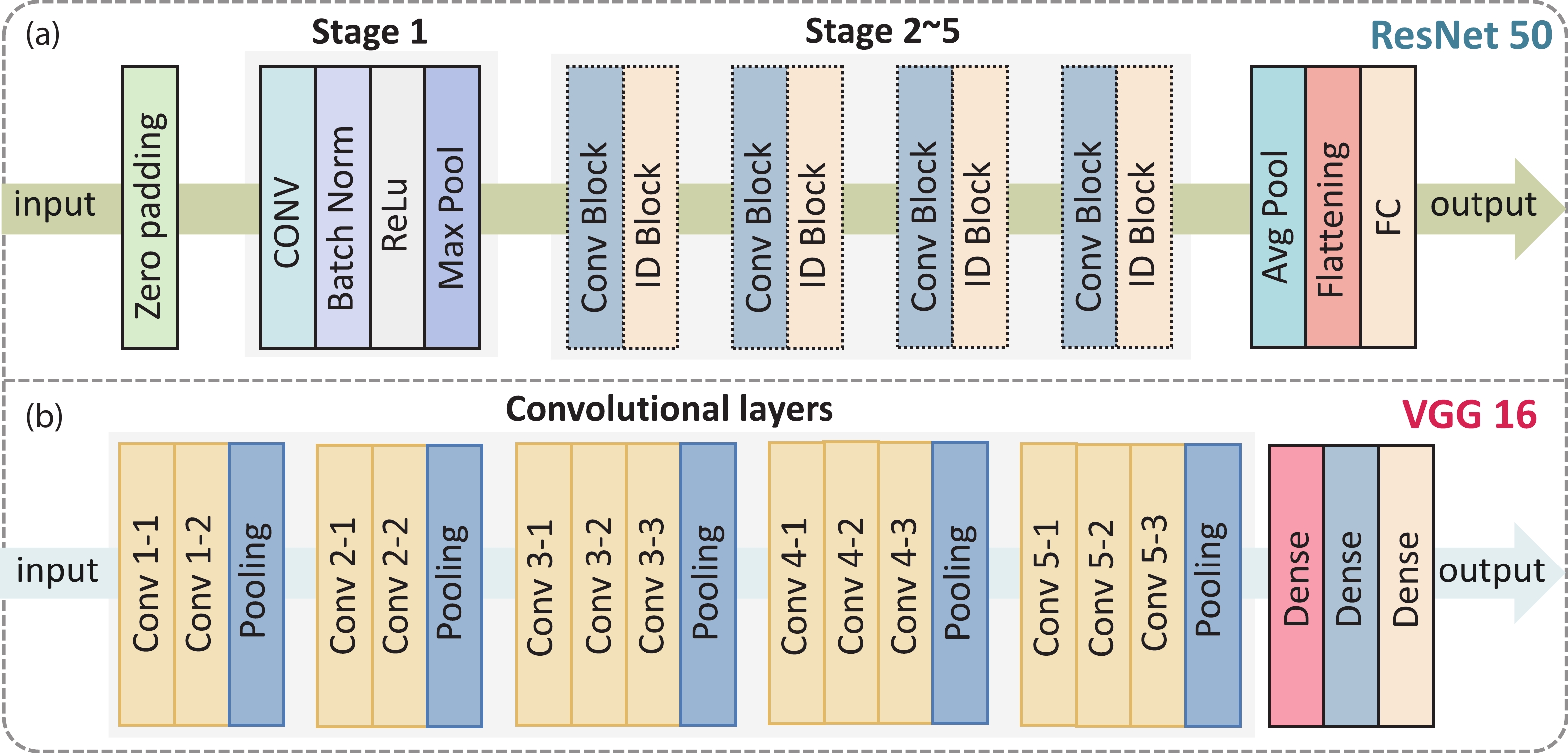

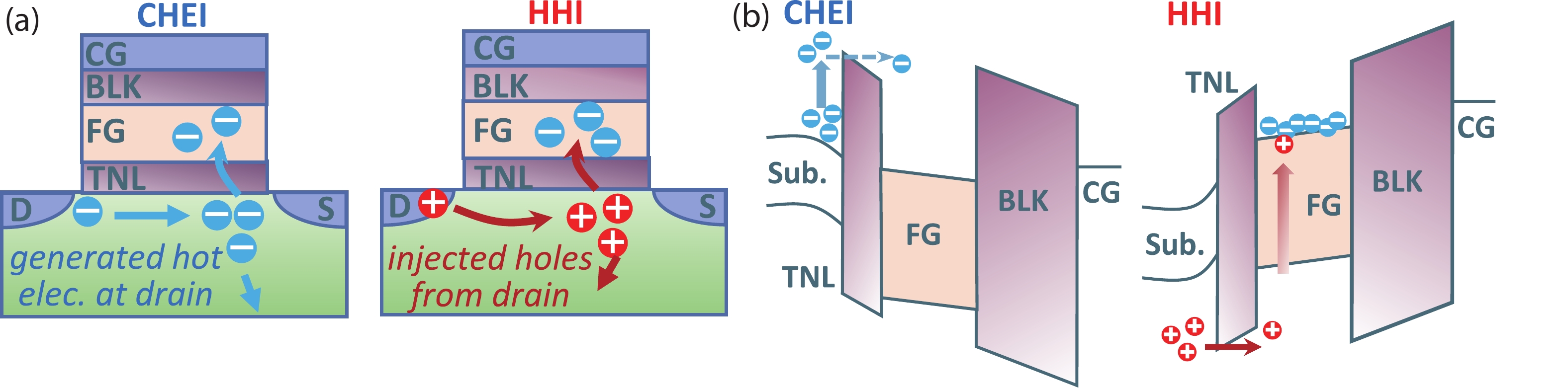

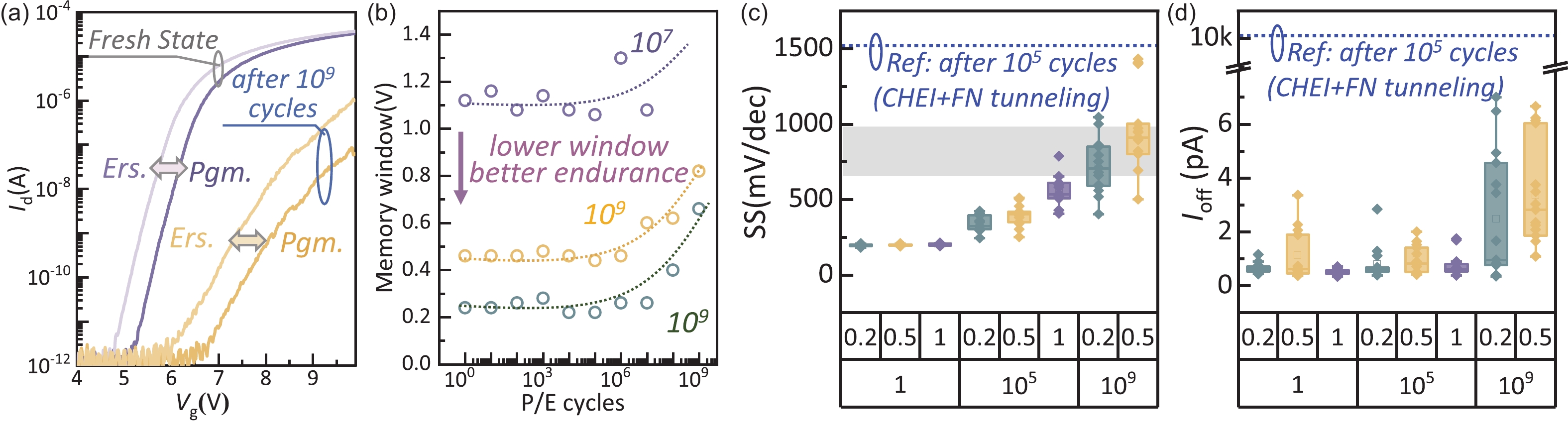

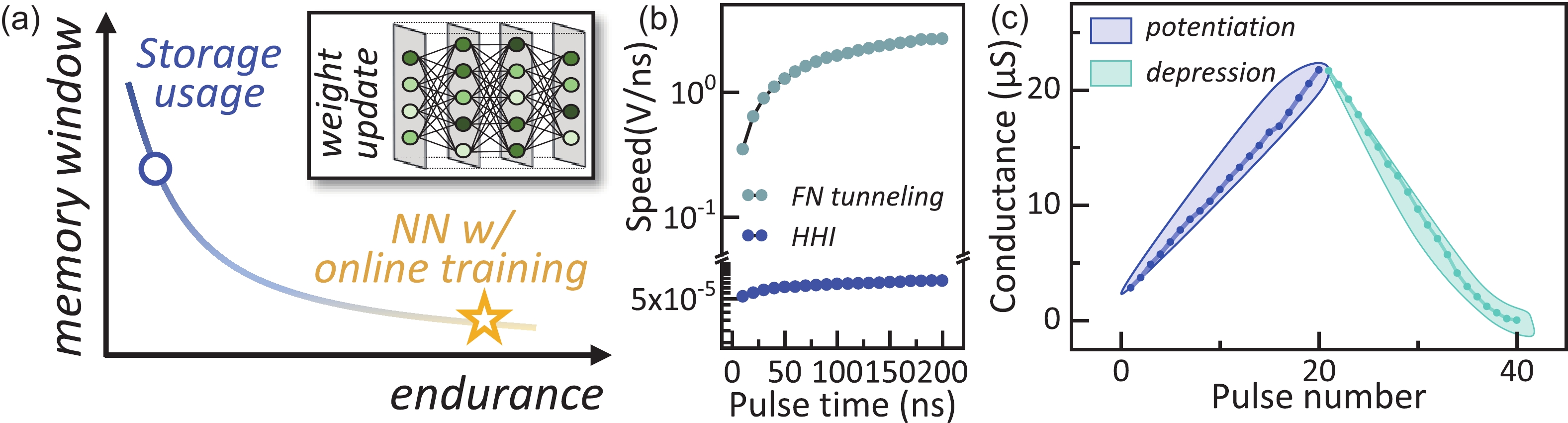

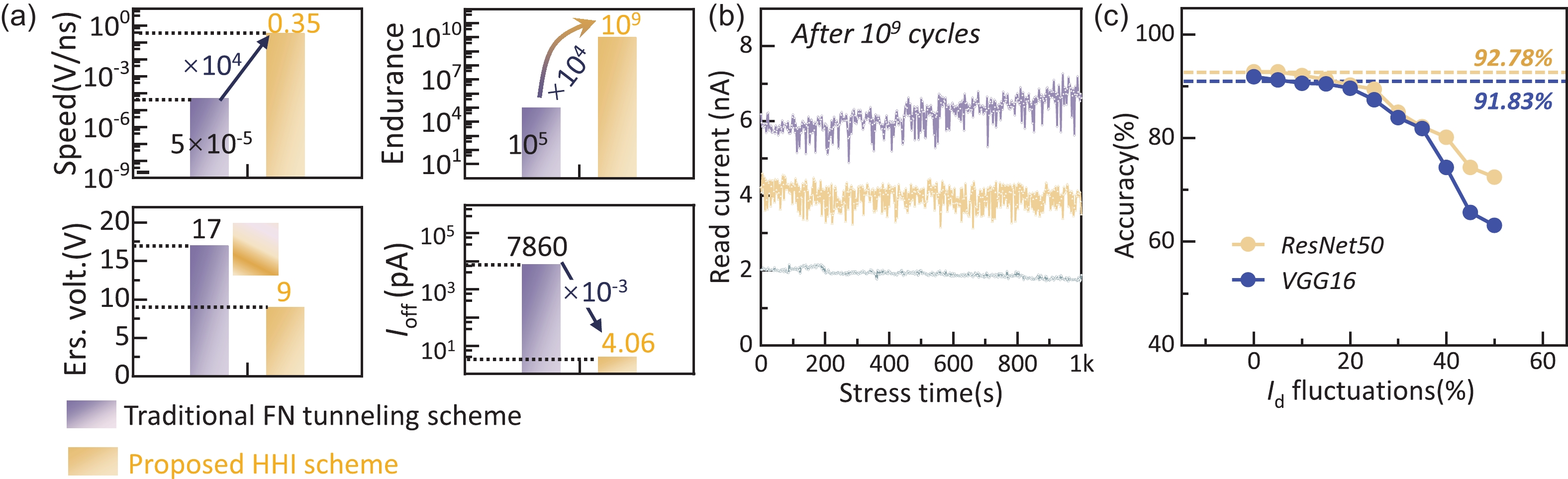

Abstract: With the rapid development of machine learning, the demand for high-efficient computing becomes more and more urgent. To break the bottleneck of the traditional Von Neumann architecture, computing-in-memory (CIM) has attracted increasing attention in recent years. In this work, to provide a feasible CIM solution for the large-scale neural networks (NN) requiring continuous weight updating in online training, a flash-based computing-in-memory with high endurance (109 cycles) and ultra-fast programming speed is investigated. On the one hand, the proposed programming scheme of channel hot electron injection (CHEI) and hot hole injection (HHI) demonstrate high linearity, symmetric potentiation, and a depression process, which help to improve the training speed and accuracy. On the other hand, the low-damage programming scheme and memory window (MW) optimizations can suppress cell degradation effectively with improved computing accuracy. Even after 109 cycles, the leakage current (Ioff) of cells remains sub-10pA, ensuring the large-scale computing ability of memory. Further characterizations are done on read disturb to demonstrate its robust reliabilities. By processing CIFAR-10 tasks, it is evident that ~90% accuracy can be achieved after 109 cycles in both ResNet50 and VGG16 NN. Our results suggest that flash-based CIM has great potential to overcome the limitations of traditional Von Neumann architectures and enable high-performance NN online training, which pave the way for further development of artificial intelligence (AI) accelerators.
Key words: NOR flash memory, computing-in-memory, endurance, neural network, online training
