26.75 cm² organic solar modules demonstrate a certified efficiency of 14.34%

Erming Feng¹, Yunfei Han², Jianhui Chang¹, Hengyue Li¹, Keqing Huang^{1, 3}, Lixiu Zhang⁴, Qun Luo², Jidong Zhang⁵, Changqi Ma², Yingping Zou⁶, Liming Ding^4, and Junliang Yang^1,

+ Author Affiliations

1. Hunan Key Laboratory for Super-Microstructure and Ultrafast Process, School of Physics and Electronics, Central South University, Changsha 410083, China
2. Printable Electronics Research Center, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou 215123, China
3. College of Engineering and Computer Science, Australian National University, Canberra 2600, Australia
4. Center for Excellence in Nanoscience, Key Laboratory of Nanosystem and Hierarchical Fabrication (CAS), National Center for Nanoscience and Technology, Beijing 100190, China
5. Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China
6. College of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China

Author Bio:

Erming Feng got his BS and MS from Shijiazhuang Tiedao University and Shandong Normal University, respectively. Now he is a PhD student at Central South University under the supervision of Prof. Junliang Yang. His work focuses on organic solar cells.

Liming Ding got his PhD from University of Science and Technology of China (was a joint student at Changchun Institute of Applied Chemistry, CAS). He started his research on OSCs and PLEDs in Olle Ingan?s Lab in 1998. Later on, he worked at National Center for Polymer Research, Wright-Patterson Air Force Base and Argonne National Lab (USA). He joined Konarka as a Senior Scientist in 2008. In 2010, he joined National Center for Nanoscience and Technology as a full professor. His research focuses on innovative materials and devices. He is RSC Fellow, the nominator for Xplorer Prize, and the Associate Editor for Journal of Semiconductors.

Junliang Yang received his PhD in 2008 from CIAC, CAS. He then joined Tim S. Jones Group at the University of Warwick. In April 2011, he moved to Australia and joined Andrew B. Holmes Group at the University of Melbourne and CSIRO. In 2012, he was appointed as a professor in School of Physics and Electronics at Central South University. His research focuses on perovskite solar cells, organic solar cells, flexible and printed electronics.

Corresponding author: Liming Ding, ding@nanoctr.cn; Junliang Yang, junliang.yang@csu.edu.cn

DOI: 10.1088/1674-4926/43/10/100501

References

[1]	Lin Y, Wang J, Zhang Z G, et al. An electron acceptor challenging fullerenes for efficient polymer solar cells. Adv Mater, 2015, 27, 1170 doi: 10.1002/adma.201404317
[2]	Yuan J, Zhang Y, Zhou L, et al. Single-junction organic solar cell with over 15% efficiency using fused-ring acceptor with electron-deficient core. Joule, 2019, 3, 1140 doi: 10.1016/j.joule.2019.01.004
[3]	Liu Q, Jiang Y, Jin K, et al. 18% efficiency organic solar cells. Sci Bull, 2020, 65, 272 doi: 10.1016/j.scib.2020.01.001
[4]	Qin J, Zhang L, Zuo C, et al. A chlorinated copolymer donor demonstrates a 18.13% power conversion efficiency. J Semicond, 2021, 42, 010501 doi: 10.1088/1674-4926/42/1/010501
[5]	Li P, Meng X, Jin K, et al. Banana-shaped electron acceptors with an electron-rich core fragment and 3D packing capability. Carbon Energy, 2022, in press doi: 10.1002/cey2.250
[6]	Meng X, Li M, Jin K, et al. A 4-arm small molecule acceptor with high photovoltaic performance. Angew Chem Int Ed, 2022, e202207762 doi: 10.1002/anie.202207762
[7]	Cao J, Yi L, Ding L. The origin and evolution of Y6 structure. J Semicond, 2022, 43, 030202 doi: 10.1088/1674-4926/43/3/030202
[8]	Cao J, Nie G, Zhang L, et al. Star polymer donors. J Semicond, 2022, 43, 070201 doi: 10.1088/1674-4926/43/7/070201
[9]	Ding L. Organic solar cells. Wiley, 2022
[10]	Zhu L, Zhang M, Xu J, et al. Single-junction organic solar cells with over 19% efficiency enabled by a refined double-fibril network morphology. Nat Mater, 2022, 21, 656 doi: 10.1038/s41563-022-01244-y
[11]	Zheng Z, Wang J, Bi P, et al. Tandem organic solar cell with 20.2% efficiency. Joule, 2022, 6, 171 doi: 10.1016/j.joule.2021.12.017
[12]	Distler A, Brabec C J, Egelhaaf H J. Organic photovoltaic modules with new world record efficiencies. Prog Photovoltaics Res Appl, 2021, 29, 24 doi: 10.1002/pip.3336
[13]	Guan W, Yuan D, Wu J, et al. Blade-coated organic solar cells from non-halogenated solvent offer 17% efficiency. J Semicond, 2021, 42, 030502 doi: 10.1088/1674-4926/42/3/030502
[14]	Li M, Wang J, Ding L, et al. Large-area organic solar cells. J Semicond, 2022, 43, 060201 doi: 10.1088/1674-4926/43/6/060201
[15]	Pan W, Han Y, Wang Z, et al. Over 1 cm² flexible organic solar cells. J Semicond, 2021, 42, 050301 doi: 10.1088/1674-4926/42/5/050301
[16]	Sun R, Wu Q, Guo J, et al. A layer-by-layer architecture for printable organic solar cells overcoming the scaling lag of module efficiency. Joule, 2020, 4, 407 doi: 10.1016/j.joule.2019.12.004
[17]	Zhang B, Yang F, Chen S, et al. Fluid mechanics inspired sequential blade-coating for high-performance large-area organic solar modules. Adv Funct Mater, 2022, 32, 2202011 doi: 10.1002/adfm.202202011
[18]	Zhang L, Yang S, Ning B, et al. Modulation of vertical component distribution for large-area thick-film organic solar cells. Sol RRL, 2022, 6, 2100838 doi: 10.1002/solr.202100838
[19]	Guo X, Li H, Han Y, et al. Fully doctor-bladed efficient organic solar cells processed under ambient condition. Org Electron, 2020, 82, 105725 doi: 10.1016/j.orgel.2020.105725
[20]	Li H, Huang K, Dong Y, et al. Efficient organic solar cells with the active layer fabricated from glovebox to ambient condition. Appl Phys Lett, 2020, 117, 133301 doi: 10.1063/5.0021509
[21]	Yang Y, Feng E, Li H, et al. Layer-by-layer slot-die coated high-efficiency organic solar cells processed using twin boiling point solvents under ambient condition. Nano Res, 2021, 14, 4236 doi: 10.1007/s12274-021-3576-8
[22]	Jin K, Xiao Z, Ding L. 18.69% PCE from organic solar cells. J Semicond, 2021, 42, 060502 doi: 10.1088/1674-4926/42/6/060502
[23]	Meng X, Jin K, Xiao Z, et al. Side chain engineering on D18 polymers yields 18.74% power conversion efficiency. J Semicond, 2021, 42, 100501 doi: 10.1088/1674-4926/42/10/100501
[24]	Zhang G, Chen X K, Xiao J, et al. Delocalization of exciton and electron wavefunction in non-fullerene acceptor molecules enables efficient organic solar cells. Nat Commun, 2020, 11, 3943 doi: 10.1038/s41467-020-17867-1

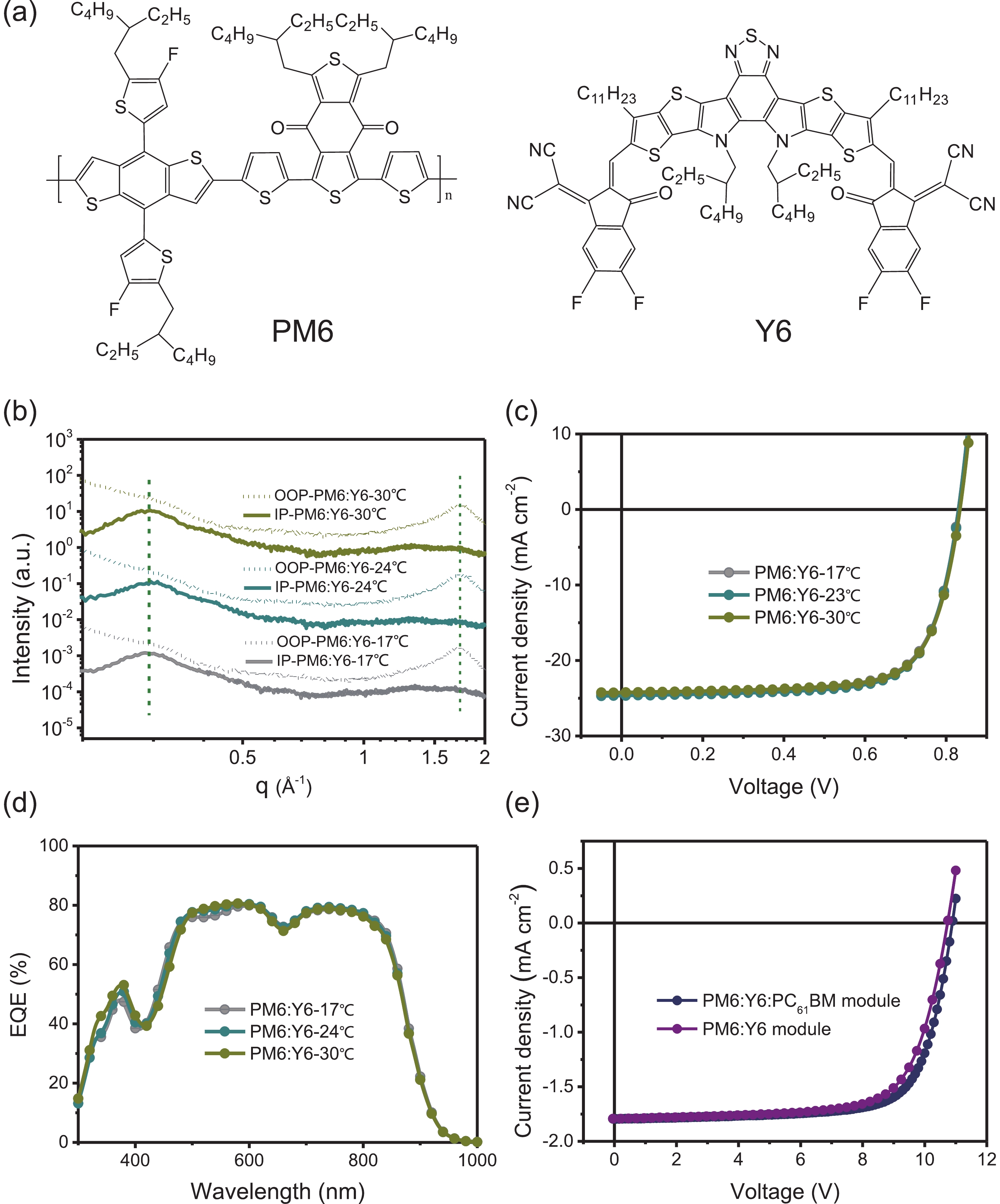

Fig. 1. (Color online) (a) Chemical structures of PM6 and Y6. (b) 1D GIWAXS line curves along the out-of-plane (OOP, dotted line) and in-plane (IP, solid line) directions. (c) J–V curves for PM6:Y6 cells made at different temperatures. (d) EQE spectra for PM6:Y6 cells made at different temperatures. (e) J–V curves for PM6:Y6 and PM6:Y6:PC₆₁BM modules with a designated illumination area of 26.75 cm².
