A novel 4H-SiC trench MOSFET with double shielding structures and ultralow gate-drain charge

Xiaorong Luo; Tian Liao; Jie Wei; Jian Fang; Fei Yang; Bo Zhang

doi:10.1088/1674-4926/40/5/052803

J. Semicond. > 2019, Volume 40?>?Issue 5?> 052803

ARTICLES

A novel 4H-SiC trench MOSFET with double shielding structures and ultralow gate-drain charge

Xiaorong Luo^1,, Tian Liao¹, Jie Wei¹, Jian Fang¹, Fei Yang² and Bo Zhang¹

+ Author Affiliations

Corresponding author: Xiaorong Luo, Email: xrluo@uestc.edu.cn

DOI: 10.1088/1674-4926/40/5/052803

Abstract: A new ultralow gate–drain charge (Q_GD) 4H-SiC trench MOSFET is presented and its mechanism is investigated by simulation. The novel MOSFET features double shielding structures (DS-MOS): one is the grounded split gate (SG), the other is the P⁺ shielding region (PSR). Both the SG and the PSR reduce the coupling effect between the gate and the drain, and transform the most part of the gate–drain capacitance (C_GD) into the gate–source capacitance (C_GS) and drain–source capacitance (C_DS) in series. Thus the C_GD is reduced and the proposed DS-MOS obtains ultralow Q_GD. Compared with the double-trench MOSFET (DT-MOS) and the conventional trench MOSFET (CT-MOS), the proposed DS-MOS decreases the Q_GD by 85% and 81%, respectively. Moreover, the figure of merit (FOM), defined as the product of specific on-resistance (R_{on, sp}) and Q_GD (R_{on, sp}Q_GD), is reduced by 84% and 81%, respectively.

Key words: SiC trench MOSFET, reverse transfer capacitance, gate-drain charge, figure of merit

References

[1]	Pittini R, Zhang Z, Andersen M A E. Switching performance evaluation of commercial SiC power devices (SiC JFET and SiC MOSFET) in relation to the gate driver complexity. IEEE ECCE Asia Downunder, 2013, 233
[2]	Zhang X, Yao C, Li C, et al. A wide bandgap device-based isolated quasi-switched-capacitor DC/DC converter. IEEE Trans Power Electron, 2014, 29(5), 2500 doi: 10.1109/TPEL.2013.2287501
[3]	Abbatelli L, Macauda M, Catalisano G, et al. Cost benefits on high frequency converter system based on SiC MOSFET approach. PCIM Europe; International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management, 2014, 1
[4]	T Kimoto, J A Cooper. Fundamentals of silicon carbide technology: growth, characterization, devices, and applications. Singapore: Wiley, 2014
[5]	Tega N, Hisamoto D, Shima A, et al. Channel properties of SiC trench-etched double-implanted MOS (TED MOS). IEEE Trans Electron Devices, 2016, 63(9), 1 doi: 10.1109/ted.2016.2587799
[6]	Zhang Q, Gomez M. 1600V 4H-SiC UMOSFETs with dual buffer layers. International Symposium on Power Semiconductor Devices and ICs, 2005, 211
[7]	Sui Y, Tsuji T, Cooper J A. On-state characteristics of SiC power UMOSFETs on 115-μm drift layers. IEEE Electron Device Lett, 2005, 26(4), 255 doi: 10.1109/LED.2005.845495
[8]	Tega N, Yoshimoto H,Hisamoto D, et al. Novel trench-etched double-diffused SiC MOS (TED MOS) for overcoming tradeoff between R_onA and Q_gd. International Symposium on Power Semiconductor Devices and ICs, 2015, 81
[9]	Cooper J A, Melloch M R, Singh R, et al. Status and prospects for SiC power MOSFETs. IEEE Trans Electron Devices, 2002, 49(4), 658 doi: 10.1109/16.992876
[10]	Hiroshi Y, Hatayama N H. Increased channel mobility in 4H-SiC UMOSFETs using on-axis substrates. Mater Sci Forum, 2007, 556/557, 807 doi: 10.4028/www.scientific.net/MSF.556-557
[11]	Tan J, Cooper J A, Melloch M R. High-voltage accumulation-layer UMOSFET’s in 4H-SiC. IEEE Electron Device Lett, 1998, 19(12), 487 doi: 10.1109/55.735755
[12]	Kagawa Y, Fujiwara N, Sugawara K, et al. 4H-SiC trench MOSFET with bottom oxide protection. Mater Sci Forum, 2014, 778–780, 907 doi: 10.4028/www.scientific.net/MSF.778-780
[13]	Wang Y, Ma Y C, Hao Y, et al. Simulation study of 4H-SiC UMOSFET structure with p⁺-polySi/SiC shielded region. IEEE Trans Electron Devices, 2017, 64(9) doi: 10.1109/TED.2017.2723502
[14]	Wei J, Zhang M, Jiang H, et al. Charge storage effect in SiC trench MOSFET with a floating p-shield and its impact on dynamic performances. International Symposium on Power Semiconductor Devices and ICs, 2017, 387
[15]	Khan I A, Cooper J A, Capano M A, et al. High-voltage UMOSFETs in 4H SiC. International Symposium on Power Semiconductor Devices and ICs, 2002, 157
[16]	Wei J, Zhang M, Jiang H P, et al. Dynamic degradation in SiC trench MOSFET with a floating p-shield revealed with numerical simulations. IEEE Trans Electron Devices, 2017, 64(4), 2592 doi: 10.1109/TED.2017.2697763
[17]	Nakamura T, Nakano Y, Aketa M, et al. Performance SiC trench devices with ultra-low R_on. Electron Devices Meeting, 2011, 26.5.1
[18]	Goarin P, Koops G E J, Dalen R V, et al. Split-gate resurf stepped oxide (RSO) MOSFETs for 25 V applications with record low gate-to-drain charge. International Symposium on Power Semiconductor Devices and ICs, 2007, 61
[19]	Luo X, Ma D, Tan Q, et al. A split gate power FINFET with improved ON-resistance and switching performance. IEEE Electron Device Lett, 2016, 37(9), 1185 doi: 10.1109/LED.2016.2591780
[20]	Zhou X, Yue R, Zhang J, et al. 4H-SiC trench MOSFET with floating/grounded junction barrier-controlled gate structure. IEEE Trans Electron Devices, 2017, 64(11), 4568 doi: 10.1109/TED.2017.2755721
[21]	J Lutz, U Scheuermann, H Schlangenotto, et al. Semiconductor power devices: physics, characteristics, reliability. New York: Spring-Verlag, 2011

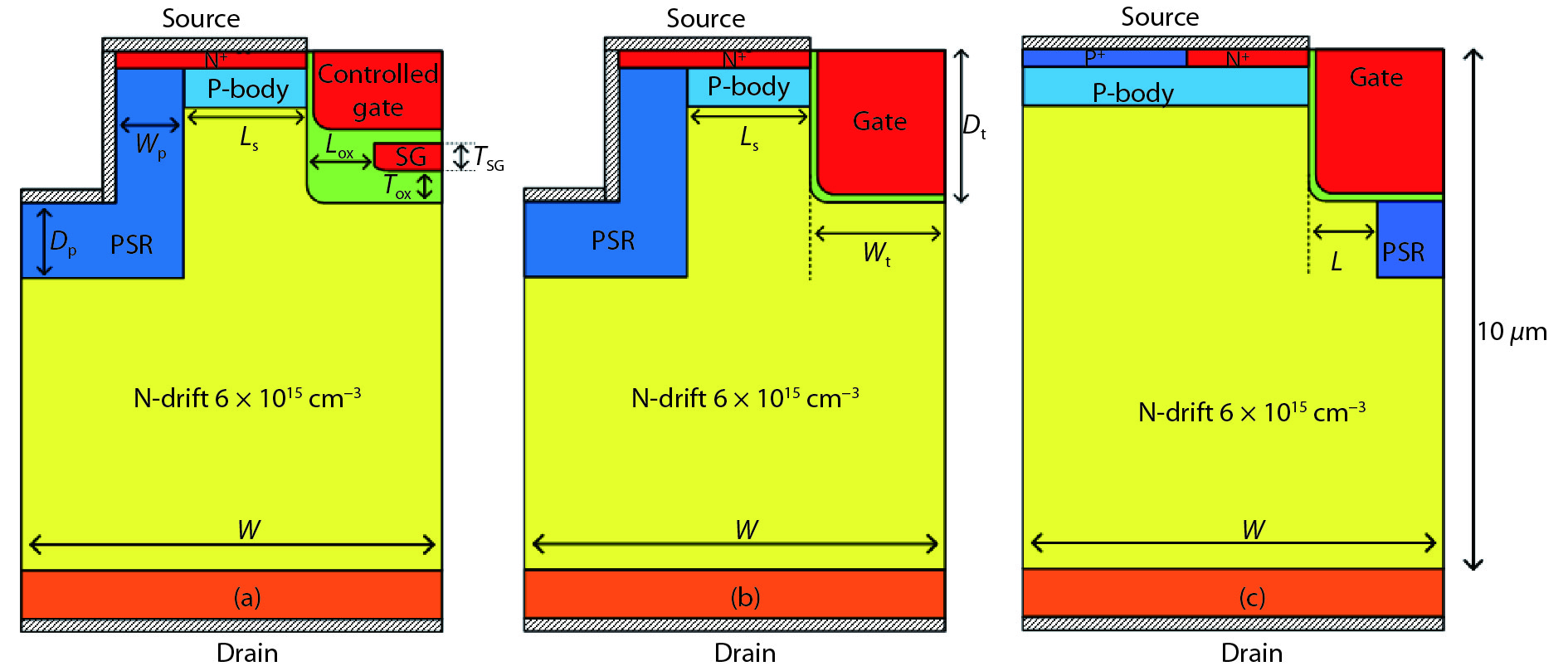

Fig. 1. (Color online) Schematic cross section of the (a) proposed DS-MOS, (b) DT-MOS, and (c) CT-MOS.

DownLoad: Full-Size Img PowerPoint

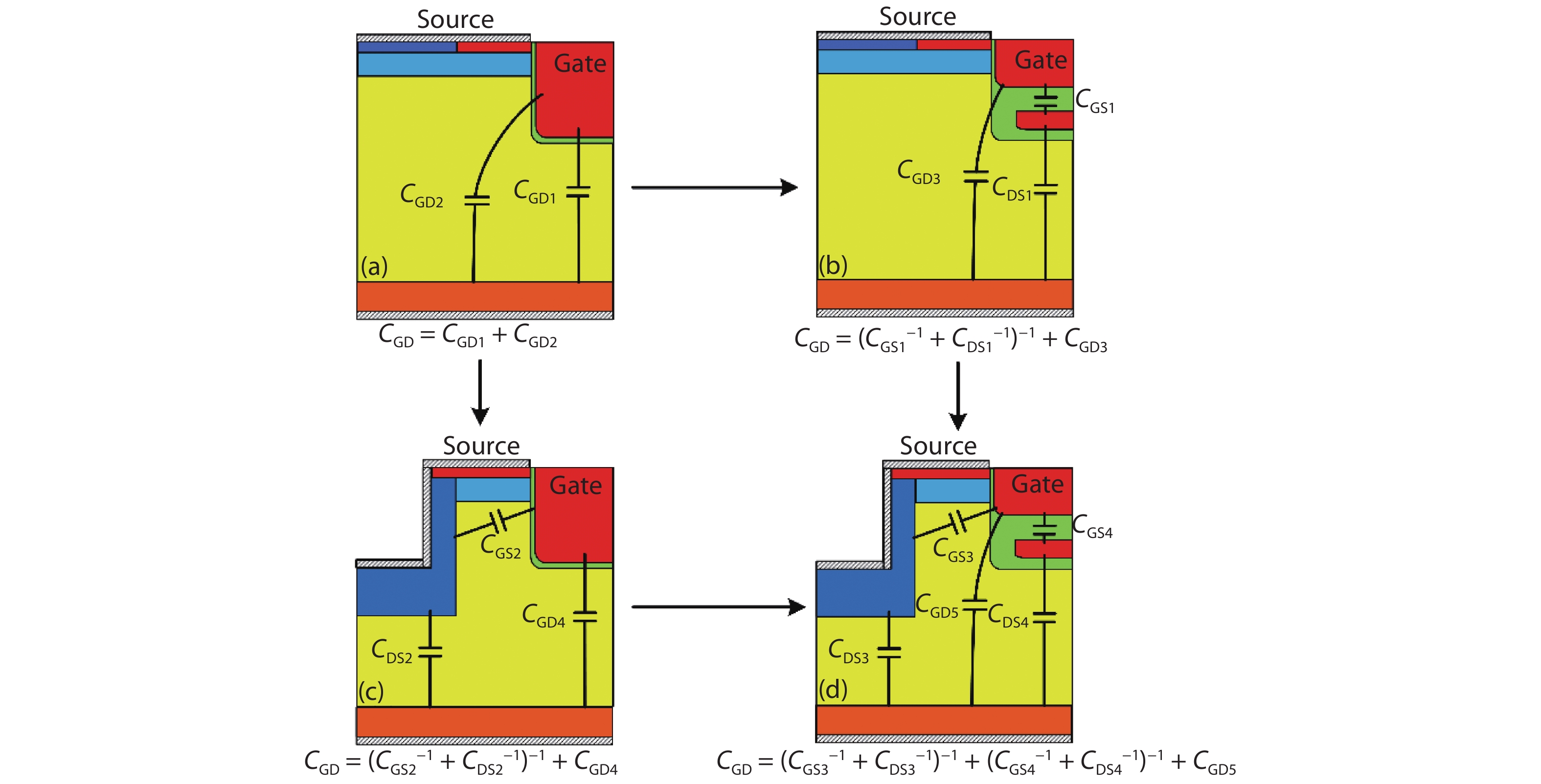

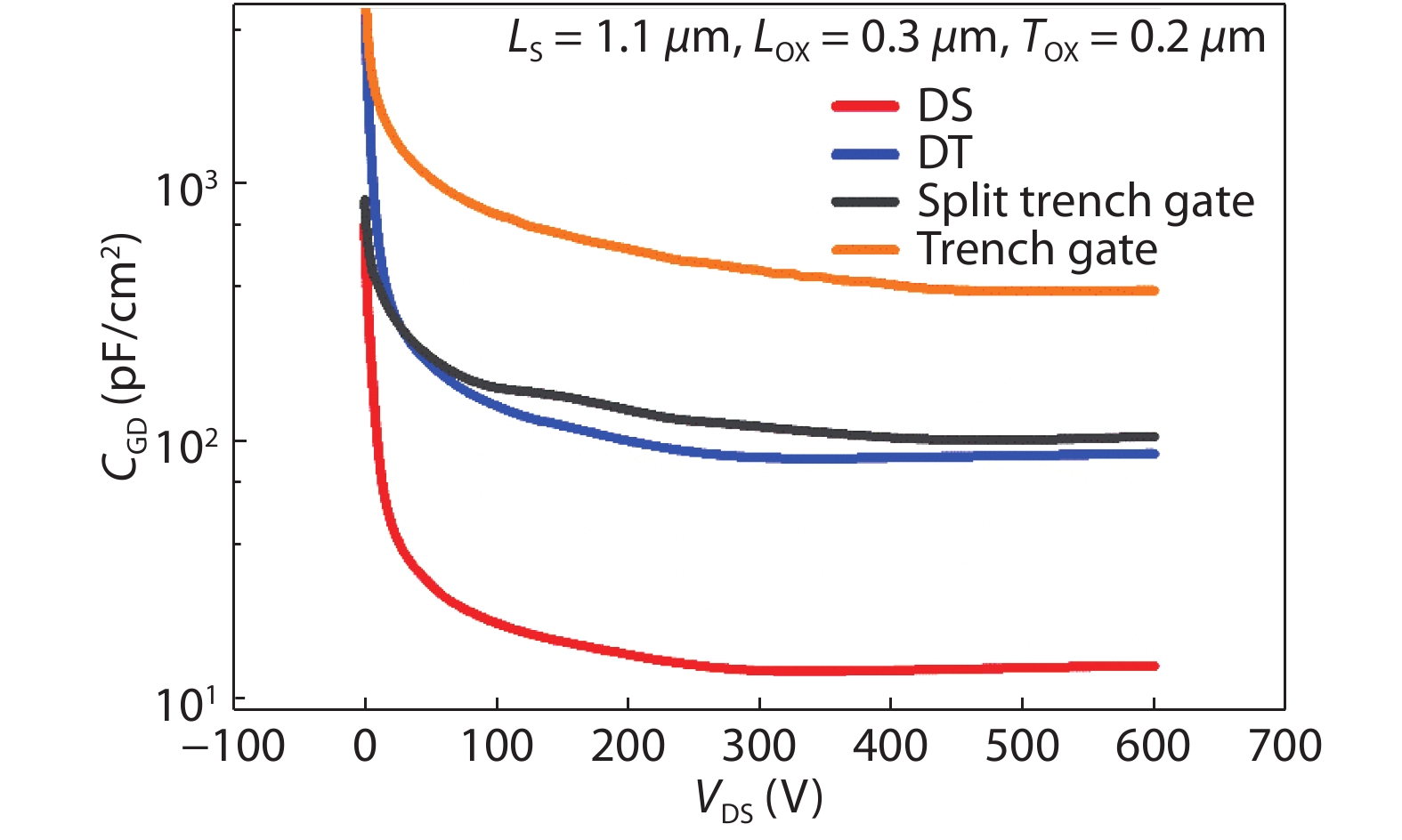

Fig. 2. (Color online) Capacitance distribution for (a) trench gate MOSFET without SG & PSR, (b) split trench gate MOSFET with SG, (c) DT-MOS, and (d) DS-MOS.

DownLoad: Full-Size Img PowerPoint

Fig. 3. (Color online) C_GD of the four structures in Fig. 2.

DownLoad: Full-Size Img PowerPoint

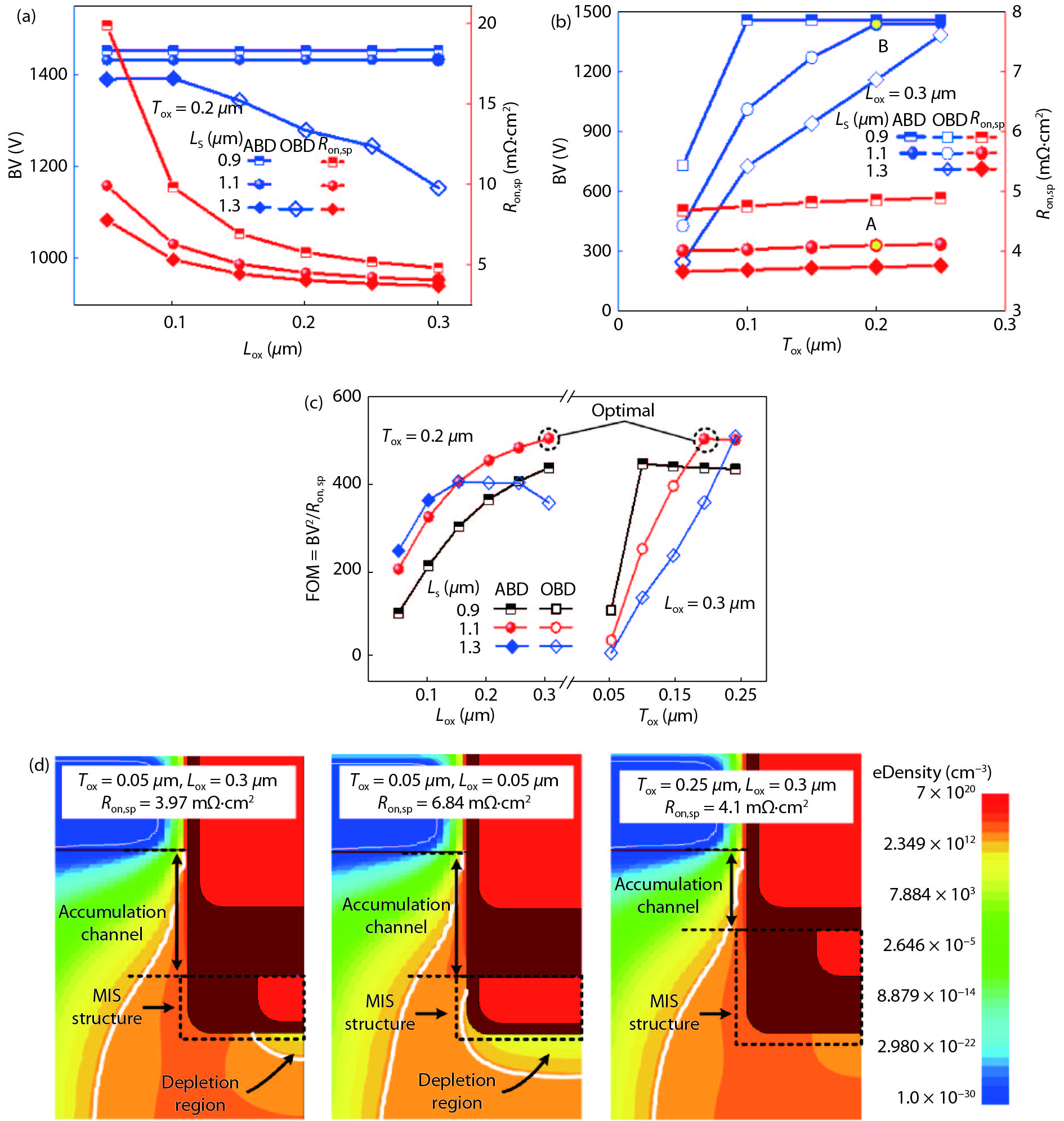

Fig. 4. (Color online) Tradeoff between R_{on, sp} (@V_GS = 20 V, V_DS = 1 V) and BV(@V_GS = 0 V) for the DS-MOS (a) with varied L_ox as the function of L_s, T_ox is set as 0.2 μm and (b) with varied T_ox as the function of L_s, L_ox is set as 0.3 μm. OBD means oxide breakdown and ABD means avalanche breakdown. Optimized R_{on, sp} = 4.08 mΩ·cm² (denoted as “A”) and BV_R = 1435 V (denoted as “B”). (c) Influence of T_ox, L_ox, and L_s on FOM. (d) On-state depletion boundary (@V_GS = 20 V, V_DS = 1 V) and electron density with varied T_ox and L_ox at L_s = 1.1 μm. The white lines are the depletion boundaries.

DownLoad: Full-Size Img PowerPoint

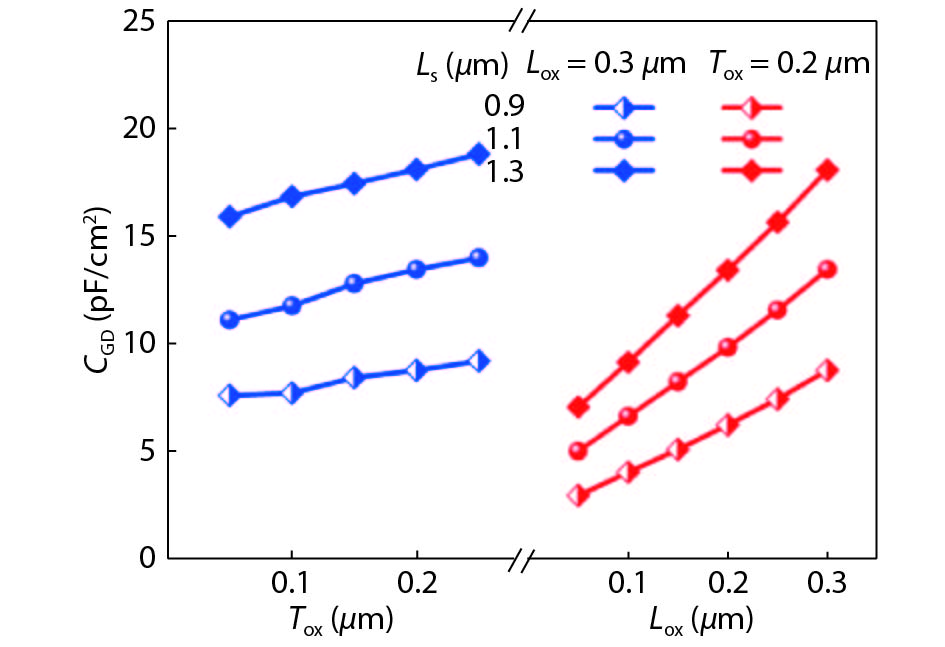

Fig. 5. (Color online) Dependence of C_GD (@V_DS = 600 V) on L_s, T_ox and L_ox for DS-MOS.

DownLoad: Full-Size Img PowerPoint

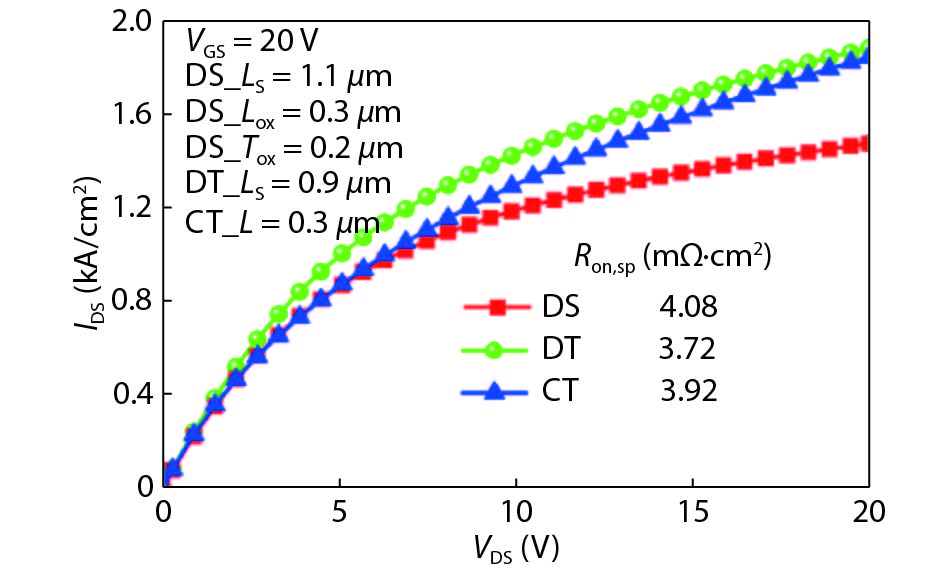

Fig. 6. (Color online) On-state output characteristic curves of the three devices at V_GS = 20 V.

DownLoad: Full-Size Img PowerPoint

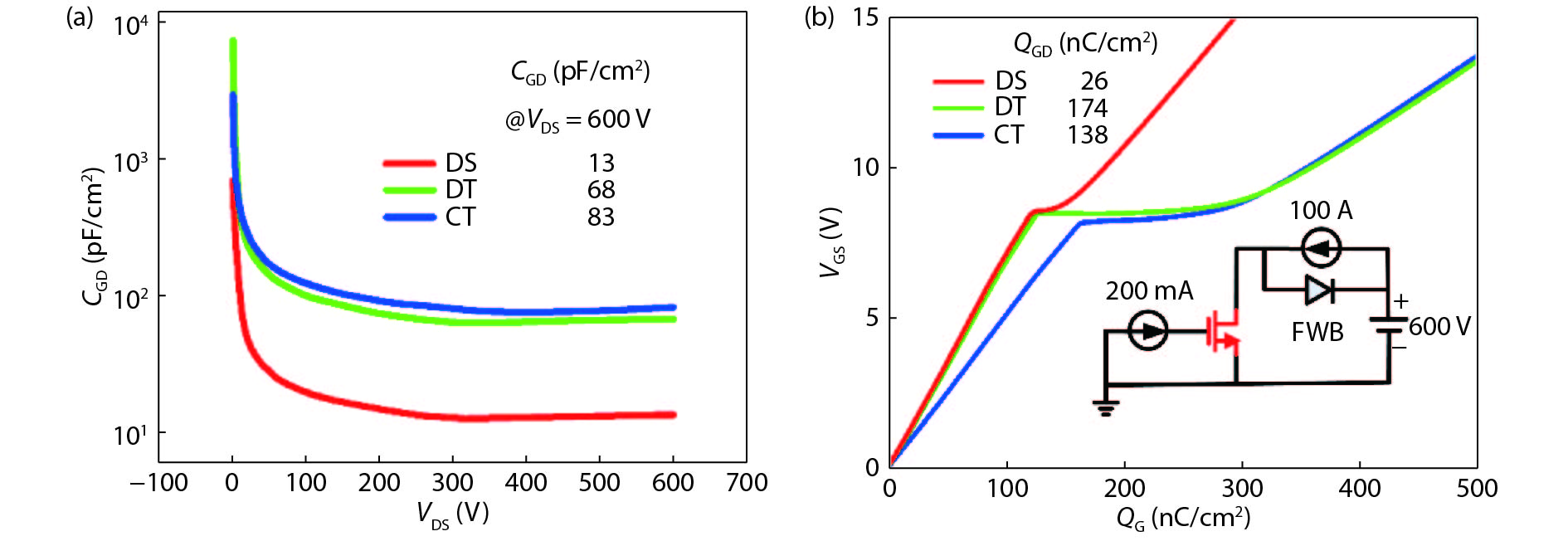

Fig. 7. (Color online) Comparison of (a) C_GD and (b) Q_GD of the DS-MOS, DT-MOS and CT-MOS. The extracted Q_GD is 26, 174 and 138 nC/cm², respectively. The inset is the simulation circuit.

DownLoad: Full-Size Img PowerPoint

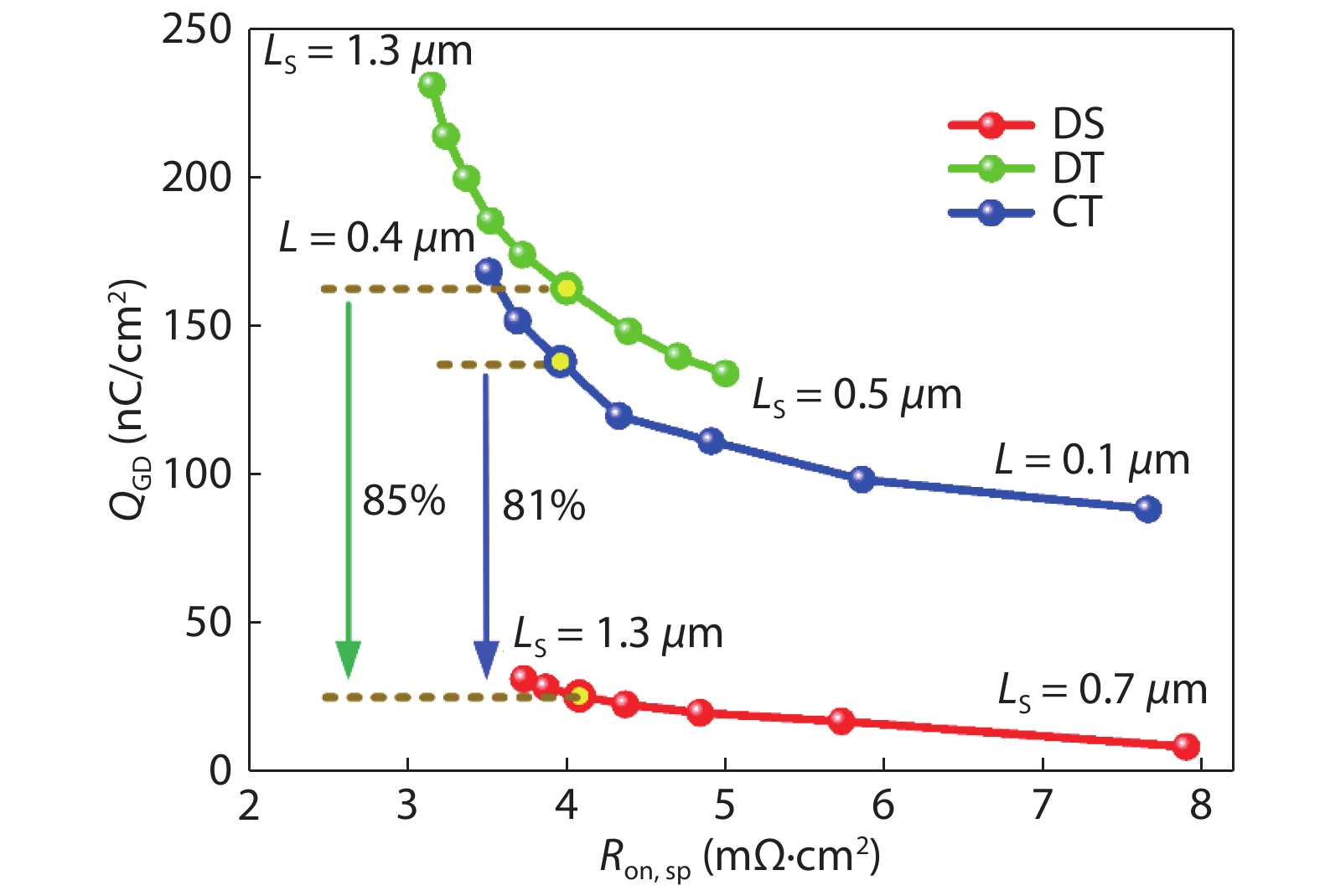

Fig. 8. (Color online) Tradeoff between R_{on, sp} (V_GS = 20 V, V_DS = 1 V) and Q_GD.

DownLoad: Full-Size Img PowerPoint

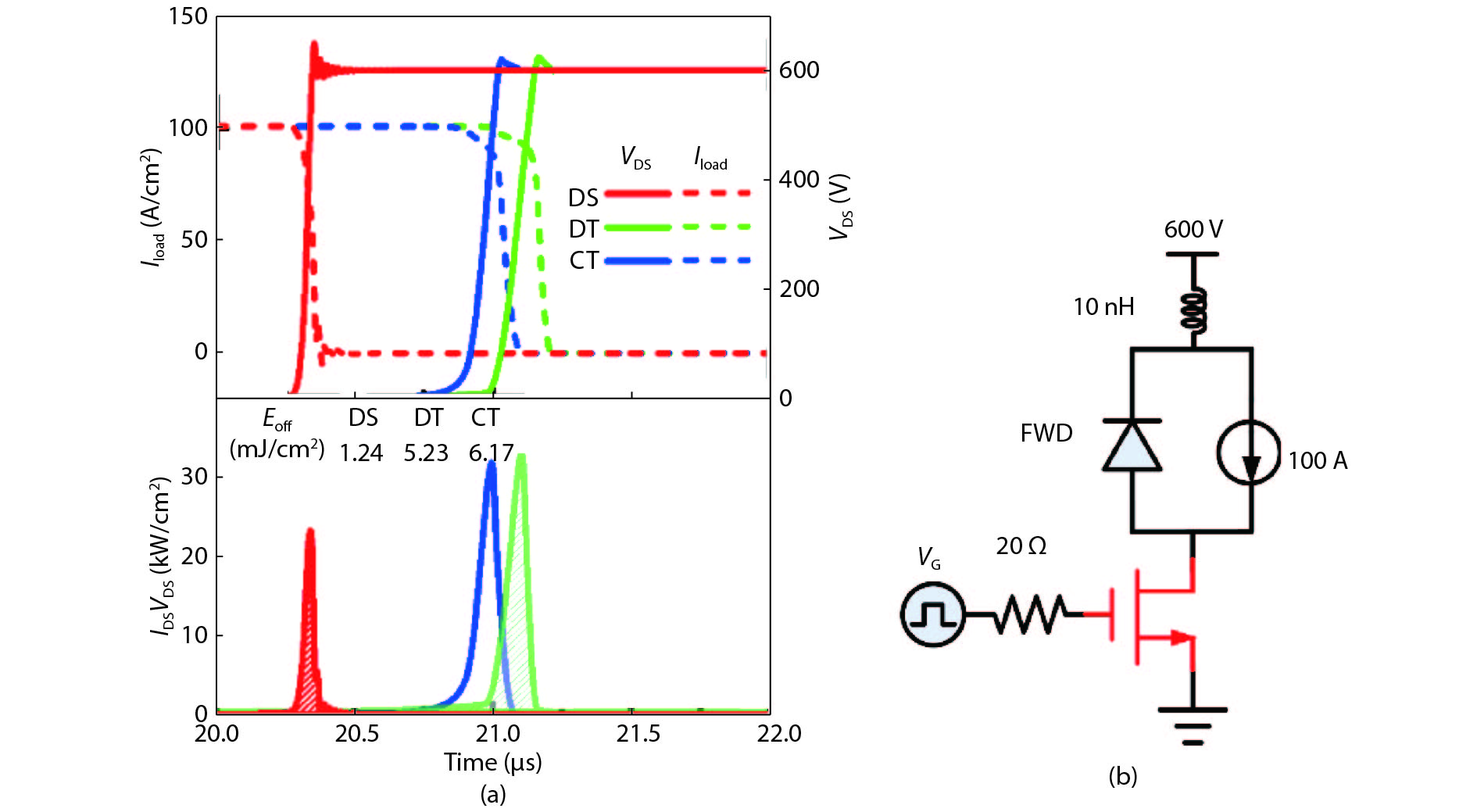

Fig. 9. (Color online) (a) Turn-off waveforms of the DS-MOS, DT-MOS and CT-MOS, respectively. (b) Simulation circuit of the turn-off characteristics.

DownLoad: Full-Size Img PowerPoint

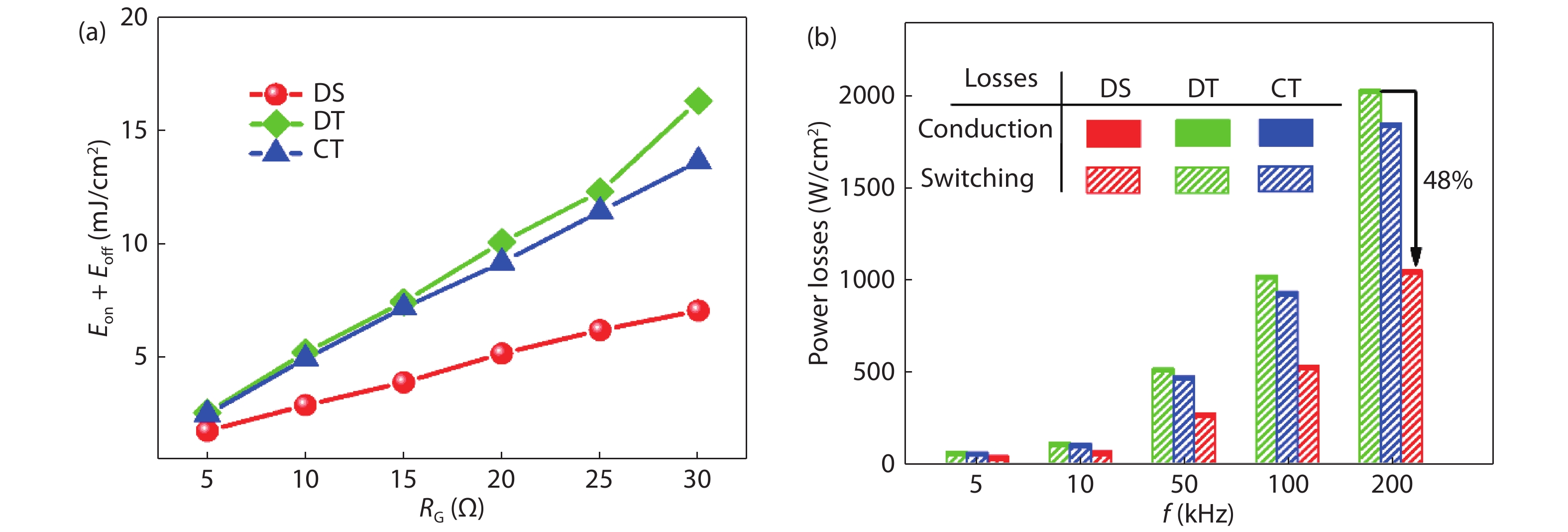

Fig. 10. (Color online) (a) Dependence of E_on + E_off on R_G (V_DS = 600 V, V_GS = 0/20 V, I_load = 100 A/cm²). (b) Comparison of power losses as a function of switching frequency f (R_G = 20 Ω).

DownLoad: Full-Size Img PowerPoint

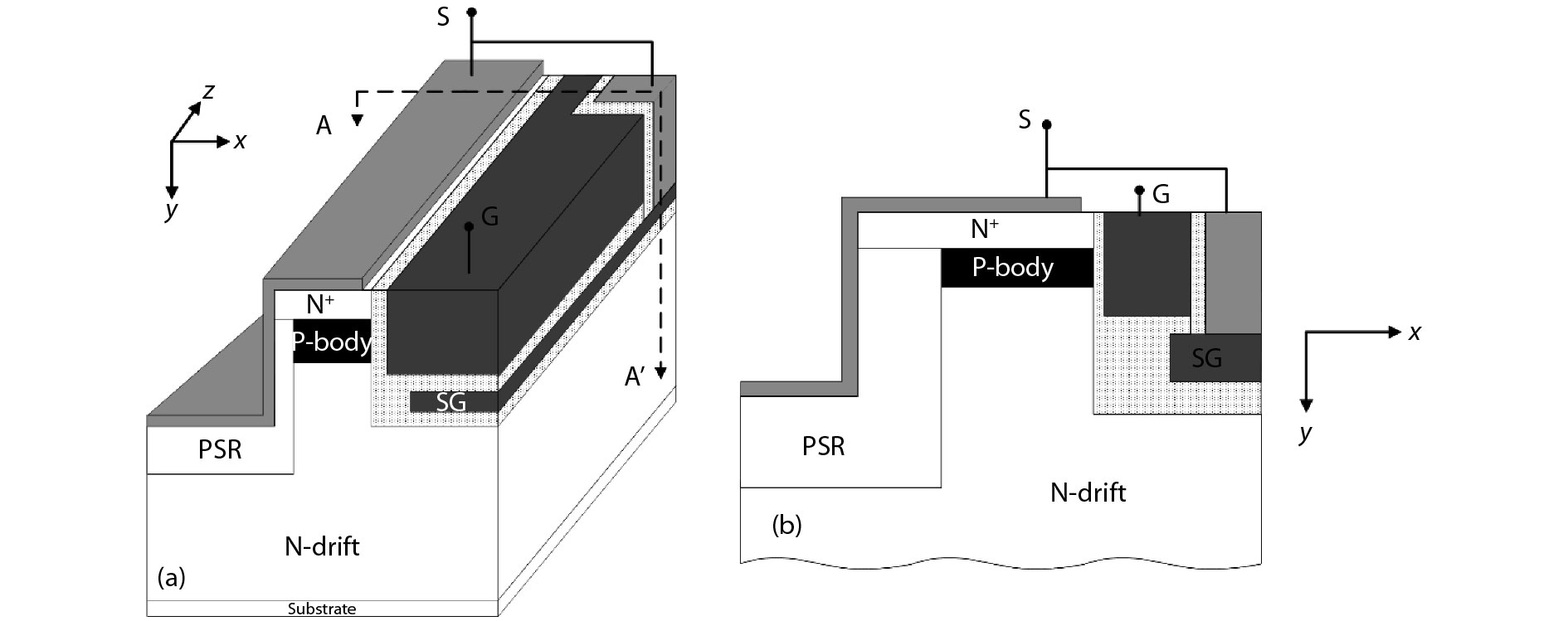

Fig. 11. (a) 3-D view of DS-MOS. (b) Schematic cross section along the cut line AA’.
