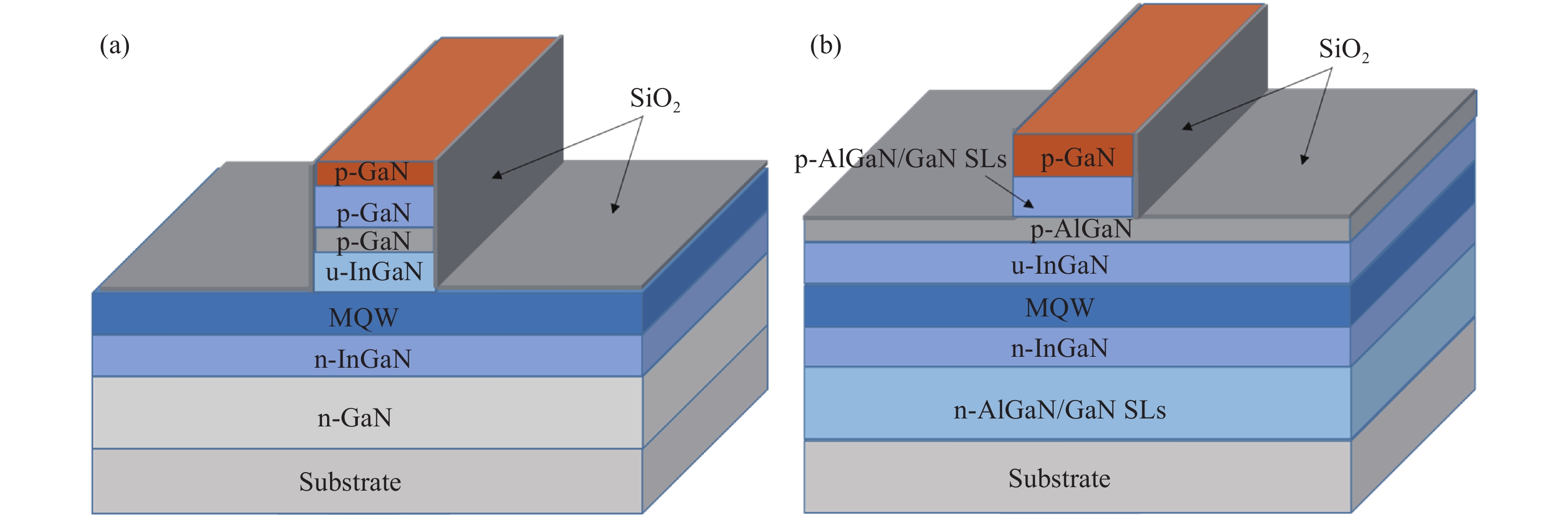

Fig. 1.
(Color online) The schematic diagrams of (a) new structure and (b) reference structure.
SEMICONDUCTOR DEVICES
Meixin Feng1, Qian Sun1, 2, , Jianping Liu1, 2, , Zengcheng Li1, Yu Zhou1, Hongwei Gao1, Shuming Zhang1, 2 and Hui Yang1, 2
Corresponding author: Qian Sun, qsun2011@sinano.ac.cn (Sun Q); Jianping Liu, jpliu2010@sinano.ac.cn (Liu J P)

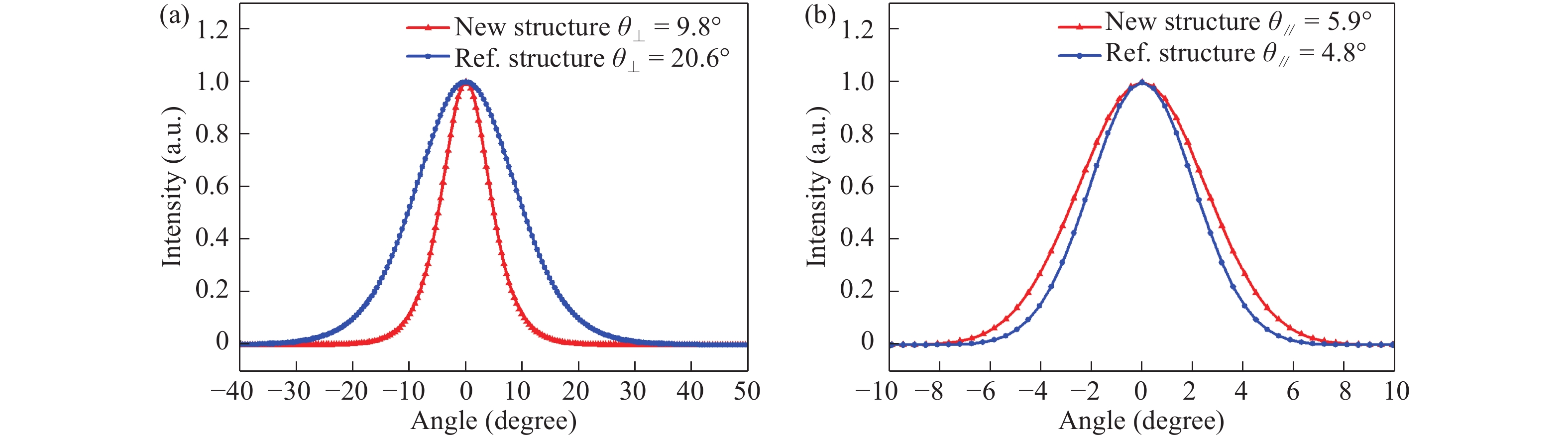

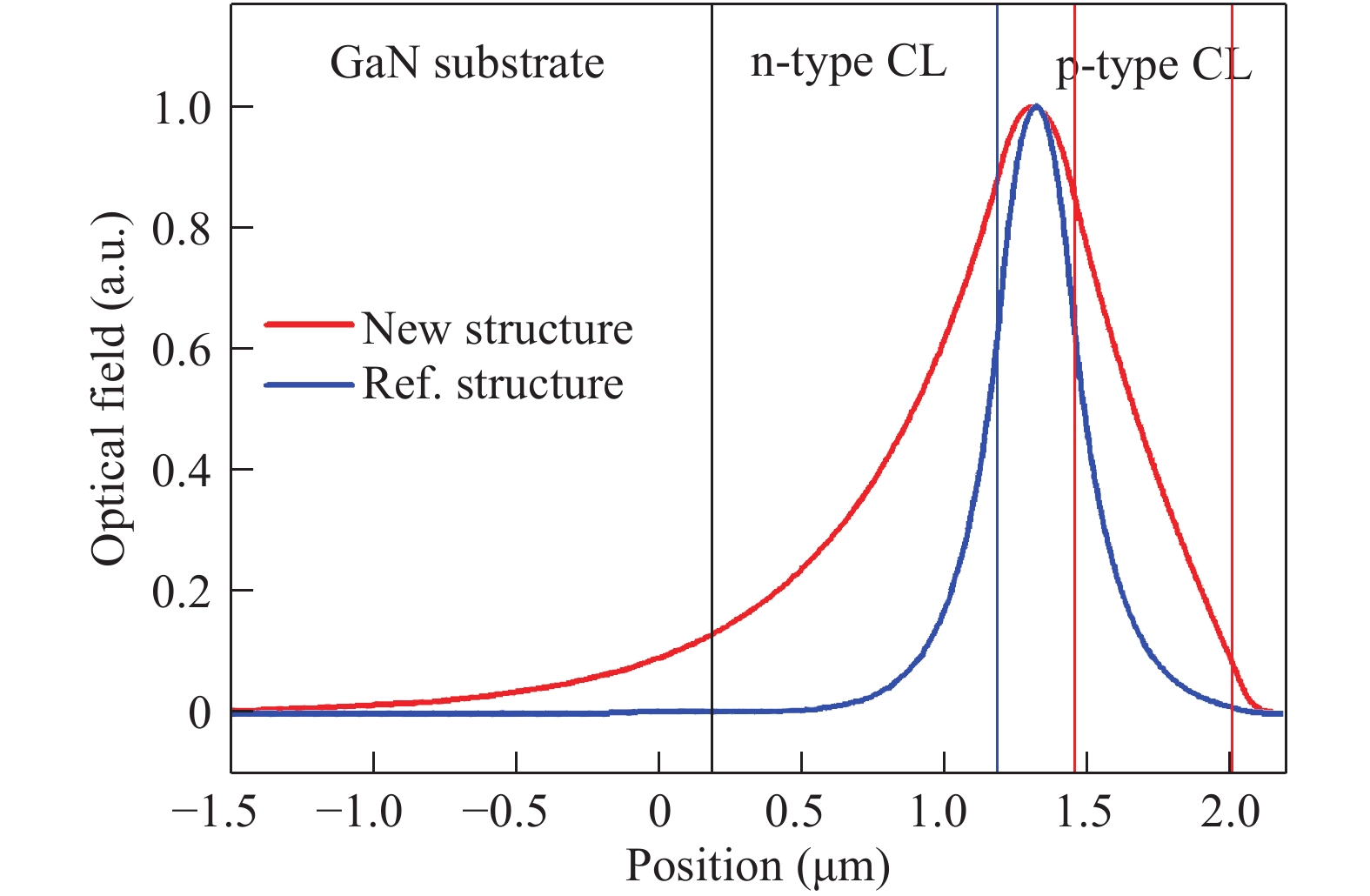

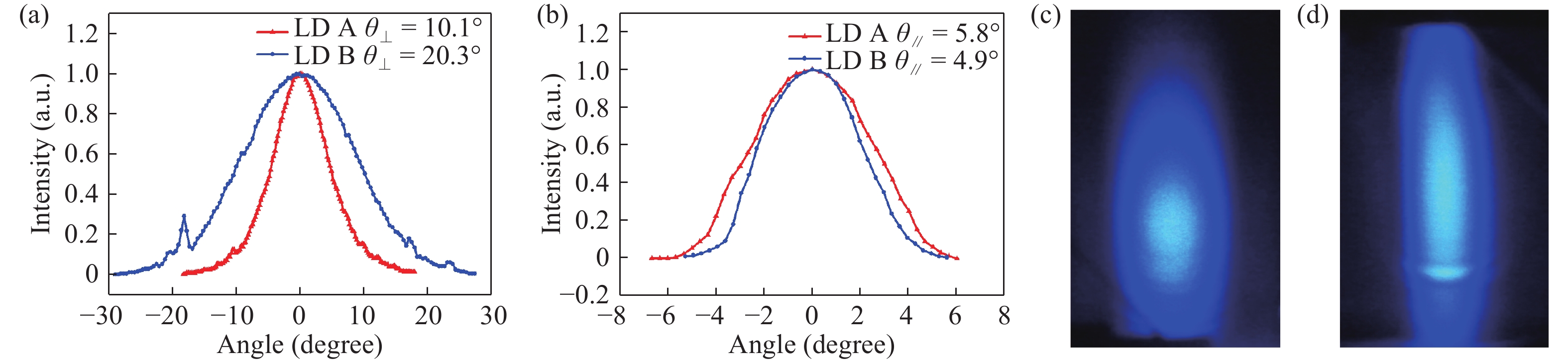

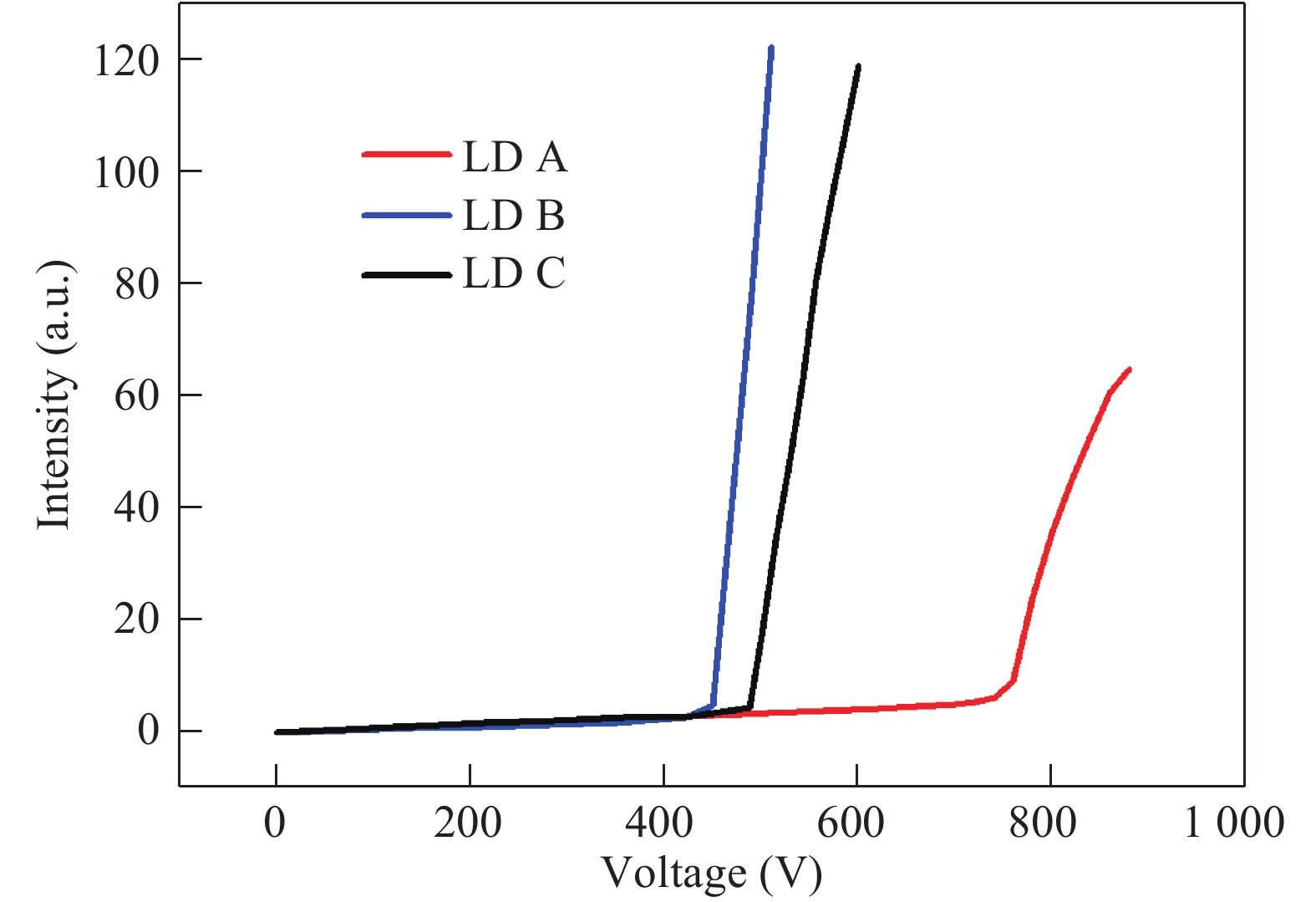

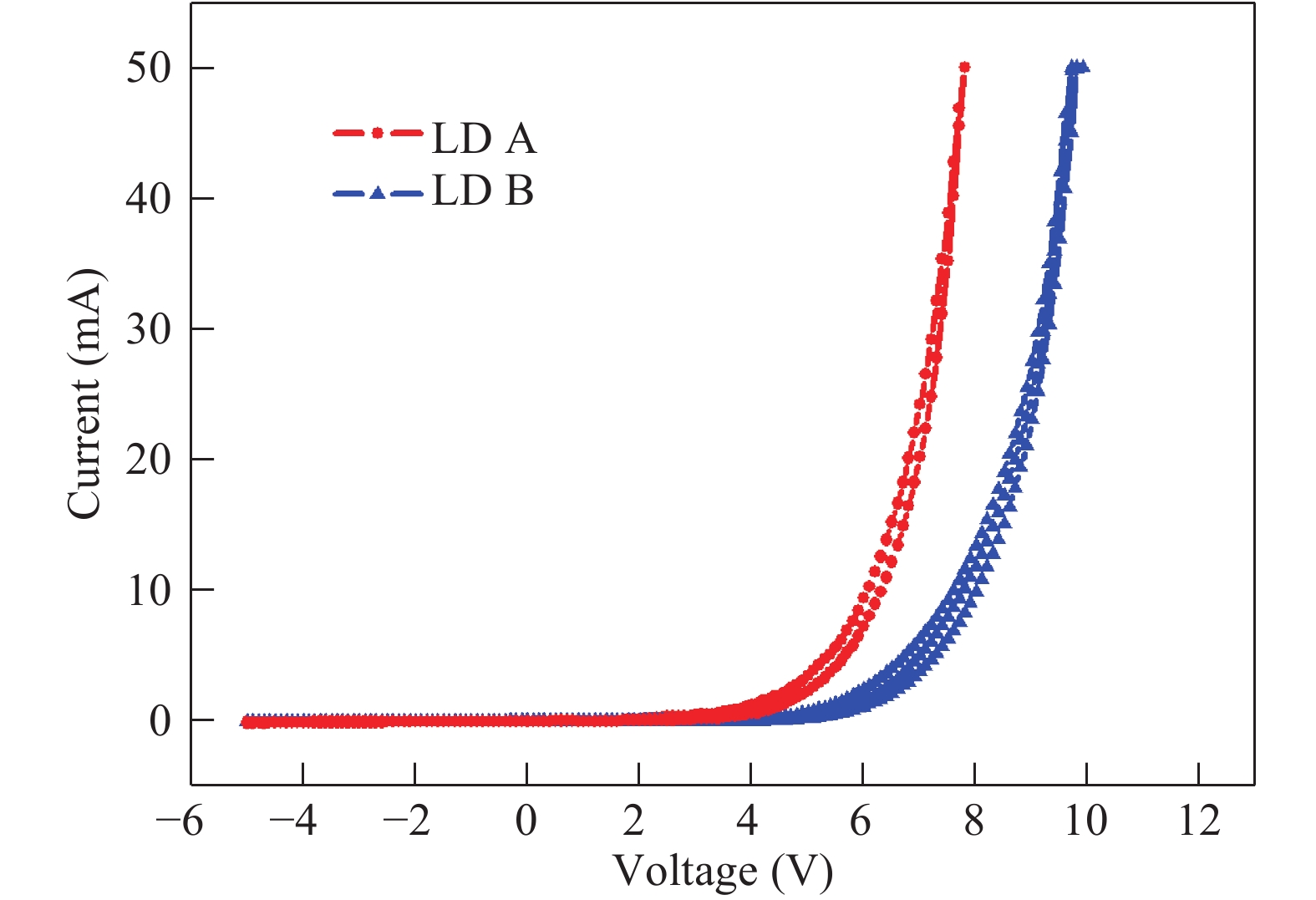

Abstract: c-plane GaN-based blue laser diodes (LDs) were fabricated with Al-free cladding layers (CLs) and deepened etching depth of mesa structure, so the aspect ratio of the far-field pattern (FFP) of the laser beam can be reduced to as low as 1.7, which is nearly the same as conventional AlGaInP-based red LDs. By using GaN CLs, the radiation angle of the laser beam θ⊥ is only 10.1° in the direction perpendicular to the junction plane. After forming a deeply etched mesa, the beam divergence angle parallel to the junction plane of FFP, θ//, increases from 4.9° to 5.8°. After using the modified structure, the operation voltage of LD is effectively reduced by 2 V at an injection current of 50 mA, but the threshold current value increases. The etching damage may be one of the main reasons responsible for the increase of the threshold current.
Key words: Al-free cladding layers, far-field beam patterns, aspect ratio, laser diodes
