The electronic and optical properties of amorphous silica with hydrogen defects by <i>ab initio</i> calculations

Dahua Ren; Baoyan Xiang; Cheng Hu; Kai Qian; Xinlu Cheng

doi:10.1088/1674-4926/39/4/042002

J. Semicond. > 2018, Volume 39?>?Issue 4?> 042002

SEMICONDUCTOR PHYSICS

The electronic and optical properties of amorphous silica with hydrogen defects by ab initio calculations

Dahua Ren^1,, Baoyan Xiang², Cheng Hu¹, Kai Qian¹ and Xinlu Cheng³

+ Author Affiliations

Corresponding author: Dahua Ren, E-mail: rdh_perfect@163.com

DOI: 10.1088/1674-4926/39/4/042002

Abstract: Hydrogen can be trapped in the bulk materials in four forms: interstitial molecular H₂, interstitial atom H, O^?H⁺(2Si=O–H)⁺, Si?H^?( ${\rm{4O}}\bar \equiv {\rm{Si?H}}$ )^? to affect the electronic and optical properties of amorphous silica. Therefore, the electronic and optical properties of defect-free and hydrogen defects in amorphous silica were performed within the scheme of density functional theory. Initially, the negative charged states hydrogen defects introduced new defect level between the valence band top and conduction band bottom. However, the neutral and positive charged state hydrogen defects made both the valence band and conduction band transfer to the lower energy. Subsequently, the optical properties such as absorption spectra, conductivity and loss functions were analyzed. It is indicated that the negative hydrogen defects caused the absorption peak ranging from 0 to 2.0 eV while the positive states produced absorption peaks at lower energy and two strong absorption peaks arose at 6.9 and 9.0 eV. However, the neutral hydrogen defects just improved the intensity of absorption spectrum. This may give insights into understanding the mechanism of laser-induced damage for optical materials.

Key words: amorphous silicon dioxide, hydrogen defects, electronic and optical properties, density functional theory

References

[1]	Skuja L, Kajihara K, Hirano M, et al. Visible to vacuum-UV range optical absorption of oxygen dangling bonds in amorphous SiO₂. Phys Rev B, 2011, 84: 205206 doi: 10.1103/PhysRevB.84.205206
[2]	Pacchioni G, Skuja L, Griscom D L. Defects in SiO₂ and related dielectrics, science and technology. Springer, 2000
[3]	Skuja L, Hirano M, Hosono H, et al. Defects in oxide glasses. Phys Status Solid C, 2005, 2(1): 15 doi: 10.1002/(ISSN)1610-1642
[4]	Benoit M, P?hlmann M, Kob W. On the nature of native defects in high OH-content silica glasses: a first-principles study. Europhys Lett, 2008, 82(5): 57004 doi: 10.1209/0295-5075/82/57004
[5]	Kajihara K, Hirano M, Skuja L, et al. Vacuum-ultraviolet absorption of hydrogenated and deuterated silanol groups and interstitial water molecules in amorphous SiO₂. Phys Rev B, 2005, 72: 214112 doi: 10.1103/PhysRevB.72.214112
[6]	Van Ginhoven R M, Hjalmarson H P, Edwards A H, et al. Hydrogen release in SiO₂: source sites and release mechanisms. Nucl Instrum Meth B, 2006, 250: 274 doi: 10.1016/j.nimb.2006.04.123
[7]	Godet J and Pasquarello A. Ab initio study of charged states of H in amorphous SiO₂. Microelectron Eng, 2005, 80: 288 doi: 10.1016/j.mee.2005.04.082
[8]	Edwards A H, Shedd W M, Pugh R D. The theory of H- in SiO₂. J Non-Cryst Solids, 2001, 289(1-3): 42 doi: 10.1016/S0022-3093(01)00649-4
[9]	Skuja L, Kajihara K, Hirano M, et al. Fluorine laser-induced silicon hydride Si–H groups in silica. J Non-Cryst Solids, 2007, 353(5–7): 526 doi: 10.1016/j.jnoncrysol.2006.10.020
[10]	Zachariasen W H. The atomic arrangement in glass. J Am Chem Soc, 1932, 54: 3841 doi: 10.1021/ja01349a006
[11]	Warren B E. The diffraction of X-rays in glass. Phys Rev, 1934, 45: 657 doi: 10.1103/PhysRev.45.657
[12]	Khein A, Ashcroft N W. Generalized density functional theory. Phys Rev Lett, 1997, 78: 3346 doi: 10.1103/PhysRevLett.78.3346
[13]	Perdew J P, Burke K, Ernerhof M. Generalized gradient approximation made simple. Phys Rev Lett, 1996, 77: 3865 doi: 10.1103/PhysRevLett.77.3865
[14]	Perdew J P, Chevary J A, Vosko S H, et al. Atoms, molecules, solids, and surfaces: applications of the generalized gradient approximation for exchange and correlation. Phys Rev B, 1992, 46: 6671 doi: 10.1103/PhysRevB.46.6671
[15]	Ren D H, An X Y, Cheng X L, et al. Phase transition and elastic properties of NbN under hydrostatic pressure. J Wuhan Univ Technol-Mater Sci Ed, 2014, 29: 49 doi: 10.1007/s11595-014-0866-y
[16]	Pack J D, Monkhorst H J. Special points for Brillouin-zone integrations—a reply. Phys Rev B, 1977, 16: 1748 doi: 10.1103/PhysRevB.16.1748
[17]	Mozzi R L, Warren B E. The stucture of vitreous silica. J Appl Crystallogr, 1969, 2: 164 doi: 10.1107/S0021889869006868
[18]	Li N, Ching W Y. Structural, electronic and optical properties of a large random network model of amorphous SiO₂ glass. J Non-Cryst Solids, 2014, 383: 28 doi: 10.1016/j.jnoncrysol.2013.04.049
[19]	El-Sayed A M, Watkins M B, Shluger A L, et al. Identification of intrinsic electron trapping sites in bulk amorphous silica from ab initio calculations. Microelectron Eng, 2013, 109: 68 doi: 10.1016/j.mee.2013.03.027
[20]	Jin T, Li X, Sun H. Interaction mechanisms between poly(amido-amine) and nano-silicon dioxide. Int J Quantum Chem, 2013, 113(8): 1213 doi: 10.1002/qua.v113.8
[21]	Jin T, Kong F M. Effect of differently terminal groups of poly(amido-amine) dendrimers on dispersion stability of nano-silica and ab initio calculations. Surf Interface Anal, 2015, 47(4): 474 doi: 10.1002/sia.5735
[22]	Jin T, Zhang F. Interaction mechanism of ultrafine silica and poly(amido-amine) and dispersibility of the complexes in coatings. Prog Org Coat, 2013, 76(2/3): 447 doi: 10.1016/j.porgcoat.2012.10.011
[23]	Fox M. Optical properties of solids. New York: Oxford University Press, 2001
[24]	Wooten F. Optical properties of solids. New York: Acadmic Press, 1972
[25]	Tamura T, Ishibashi S, Tanaka S, et al. First-principles analysis of optical absorption edge in pure and fluorine-doped SiO₂ glass. Comput Mater Sci, 2008, 44: 61 doi: 10.1016/j.commatsci.2008.01.065
[26]	Vella E, Messina F, Cannas M, et al. Unraveling exciton dynamics in amorphous silicon dioxide: interpretation of the optical features from 8 to 11 eV. Phys Rev B, 2011, 83: 174201 doi: 10.1103/PhysRevB.83.174201
[27]	Morimoto Y, Nozawa S, Hosono H. Effect of Xe2 light (7.2 eV) on the infrared and vacuum ultraviolet absorption properties of hydroxyl groups in silica glass. Phys Rev B, 1999, 59: 4066 doi: 10.1103/PhysRevB.59.4066

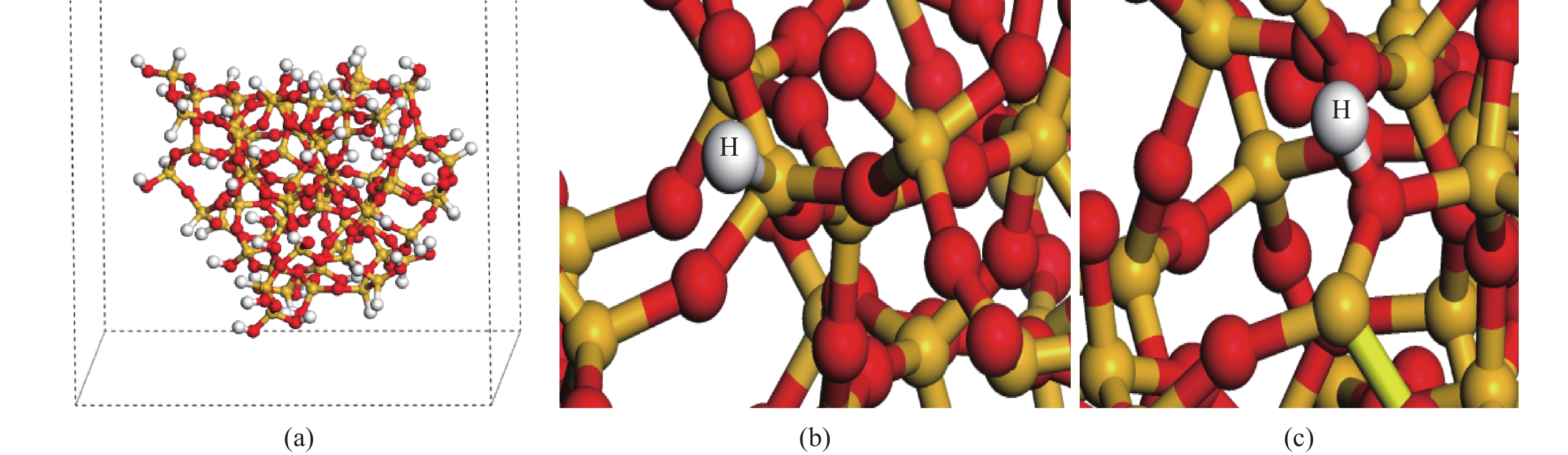

Fig. 1. (Color online) The structure of defect-free and charged states of a-SiO₂: white, red and yellow balls represent hydrogen, oxygen and silica atoms, respectively.

DownLoad: Full-Size Img PowerPoint

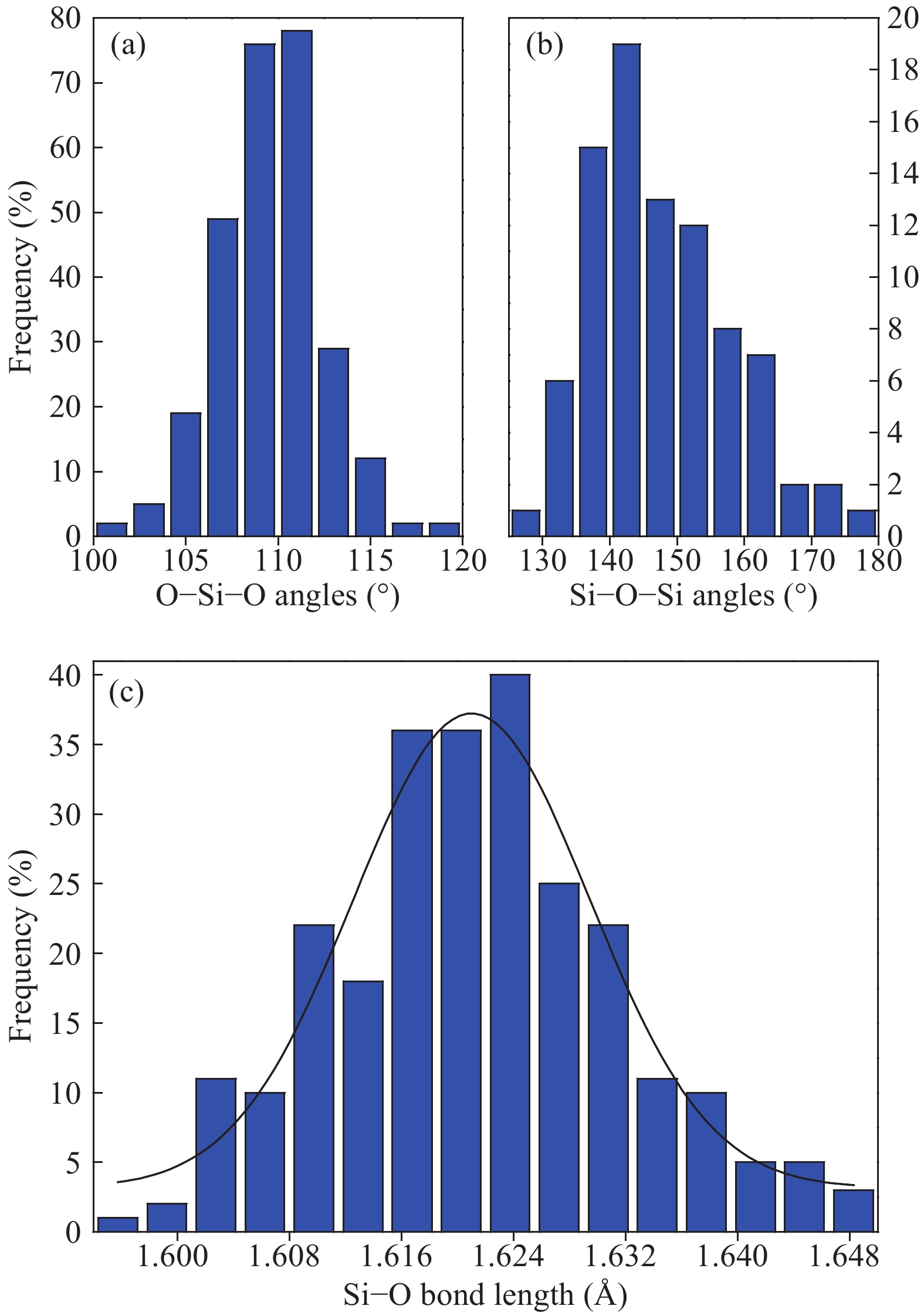

Fig. 2. (Color online) The distribution of the bond lengths and bond angles for relaxed defect-free amorphous silica structure and the black line is fitted by Gaussian functions.

DownLoad: Full-Size Img PowerPoint

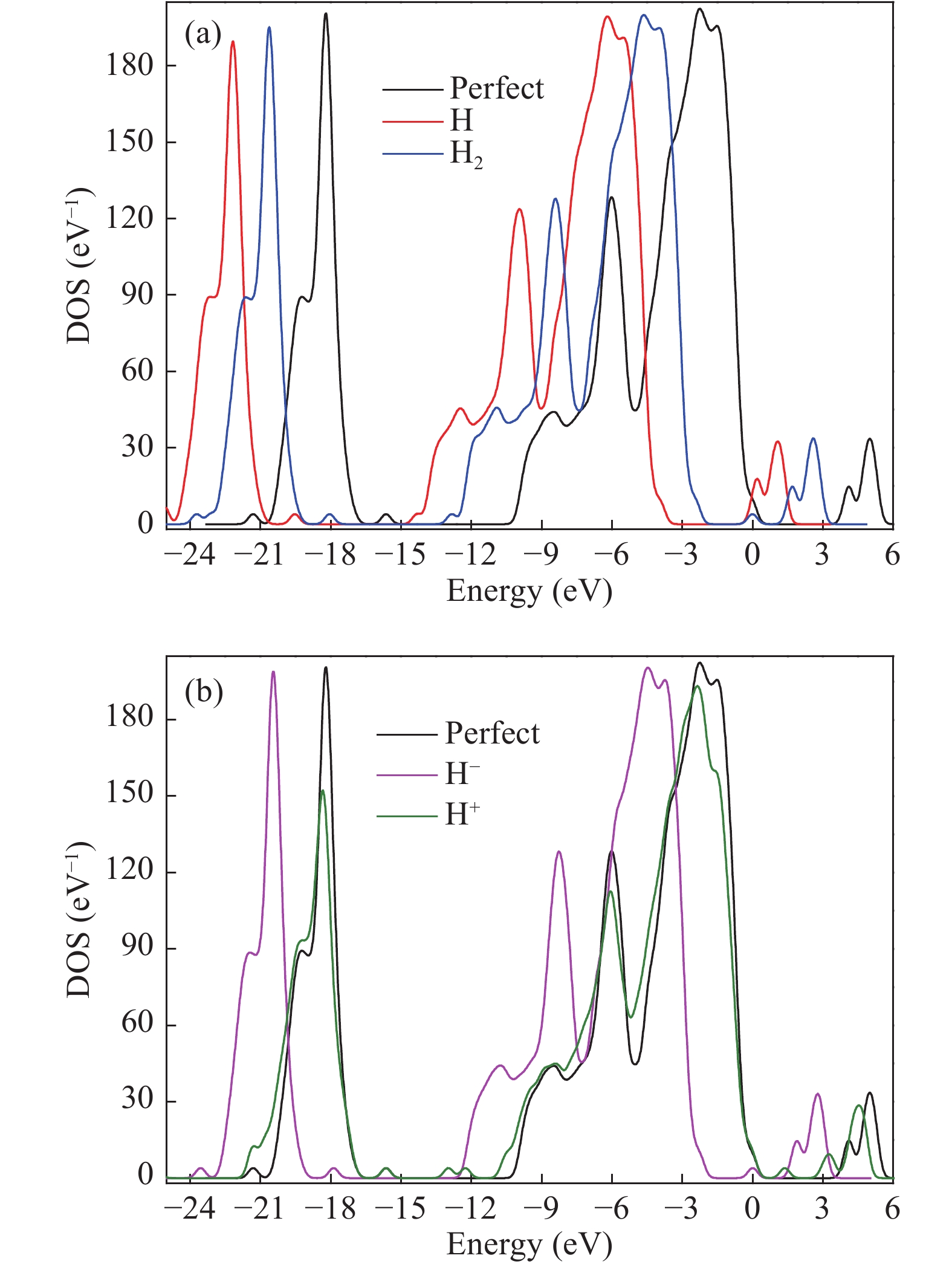

Fig. 3. (Color online) The DOS of defect-free and hydrogen defect of a-SiO₂.

DownLoad: Full-Size Img PowerPoint

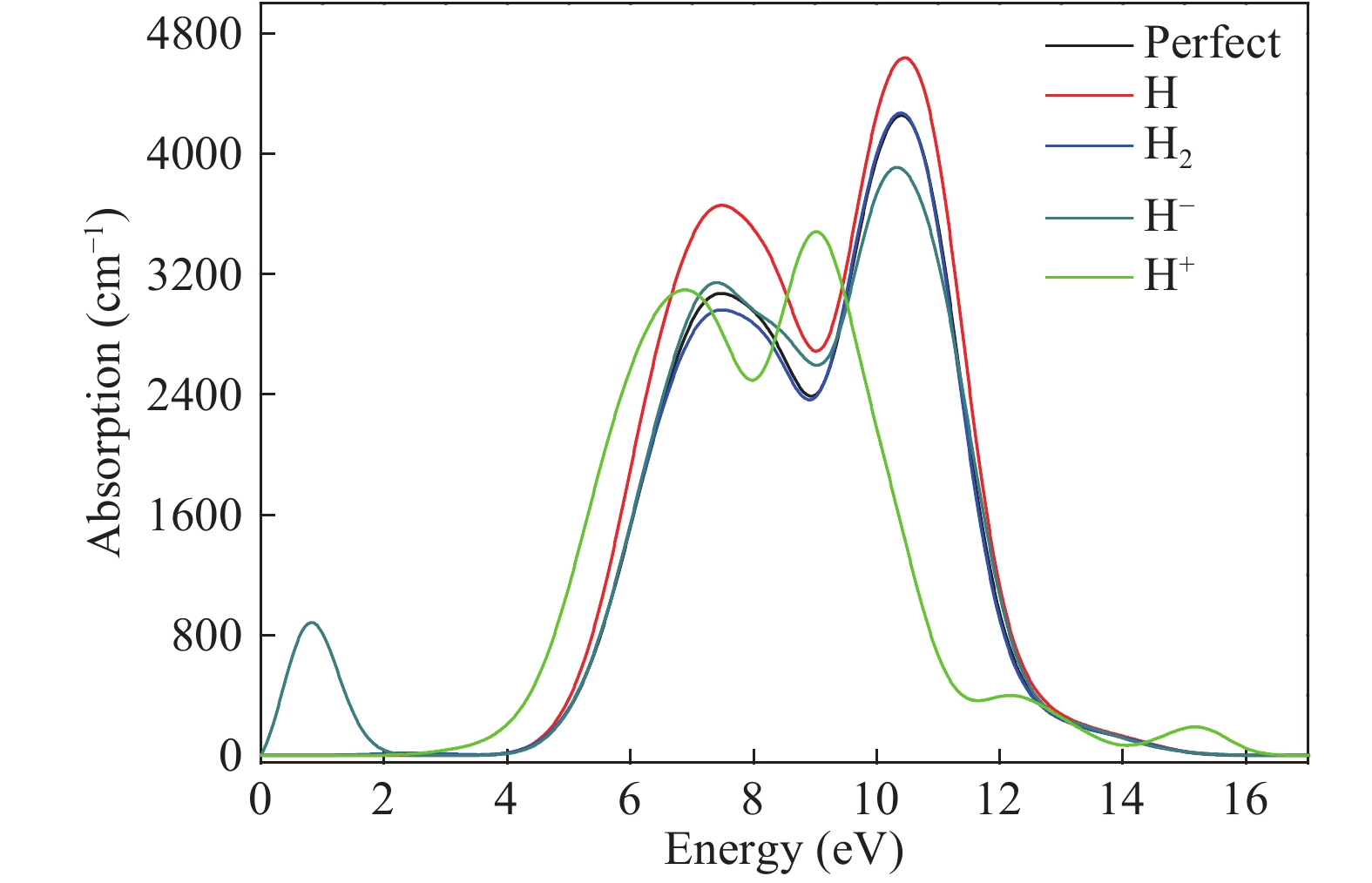

Fig. 4. (Color online) The schemes of absorption coefficients for defect-free and hydrogen defect of a-SiO₂.

DownLoad: Full-Size Img PowerPoint

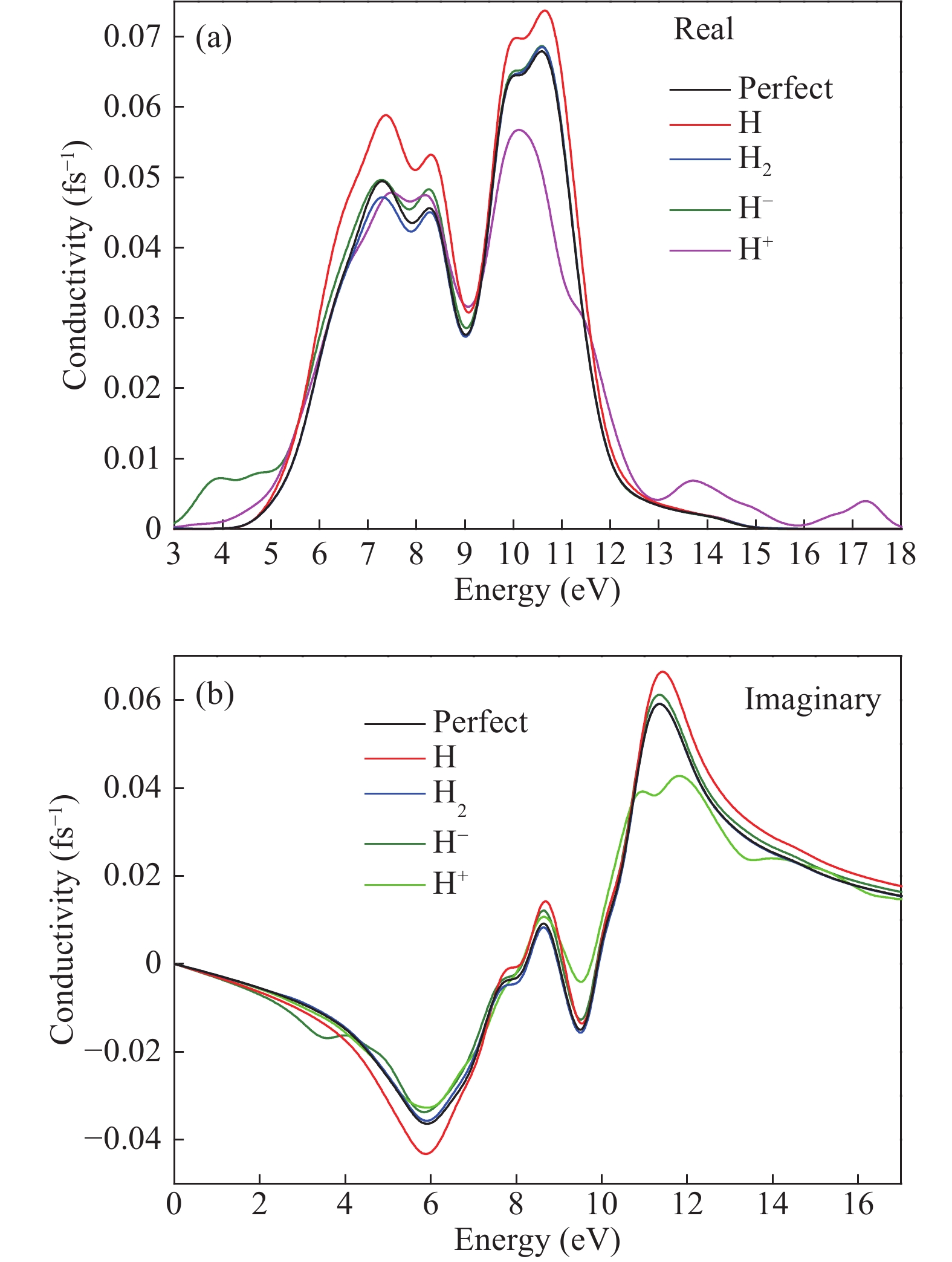

Fig. 5. (Color online) The conductivity of defect-free and hydrogen defects of amorphous silica. (a) Real parts. (b) Imaginary parts.

DownLoad: Full-Size Img PowerPoint

Fig. 6. (Color online) The loss function of defect-free and hydrogen defects of amorphous silica.

DownLoad: Full-Size Img PowerPoint

Table 1. The average bond lengths and angles of defect-free amorphous silica.

Parameter	This work	Theory	Experiment
Si–O (?)	1.62	1.63^a	1.62^b
O–Si–O (°)	109.8	109.4^a	109.5^b
Si–O–Si (°)	148.5	148.8^a	147.9–151^b
^a Refs. [17, 18], ^b Ref. [19].

DownLoad: CSV

[1]	Skuja L, Kajihara K, Hirano M, et al. Visible to vacuum-UV range optical absorption of oxygen dangling bonds in amorphous SiO₂. Phys Rev B, 2011, 84: 205206 doi: 10.1103/PhysRevB.84.205206
[2]	Pacchioni G, Skuja L, Griscom D L. Defects in SiO₂ and related dielectrics, science and technology. Springer, 2000
[3]	Skuja L, Hirano M, Hosono H, et al. Defects in oxide glasses. Phys Status Solid C, 2005, 2(1): 15 doi: 10.1002/(ISSN)1610-1642
[4]	Benoit M, P?hlmann M, Kob W. On the nature of native defects in high OH-content silica glasses: a first-principles study. Europhys Lett, 2008, 82(5): 57004 doi: 10.1209/0295-5075/82/57004
[5]	Kajihara K, Hirano M, Skuja L, et al. Vacuum-ultraviolet absorption of hydrogenated and deuterated silanol groups and interstitial water molecules in amorphous SiO₂. Phys Rev B, 2005, 72: 214112 doi: 10.1103/PhysRevB.72.214112
[6]	Van Ginhoven R M, Hjalmarson H P, Edwards A H, et al. Hydrogen release in SiO₂: source sites and release mechanisms. Nucl Instrum Meth B, 2006, 250: 274 doi: 10.1016/j.nimb.2006.04.123
[7]	Godet J and Pasquarello A. Ab initio study of charged states of H in amorphous SiO₂. Microelectron Eng, 2005, 80: 288 doi: 10.1016/j.mee.2005.04.082
[8]	Edwards A H, Shedd W M, Pugh R D. The theory of H- in SiO₂. J Non-Cryst Solids, 2001, 289(1-3): 42 doi: 10.1016/S0022-3093(01)00649-4
[9]	Skuja L, Kajihara K, Hirano M, et al. Fluorine laser-induced silicon hydride Si–H groups in silica. J Non-Cryst Solids, 2007, 353(5–7): 526 doi: 10.1016/j.jnoncrysol.2006.10.020
[10]	Zachariasen W H. The atomic arrangement in glass. J Am Chem Soc, 1932, 54: 3841 doi: 10.1021/ja01349a006
[11]	Warren B E. The diffraction of X-rays in glass. Phys Rev, 1934, 45: 657 doi: 10.1103/PhysRev.45.657
[12]	Khein A, Ashcroft N W. Generalized density functional theory. Phys Rev Lett, 1997, 78: 3346 doi: 10.1103/PhysRevLett.78.3346
[13]	Perdew J P, Burke K, Ernerhof M. Generalized gradient approximation made simple. Phys Rev Lett, 1996, 77: 3865 doi: 10.1103/PhysRevLett.77.3865
[14]	Perdew J P, Chevary J A, Vosko S H, et al. Atoms, molecules, solids, and surfaces: applications of the generalized gradient approximation for exchange and correlation. Phys Rev B, 1992, 46: 6671 doi: 10.1103/PhysRevB.46.6671
[15]	Ren D H, An X Y, Cheng X L, et al. Phase transition and elastic properties of NbN under hydrostatic pressure. J Wuhan Univ Technol-Mater Sci Ed, 2014, 29: 49 doi: 10.1007/s11595-014-0866-y
[16]	Pack J D, Monkhorst H J. Special points for Brillouin-zone integrations—a reply. Phys Rev B, 1977, 16: 1748 doi: 10.1103/PhysRevB.16.1748
[17]	Mozzi R L, Warren B E. The stucture of vitreous silica. J Appl Crystallogr, 1969, 2: 164 doi: 10.1107/S0021889869006868
[18]	Li N, Ching W Y. Structural, electronic and optical properties of a large random network model of amorphous SiO₂ glass. J Non-Cryst Solids, 2014, 383: 28 doi: 10.1016/j.jnoncrysol.2013.04.049
[19]	El-Sayed A M, Watkins M B, Shluger A L, et al. Identification of intrinsic electron trapping sites in bulk amorphous silica from ab initio calculations. Microelectron Eng, 2013, 109: 68 doi: 10.1016/j.mee.2013.03.027
[20]	Jin T, Li X, Sun H. Interaction mechanisms between poly(amido-amine) and nano-silicon dioxide. Int J Quantum Chem, 2013, 113(8): 1213 doi: 10.1002/qua.v113.8
[21]	Jin T, Kong F M. Effect of differently terminal groups of poly(amido-amine) dendrimers on dispersion stability of nano-silica and ab initio calculations. Surf Interface Anal, 2015, 47(4): 474 doi: 10.1002/sia.5735
[22]	Jin T, Zhang F. Interaction mechanism of ultrafine silica and poly(amido-amine) and dispersibility of the complexes in coatings. Prog Org Coat, 2013, 76(2/3): 447 doi: 10.1016/j.porgcoat.2012.10.011
[23]	Fox M. Optical properties of solids. New York: Oxford University Press, 2001
[24]	Wooten F. Optical properties of solids. New York: Acadmic Press, 1972
[25]	Tamura T, Ishibashi S, Tanaka S, et al. First-principles analysis of optical absorption edge in pure and fluorine-doped SiO₂ glass. Comput Mater Sci, 2008, 44: 61 doi: 10.1016/j.commatsci.2008.01.065
[26]	Vella E, Messina F, Cannas M, et al. Unraveling exciton dynamics in amorphous silicon dioxide: interpretation of the optical features from 8 to 11 eV. Phys Rev B, 2011, 83: 174201 doi: 10.1103/PhysRevB.83.174201
[27]	Morimoto Y, Nozawa S, Hosono H. Effect of Xe2 light (7.2 eV) on the infrared and vacuum ultraviolet absorption properties of hydroxyl groups in silica glass. Phys Rev B, 1999, 59: 4066 doi: 10.1103/PhysRevB.59.4066

Search

GET CITATION

shu

Export: BibTex EndNote

Article Metrics

Article views: 5084 Times PDF downloads: 110 Times Cited by: 0 Times

History

Received: 25 June 2017 Revised: 09 November 2017 Online: Accepted Manuscript: 10 January 2018Uncorrected proof: 24 January 2018Published: 01 April 2018

Hydrogen can be trapped in the bulk materials in four forms: interstitial molecular H₂, interstitial atom H, O^?H⁺(2Si=O–H)⁺, Si?H^?( ${\rm{4O}}\bar \equiv {\rm{Si?H}}$ )^? to affect the electronic and optical properties of amorphous silica. Therefore, the electronic and optical properties of defect-free and hydrogen defects in amorphous silica were performed within the scheme of density functional theory. Initially, the negative charged states hydrogen defects introduced new defect level between the valence band top and conduction band bottom. However, the neutral and positive charged state hydrogen defects made both the valence band and conduction band transfer to the lower energy. Subsequently, the optical properties such as absorption spectra, conductivity and loss functions were analyzed. It is indicated that the negative hydrogen defects caused the absorption peak ranging from 0 to 2.0 eV while the positive states produced absorption peaks at lower energy and two strong absorption peaks arose at 6.9 and 9.0 eV. However, the neutral hydrogen defects just improved the intensity of absorption spectrum. This may give insights into understanding the mechanism of laser-induced damage for optical materials.

香蕉久久这里只有精品-91国产自拍免费视频-免费A级毛片无码专区网站-无码八A片人妻少妇久久-特黄三级又长又粗又爽-国产精品人成在线播放-国产男女猛烈无遮挡性视频网站-丰满五十路熟女高清免费视频-欧美日韩午夜激情福利

The electronic and optical properties of amorphous silica with hydrogen defects by ab initio calculations

References

Search

GET CITATION

Share:

Article Metrics

History

Catalog

Email This Article

The electronic and optical properties of amorphous silica with hydrogen defects by ab initio calculations

DOI: 10.1088/1674-4926/39/4/042002

Abstract

References

Proportional views

Catalog

The electronic and optical properties of amorphous silica with hydrogen defects by ab initio calculations

References

Search

GET CITATION

Share:

Article Metrics

History

Catalog

Email This Article

The electronic and optical properties of amorphous silica with hydrogen defects by ab initio calculations

DOI: 10.1088/1674-4926/39/4/042002

Abstract

References

Proportional views

Catalog

Export File

Citation

Format

Content
