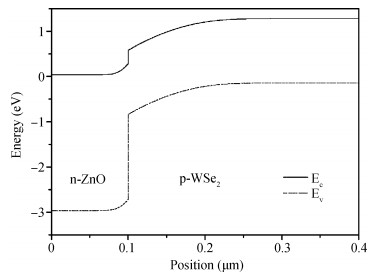

Fig. 1.
Energy band diagram for n-ZnO/p-c-WSe2 HJ structure.
SEMICONDUCTOR DEVICES
Shihua Huang, Qiannan Li, Dan Chi, Xiuqing Meng and Lü He
Corresponding author: Shihua Huang, Email: huangshihua@zjnu.cn

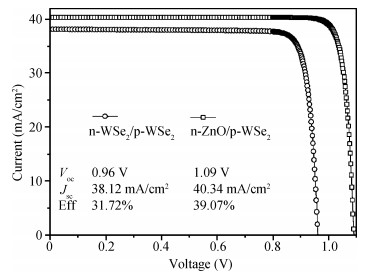

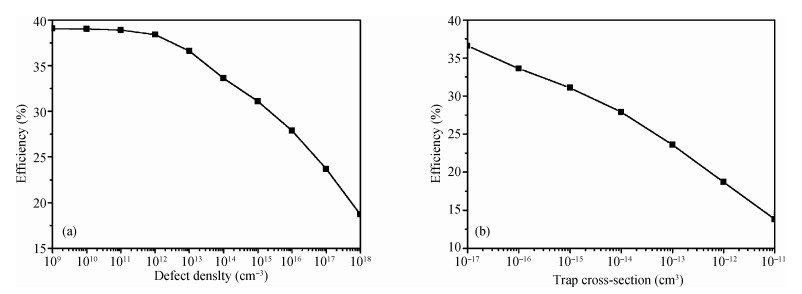

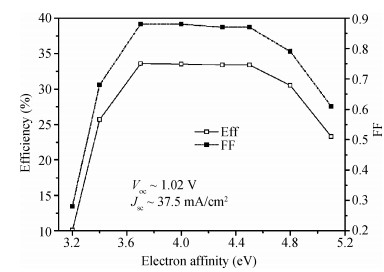

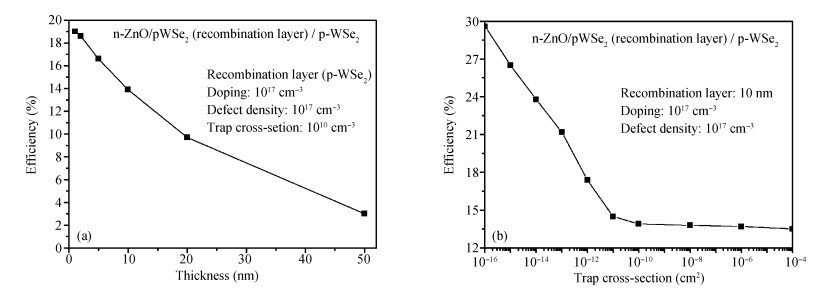

Abstract: Taking into account defect density in WSe2, interface recombination between ZnO and WSe2, we presented a simulation study of ZnO/crystalline WSe2 heterojunction (HJ) solar cell using wxAMPS simulation software. The optimal conversion efficiency 39.07% for n-ZnO/p-c-WSe2 HJ solar cell can be realized without considering the impact of defects. High defect density (> 1.0 × 1011 cm-2) in c-WSe2 and large trap cross-section (> 1.0 × 10-10 cm2) have serious impact on solar cell efficiency. A thin p-WSe2 layer is intentionally inserted between ZnO layer and c-WSe2 to investigate the effect of the interface recombination. The interface properties are very crucial to the performance of ZnO/c-WSe2HJ solar cell. The affinity of ZnO value range between 3.7-4.5 eV gives the best conversion efficiency.
Key words: simulation, heterojunction solar cells, transport properties
