An extremely low power voltage reference with high PSRR for power-aware ASICs

Jihai Duan, Dongyu Deng, Weilin Xu and Baolin Wei

+ Author Affiliations

Corresponding author: Xu Weilin, xwl@guet.edu.cn

DOI: 10.1088/1674-4926/36/9/095006

Abstract: An extremely low power voltage reference without resistors is presented for power-aware ASICs. In order to reduce the power dissipation, an Oguey current reference source is used to reduce the static current; a cascode current mirror is used to increase the power supply rejection ratio (PSRR) and reduce the line sensitivity of the circuit. The voltage reference is fabricated in SMIC 0.18-μm CMOS process. The measured results for the voltage reference demonstrate that the temperature coefficient of the voltage is 66 ppm/℃ in a range from 25 to 100 ℃. The line sensitivity is 0.9% in a supply voltage range of 1.8 to 3.3 V, and PSRR is -49 dB at 100 Hz. The power dissipation is 200 nW. The chip area is 0.01 mm². The circuit can be used as an elementary circuit block for power-aware ASICs.

Key words: ASICs, extremely low power dissipation, high power supply rejection ratio, voltage reference source

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]

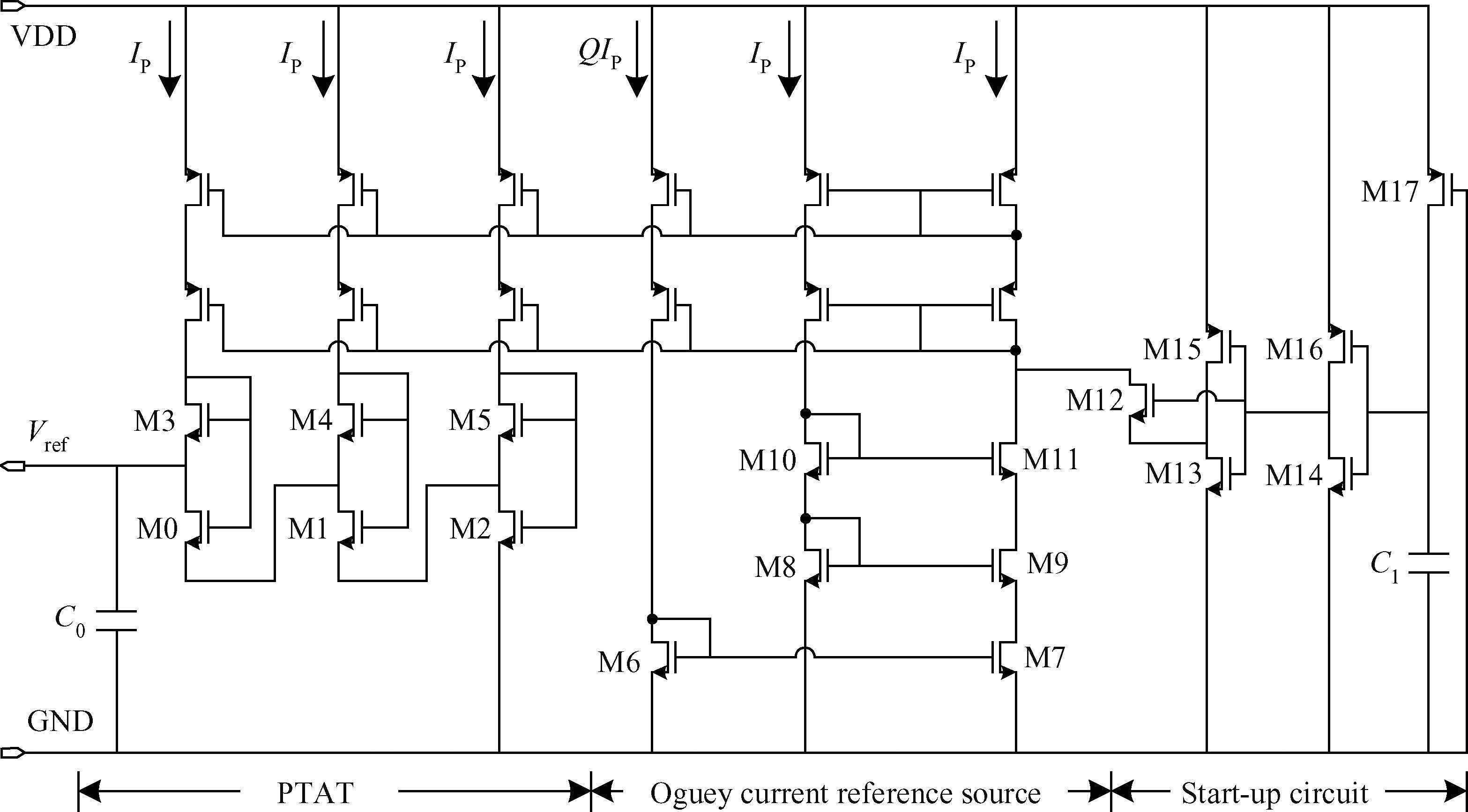

Fig. 1. Schematic of the proposed voltage reference.

DownLoad: Full-Size Img PowerPoint

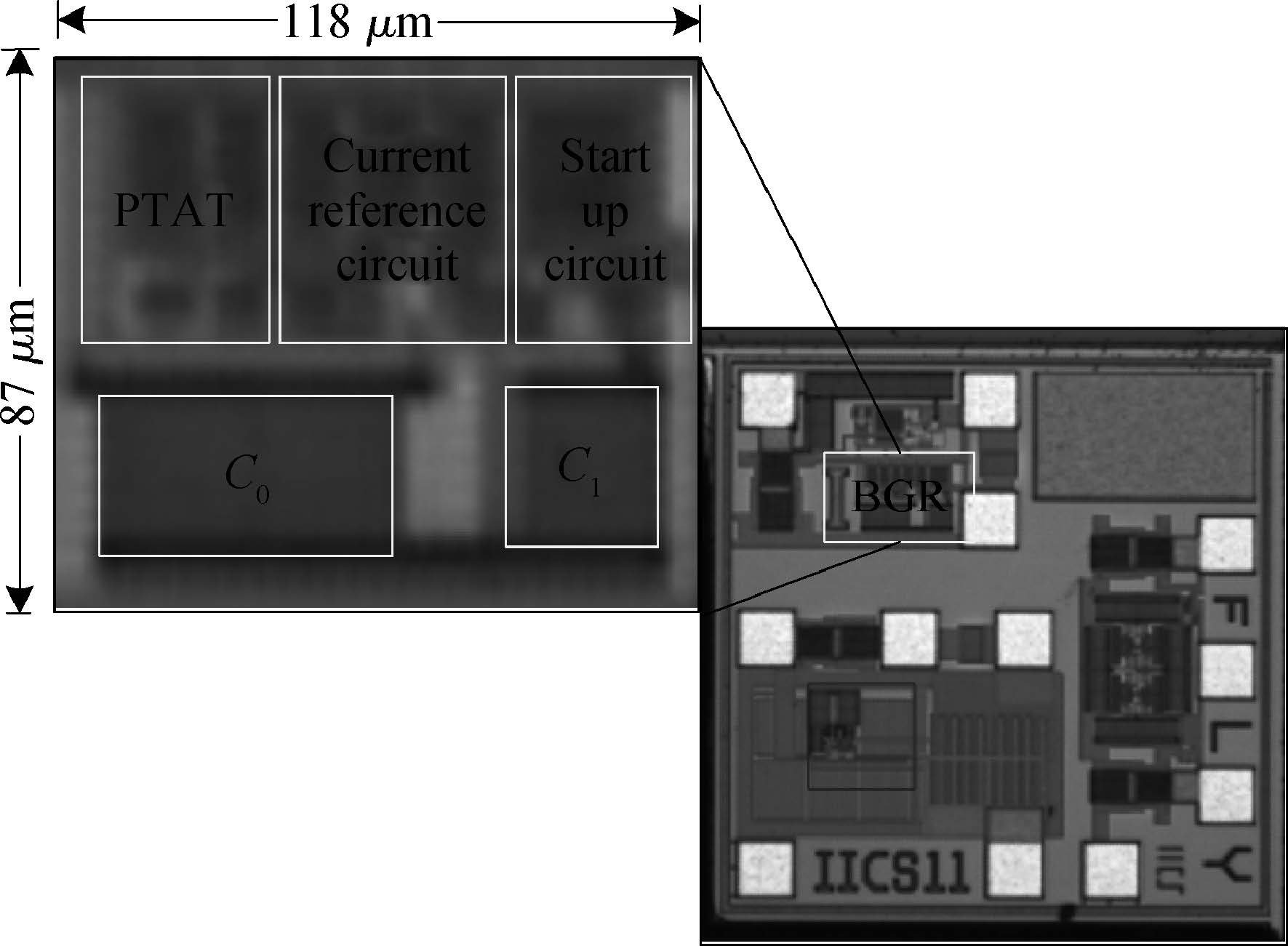

Fig. 2. Chip microphotograph of the proposed BGR.

DownLoad: Full-Size Img PowerPoint

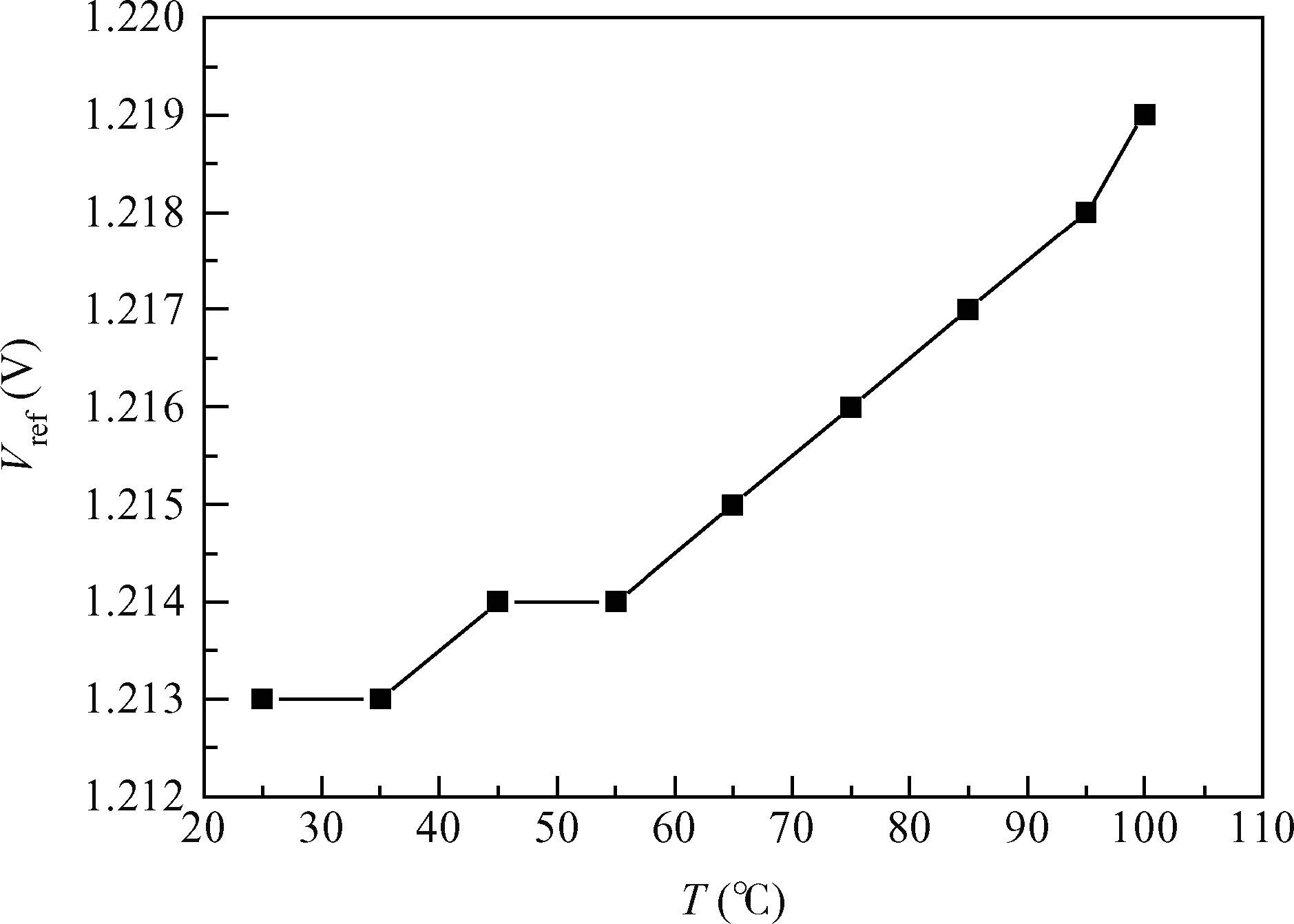

Fig. 3. Measured $V_{\rm ref}$ as a function of temperature, with a 2 V supply voltage.

DownLoad: Full-Size Img PowerPoint

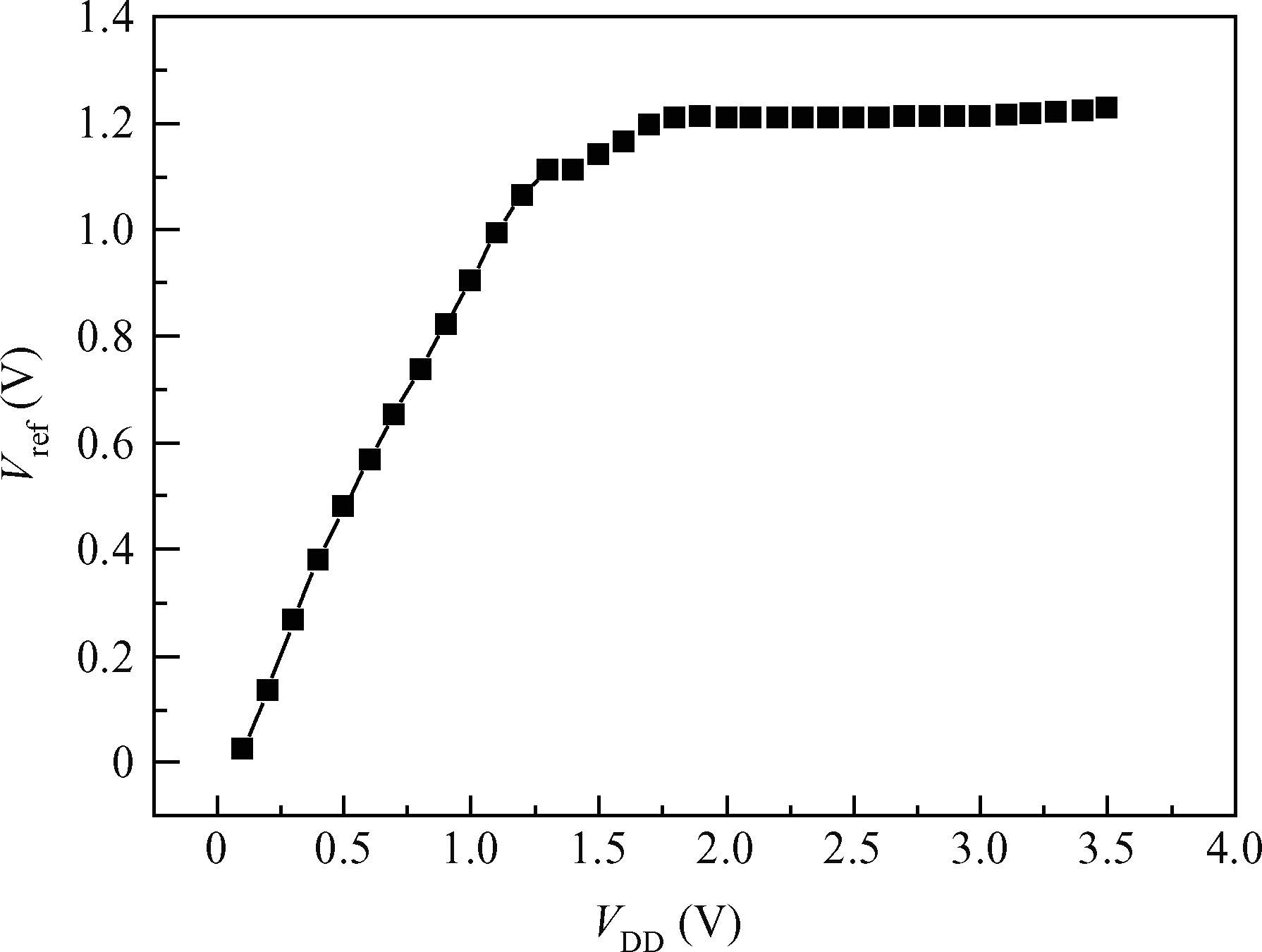

Fig. 4. Measured $V_{\rm ref}$ at room temperature as a function of power supply.

DownLoad: Full-Size Img PowerPoint

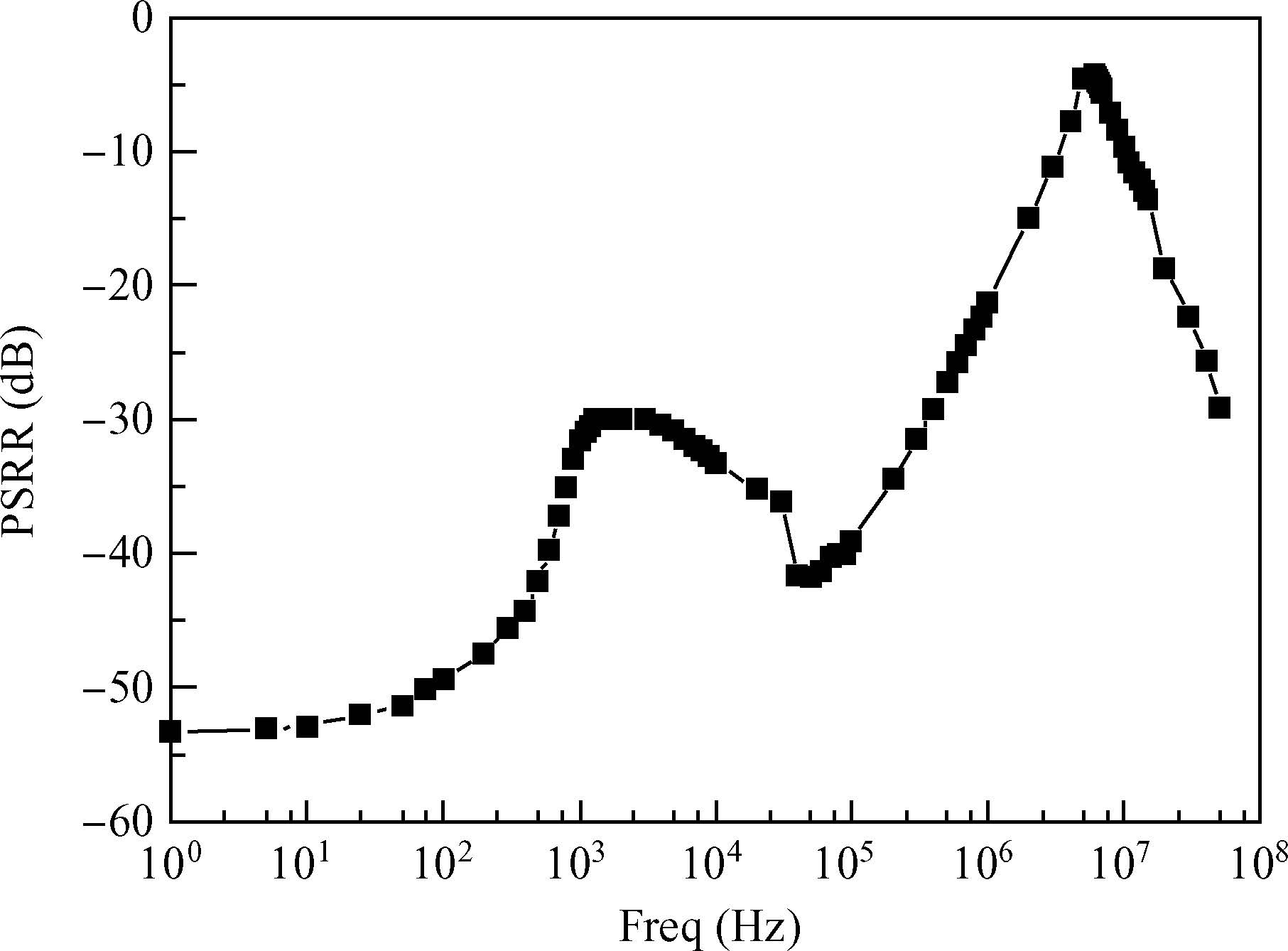

Fig. 5. Measured PSRR at room temperature with a 2 V supply voltage.

DownLoad: Full-Size Img PowerPoint

DownLoad: CSV

Table 1. Performance comparison of BGR.
