J. Semicond. > 2025, Volume 46?>?Issue 12?> 122301

ARTICLES

A high reliability NOR flash cell in 50 nm node technology

Kevin Fang1, 2, Wei Wang2, Yibai Xue1, Fan Wang2, Dong Pan2, Yi Li1, and Jerry Zhou1, 2,

+ Author Affiliations

 Corresponding author: Yi Li, liyi@hust.edu.cn; Jerry Zhou, Jerry_Zhou@xmcwh.com

DOI: 10.1088/1674-4926/25030030CSTR: 32376.14.1674-4926.25030030

PDF

Turn off MathJax

Abstract: Along with NOR flash cell scaling down, dielectric burnout has gradually become one of the most important factors which affects product reliability, especially for high dropout voltage films. In this study, we demonstrate a reliability-enhanced NOR flash cell in 50 nm node technology through structural optimization of floating gate (FG) dimensions and active area profile. By synergistically increasing FG thickness, reducing FG width, and tuning cell-open depth, the control gate-to-active area corner distance expands by 22%, suppressing peak electric fields by 29% vertically and 18% horizontally. This structural innovation achieves: (1) 100× reduction in early-cycle burnout failures, (2) 7.38× time dependent dielectric breakdown lifetime improvement, while maintaining data retention and accelerating programming/erasing speeds by 15.4%/7.3%. The enhanced reliability enables 97.5% reduction in Fowler?Nordheim stress time during characterization program testing, providing a cost-effective solution for automotive-grade flash memories.

Key words: NOR flash, 50 nm, reliability, cell endurance burnout



[1]
Chen H L, Liu B T, Gu L. Data retention enhancement of modern 55nm NOR flash memory. 2022 China Semiconductor Technology International Conference, 2022, 1 doi: 10.1109/CSTIC55103.2022.9856863
[2]
Yu J M, Park J Y, Lee G B, et al. Demonstration of thermally-assisted programming with high speed and improved reliability for junctionless nanowire NOR flash memory. IEEE Trans Nanotechnol, 2019, 18, 1110 doi: 10.1109/TNANO.2019.2945321
[3]
Sun P, Li Y, Yao Y, et al. Study for NOR flash cell burn out failure improvement in the advanced node below 65nm. 2019 IEEE 13th International Conference on ASIC, 2019, 1 doi: 10.1109/ASICON47005.2019.8983488
[4]
Chen H L, Tong Y X, Qi X Y, et al. Silicide profile optimization on active area in 4XNM ETOX NOR flash memory. 2023 China Semiconductor Technology International Conference, 2023, 1 doi: 10.1109/CSTIC58779.2023.10219198
[5]
Du Y H, Gu L, Chen H L, et al. Yield improvement in 4X node technology ETOX NOR flash by optimizing control gate related process and design. 2024 Conference of Science and Technology for Integrated Circuits, 2024, 1 doi: 10.1109/CSTIC61820.2024.10532096
[6]
Chen C Z, Hu D Y, Wu H M. Effective radiation damage to floating gate of flash memory. 2021 China Semiconductor Technology International Conference, 2021, 1 doi: 10.1109/CSTIC52283.2021.9461408
[7]
Vargas-Sierra S, Tanios B, González-Luján J J, et al. TID radiation effects of 1Gb cots nor flash memories for the esa juice mission. 2019 19th European Conference on Radiation and Its Effects on Components and Systems, 2019, 1 doi: 10.1109/RADECS47380.2019.9745698
[8]
Tanios B, Kaddour M, Forgerit B, et al. Single event effects characterization of 55-65nm NOR flash for space applications. 2021 21th European Conference on Radiation and Its Effects on Components and Systems, 2021, 1 doi: 10.1109/RADECS53308.2021.9954491
[9]
Verma R. Flash memory quality and reliability issues. IEEE International Workshop on Memory Technology, Design and Testing, 1996, 32 doi: 10.1109/MTDT.1996.782488
[10]
Lenzlinger M, Snow E H. Fowler-Nordheim tunneling into thermally grown SiO2. IEEE Trans Electron Devices, 1968, 15(9), 686 doi: 10.1063/1.1657043
[11]
Cottrell P E, Troutman R R, Ning T H. Hot-electron emission in N-channel IGFET’s. IEEE Trans Electron Devices, 1979, 26(4), 520 doi: 10.1109/T-ED.1979.19456
[12]
Eitan B, Frohman-Bentchkowsky D. Hot-electron injection into the oxide in n-channel MOS devices. IEEE Trans Electron Devices, 1981, 28(3), 328 doi: 10.1109/T-ED.1981.20336
[13]
Lee J S. Review paper: Nano-floating gate memory devices. Electron Mater Lett, 2011, 7(3), 175 doi: 10.1007/s13391-011-0901-5
[14]
Yang X N, Liu J, Zheng Z W, et al. Impact of P/E cycling on read current fluctuation of NOR Flash memory cell: A microscopic perspective based on low frequency noise analysis. 2015 IEEE International Reliability Physics Symposium, 2015, 5B.7.1 doi: 10.1109/IRPS.2015.7112748
[15]
Shibata T, Ohmi T. A functional MOS transistor featuring gate-level weighted sum and threshold operations. IEEE Trans Electron Devices, 1992, 39(6), 1444 doi: 10.1109/16.137325
[16]
Chen H L, Xu R, Wang H, et al. Improvement of disturb and endurance in NOR flash memory. 2022 China Semiconductor Technology International Conference, 2022, 1 doi: 10.1109/CSTIC55103.2022.9856867
[17]
Ma J Y, Wang L, Liang C D, et al. Structure optimization of 4X NM nor flash for improving cell performance. 2024 Conference of Science and Technology for Integrated Circuits, 2024, 1 doi: 10.1109/CSTIC61820.2024.10532054

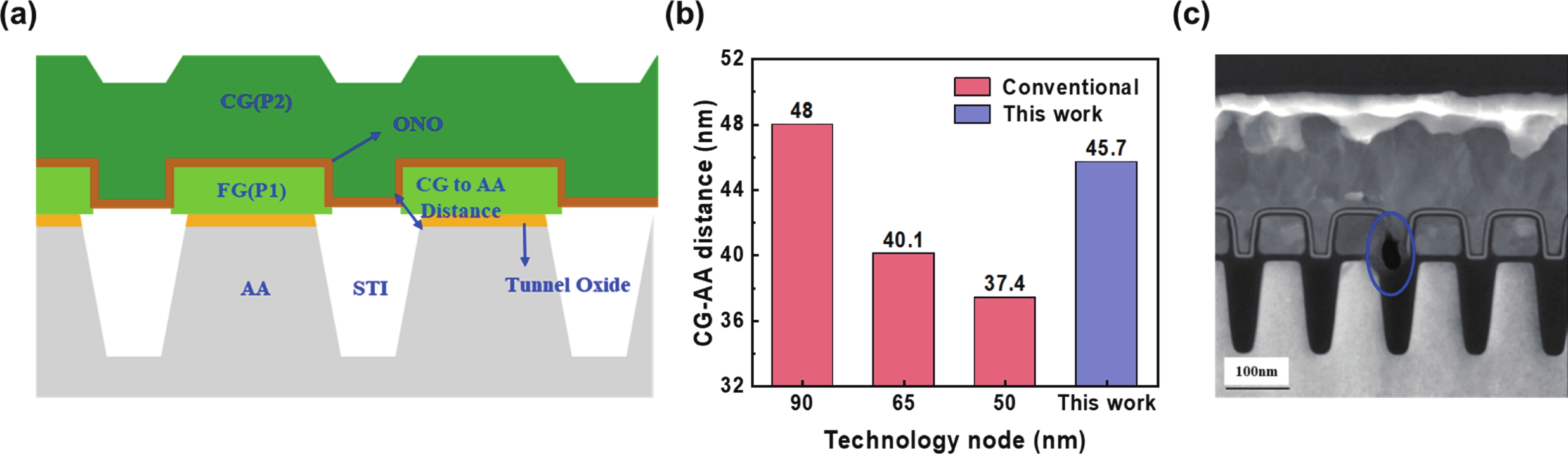

Fig. 1.  (Color online) (a) A schematic of NOR flash cell structure. (b) The trend between scaling down node and CG-AA distance. (c) Cross section TEM image of CG-AA burnout issue.

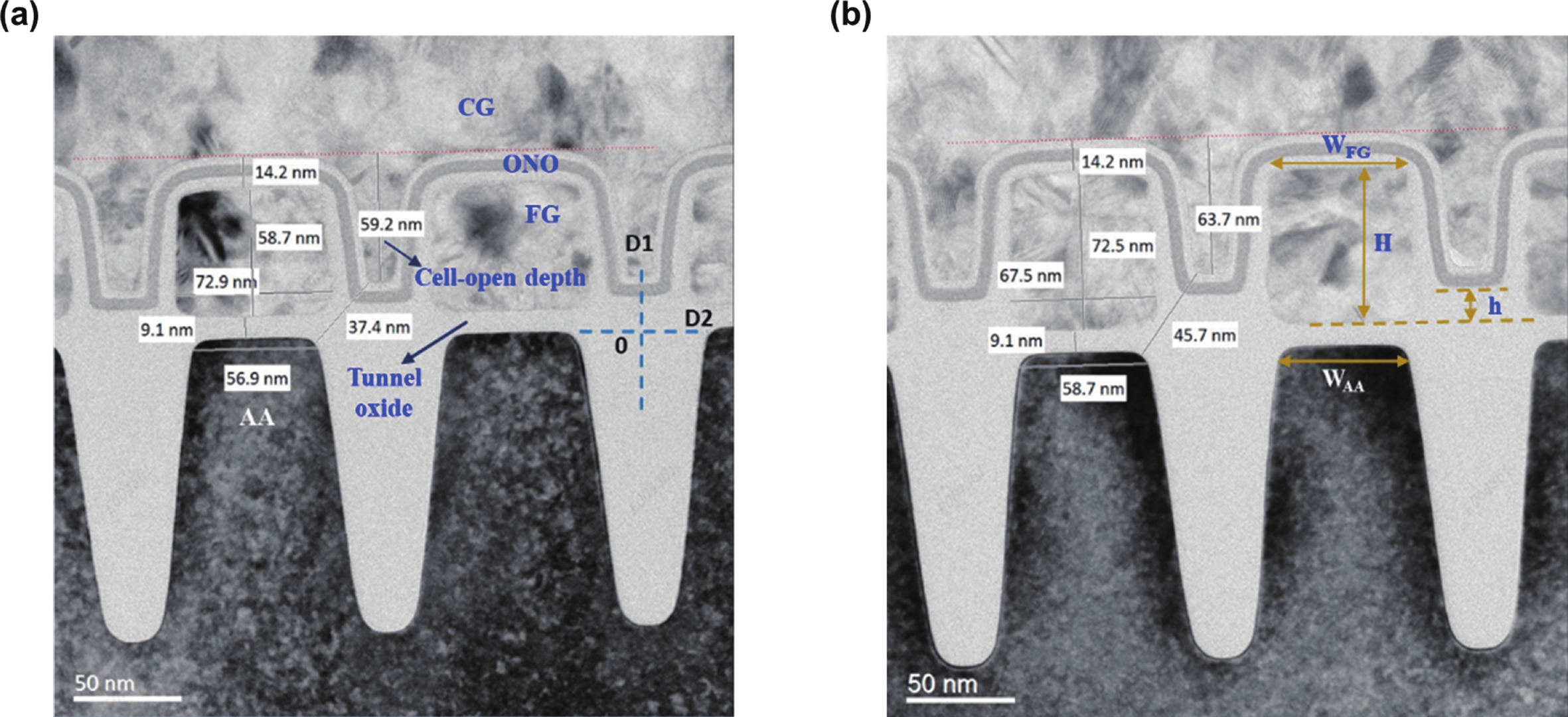

Fig. 2.  (Color online) Standard 50 nm generation NOR flash cell. (a) C1 cell structure, with narrower CG-AA distance. (b) C2 cell structure, with increased FG thickness, increased cell-open depth, and decreased FG width.

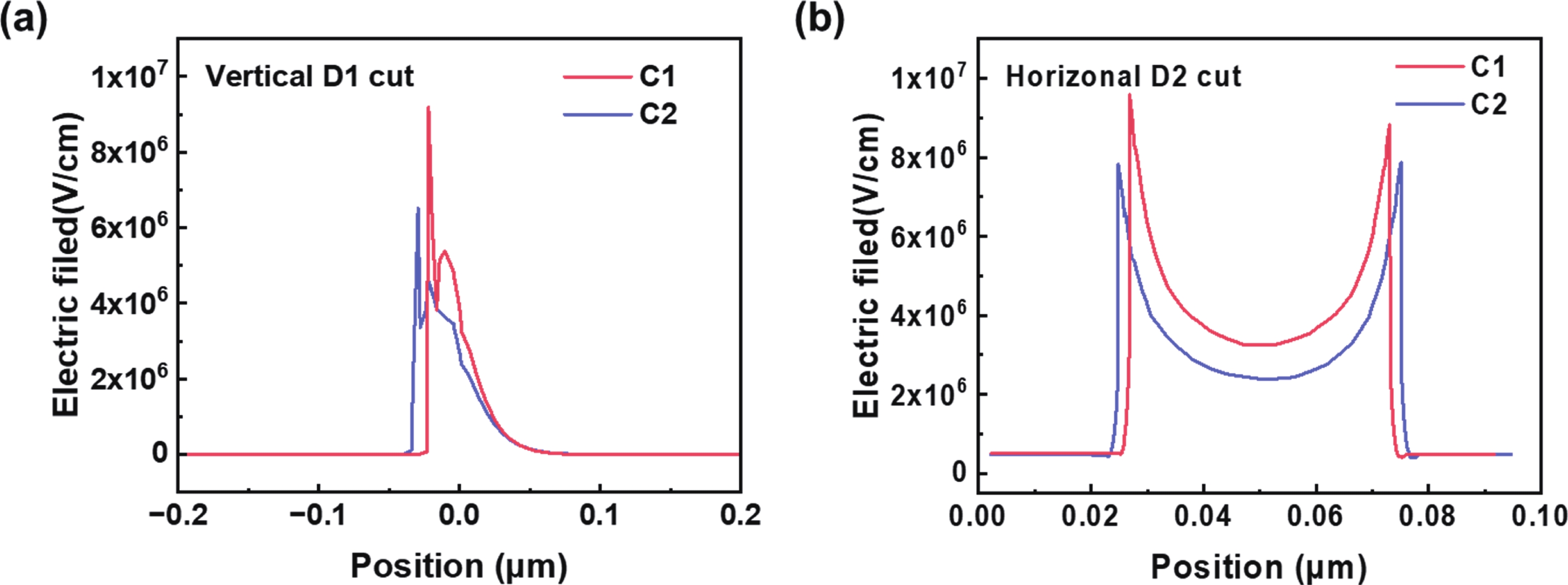

Fig. 3.  (Color online) TCAD simulations results in the CG-AA structure. (a) Vertical electric field profile. (b) Horizontal electric field profile.

Fig. 4.  (Color online) TDDB Weibull distribution for CG-AA.

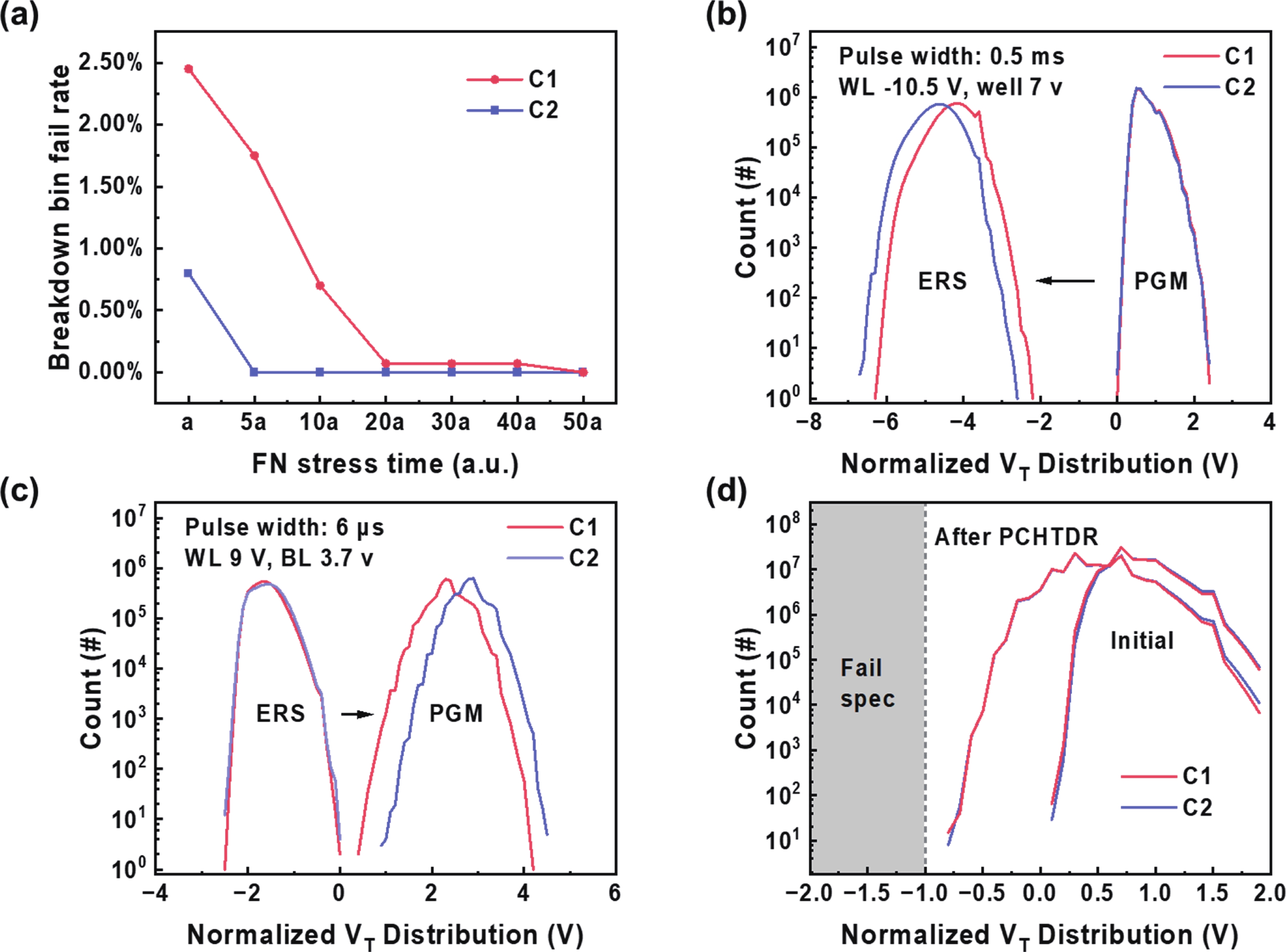

Fig. 5.  (Color Online) (a) The correlation between FN stress time and CP breakdown bin fail rate. (b) VT distribution post erasing. (c) VT distribution post programming. (d) VT distribution of data retention test.

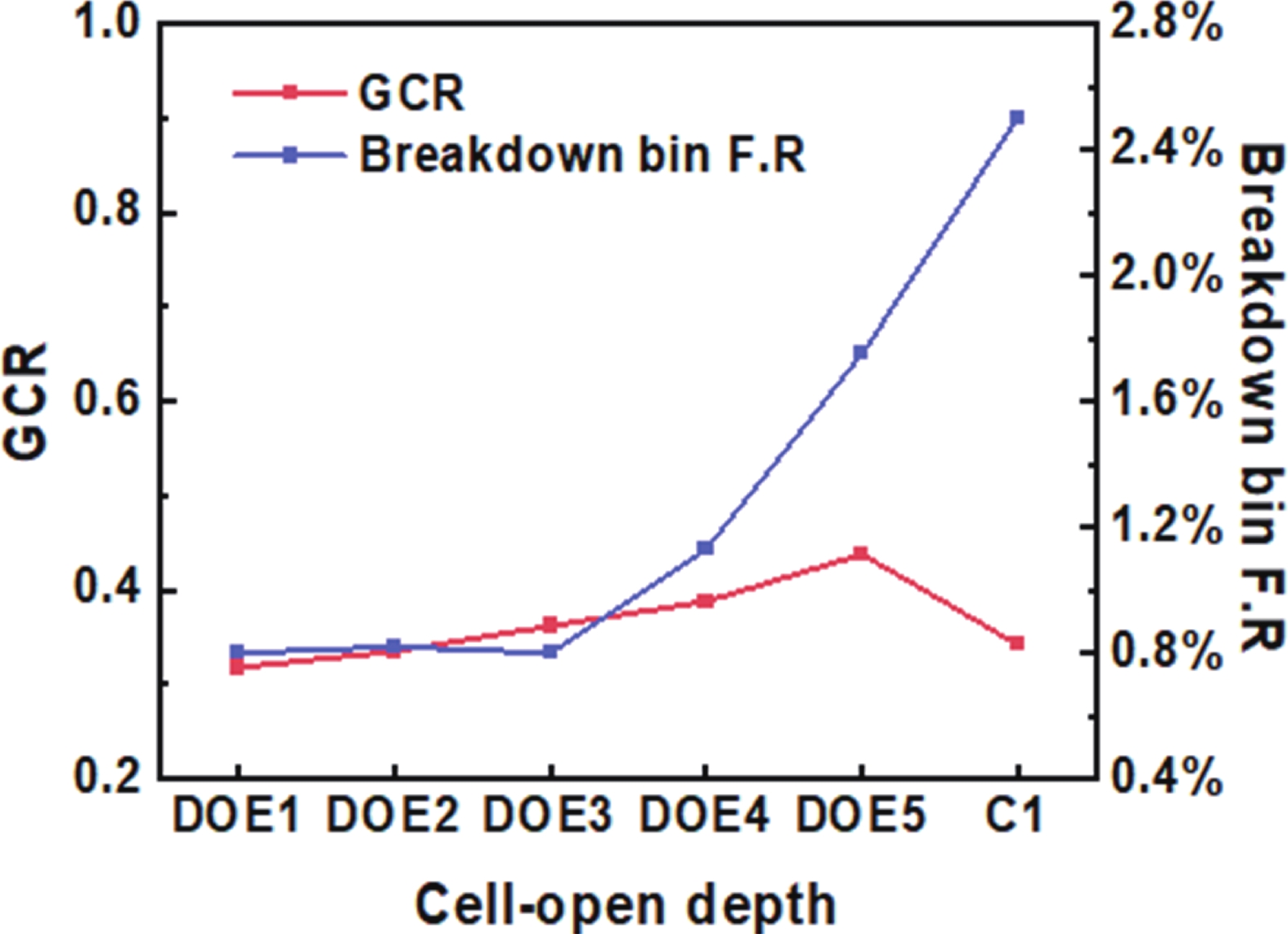

Fig. 6.  (Color Online) GCR and breakdown bin correlation with cell-open depth.

Table 1.   Comparison of properties of two NOR flash cell structures C1 and C2.

Parameter C1 (old) C2 (new) Difference
FG thickness (nm) 58.7 72.5 23.5%
FG width (nm) 72.9 67.5 ?7.4%
Cell-open depth (nm) 59.2 63.7 7.6%
CG-AA corner distance (nm) 37.4 45.7 22.2%
TCAD vertical e-field peak value (V/cm) 9.17 × 106 6.50 × 106 ?29.1%
TCAD horizontal e-field peak value (V/cm) 9.58 × 106 7.82 × 106 ?18.4%
CG-AA TDDB T63% lifetime (s) 68 570 738%
CG-AA burnout failure (PPM) 1000 <10 ?
PGM speed (V/Pulse) 3.9 4.5 15.4%
ERS speed (V/Pulse) 5.5 5.9 7.3%
Data retention (V) 0.9 0.9 Comparable
DownLoad: CSV

Table 2.   TCAD model and parameters.

ItemContent
SoftwareSentaurus TCAD
InputSimulation structure
Main physical modelQuantum modelQuantum potential
Mobility modelEnormal, doping dependence, high field saturation
Density of states modelEffective intrinsic density (old slot boom)
Recombination modelSRH (DopingDep) avalanche Band2Band
Main parameterSilicon relative permittivity11.7
Silicon electron affinity4.0727 eV
Silicon bandgap1.12416 eV
Silicon mobility-electron1.4170 × 103 cm2/(V·s)
Silicon mobility-hole4.7050 × 102 cm2/(V·s)
Oxide relative permittivity3.9
Oxide electron affinity0.9 eV
Oxide bandgap9.0 eV
OutputElectric field
DownLoad: CSV

Table 3.   Cell structure change experiment.

Parameter C1 DOE1 DOE2 DOE3 DOE4 DOE5
FG thickness (nm) 58.7 58.7 × 1.235 58.7 × 1.235 58.7 × 1.235 58.7 × 1.235 58.7 × 1.235
FG width (nm) 72.9 72.9 × 0.926 72.9 × 0.926 72.9 × 0.926 72.9 × 0.926 72.9 × 0.926
Cell-open depth (nm) 59.2 59.2 59.2 × 1.022 59.2 × 1.076 59.2 × 1.103 59.2 × 1.136
CG-AA corner distance (nm) 37.4 37.4 × 1.286 37.4 × 1.259 37.4 × 1.222 37.4 × 1.149 37.4 × 1.118
Breakdown bin failure rate (%) 2.5 0.8 0.82 0.8 1.13 1.75
GCR 0.342 0.318 0.335 0.362 0.388 0.438
DownLoad: CSV
