J. Semicond. > 2024, Volume 45?>?Issue 8?> 082301

ARTICLES

A mechanically coupled MEMS filter with high-Q width extensional mode resonators

Wei Wang1, 2, Wenli Liu1, 2, Junyuan Zhao1, 2, Bo Niu1, 2, Zeyu Wu1, 2, Yinfang Zhu1, 2, Jinling Yang1, 2, and Fuhua Yang1, 2

+ Author Affiliations

 Corresponding author: Jinling Yang, jlyang@semi.ac.cn

DOI: 10.1088/1674-4926/24050007

PDF

Turn off MathJax

Abstract: This work presents a novel radio frequency (RF) narrowband Si micro-electro-mechanical systems (MEMS) filter based on capacitively transduced slotted width extensional mode (WEM) resonators. The flexibility of the plate leads to multiple modes near the target frequency. The high Q-factor resonators of around 100 000 enable narrow bandwidth filters with small size and simplified design. The 1-wavelength and 2-wavelength WEMs were first developed as a pair of coupled modes to form a passband. To reduce bandwidth, two plates are coupled with a λ-length coupling beam. The 79.69 MHz coupled plate filter (CPF) achieved a narrow bandwidth of 8.8 kHz, corresponding to a tiny 0.011%. The CPF exhibits an impressive 34.84 dB stopband rejection and 7.82 dB insertion loss with near-zero passband ripple. In summary, the RF MEMS filter presented in this work shows promising potential for application in RF transceiver front-ends.

Key words: MEMS, narrowband filter, mechanically coupling, quality factor, width extensional mode



[1]
Behzadi K, Baghelani M. Bandwidth controlled weakly connected MEMS resonators based narrowband filter. IET Circuits Devices Syst, 2020, 14, 1265 doi: 10.1049/iet-cds.2020.0216
[2]
Gruszczynski S, Wincza K, Borgosz J. Narrow-band band-pass filter for application in high selectivity receiver of nonlinear junction detector. 2008 China-Japan Joint Microwave Conference, 2008, 400 doi: 10.1109/CJMW.2008.4772455
[3]
Ozgurluk A, Akgul M, Nguyen C T C. RF channel-select micromechanical disk filters—Part I: Design. IEEE Trans Ultrason Ferroelectr Freq Contr, 2019, 66, 192 doi: 10.1109/TUFFC.2018.2881727
[4]
Li S, Lin Y, Ren Z, et al. A micromechanical parallel-class disk-array filter. 2007 IEEE International Frequency Control Symposium Joint with the 21st European Frequency and Time Forum, 2007, 1356 doi: 10.1109/FREQ.2007.4319298
[5]
Aigner R. SAW and BAW technologies for RF filter applications: A review of the relative strengths and weaknesses. 2008 IEEE Ultrasonics Symposium, 2008, 582 doi: 10.1109/ULTSYM.2008.0140
[6]
Bagdasaryan A S, Gulyaev Y V, Nikitov S A, et al. Narrowband surface-acoustic-wave filters in RF identification systems. J Commun Technol Electron, 2008, 53, 842 doi: 10.1134/S1064226908070164
[7]
Loebl H P, Metzmacher C, Milsom R F, et al. Narrow band bulk acoustic wave filters. IEEE Ultrasonics Symposium, 2004, 411 doi: 10.1109/ULTSYM.2004.1417750
[8]
Kuhn W B, Stephenson F W, Elshabini-Riad A. A 200 MHz CMOS Q-enhanced LC bandpass filter. IEEE J Solid-State Circuits, 1996, 31, 1112 doi: 10.1109/4.508258
[9]
Nguyen N M, Meyer R G. Si IC-compatible inductors and LC passive filters. IEEE J Solid-State Circuits, 1990, 25, 1028 doi: 10.1109/4.58301
[10]
Pillai G, Chen C Y, Li S S. Support transducer enabled single resonator channel select filter. 2019 Joint Conference of the IEEE International Frequency Control Symposium and European Frequency and Time Forum (EFTF/IFC), 2019, 1 doi: 10.1109/FCS.2019.8856062
[11]
Yen T T, Lin C M, Lai Y J, et al. Fine frequency selection techniques for aluminum nitride Lamb wave resonators. 2010 IEEE International Frequency Control Symposium, 2010, 9 doi: 10.1109/FREQ.2010.5556384
[12]
Naing T L, Nilchi J N, Liu R N, et al. Active Q-control for improved insertion loss micromechanical filters. 2014 IEEE International Frequency Control Symposium (FCS), 2014, 1 doi: 10.1109/FCS.2014.6860011
[13]
Demirci M U, Nguyen C T C. Single-resonator fourth-order micromechanical disk filters. 18th IEEE International Conference on Micro Electro Mechanical Systems, 2005, 207 doi: 10.1109/MEMSYS.2005.1453903
[14]
Chen C, Li M, Li C, et al. Design and characterization of mechanically-coupled CMOS-MEMS filters. 2013 Transducers & Eurosensors XXVII: The 17th International Conference on Solid-State Sensors, Actuators and Microsystems (TRANSDUCERS & EUROSENSORS XXVII), 2013, 2288 doi: 10.1109/Transducers.2013.6627262
[15]
Akgul M, Nguyen C T C. A passband-corrected high rejection channel-select micromechanical disk filter. 2014 IEEE International Frequency Control Symposium (FCS), 2014, 1 doi: 10.1109/FCS.2014.6860009
[16]
Chen C Y, Li M H, Li C S, et al. Design and characterization of mechanically coupled CMOS-MEMS filters for channel-select applications. Sens Actuat A Phys, 2014, 216, 394 doi: 10.1016/j.sna.2014.04.026
[17]
Zverev A. Handbook of filter synthesis. 1967
[18]
Zhang H M, Pandit M, Sun J K, et al. On weakly coupled resonant MEMS transducers operating in the modal overlap regime. IEEE Trans Ultrason Ferroelectr Freq Contr, 2021, 68, 1448 doi: 10.1109/TUFFC.2020.3028567
[19]
Liu W L, Lu Y J, Chen Z J, et al. A GHz silicon-based width extensional mode MEMS resonator with Q over 10, 000. Sensors, 2023, 23, 3808 doi: 10.3390/s23083808
[20]
Casinovi G, Gao X, Ayazi F. Lamb waves and resonant modes in rectangular-bar silicon resonators. J Microelectromech Syst, 2010, 19, 827 doi: 10.1109/JMEMS.2010.2050862
[21]
Pourkamali S, Ho G K, Ayazi F. Low-impedance VHF and UHF capacitive silicon bulk acoustic wave resonators—Part I: Concept and fabrication. IEEE Trans Electron Devices, 2007, 54, 2017 doi: 10.1109/TED.2007.901403
[22]
Jia Q Q, Chen Z J, Liu W L, et al. A novel extensional bulk mode resonator with low bias voltages. Electronics, 2022, 11, 910 doi: 10.3390/electronics11060910
[23]
Han J Z, Xiao Y H, Chen W, et al. Temperature compensated bulk-mode capacitive MEMS resonators with ±16 ppm temperature stability over industrial temperature ranges. J Microelectromech Syst, 2022, 31, 723 doi: 10.1109/JMEMS.2022.3189202
[24]
Wang L L, Wang C, Wang Y, et al. A review on coupled bulk acoustic wave MEMS resonators. Sensors, 2022, 22, 3857 doi: 10.3390/s22103857
[25]
Giner J, Uranga A, Mu?óz-Gamarra J L, et al. A fully integrated programmable dual-band RF filter based on electrically and mechanically coupled CMOS-MEMS resonators. J Micromech Microeng, 2012, 22, 055020 doi: 10.1088/0960-1317/22/5/055020
[26]
Yan J Z, Seshia A A, Phan K L, et al. Internal electrical phase inversion for FF-beam resonator arrays and tuning fork filters. 2008 IEEE 21st International Conference on Micro Electro Mechanical Systems, 2008, 1028 doi: 10.1109/MEMSYS.2008.4443834
[27]
Akgul M, Ozgurluk A, Nguyen C T C. RF channel-select micromechanical disk filters—Part II: Demonstration. IEEE Trans Ultrason Ferroelectr Freq Contr, 2019, 66, 218 doi: 10.1109/TUFFC.2018.2883296
[28]
Lopez J L, Verd J, Uranga A, et al. A CMOS–MEMS RF-tunable bandpass filter based on two high-Q 22-MHz polysilicon clamped-clamped beam resonators. IEEE Electron Device Lett, 2009, 30, 718 doi: 10.1109/LED.2009.2022509
[29]
Al Hafiz M A, Kosuru L, Hajjaj A Z, et al. Highly tunable narrow bandpass MEMS filter. IEEE Trans Electron Devices, 2017, 64, 3392 doi: 10.1109/TED.2017.2716949
[30]
Liu W L, Chen Z J, Kan X, et al. Novel narrowband radio frequency microelectromechanical systems filters. J Micromech Microeng, 2021, 31, 025003 doi: 10.1088/1361-6439/abcdad
Fig. 1.  (Color online) Equivalent electrical model of the filter (a) and passband formation mechanism (b).

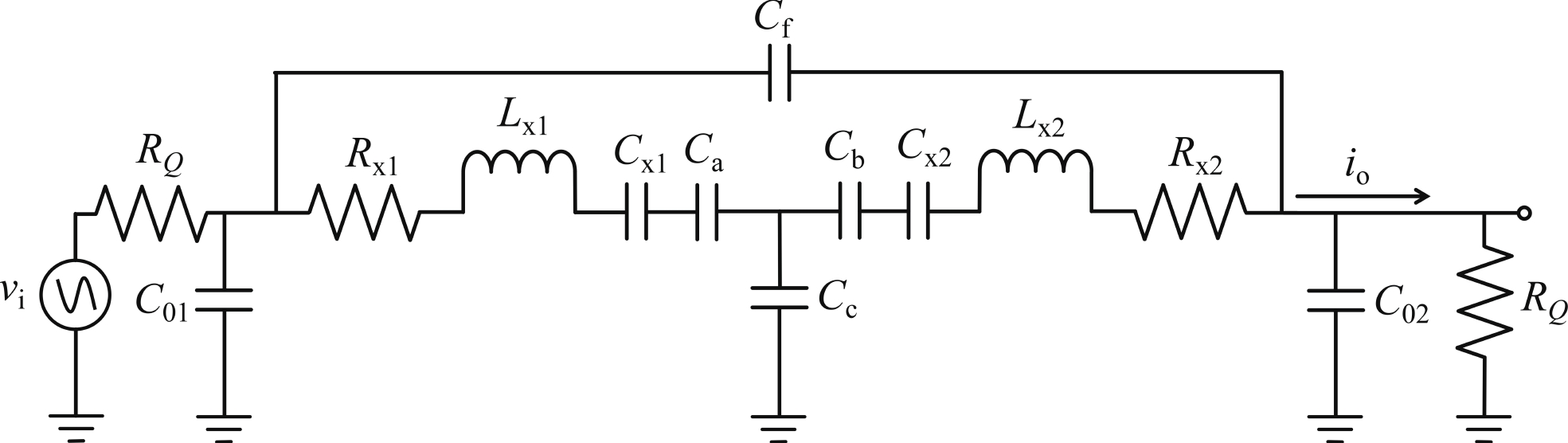

Fig. 2.  Detailed equivalent electrical model of the filter with additional termination resistors and parasitic capacitances.

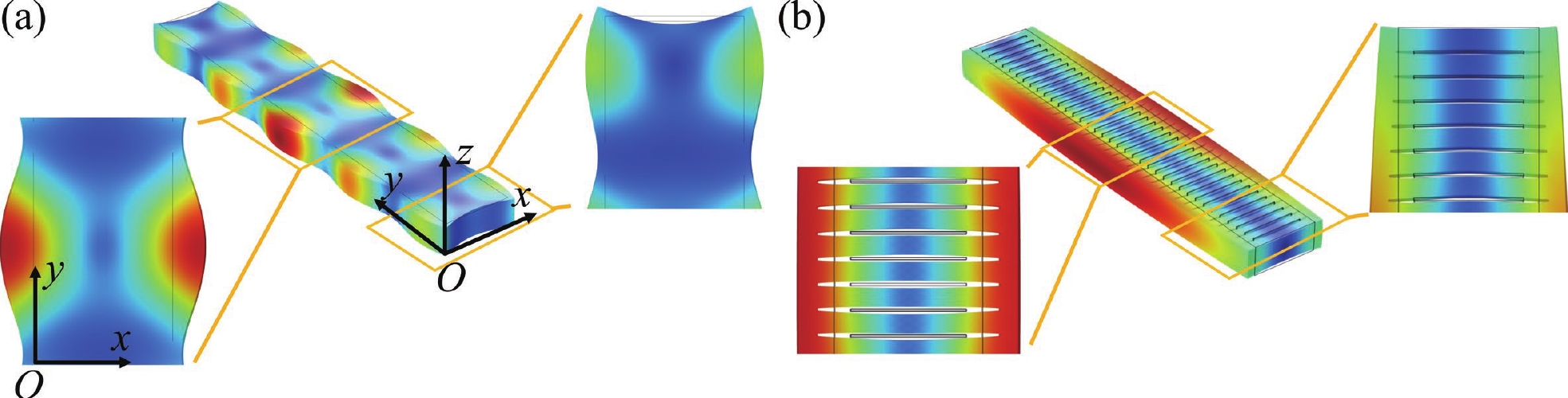

Fig. 3.  (Color online) Mode shapes of traditional WEM (a) and slotted WEM (b).

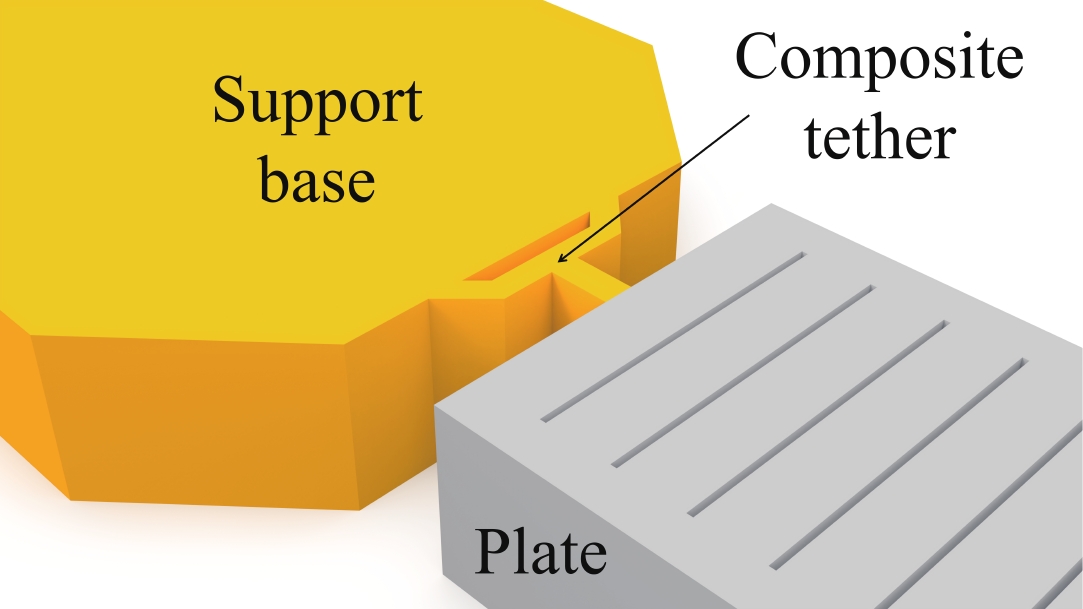

Fig. 4.  (Color online) Structure diagram of WEM with composite tether.

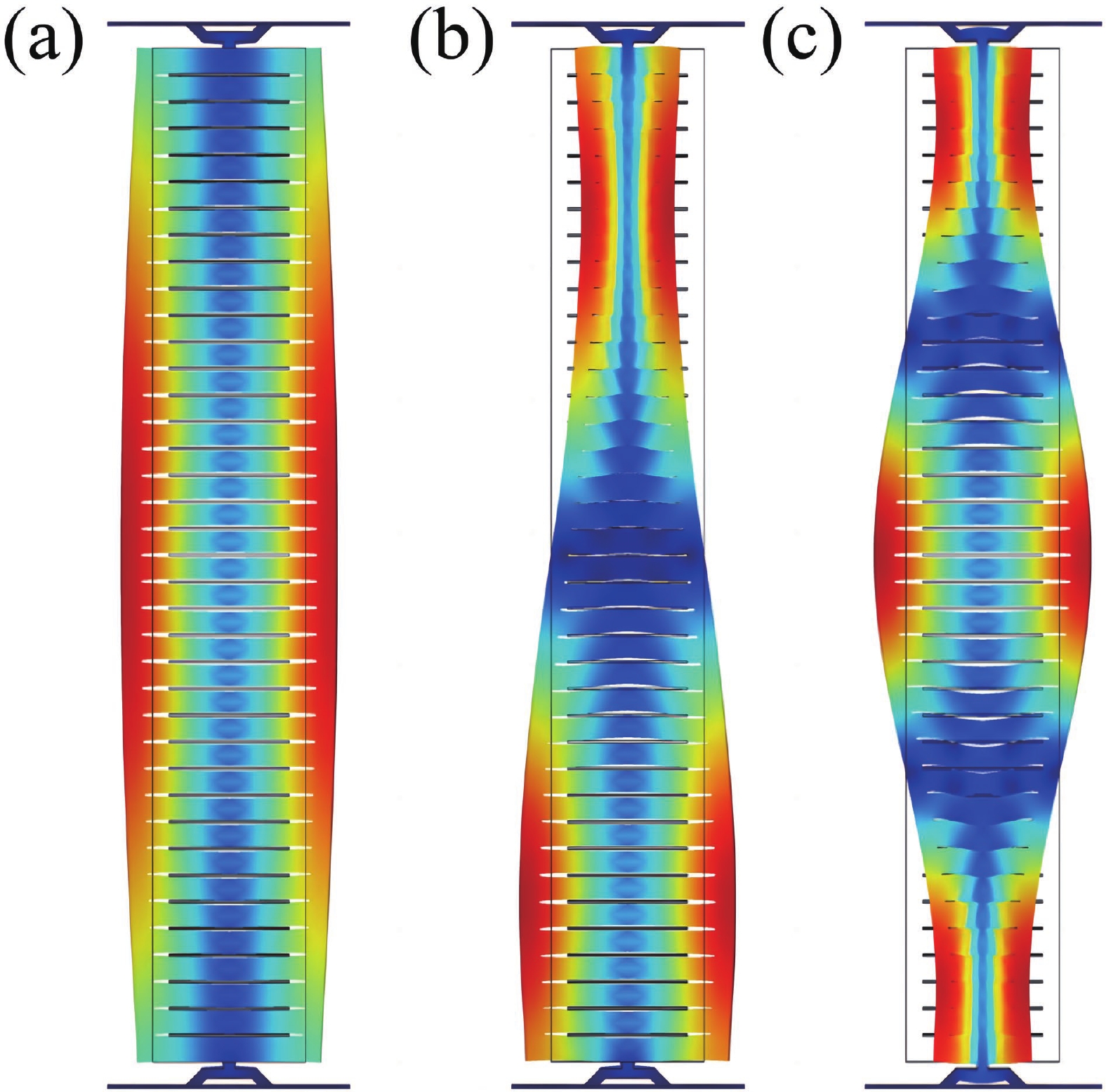

Fig. 5.  (Color online) Mode shapes of 1-wavelength (a), 2-wavelength (b), and 3-wavelength WEMs (c).

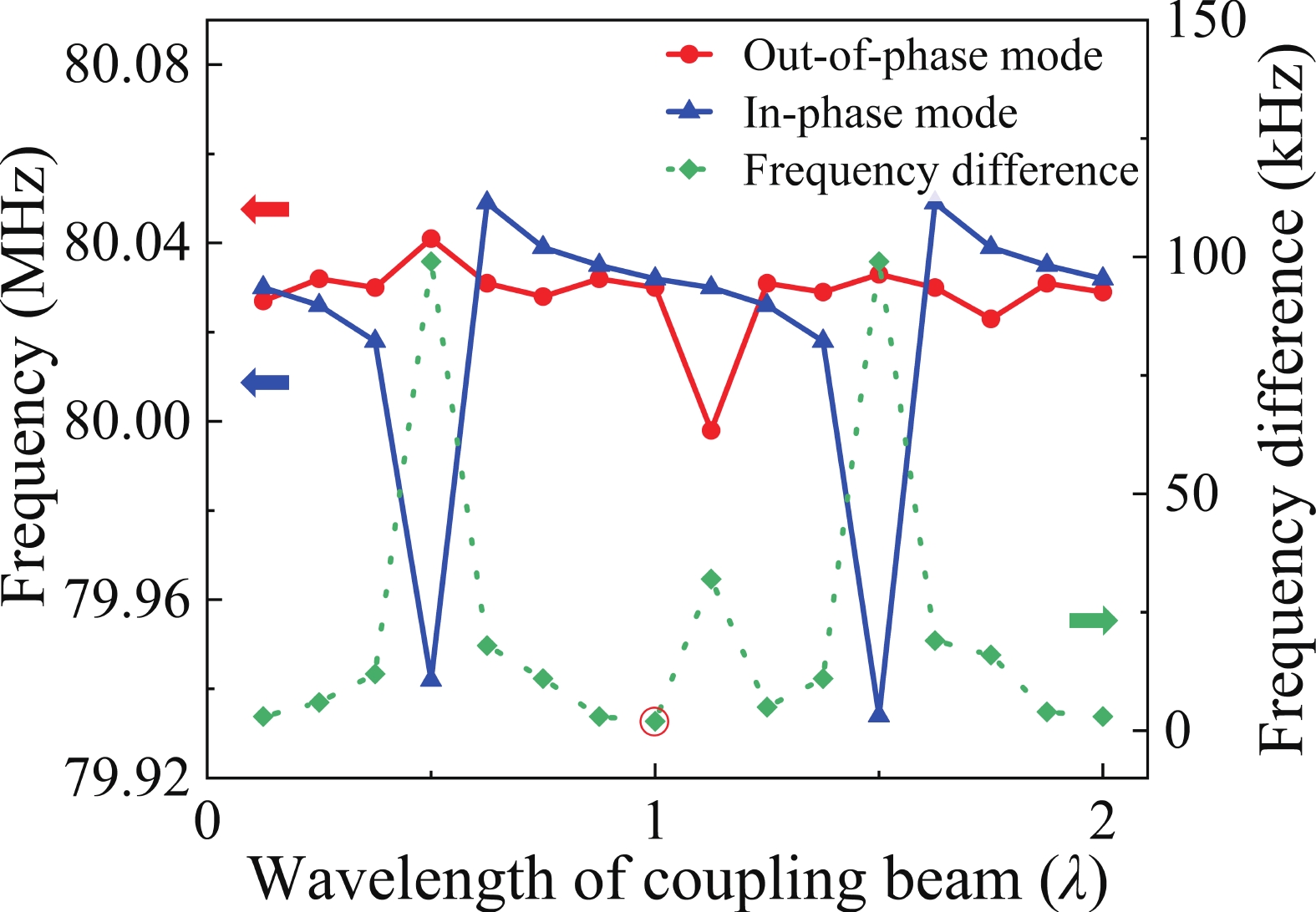

Fig. 6.  (Color online) The resonance frequencies and frequency differences of the coupled modes at different coupling beam lengths.

Fig. 7.  (Color online) Mode shapes of CPF with a λ-length beam. In-phase mode (a) and out-of-phase mode (b).

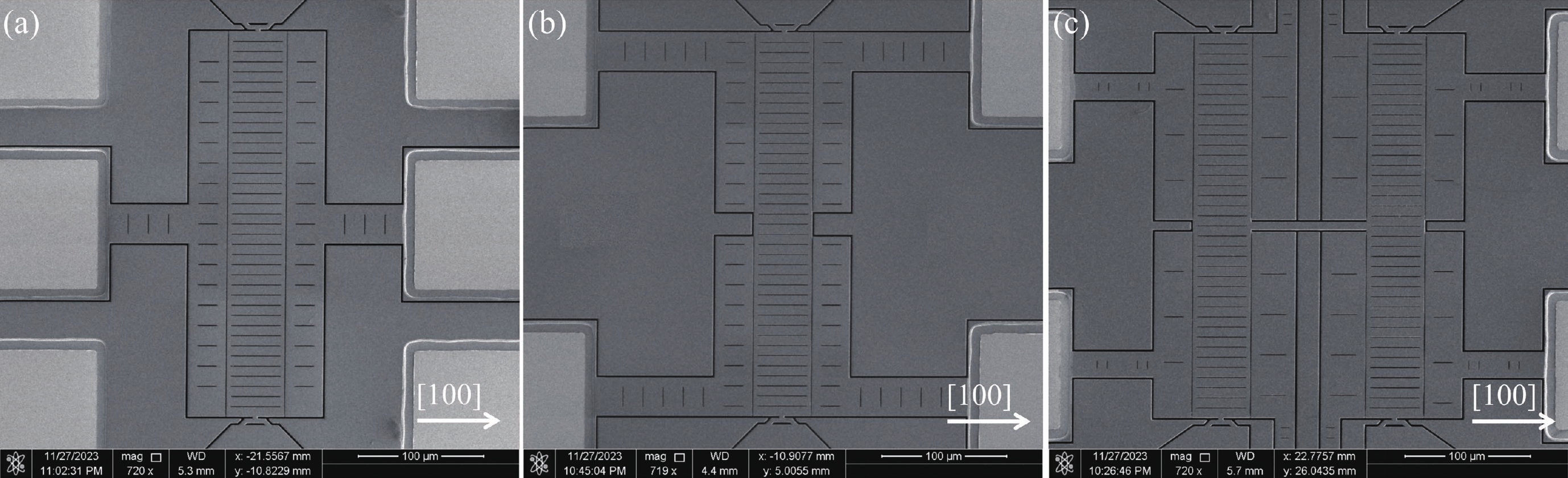

Fig. 8.  SEM photographs of the 1-wavelength resonator (a), the 2-wavelength resonator (b), and CPF (c).

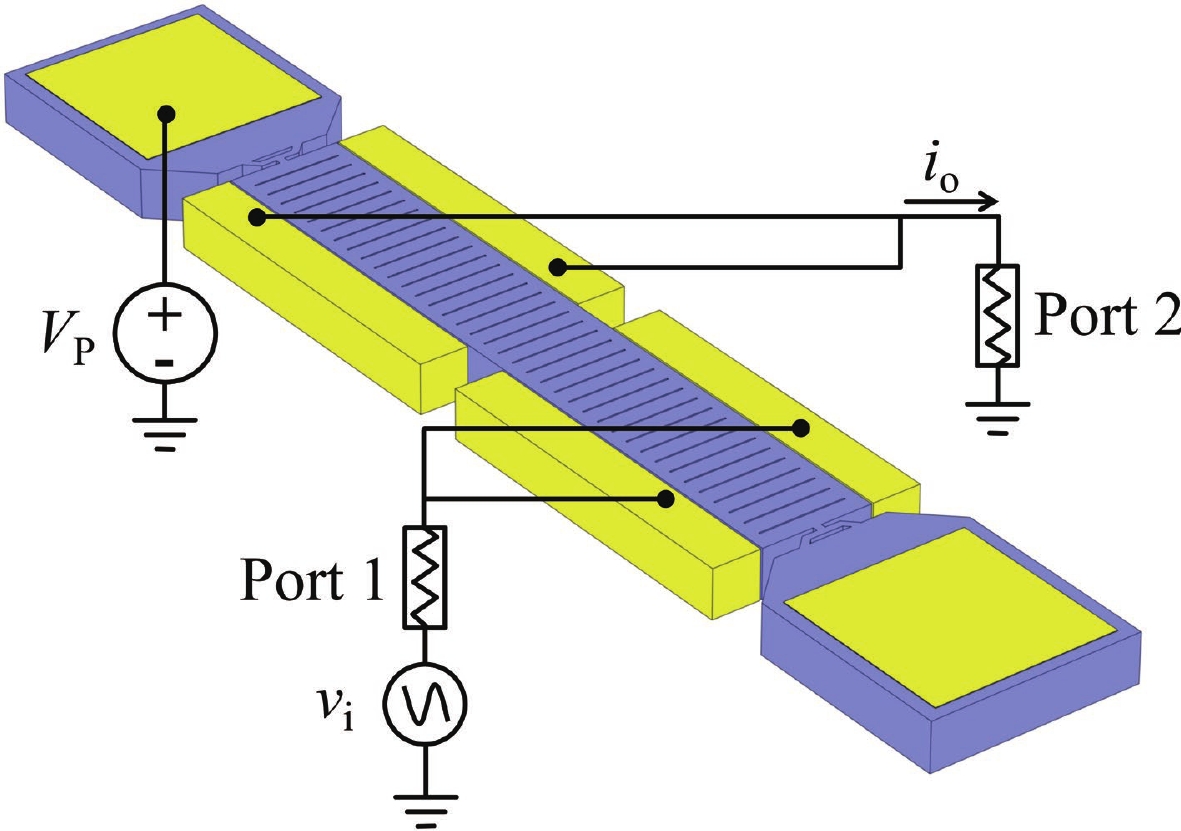

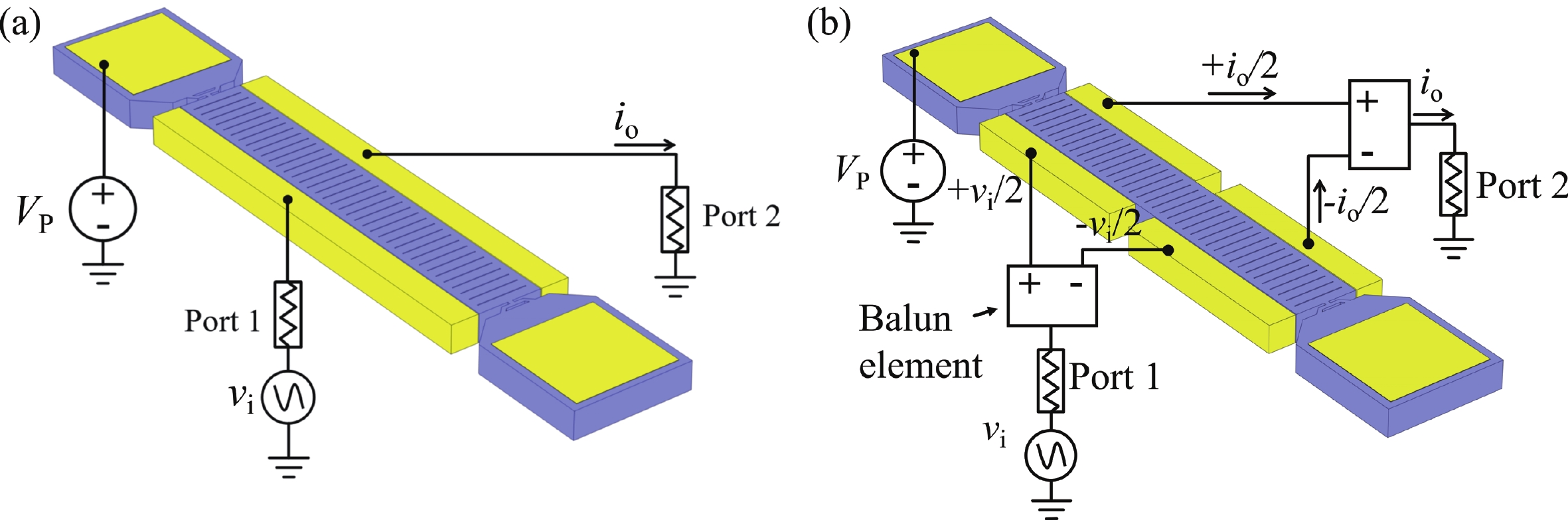

Fig. 9.  (Color online) Electrical configurations of 1-wavelength mode (also can be used for traditional WEM) (a) and 2-wavelength mode (b) resonators.

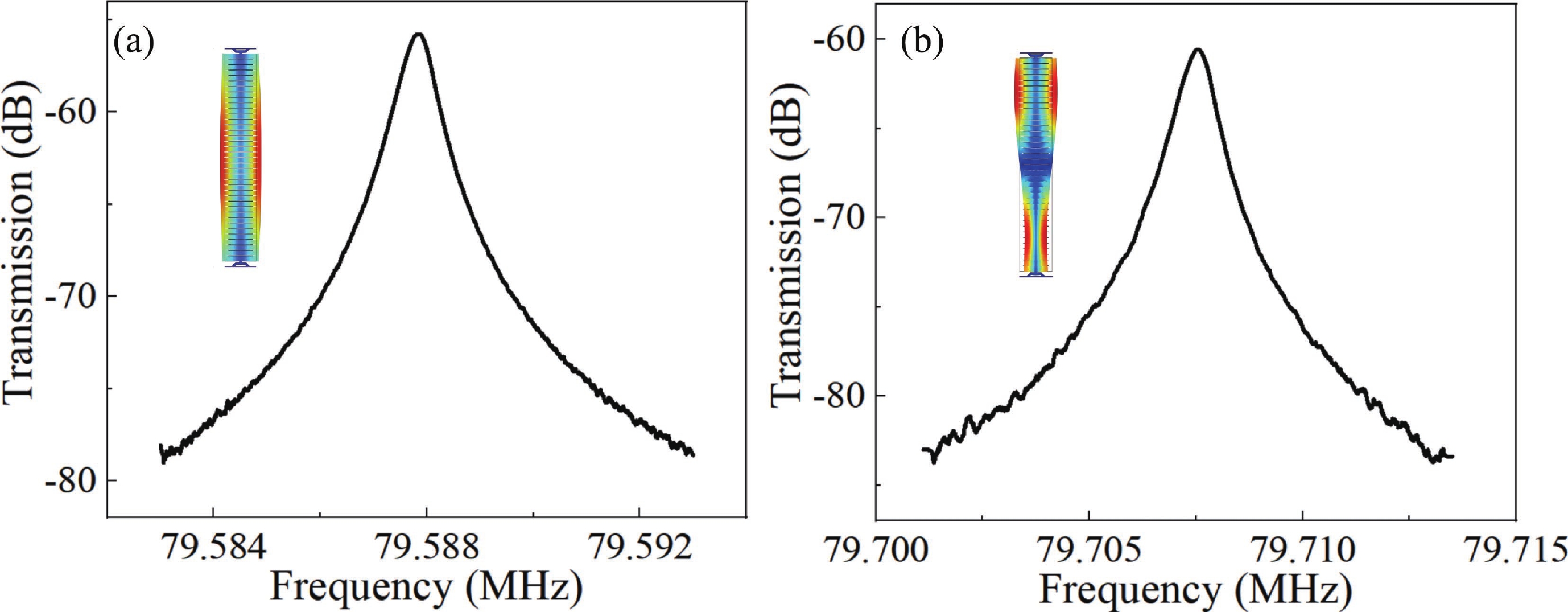

Fig. 10.  (Color online) Spectra of slotted WEM resonators. The 1-wavelength mode (a) and the 2-wavelength mode (b).

Fig. 11.  (Color online) Electrical configuration for parallelly exciting the 1-wavelength and 2-wavelength WEMs.

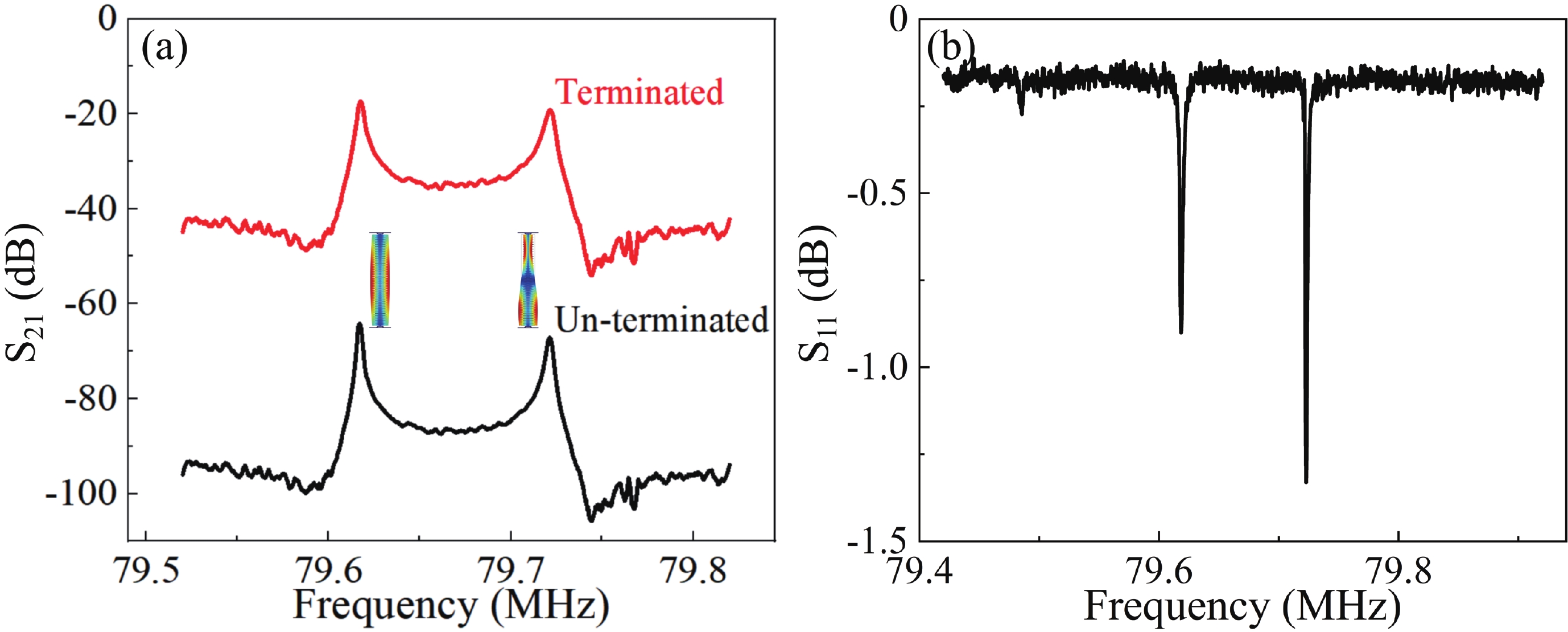

Fig. 12.  (Color online) Un-terminated and terminated filter spectra (a) and terminated S11 (b) of single plate configuration.

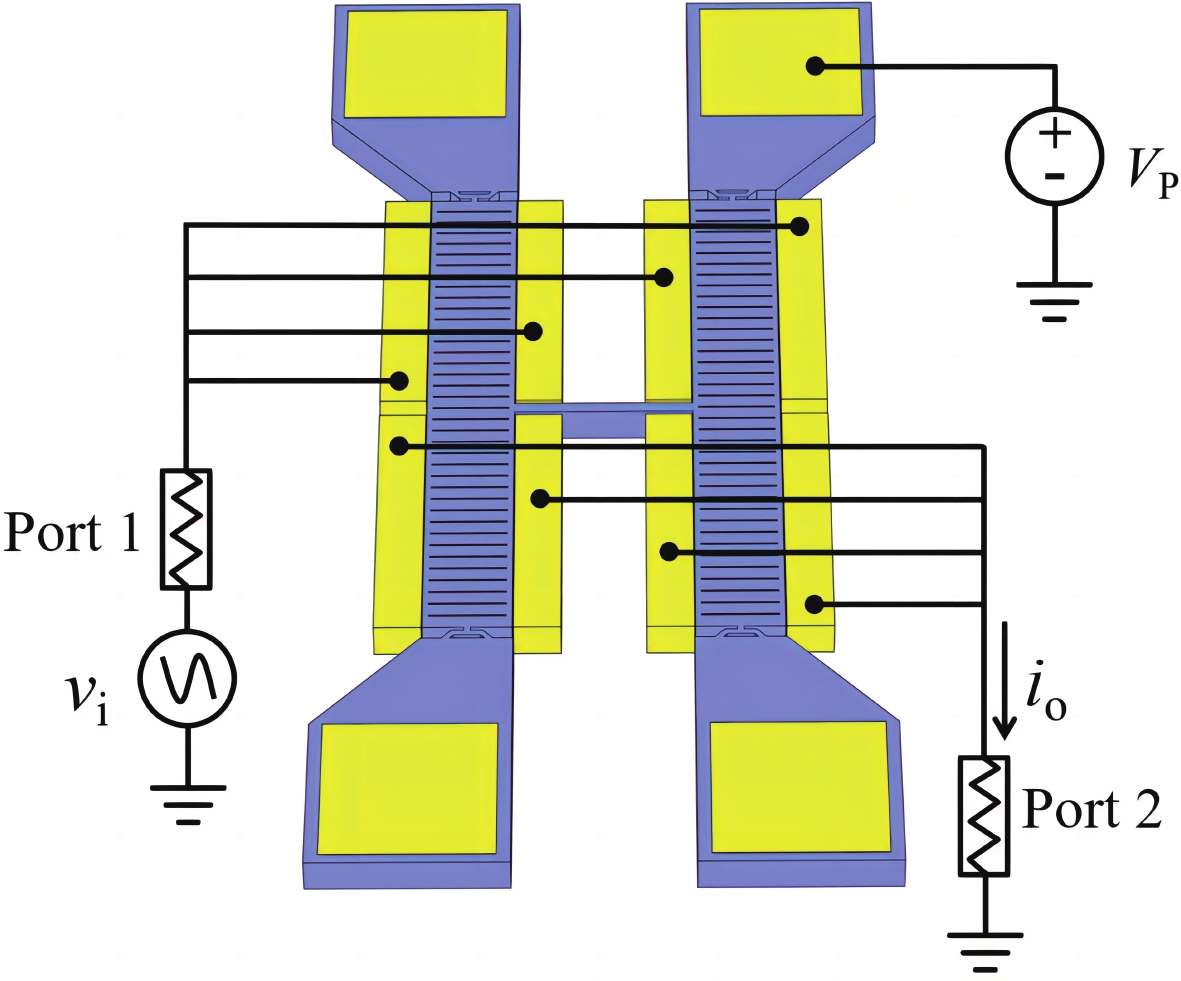

Fig. 13.  (Color online) Electrical configuration of CPF.

Fig. 14.  (Color online) De-embedded spectrum (a) and terminated spectra (b) of CPF.

Table 1.   The simulated results for WEM resonators.

nWEM typeQTED (106)Qanchor (104)αMeff (10-10 kg)
1Traditional2.577.950.541.23
1Slotted3.733020.792.09
2Slotted2.634200.741.83
DownLoad: CSV

Table 2.   Design parameters of device structures.

Structure Parameter Size (μm)
Plate Length 304
Width 46
Composite tether Straight beam length 2
Straight beam width 3.5
Trapezoidal frame width 3
Bottom edge length of
trapezoidal frame		 26
Release hole Length 40
Width 1
Coupling beam Length 92
Width 6
DownLoad: CSV

Table 3.   Performances of WEM resonators.

nWEM typef (MHz)QRx (kΩ)
1Traditional79.898913 900769.0
1Slotted79.5878110 00061.5
2Slotted79.707590 400106.5
DownLoad: CSV

Table 4.   Comparison between other reported filters and the CPF in this work.

Reference Number of resonator
structure		 Resonator
Q value, Qr		 Center frequency
f0 (MHz)		 BW
(kHz)		 PBW
(%)		 IL
(dB)		 Passband
ripple (dB)		 SR
(dB)
[16] 10 1100 8.08 58 0.72 16.6 ? >20
[25] 2 220 27.45 220 0.8 17 3 35
[26] 2 ? 2.29 8.23 0.36 38 2.7 21
[27] 206 8800 223.4 209 0.09 2.73 0.5 50
[28] 2 4400 21.76 200 0.9 6.7 0.9 30
[29]# 2 ? 0.119 0.56 0.478 60* 2.5 17.5
[30]# 4 >10 000 74.47 1638 0.48 59* 23* 18.2*
This work 2 110 000 and 90 400 79.6896 8.8 0.011 7.82 0.14 34.84
# These references only report the un-termination performance of MEMS filters.
* The performances are extracted from the provided spectra.
DownLoad: CSV
